Are Carbon Steel Pipe Reducers Your Welding Solution?
In oil and gas facilities, chemical processing plants, power generation systems, and industrial water networks, pipe reducers provide a practical way to connect lines with different diameters without creating an abrupt transition in the piping system. When a project requires a welded connection, the reducer must do more than simply match two pipe sizes. Material grade, wall thickness, end preparation, welding procedure, operating pressure, temperature, and inspection requirements all influence whether the fitting is suitable for the application. Carbon steel pipe reducers are widely considered for welded piping because carbon steel offers a useful combination of mechanical strength, weldability, availability, and cost control. However, the material alone does not guarantee reliable service. The reducer needs to be correctly specified, properly aligned with the adjoining pipe, welded under a suitable procedure, and inspected according to the requirements of the project. This shifts the fundamental issue from "Can carbon steel reducers be welded?" to "Are carbon steel reducers the correct answer for the specific pipe system?" These reducers are used in welded systems. The following sections detail what standards and welding concerns are important and what purchasers should check before ordering.
Why Carbon Steel Reducers Work Well in Welded Piping？
How a Reducer Controls a Change in Pipe Diameter？
A pipe reducer links two pipes of differing nominal diameters and offers a gentle transition between the two. A quick diameter change without a proper transition increases turbulence and local pressure losses and causes unwanted flow disruptions inside the system.
Often reductions are fitted at pumps, valves, processing equipment, and branch connections where the pipe architecture demands a change in diameter. Their shape enables the system to switch from one pipe size to another while still maintaining a continuous flow channel.
This transition is significant, especially for welded pipe, since the reducer becomes part of a permanent piping system. The fitting should consequently meet the size and material requirements of the surrounding pipe, and the end preparation shall be appropriate to the specified welding process.
Why Carbon Steel Is Frequently Used？
Carbon steel remains a realistic option for many industrial pipe systems, as it offers excellent mechanical qualities without the material expense of many stainless steels or nickel-based alloys. The right grade can endure high loads from mechanical and pressure stresses and can still be adapted to typical manufacturing procedures.
Another benefit is its long tenure in industrial fabrication. Manufacturers may make reducers in a variety of sizes and configurations. Welders and fabricators are conversant with the standard carbon steel welding processes. This existing supply chain also eases procurement and replacement for conventional industrial projects.
But carbon steel is not a universal material. The material should be acceptable for service considering the process media, temperature, pressure, corrosion environment, and appropriate design code. A reducer that is satisfactory in a regular utility line may not be adequate for a very corrosive or an extremely high-temperature procedure.
Choosing a Welding Approach for Carbon Steel Pipe Reducers
Butt Welding for Permanent Pipe Connections
For factory-made butt-welding reducers, butt welding is one of the typical methods of attaching the fitting to the surrounding pipe. The prepared ends of the reducer and pipe are aligned. The ends are fitted together and welded together to produce a continuous connection.
The quality of this link is very much dependent on preparation before the arc is initiated. Pipe centrelines must be in proper alignment; joint geometry must be in conformance with the authorised welding technique, and root opening and bevel configuration must be within acceptable tolerances. Poor fit-up may introduce excessive stress, unequal penetration or other weld faults that might impair the final connection.
The actual welding method may be SMAW, GTAW, GMAW or FCAW based on material thickness, project requirements, location, accessibility, manufacturing circumstances and appropriate welding technique. The choice of welding technique should thus be made as part of the whole fabrication operation and not on the grounds merely because one process is commonly regarded as suited for carbon steel.
Matching the Welding Procedure to the Material
Carbon steel reducers may be easy to weld, but carbon steel pipe reducers are not all grades and thicknesses to be welded under the same circumstances. Material composition, wall thickness, joint arrangement, preheating requirements, filler metal choice, heat input, and interpass temperature might impact the quality of the weld.
A welding procedure specification is an authorised document that is followed by fabricators for important industrial pipework. The WPS defines regulated welding settings and offers a consistent base for manufacturing. Depending on the project and governing code, certification of supporting procedures and qualification of welders may be necessary.
This is particularly so in cases when reducers are used in systems where pressure, temperature, vibration or cyclic loads might impose extra demands on the welded connection. A technically suitable welding method gives more control than depending on the generic weldability of carbon steel.
Material and Dimensional Standards Matter
Understanding ASTM A234 WPB
ASTM A234 WPB is a popular material grade defined for carbon steel butt-welding fittings used in pressure pipe applications. This standard covers specifications for the material and manufacture of carbon and alloy steel fittings for pressure service.
Looking for “carbon steel” isn’t enough for buyers. The buy specification should include the grade of material needed and any other criteria that pertain to the application. Confirmation of chemical composition, tensile characteristics, yield strength, heat treatment, impact and other testing procedures may be required, depending on the project.
The traceability of the material is also significant. A good manufacturer should be able to trace the final reducer back to the matching material paperwork and heat number so project workers can check what material went into production.
Using ASME B16.9 for Dimensions
The most frequent reference for factory-made wrought butt-welding fittings is ASME B16.9. It gives dimensions and tolerance specifications which make it easy to put together fittings made by various manufacturers in standardised pipe systems.
For a reduction, dimensional precision involves more than just looks. Outside diameters, centre-to-end dimensions, wall thickness, end preparation and tolerances may influence fit-up and installation. A fitting with incorrect dimensions, even if it has a suitable material certificate, might cause needless fabrication complications for the attached pipe.
When using reducers in process pipes, ASME B31.3 may also be applicable. B31.3 deals with the larger process piping system comprising design, fabrication, assembly, examination, inspection and testing requirements rather than a fitting dimensions standard. The relevant standard should thus be based on the whole project specification and not chosen in isolation.
Installation Details That Affect Welded Reducer Performance
Proper Alignment Starts Before Welding
Good fit-up cannot be compensated by good welding. Prior to welding, the reducer should be positioned such that the centreline and geometry of the junction adhere to the piping design and the reducer is aligned with the adjacent pipe.

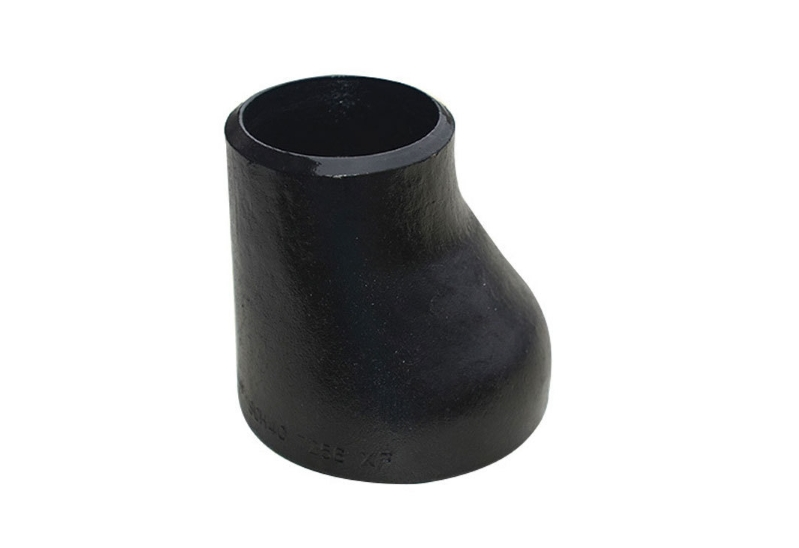

This is especially critical when installing eccentric reducers. Because the two ends are offset rather than concentric, the orientation might affect drainage, flow behaviour, equipment clearance and the potential to create undesired pockets in certain pipe designs. For example, the orientation of the reducer may be defined near pumps to support the flow arrangement desired and prevent situations which might interfere with operation.
Surface preparation is equally crucial. Dirt, moisture, oil, paint, scale and other impurities around the weld may affect weld quality. The specific cleaning and preparation needs should be in accordance with the appropriate welding method.
Control Heat Input and Preheating
Indeed, process control is necessary for carbon steel welding, especially if the material is somewhat thick or if project specifications need preheating and interpass temperature restrictions.
Too much heat input may alter the characteristics of the heat-affected zone, while too little heat input can result in lack of fusion or penetration. When welding carbon steel pipe reducers, certain materials and thicknesses may also need preheating to minimise the possibility of hydrogen cracking.
The parameters are dependent on the material and qualified welding process, so you should not apply a generic figure of temperature or current to any reduction. Experienced fabricators will use the relevant WPS and project criteria to create proper welding conditions.
Inspection and Quality Control for Welded Reducers
Visual Inspection Provides the First Check
Visual examination is often one of the initial phases of inspection following welding. An inspector may check the weld profile, surface quality, alignment, apparent discontinuities and overall craftsmanship.
Visible fractures, severe undercut, poor weld form, surface porosity, arc strikes and other anomalies may be indicative of a need for more study. Internal discontinuity is not detectable by visual examination, yet it is a critical initial quality control level and may be done without harming the fitting.
When Ultrasonic or Radiographic Testing Is Required？
High-frequency sound waves are used to examine the internal discontinuities of a material and weld area via ultrasonic testing. It is beneficial when internal weld integrity is crucial and where the inspection process and component shape are suitable for ultrasonic inspection.
Radiographic testing employs X-rays or gamma radiation to generate a picture of the area being investigated. It is capable of revealing certain internal discontinuities and has been used for many years to examine welded pipe components.
No approach should be automatically considered better in all applications. The correct NDT technique will depend on the material, thickness, weld joint arrangement, project code, acceptance criteria and inspection scope. Some projects may specify more than one type of inspection.
Magnetic Particle Testing for Surface Discontinuities
Magnetic particle testing may be used to identify surface and near-surface discontinuities in ferromagnetic materials such as carbon steel. It is helpful in finding microscopic fractures or other discontinuities that are not readily apparent on a visual inspection.
The inspection strategy should be centred on the needs of the pipe system rather than implementing NDT methods on every potential reducer. The final inspection scope is governed by project specification, relevant code, service circumstances and criticality of the pipe.
Traceability Makes Quality Easier to Verify
"For industrial purchasers, documentation is a key aspect of the quality of the reducer. A fitting may match the dimensional requirements, but the project team also has to see if the provided material and manufacturing method meet the buy specification.
Documentation might comprise a material test certificate, dimensional inspection records, heat-number traceability, welding qualification records and NDT reports, depending on the project. These records enable engineers and quality workers to relate the completed product to its material and inspection history.
If you are buying fittings in bulk numbers for a project, traceability has specific value. Positive identification prevents the possibility of mixing various grades of material or losing inspection records during installation.
How to Evaluate a Carbon Steel Reducer Manufacturer？
Manufacturing Capability Should Match the Project
A supplier should be evaluated on more than price and product availability. Buyers should consider whether the manufacturer has the equipment, technical experience, inspection capability, and production consistency required for the intended application.
For standard projects, this may involve confirming available carbon steel pipe reducers sizes, material grades, dimensions, and production capacity. More demanding projects may require customised wall thicknesses, special dimensions, additional testing, or detailed traceability.
A manufacturer with established quality-control procedures can also provide clearer documentation and more consistent results between production batches. This matters when a project requires large numbers of reducers that must fit the same piping design.
Customisation Can Solve Fit-Up Challenges
Not every piping project can be completed using a basic standard configuration. Existing pipe layouts, equipment connections, space limitations, and project-specific requirements may require a particular reducer size, wall thickness, material grade, or dimensional arrangement.
Before ordering, engineers and buyers should provide the supplier with the applicable drawings and technical specifications whenever possible. Confirming the nominal pipe sizes, end-to-end dimensions, wall thickness, material grade, applicable standards, and inspection requirements before production can prevent costly corrections later.
A supplier that can discuss these details with the engineering or procurement team is generally more useful than a vendor that only provides a catalogue dimension and a price.
Where Carbon Steel Pipe Reducers Are Commonly Used？
Oil and Gas Systems
Oil and gas facilities frequently contain extensive welded piping networks in which pipe diameter changes are required around pumps, processing units, valves, and other equipment. Carbon steel reducers may be suitable for these systems when the material grade and design requirements match the operating environment.
Pressure, temperature, process medium, corrosion conditions, and inspection requirements all need to be considered. In more demanding environments, material selection may require additional engineering review rather than relying solely on the general advantages of carbon steel.
Chemical and Power Facilities
Chemical plants and power generation facilities also rely heavily on welded piping. Reducers in these systems may be exposed to elevated temperatures, pressure cycles, vibration, or process fluids with specific material compatibility requirements.
The reducer therefore needs to be considered as part of the complete piping assembly. Its material, dimensions, welding procedure, and inspection requirements should be consistent with the surrounding pipe and the applicable project code.
Water Treatment and Industrial Utility Networks
Water treatment plants and industrial utility systems use reducers to connect lines of different sizes and accommodate changes in equipment or piping layout. These applications can be less demanding than some process systems, but material selection still depends on water chemistry, pressure, temperature, installation conditions, and maintenance expectations.
For long-running utility networks, a correctly specified reducer can simplify installation and replacement while maintaining compatibility with the existing piping system.
Conclusion
Carbon steel pipe reducers can be an effective welding solution when their material grade, dimensions, end preparation, and service conditions are properly matched to the piping system. Their combination of mechanical strength, established weldability, availability, and relatively controlled material cost makes them suitable for many industrial applications.
The key is not to treat the reducer as an isolated fitting. A reliable welded connection depends on correct material selection, appropriate welding procedures, accurate alignment, controlled fabrication, and inspection that matches the project requirements. Standards such as ASTM A234 WPB and ASME B16.9 can provide an important framework for material and dimensional control, while the broader piping code determines how the component fits into the complete system.
For procurement teams, supplier capability is equally important. Before placing an order, it is worth confirming the material grade, dimensions, wall thickness, applicable standards, inspection scope, traceability requirements, and supporting documentation. When those details are controlled from specification through production and inspection, carbon steel reducers can provide a practical and dependable connection between different pipe sizes across demanding industrial piping systems.
For more information on our high-quality carbon steel pipe reducers and other piping products, please contact us at oudi-04@oudiguandao.com.
References
1. Smith, J. (2019). Advanced Welding Techniques for Carbon Steel Pipe Fittings. Journal of Welding Technology, 45(3), 178-192.
2. Johnson, A., & Brown, M. (2020). Standards and Specifications for Carbon Steel Pipe Reducers in Industrial Applications. Industrial Piping Systems, 12(2), 56-71.
3. Thompson, R. (2018). Best Practices for Installing and Inspecting Welded Carbon Steel Fittings. Piping Engineering Handbook, 3rd Edition. New York: Springer.
4. Davis, E., & Wilson, K. (2021). Non-Destructive Testing Methods for Welded Carbon Steel Pipe Components. NDT International, 87, 102-115.
5. Lee, S., & Park, H. (2017). Comparative Analysis of Concentric and Eccentric Carbon Steel Pipe Reducers in High-Pressure Systems. Journal of Pressure Vessel Technology, 139(4), 041302.
6. Anderson, L. (2020). Welding Procedure Optimisation for Carbon Steel Pipe Reducers in Oil and Gas Applications. Petroleum Engineering Journal, 56(3), 245-259.
