How Do Butt Weld Elbows Enhance Corrosion Resistance in Piping?

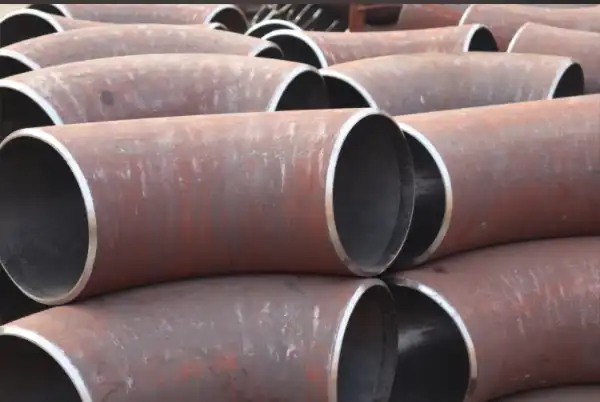

Butt-weld elbows are widely used in industrial piping because they create a permanent welded connection between the elbow and adjoining pipe. Their value in corrosion control does not come from the elbow shape alone. Instead, the welded union may remove some of the gaps, leakage routes, and discontinuities common to mechanical connections. The chosen material and welding quality affect the performance of the fitting in a given service environment.

Corrosion is a serious problem in oil and gas facilities, chemical processing plants, power generating systems, water treatment facilities, and other industrial equipment. Piping may be subjected to moisture, chlorides, hydrocarbons, acids, process chemicals, temperature variations, and pressure fluctuations. It is seldom adequate to choose a fitting based on nominal size alone. The connecting technique, material grade, surface condition, manufacturing process, and operational environment should all be evaluated together.

When installed, a correctly chosen butt weld elbow makes a continuous welded assembly and a generally smooth transition between changes in pipe direction. This may be especially effective if eliminating leakage points, avoiding needless internal discontinuities, and preserving mechanical integrity are crucial. But it does not mean that a fitting is corrosion resistant just because it is welded. The real performance will depend on the material and the circumstances in which it functions.

Why Welded Elbow Connections Can Help Limit Corrosion Risks？

A More Continuous Connection With Fewer Crevice-Prone Areas

A major benefit of a butt-welded connection is its continuity. Once the junction is made, a correctly welded elbow is part of the pipe assembly. Threaded connections include threads and mating surfaces that may trap minute gaps.

Those changes may be important in wet or chemically harsh service. Small cracks may hold moisture, deposits, or process fluids, generating localized conditions that may trigger corrosion. Butt welds don't have the same kind of threaded engagement if done correctly; therefore, there are fewer geometric characteristics at the junction to trap impurities.

This does not imply that welding gets rid of rust. A poorly prepared joint or a weld discontinuity, a polluted surface, or an inadequate material may nevertheless provide a local corrosion problem. In practice this connection shape reduces the number of crevices that engineers have to deal with compared with certain mechanical connection solutions.

This may make a significant impact in pipes transporting industrial fluids where cleanliness and leakage control are crucial. This advantage is particularly important when the system is developed based on suitable materials, regulated welding techniques, and inspection requirements.

Smoother Internal Geometry Can Support Cleaner Flow

Elbows inherently alter the direction of fluid flow, and the internal geometry of the elbow determines how the fluid moves through the pipe system. A well-produced butt weld elbow, when properly matched with the neighboring pipe and properly aligned, produces a continuous bore transition.

This is advantageous if interior deposits or stagnation regions are undesired. Reduced internal abrupt discontinuities may limit areas for particles, moisture, or process residues to collect. The actual flow behavior still relies on elbow radius, pipe diameter, flow velocity, fluid characteristics, and system design.

The interior state of the weld is important too. Excess weld reinforcement, misalignment, or surface imperfections might cause turbulence or local build-up to the intended design. Therefore, it is not sufficient to only specify a welded connection. The quality of fabrication must support the specified internal condition of the pipe system.

Mechanical Integrity Matters When Corrosion and Stress Occur Together

Corrosion and mechanical loading are not usually separate actions. Industrial pipes may be subjected to vibration, thermal expansion, pressure cycling, and movement due to variations in operating temperature. Where these stresses are focused at a connection, a flaw in the current material or weld may grow more substantial over time.

If the joint has been carefully constructed and welded, a butt-welded elbow will be a permanent connection and may give strong structural continuity. This makes the connection acceptable for many demanding industrial systems where the repetitive movement or vibration has to be regulated.

The important thing is that the strength of the joint and corrosion resistance are two independent qualities. A good weld does not mean corrosion resistance of the adjacent material. It is the combination of good material, excellent welding procedure, adequate alignment, and appropriate inspection that allows the elbow to retain its intended service performance.

Material Selection Still Determines Much of the Corrosion Performance

Carbon Steel Requires the Right Corrosion Control Strategy

Carbon steel continues to be a popular option for industrial plumbing due to its beneficial balance of strength, availability, and affordability. But it is not naturally corrosion resistant in moist or chemically harsh settings.

Depending on the application, engineers may need to consider exterior coatings, internal corrosion control, water chemistry, process conditions, corrosion inhibitors, or other precautions when using carbon steel butt-weld elbows. So the right choice relies not only on the elbow connection technique but also on the fluid conveyed and the working environment.

Properly designed carbon steel may offer adequate performance in dry gas, some hydrocarbon services, general utility systems, and other appropriate applications. In water, oxygen, chlorides, or strong chemicals are more factors for corrosion that become more relevant.

Stainless Steel Can Be Selected for More Aggressive Service

The corrosion resistance of stainless steel is different because, under certain circumstances, the chromium present may create a passive surface coating. Therefore, stainless steel butt-weld elbows are often used for many situations where carbon steel would need extra corrosion protection.

However, stainless steel should not be called corrosion-resistant. Performance degradation may occur in chloride situations, high temperatures, pollution, poor surface conditions, and exposure to specific chemicals. Therefore, the choice of materials should be based on the particular process environment and not on an overall assumption that all stainless grades function equally well.

The manufacturing process is crucial, too. Welding may change the state of the material around the joint, and surface pollution or iron particles left on stainless steel can affect the intended surface performance. Cleaning and passivation, if applicable, may thus be part of the overall corrosion protection approach.

Alloy Selection Should Match the Process Environment

In certain pipe systems, the chemical environment or operating temperatures make it impossible to use carbon steel or stainless steel. If the combination of temperature, pressure, chemical, and mechanical requirements dictates a more specialized material, then alloy steels and other corrosion-resistant alloy systems may be employed.

The crucial thing isn't merely to choose a “stronger” alloy. Engineers must consider the actual composition of the process fluid, operating temperature and pressure, projected exposure time, and project parameters that are appropriate. Materials that work well in one process environment may not provide the same resistance in another.

This is why the material grade of a butt weld elbow has to be traceable to the pipe specification and backed by the required material documentation. El codo tiene que ser evaluado como parte del sistema completo y compatible with la tubería y el resto del sistema.

Welding Quality Can Affect Local Corrosion Performance

Preparation and Fit-Up Should Be Controlled Before Welding

Bad installation procedures cannot be compensated for by a good quality elbow. Prior to welding, the pipe and fitting should be correctly aligned, cleaned, and prepared in accordance with the appropriate welding technique and project requirements.

Surface impurities such as oil, moisture, dirt, and other residues may affect welding quality. Poor fit-up may also result in excessive gaps, misalignment, or other issues that damage the finished joint.

Thus, the proper preparation has a double function. It maintains the weld’s mechanical integrity and helps eliminate avoidable surface or joint situations that may lead to subsequent corrosion difficulties.

Weld Defects Need to Be Addressed Rather Than Hidden by Coatings

Particular care should be paid to the weld area since discontinuities may influence the mechanical performance and corrosion behavior. Depending on the material and service, cracks, lack of fusion, severe undercut, porosity, or other weld flaws not meeting acceptable standards may be required to be evaluated in accordance with the appropriate inspection criteria.

A coating should not be considered a replacement for a sound weld. A flaw that occurs under a protective system may be hidden by the coating rather than solved. Hence, inspection and quality control must be included in the manufacturing process and not simply in the finishing of the fitting.

For demanding applications, the inspection process may entail visual examination and such other non-destructive testing as defined by the project. The scope of inspection is to be decided by relevant code, material, service circumstances, and quality criteria.

Post-Weld Treatment Depends on Material and Service

However, post-weld heat treatment is not automatically needed for all butt-weld elbows. The need for PWHT relies on the material grade, wall thickness, welding technique, service circumstances, and applicable code or specification.

Where PWHT is necessary, it may assist in managing residual stresses and meeting the mechanical or metallurgical qualities specified in the appropriate specification. Therefore, it should be seen as a regulated engineering procedure, not as a general corrosion treatment.

Another factor to consider is stainless steel. Cleaning and passivation may be used to enhance or restore the surface quality after manufacturing depending on the grade and application. The treatment should be chosen on the basis of the material and service and not administered indiscriminately to every elbow.

Protective Measures Can Extend Service Performance

Coatings Are Primarily an Environmental Barrier

Coatings can provide an additional barrier between a pipe fitting and its surrounding environment, particularly when external corrosion is a concern. The appropriate coating system depends on whether the elbow is installed above ground, underground, in a marine environment, or in another setting with specific exposure conditions.

Fusion-bonded epoxy, polyurethane, and other coating systems may be used in suitable applications. Their performance depends on surface preparation, coating compatibility, application quality, thickness, curing conditions, and environmental exposure.

For this reason, specifying a coating by name is not enough. The coating system should be selected according to the actual service environment and the requirements of the overall piping project.

Surface Condition Should Be Maintained After Fabrication

Corrosion protection does not end when manufacturing is completed. Storage, transportation, handling, installation, and field welding can all affect the surface condition of an elbow.

An otherwise suitable fitting can develop premature surface problems if protective coatings are damaged or if the component is exposed to moisture and contaminants during storage. Proper handling and inspection before installation help preserve the condition established during manufacturing.

This is particularly important when elbows are supplied for projects with long procurement or construction schedules. Material identification and protection should remain traceable throughout the supply chain so that the correct fitting reaches the intended installation location.

How Butt Weld Elbows Compare With Threaded and Flanged Connections？

Welded Connections Avoid Some Thread-Related Corrosion Concerns

Threaded elbows can be convenient for certain applications, particularly where disassembly is required or where the system is designed around smaller pipe sizes and appropriate pressure conditions. However, threaded geometry creates mating surfaces and crevices that may retain moisture or process residues.

Butt-welded elbows offer a different approach because the fitting is permanently joined to the pipe. This can reduce the number of crevice-prone features at the connection and can also provide greater structural continuity for systems exposed to vibration or thermal movement.

The choice should still be based on the application. Butt-weld elbows are not automatically superior in every situation, especially where regular disassembly or maintenance access is a primary requirement.

Flanged Connections Offer Serviceability but Add Sealing Components

Flanged connections remain valuable where equipment needs to be removed, inspected, or replaced. Pumps, valves, heat exchangers, and other equipment often benefit from connections that can be separated without cutting the pipe.

The trade-off is that flanged joints normally rely on additional components such as gaskets and bolting. These components require appropriate installation and maintenance, and gasket or sealing problems can create leakage that affects nearby surfaces.

Butt-weld elbows avoid the gasketed joint at the elbow itself, which can be useful in permanent piping runs. However, the decision between welding and flanging should be based on the entire system design rather than corrosion resistance alone.

What Engineers Should Check Before Purchasing Butt Weld Elbows？

Match the Elbow to the Pipe Specification

The first step is confirming that the elbow matches the pipe in size, wall thickness, material requirements, and connection dimensions. Factory-made wrought butt-welding fittings are commonly specified according to standards such as ASME B16.9, but the applicable project specification may impose additional requirements.

Material grade also needs to be verified against the piping specification. A fitting with the correct nominal diameter but the wrong material grade does not provide a suitable engineering solution.

For procurement teams, traceability is particularly important. Material test documentation, heat or batch identification, dimensional inspection records, and other required quality documents can help verify that the supplied fittings correspond to the approved specification.

Evaluate the Supplier's Manufacturing and Quality Controls

Supplier evaluation should go beyond price and nominal dimensions. For corrosion-sensitive applications, buyers should understand how the manufacturer controls raw material sourcing, forming, welding-related processes where applicable, heat treatment, dimensional inspection, surface condition, marking, and documentation.

A reliable supplier should be able to explain how product identity is maintained from raw material through final inspection. This is especially useful when a project involves multiple material grades, pressure classes, or different piping systems.

The supplier's ability to provide consistent documentation also matters. Clear material certificates, inspection records, dimensional information, and product identification make it easier for engineering and quality teams to verify that the delivered elbows meet project requirements.

Consider the actual operating environment before finalizing the order.

Corrosion resistance should always be evaluated against the real operating environment. The chemical composition of the fluid, water content, chloride level, temperature, pressure, flow conditions, external atmosphere, and expected service life can all influence the appropriate elbow specification.

This approach prevents a common procurement mistake: selecting a fitting simply because it is described as corrosion-resistant. In practice, corrosion performance comes from the interaction between material, connection design, fabrication quality, surface condition, protective measures, and operating conditions.

Conclusion

Butt-weld elbows can contribute to better corrosion control in industrial piping by providing a continuous welded connection with fewer crevice-prone features than some mechanical connection methods. Their smooth connection geometry can also support cleaner internal flow and reduce certain leakage paths, while their permanent welded construction can provide strong structural continuity in demanding piping systems.

However, the corrosion performance of a butt weld elbow cannot be judged from the connection method alone. Material grade, fluid chemistry, temperature, pressure, welding quality, surface preparation, post-weld treatment, protective coatings, and inspection practices all influence how the fitting performs during service.

For engineers and procurement teams, the most reliable approach is to evaluate the elbow as part of the complete piping system. Matching the material and dimensions to the project specification, verifying manufacturing quality, maintaining traceability, and considering the actual service environment can help ensure that the selected fitting provides the combination of corrosion resistance, mechanical integrity, and service life the application requires.
