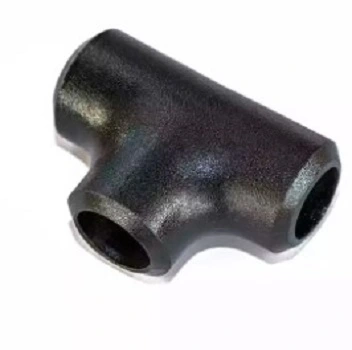

How to Calculate the Wall Thickness of a Steel Pipe Tee?

The wall thickness of a steel pipe tee cannot be selected by looking at pipe diameter alone. A tee has a branch opening that changes the way pressure and external loads are distributed through the fitting, particularly around the area where the branch joins the run. For this reason, a preliminary pressure calculation can provide a useful starting point, but the final wall thickness should also be checked against the applicable piping code, fitting standard, material grade, corrosion allowance, manufacturing tolerance, and service conditions. For engineers and purchasing teams, the calculation is most useful when it is treated as part of a larger design process rather than as a single formula. The design pressure and temperature establish the basic loading conditions, while the pipe size and material determine how much wall is required to contain that pressure. The tee geometry, branch connection, reinforcement, external loads, and expected service life then determine whether the selected thickness is suitable for the actual application. Understanding this relationship makes it easier to specify a steel pipe tee accurately and avoid choosing a fitting that is either under-designed or unnecessarily heavy.

What Information Is Needed Before Calculating Tee Wall Thickness?

Start With Design Pressure and Temperature

The first inputs should come from the piping design rather than from the fittings catalogue. Design pressure represents the pressure that the component is required to withstand under the specified design conditions, while design temperature affects the allowable stress of the selected material. Using normal operating pressure instead of design pressure can result in an inadequate calculation because the fitting must be evaluated for the design conditions established for the system.

Temperature is equally important. Steel does not retain exactly the same allowable stress across all temperature ranges, so a material that appears suitable at ambient conditions may have a different allowable stress at elevated temperatures. The design calculation should therefore use the allowable stress applicable to the selected material and design temperature under the governing code.

Confirm Pipe Size, Outside Diameter, and Tee Configuration

Pipe size is another basic input, but the geometry should not be reduced to nominal pipe size alone. The calculation may require the actual outside diameter, while the tee itself also has a run diameter, a branch diameter, centre-to-end dimensions, and a particular wall profile.

A reducing tee, for example, does not have the same geometry as an equal tee. The smaller branch creates a different opening and local stress pattern, which can affect the required reinforcement around the branch connection. The manufacturing method can also influence the final geometry.

Before calculating a steel pipe tee, it is therefore useful to establish whether the fitting is an equal tee or reducing tee, whether it is seamless or welded, and which dimensional standard applies to the finished fitting.

Identify the material grade and allowable stress

The steel grade should be confirmed before the wall calculation is performed. Carbon steel and alloy steel grades can have different yield strengths, tensile strengths, temperature limits, and allowable stresses. Even within carbon steel products, the allowable stress is not necessarily identical for every grade or temperature range.

For example, a calculation based on one material grade should not automatically be applied to a tee manufactured from another grade simply because the nominal pipe size is the same. The material designation, applicable material specification, and allowable stress at the design temperature should all be verified.

This step is particularly important when a project specifies a particular ASTM or ASME material grade. The selected wall thickness must be compatible with both the pressure design and the material requirements of the project.

How Does the Pressure Formula Provide a Starting Point?

Use the Straight-Pipe Equation as a Preliminary Check

For a preliminary pressure-wall calculation, engineers may use the pressure design relationship found in applicable piping design rules:

[t=\frac{PD}{2(SE+PY)}] where t represents the calculated pressure wall thickness, P is the internal design pressure, D is the applicable pipe diameter, S is the allowable stress of the material at the design temperature, E is the quality or weld-joint efficiency factor where applicable, and Y is the coefficient specified by the governing design rule.

This relationship is useful for understanding how the main variables interact. Increasing design pressure generally increases the required wall thickness, while a larger diameter increases the pressure load that must be contained. A material with a higher allowable stress can reduce the required pressure wall thickness under otherwise comparable conditions.

However, this equation should not be presented as a complete design equation for every steel pipe tee. A tee is not simply a straight pipe with a hole cut into its side. The branch opening interrupts the pressure boundary and produces local stresses around the intersection. The final design therefore needs to account for the geometry and reinforcement requirements of the branch connection.

Understand Why a Tee Needs More Than a Simple Wall Calculation？

The run and branch of a tree meet at a geometric discontinuity. Internal pressure acts on the fitting, but the resulting stress distribution is not uniform in the same way it would be in a long, straight section of pipe. Local membrane and bending stresses can develop around the branch connection, particularly when the fitting is subjected to additional loads from connected piping.

This is why a calculated straight-pipe thickness should normally be regarded as a preliminary reference rather than the final answer. Depending on the application, the tee may need to be evaluated using the relevant branch-connection rules, fitting standards, reinforcement requirements, or a more detailed engineering assessment.

For standard fittings manufactured within an established dimensional and material standard, the supplier may already have a defined geometry and manufacturing specification. For non-standard or highly loaded fittings, additional engineering verification may be required.

Which Factors Can Increase the Required Wall Thickness?

Add the Appropriate Corrosion Allowance

The pressure calculation determines the thickness required to withstand the design loading, but the fitting may gradually lose metal during service. If the process fluid or surrounding environment is corrosive, a corrosion allowance may be added to the calculated pressure thickness.

The allowance should be based on the expected service environment and design life rather than on an arbitrary value. Factors such as the process medium, corrosion mechanism, operating conditions, and expected corrosion rate can affect the amount required.

For example, if a design calculation produces a pressure wall requirement of 6 mm and the engineering specification calls for a 2 mm corrosion allowance, the resulting required thickness would be greater than the pressure-only value. The final nominal thickness must then also account for the applicable manufacturing tolerance and standard dimensional requirements.

The important point is that corrosion allowance is a design input, not a universal number that can be applied to every steel pipe tee.

Account for Manufacturing Tolerance

The nominal wall thickness shown on a drawing is not necessarily the same as the minimum thickness that will be measured on every part of a finished fitting. Manufacturing processes have allowable dimensional variations, and the applicable material or fitting standard may specify permitted negative wall-thickness tolerance.

This matters because a design calculation normally establishes a required minimum thickness, while the manufacturer has to select a nominal thickness that can still satisfy that minimum after manufacturing variation is considered.

Consequently, simply selecting a nominal wall thickness equal to the calculated value can be unsafe if the applicable tolerance is not included in the design process. The relationship between required minimum thickness and nominal thickness should be checked against the relevant material and manufacturing standards.

Consider Erosion and Service Conditions

Corrosion is not the only mechanism that can reduce wall thickness. High-velocity fluids, suspended solids, flow turbulence, and certain process conditions can contribute to erosion or accelerated material loss.

This can be particularly relevant around fittings because changes in flow direction and geometry can create local flow disturbances. If the service is known to involve erosive conditions, the engineer may need to consider an additional design margin or select a more suitable material and geometry.

The correct approach depends on the process rather than on the tee size alone. A fitting carrying clean water at moderate velocity may face very different wall-loss conditions from a fitting carrying abrasive slurry or a high-velocity process fluid.

How Do Tee Size and Geometry Affect the Calculation?

Equal and Reducing Tees Do Not Behave Identically

An equal tee has the same nominal diameter on the run and branch, while a reducing tee has a smaller branch. Although both are commonly used to divide or combine flow, their geometry is different, and so is the stress distribution around the branch opening.

A reducing tee may require particular attention to the transition between the run and branch. The branch size, run size, fitting profile, and local wall thickness all contribute to the strength of the connection.

This is one reason why a general statement such as “a larger steel pipe tee means a proportionally thicker wall” is not sufficient for engineering design. The relationship between size and thickness depends on the complete geometry and loading condition.

Large-Diameter Tees Require More Careful Evaluation

As diameter increases, the surface exposed to internal pressure increases, and the mechanical behavior of the fitting becomes more sensitive to geometry. A large-diameter tee should therefore not be designed simply by multiplying the wall thickness of a smaller tee by a fixed scaling factor.

For standard fittings, established dimensions and applicable standards provide a practical basis for selecting the fitting. For custom large-diameter tees, however, additional calculations may be needed to verify the branch connection and local stress distribution.

This is also where manufacturing considerations become more important. Forming, welding, heat treatment, machining, and inspection requirements can all influence the final fitting design. The engineering thickness must be achievable through the intended manufacturing process without compromising dimensional accuracy or material properties.

Pay Attention to the Branch Connection Area

The branch connection is usually the area that deserves the most attention in a tee because the opening interrupts the continuity of the run. If the branch connection does not have sufficient strength, increasing the wall thickness of the straight sections alone may not solve the underlying design issue.

Depending on the design, reinforcement can be achieved through the geometry of the tee itself or through other permitted design features. The applicable piping code and fitting standard should determine how the branch connection is evaluated.

For this reason, a wall-thickness calculation should always be considered together with the tee geometry. A single number without information about the branch diameter, run diameter, material, pressure, temperature, and standard does not provide enough information to approve a fitting for service.

How Do External Loads Change the Required Wall Thickness?

Pressure Is Only One Part of the Design Load

Internal pressure is an important design condition, but piping fittings also experience mechanical loads transmitted from the connected pipework. Thermal expansion can generate forces and moments, while the weight of connected components can place additional loads on the fitting. Vibration, wind, seismic loading, and equipment movement may also become relevant depending on the installation.

These loads can be particularly significant at the branch connection because the tee changes the direction and continuity of the piping system. A fitting that passes a pressure-only calculation may still require further assessment if it is subjected to substantial external bending or axial loads.

Therefore, the selected wall thickness should be checked against the actual piping arrangement rather than evaluated as an isolated component.

Consider Fatigue When Pressure or Loads Cycle

Repeated pressure fluctuations and mechanical loading can produce fatigue damage over time. This becomes more relevant when a tee is exposed to frequent start-stop cycles, pulsating pressure, thermal cycling, or repeated mechanical vibration.

Fatigue assessment is not simply a matter of adding more wall thickness. The stress range, number of cycles, material properties, local geometry, and stress concentration all influence fatigue behavior. A thicker wall may reduce some stresses, but the branch geometry remains an important part of the assessment.

For applications involving a steel pipe tee and significant cyclic loading, engineers may therefore need a more detailed stress analysis rather than relying solely on a basic pressure-wall calculation.

How Should the Final Wall Thickness of a Steel Pipe Tee Be Verified?

Compare the calculation with the applicable standard

Once the preliminary thickness has been calculated, the result should be compared with the applicable fitting and piping standards. ASME B31.3 may govern the piping design for process systems, while standards such as ASME B16.9 may define dimensional and manufacturing requirements for applicable butt-welding fittings.

The exact standards depend on the project, service, fitting type, material, and jurisdiction. The purpose of this comparison is to make sure that the selected tee is not only capable of containing pressure but also conforms to the required dimensions and manufacturing specifications.

The final nominal wall thickness may therefore be greater than the theoretical minimum calculated from pressure alone. This is not necessarily a sign of over-design; it can reflect standard dimensions, corrosion allowance, manufacturing tolerance, reinforcement requirements, or project specifications.

Use Engineering Analysis for Complex or Highly Loaded Tees

For a standard tee used within its intended dimensional and pressure range, established design rules and standard fitting dimensions may provide an adequate engineering basis. More complex fittings can require additional analysis.

Finite element analysis can be useful when the geometry is non-standard or when local stresses need to be investigated in greater detail. A properly constructed model can show how stresses are distributed around the branch intersection and help engineers assess whether the selected geometry performs adequately under the specified loads.

FEA should support the engineering calculation rather than replace the governing design code. The assumptions, material properties, boundary conditions, mesh quality, and acceptance criteria all affect the usefulness of the result.

Confirm Actual Thickness During Inspection

The design value and the manufactured value should also be distinguished during inspection. Dimensional inspection can verify the actual wall thickness at relevant locations, while material certificates and other quality documents can confirm that the supplied material corresponds to the specified grade.

For critical applications, inspection requirements may include dimensional checks, non-destructive testing, material verification, and other examinations specified by the project or applicable standard. The inspection plan should reflect the service conditions and the level of risk associated with the piping system.

This provides a practical connection between design and manufacturing: the engineer establishes the required minimum condition, the manufacturer produces the fitting within the specified requirements, and inspection verifies that the finished product meets those requirements.

Conclusion

Calculating the wall thickness of a steel pipe tee is a multi-stage engineering process rather than a matter of applying one formula to the tee diameter. A pressure-based equation can provide a useful preliminary thickness, but the final selection must also consider the tee's branch geometry, material allowable stress, design temperature, corrosion allowance, manufacturing tolerance, external loads, fatigue conditions, and the requirements of the applicable piping and fitting standards.

The most reliable approach is to begin with the actual design conditions, establish the preliminary pressure wall requirement, and then evaluate the tee as a complete fitting. For standard applications, the relevant dimensional and piping standards can provide much of the necessary design framework. For non-standard or heavily loaded fittings, detailed stress analysis or FEA may be appropriate. During procurement, providing the supplier with complete design information also helps ensure that the selected tee matches the connected piping and the intended service.

A properly selected wall thickness balances pressure capacity, service life, manufacturability, and project cost. By treating the calculation as part of the overall piping design rather than as an isolated numerical exercise, engineers and buyers can select steel pipe tees that are better matched to the actual operating conditions and project requirements.

For more information or assistance with steel pipe tee specifications, please contact us at oudi-04@oudiguandao.com.

References

1. ASME B31.3-2018, "Process Piping," American Society of Mechanical Engineers, New York, 2018.

2. Nayyar, M.L., "Piping Handbook," 7th Edition, McGraw-Hill, New York, 2000.

3. Kannappan, S., "Introduction to Pipe Stress Analysis," John Wiley & Sons, New York, 1986.

4. Smith, P., and Van Laan, R., "Piping and Pipe Support Systems: Design and Engineering," McGraw-Hill, New York, 1987.

5. Antaki, G.A., "Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair," CRC Press, Boca Raton, 2003.

6. Chuse, R., and Carson, B.E., "Pressure Vessels: The ASME Code Simplified," 8th Edition, McGraw-Hill, New York, 1993.
