How to Store and Transport Carbon Steel Flanges Correctly?



Carbon steel flanges are widely used to connect pipes, valves, pumps, and other equipment in industrial piping systems. Much of a flange’s dimensional precision and mechanical performance is determined in the production process, but after the items leave the plant, appropriate storage and shipping are as critical. Improper packing or handling may result in a properly constructed flange reaching the construction site with surface corrosion, broken sealing faces, bent edges, or missing identification. So storage should be seen as part of the product preservation responsibility by buyers, distributors, and project contractors, and not just warehouse work. The purpose is to keep carbon steel flanges dry, clean, recognizable, and mechanically protected until they are ready for installation. The proper procedure relies on the size of the flange, its condition, the length of anticipated storage, the manner of transit, and environmental exposure. Most potential transportation and storage difficulties may be avoided if the right packaging is used, the product is handled carefully, and it is regularly inspected.

Prepare Carbon Steel Flanges Before Storage

Inspect the Surface and Machined Areas

Before carbon steel flanges are put into storage, their condition should be verified against the purchase documentation and inspection records. The flange size, material grade, pressure class, standard, quantity, and identifying marks should coincide with the order. Where material traceability is necessary, heat numbers or other identification should also be readable and associated with the applicable paperwork.

The physical condition of the flange demands similar care. Pay special attention to the sealing face, bolt holes, outside diameter, raised face, and other machined surfaces. These surfaces should not contain severe scratches, impact marks, evident deformation, or active corrosion. A little amount of surface discoloration is not always comparable to significant corrosion, but any condition that might impact dimensional correctness or sealing function should be examined before the flange is allowed into long-term storage.

Inspection is especially critical when things have already gone a considerable distance from the maker. Whether the damage is identified before it is stored, it is much simpler to ascertain whether it happened during production, loading, or transit.

Keep the Flanges Clean and Dry

Corrosion of uncoated carbon steel surfaces may be accelerated by impurities such as dirt, water, and salts. It is desirable, therefore, that the flange be free of standing damp and sufficiently clean prior to shipping. If the items have been exposed to rain or dampness, they should be dried before packing.

This is particularly significant in that packing traps moisture, not removes it. A plastic wrap over a damp flange could generate a humid microclimate around the metal surface and so increase the chance of corrosion during storage. The optimum protective packaging is achieved when the product is dry and the materials used are acceptable for the predicted storage conditions.

The kind of protective oil, coating, paper, or film that must be chosen according to the product specification and the planned use for temporary corrosion protection. The purpose is to preserve the carbon steel without generating a future difficulty for cleaning, painting, welding, or installation.

Create a Storage Environment That Limits Corrosion

Control Moisture Rather Than Relying Only on Temperature

When storing carbon steel flanges for long periods, one of the key issues is moisture. A clean, dry, enclosed warehouse is generally preferable to an open yard in which products are directly exposed to rain, condensation, and changing weather.

There is no one temperature setting that applies to all flange storage situations. In practice it is more practical to have every warehouse in a narrow temperature range than to try and keep conditions dry and stable. Warm humid air hitting cooler metal surfaces can also cause condensation. Keeping the environment from experiencing drastic temperature changes can help prevent moisture problems.

If the warehouse is humid, dehumidification or other moisture-control measures may be needed. Desiccants also add an extra layer of protection within sealed packaging, particularly for export shipments or products that are likely to be kept packed for a long time. They should be addressed in parallel with package design and not as a replacement for a dry warehouse.

Keep Flanges Away From Direct Contact With Wet Surfaces

Carbon steel flanges should not generally be kept on damp concrete or bare ground or other surfaces that may transmit moisture to the product. Pallets, wooden supports, shelving, or appropriate storage racks can keep the flanges clear from the floor and allow for better air circulation.

The support system must also be able to support the total weight of the stored products. Heavy flanges should be placed on areas of the storage structure that can properly hold the load, and bigger pieces may need customized supports instead of standard shelves.

The layout should make it feasible to examine the goods without continually shifting a complete stack. Good warehouse management is not simply about conserving space. It also limits the amount of unneeded handling, reducing the likelihood of impact damage.

Protect Sealing Faces and Machined Surfaces

The sealing face is one of the most essential regions of a flange and should get greater protection than a normal steel surface. Raised faces, flat faces, and ring-type joint regions may be destroyed by direct contact with hard objects, metal-to-metal collision, or negligent stacking.

Suitable protective coverings or separators may be utilized to prevent neighboring flanges from rubbing against one another. Where the manufacturer or project specification demands interim corrosion protection, the machined surfaces should be treated in a manner that is compatible with the flange's final installation requirements.

For long-term storage, it is also worth evaluating if protective materials have degraded. Packaging that was effective when originally applied may become loose, broken, or contaminated after months in storage.

Choose Packaging According to the Shipment

Use Separators and Protection for Contact Surfaces

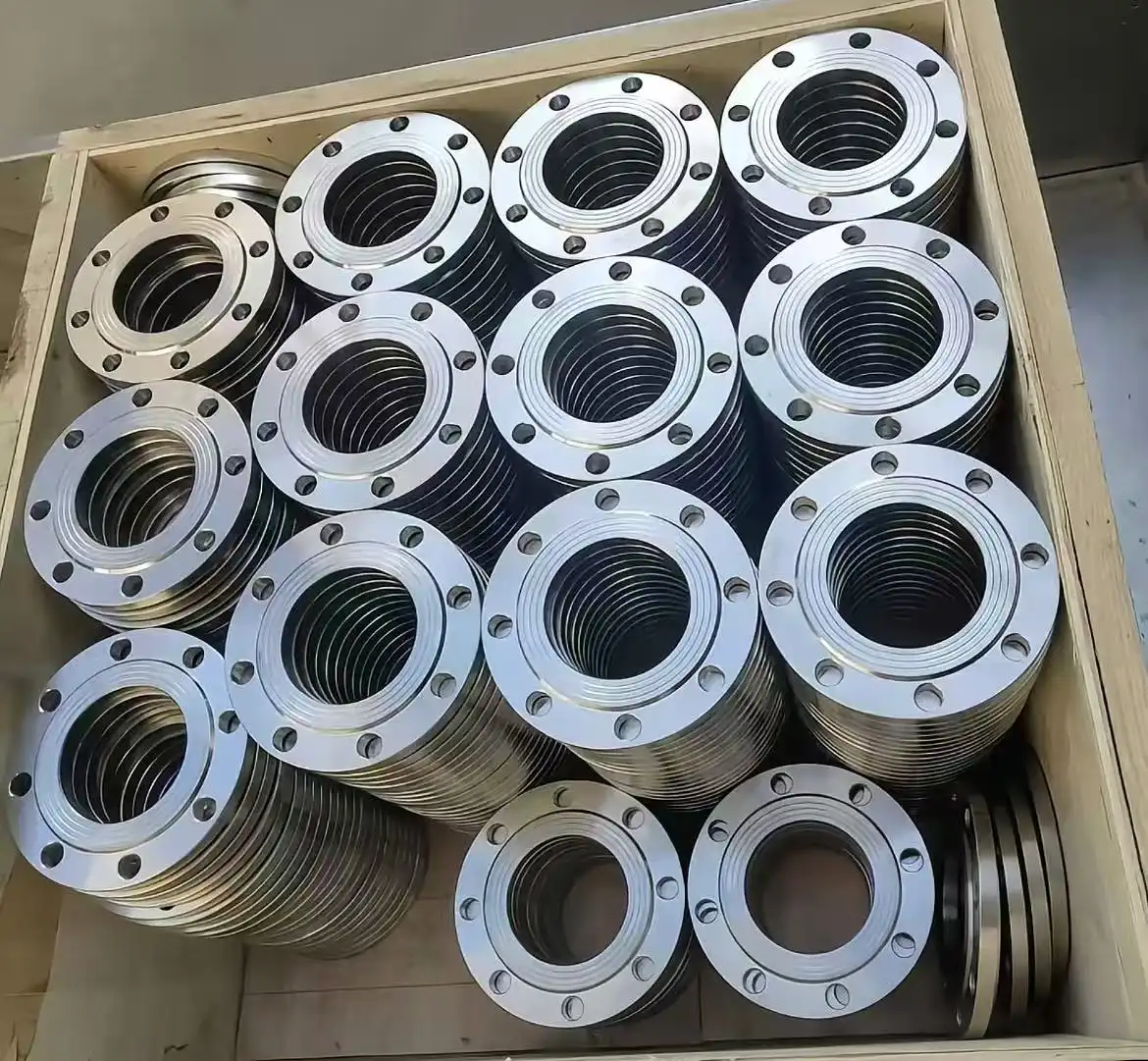

The packaging should limit unwanted movement while shielding the regions most sensitive to damage. Smaller carbon steel flanges may be transported on pallets or in appropriate boxes, whereas bigger and heavier goods frequently need reinforced pallets, timber frames, or wooden crates.

Separating individual flanges can reduce direct metal-to-metal contact. For products with finished sealing faces, protective covers or suitable cushioning materials can help prevent scratches and impact marks. The material should be strong enough to remain in position throughout handling but should not introduce contaminants that could affect the flange surface.

Plastic wrap can be a useful moisture barrier, but it should not be applied so as to seal in residual water inside the package. For shipments exposed to humid conditions, the combination of dry products, suitable corrosion protection, moisture-control materials, and properly designed packaging is more reliable than plastic wrapping alone.

Adapt Packaging to Sea, Road, and Air Transport

Transportation method directly affects packaging requirements. Road shipments can be subject to repeated loading and unloading, vibration, and jarring, and the products should be adequately secured to avoid shifting on the vehicle. Heavy flanges should be supported by structures capable of carrying their weight rather than relying only on wrapping materials.

Transport by sea generally implies a greater concern about moisture. A shipment of carbon steel flanges can spend weeks in a humid marine environment, while temperature changes inside a container may create condensation. Moisture-resistant packaging, suitable corrosion protection, and desiccants can therefore be appropriate depending on the length of time of the shipment and the packaging design. Export crates must also be capable of being handled by forklifts, cranes, and other cargo equipment.

Air freight often has more weight and dimension restrictions for packages and involves more handling at various points in the logistics chain. The packaging has to be compact but strong enough to prevent movement and impact. Regardless of the transport method, the package should be designed around the actual weight and dimensions of the flanges rather than using a one-size-fits-all packing method.

Handle Heavy Flanges With the Right Equipment

Avoid Impact During Loading and Unloading

Improper handling can damage a flange in seconds, even when the product has been well protected against corrosion. Dropping a heavy flange onto a hard surface can deform an edge or damage the sealing face, while dragging it across another metal surface can create scratches that are difficult to repair.

Lifting equipment should be selected according to the product weight and dimensions. Forklifts, cranes, hoists, slings, and other equipment should be used by trained personnel, with appropriate contact protection where necessary. The objective is to keep the flange stable throughout lifting rather than allowing it to swing or strike nearby objects.

Smaller flanges can be handled manually when their weight and dimensions allow safe handling. However, workers should avoid carrying products in a way that creates a risk of dropping them or damaging machined surfaces against shelves, pallets, or other products.

Secure the Load Before Transport

A flange shipment should remain stable throughout transportation. Stacking height, product weight, pallet strength, and securing arrangements all need to be considered together. Heavy products should generally be positioned lower in a mixed load, while lighter products should not be placed where they can overload or damage the items underneath.

Straps, blocking materials, separators, and suitable supports can help prevent movement. At the same time, securing materials should not press directly against sensitive sealing surfaces or create concentrated loads on thin sections of the flange.

Before the vehicle or container leaves the loading area, the packaging should be checked for stability. This final inspection is simple but valuable because many transit problems originate from movement that could have been prevented before departure.

Maintain Identification and Traceability Throughout Storage

Match Labels With Purchase and Inspection Documents

Correct identification is particularly important when a warehouse contains several sizes, grades, or pressure classes of carbon steel flanges. Labels should provide enough information for warehouse staff and project personnel to identify the correct product without opening every package.

Depending on the project requirements, useful identification can include flange type, nominal size, pressure class, material grade, applicable standard, quantity, heat number, batch information, and purchase order reference. The exact information should follow the customer's documentation and traceability requirements.

Labels should remain readable throughout transportation and storage. For outdoor or humid environments, weather-resistant tags and printing methods are preferable. Where inventory systems support it, barcodes or QR codes can also simplify identification, but digital tracking should complement rather than replace physical product markings.

Keep Documentation With the Correct Material

Material certificates, inspection records, packing lists, and identification information should remain associated with the corresponding shipment or batch. This becomes increasingly important when products are stored for several months or when material from multiple orders is kept in the same warehouse.

Good traceability prevents a common procurement problem: having the correct flange but being unable to confidently establish which certificate or batch information belongs to it. Clear labeling and organized records make later inspection and project documentation much easier.

Inspect Stored Flanges Before Installation

Check for Corrosion, Packaging Damage, and Surface Defects

Storage should not be considered complete once the flange has been placed on a shelf. Products held for an extended period should be checked periodically, particularly if the warehouse is exposed to humidity or seasonal temperature changes.

Inspection should look for visible rust, damaged wrapping, water intrusion, condensation, loose packaging, and deterioration of temporary protective materials. Machined sealing surfaces deserve particular attention because even localized corrosion or mechanical damage may require further evaluation before installation.

If corrosion is found, the response should depend on its severity and the project requirements. Surface discoloration and light oxidation may be treatable, while deeper pitting or damage to a sealing area may require technical assessment. The important point is not to assume that every visible mark has the same significance.

Recheck Products After Long-Term Storage

Before dispatching long-stored carbon steel flanges to a job site, a final inspection can confirm that the products still match the original order and remain properly protected. Packaging should be renewed if necessary, identification should be checked again, and any damaged protective materials should be replaced.

This final step is particularly useful for projects where materials may remain in storage between procurement and installation. A short inspection before shipment is usually much easier than discovering a corrosion or traceability issue after the products have already reached the construction site.

Make Storage and Transportation Part of Quality Control

Proper storage and transportation should not be treated as separate logistics activities. They are part of the overall quality-control process for carbon steel flanges. The most effective approach begins with clean and inspected products, continues with suitable environmental protection and packaging, and ends with traceable delivery and a final condition check.

For manufacturers and suppliers, packaging requirements should be discussed before shipment when the order involves long-distance transportation, long-term storage, oversized flanges, or challenging environmental conditions. Customers may also have project-specific requirements for labeling, documentation, corrosion protection, or export packaging. Addressing these requirements before the goods leave the factory can prevent unnecessary repacking and delays later.

A supplier with experience in industrial flange production can also help determine whether pallets, crates, protective covers, corrosion-inhibiting materials, or customized export packaging are appropriate for a particular shipment. This is especially valuable for large orders where the cost of a packaging problem can extend beyond the damaged product itself and affect delivery schedules, inspection, and installation.

Conclusion

Correct storage and transportation are essential to preserving the condition of carbon steel flanges from the factory to the installation site. Keeping the products dry, preventing direct contact with moisture, protecting sealing and machined surfaces, and selecting packaging according to the shipment conditions can significantly reduce avoidable deterioration.

Good handling practices are just as important. Heavy flanges should be moved with suitable equipment, loads should be secured before transportation, and packages should be arranged so that products cannot shift or strike one another during transit. At the same time, clear labeling and proper documentation help maintain material traceability when multiple flange sizes or grades are stored together.

Regular inspection completes the process. Checking packaging, corrosion protection, identification, and sealing surfaces before dispatch or installation gives buyers and contractors greater confidence that the products remain consistent with the original order. For suppliers handling domestic or international projects, discussing storage, packaging, labeling, and transportation requirements before shipment can further reduce the risk of damage and make delivery more efficient. For more information or assistance with your carbon steel flange needs, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the ideal temperature range for storing carbon steel flanges?

The ideal temperature range for storing carbon steel flanges is between 60 and 70°F (15 and 21°C).

2. How can I protect carbon steel flanges from humidity during storage?

Use dehumidifiers, climate control systems, and moisture-absorbing materials like silica gel packets to protect flanges from humidity.

3. What type of protective coating should I apply to carbon steel flanges before transportation?

Apply a thin layer of corrosion-inhibiting oil or grease to the surface of the flanges before wrapping them for transportation.

4. How should I stack carbon steel flanges of different sizes?

Use a pyramid-style arrangement with larger flanges at the base and smaller ones on top, inserting protective materials between layers.
