ISO vs ASME Flanges: Which Standard Fits Your Project?

Choosing the right flange standard is not simply a matter of deciding between two internationally recognized systems. In practice, engineers and procurement teams need to identify the exact standard referenced by the project specification, then check dimensions, pressure-temperature ratings, materials, facing, bolting, and testing requirements before placing an order. This distinction is particularly important when a piping system combines equipment or components designed under different standards. For projects based on the ASME system, ASME flanges are commonly specified according to standards such as ASME B16.5, while steel pipe flanges in the ISO system may be specified according to standards such as ISO 7005-1:2011. ASME B16.5 is the standard covering pipe flanges and flanged fittings from NPS 1/2 to NPS 24, including pressure-temperature ratings, materials, dimensions, tolerances, labelling, and pressure testing criteria. Whether the group has the “better” flange standard truly is not an issue. The question is, which standard matches the technological basis of the project and the components the flange has to connect to. So here’s a comparison of the main technological factors to make that option with fewer compatibility concerns.

Start With the Applicable Flange Standard

Before comparing dimensions or pressure ratings, it’s very important to define what “ISO flange” really is. ISO is a standards organization, not a specific flange design. The engineering standard should identify the particular ISO publication and flange series. For example, the ISO 7005-1:2011 applies to the use of steam, pressurised water, chemical products, petroleum, natural gas and associated fluids and gives specifications for steel pipe flanges for use in industrial and general-service piping systems.

Same on the ASME side. Instead of “ASME flange,” a project can specify ASME B16.5 pipe flanges and flanged fittings, ASME B16.47 large-diameter steel flanges, or any other standard that is suitable for the size and service. For example, ASME B16.5 is for NPS 1/2 through NPS 24, whereas ASME B16.47 is for large-diameter steel flanges between NPS 26 and NPS 60.

The distinction is essential since two flanges that seem identical in a supplier catalogue are not necessarily interchangeable. The connection must not be certified until the standard, the nominal size, the pressure class or PN identification, the facing, the material, and the dimensional series have been verified.

How Dimensions and Connection Details Differ?

Facing, Gasket Seating, and Machined Surfaces

Flange facing is the first item to be evaluated when two pipe systems need to be joined. The facing arrangement controls the position of the gasket relative to the mating flanges and has a direct link with the whole bolted-joint design.

Not all ASME flanges are raised face flanges. Not all ISO flanges are flat face flanges. Both standards and their related flange series might have multiple facing configurations, and the suitable configuration is dependent upon the appropriate standard and service requirements. ISO 7005-1:2011 Flanges and their joints — Part 1: Steel flanges. ISO 7005-1:2011 defines the kinds and facings of flanges, and the dimensions, tolerances, threading, bolt sizes, surface finish, marking, testing, and inspection of flanges.

Therefore, instead of only using the terms “ISO” or “ASME”, the specification for purchase should include the needed facing. The gasket you pick for one facing arrangement may not be suitable for another, and a dimensional discrepancy at the mating faces might cause additional installation complications even when the nominal pipe size looks the same.

Bolt Holes, Bolt Sizes, and Alignment

Another area where engineers need to be careful is bolting because it is easy to assume that ostensibly equal flange diameters would have the same connection dimensions. ASME B16.5 provides specifications for its series of flanges, including those associated with bolts. Its standards are provided in both metric and U.S. customary units, with the bolt and flange bolt-hole diameters provided in inch units.

ISO flange standards may be designed using metric names and dimensional systems relevant to their series of flanges. This may influence bolt selection, procurement, installation tooling, and spare-parts management, particularly when a project has components made to various specifications.

Bolt compatibility should be validated from the appropriate dimensional standard and not assumed from the nominal DN or NPS size. The crucial thing to note is that two flanges are directly compatible if the bolt circle diameter, number of bolts, hole diameter, flange outer diameter, and dimensions on the mating face all match up.

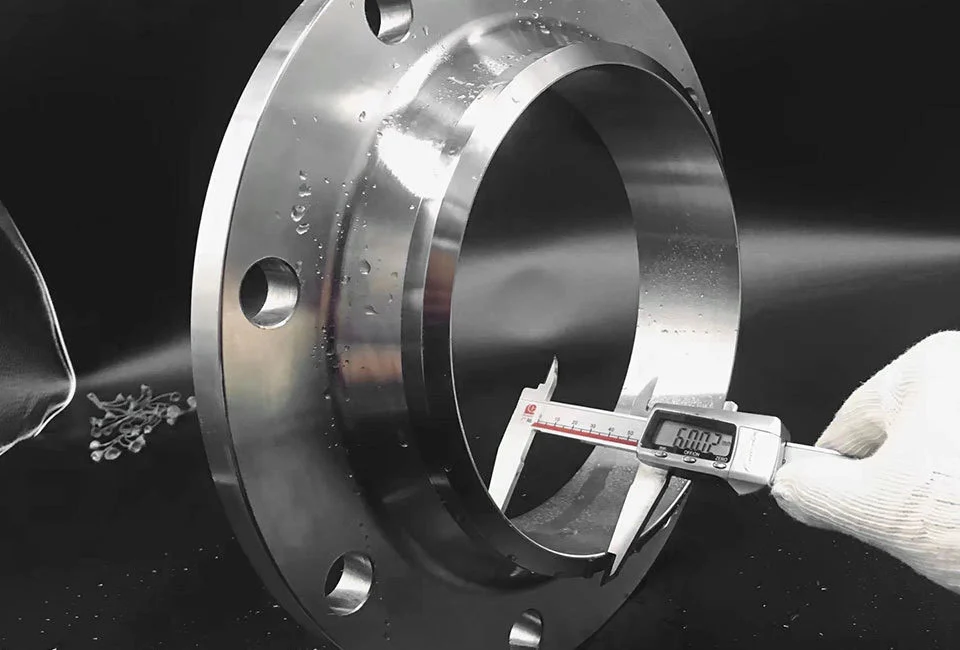

Thickness and Overall Flange Geometry

The thickness of the flange is not some additional production feature. It is part of the dimensional relationship between the flange and pipe system and may influence the available installation space, length of bolts, weld preparation, and alignment of the connection.

ASME B16.5 has specified dimensions and tolerances for flange diameters covered by it. ISO 7005-1:2011 also defines dimensions and tolerances of the steel flanges within the scope of that standard.

Therefore, ASME flanges of the same nominal pipe size made to another dimensions series are not always the same in thickness, outer diameter, bolt circle, or hub shape. This is especially the case when you are buying new parts for an existing plant. Prior to converting from one standard to another, the engineering team must evaluate the actual connection dimensions to the current mating component.

Pressure Ratings Need to Be Read With Temperature and Material

Class and PN Are Designations, Not Simple Conversion Values

One of the most common mistakes in flange selection is treating ASME Class and ISO PN designations as if they were interchangeable pressure values. ASME B16.5 uses Class designations such as 150, 300, 400, 600, 900, 1500, and 2500 within specified size ranges. ISO flange standards use PN designations within their relevant systems.

These designations should not be converted by simply matching the numbers. A Class 150 flange should not be treated as “150 psi,” and a PN 16 flange should not be treated as a component that always permits 16 bar under every operating condition. The applicable pressure-temperature rating depends on the standard, material group, flange type, and operating temperature.

Some ISO standards can provide relationships between PN designations and other pressure-class systems, but such relationships are intended to support standardized applications rather than eliminate the need for dimensional and engineering verification. For example, ISO 15590-3:2022 references flange sizes and pressure classes from ISO 7005-1 and lists corresponding PN and Class designations for the pipeline flanges within its scope.

Operating Temperature Changes the Rating

Pressure rating should always be evaluated together with operating temperature. A flange that satisfies the required pressure at ambient conditions may have a different allowable pressure when the process temperature increases.

ASME B16.5 contains dedicated pressure-temperature rating requirements and provides rating information for different material groups. ISO flange standards also address pressure-temperature considerations within their applicable material and flange systems. ISO 7005-1:2011, for example, includes guidance concerning pressure-temperature ratings for selected materials.

For project selection, this means the correct procedure is to identify the design pressure and design temperature first, then verify the applicable rating table for the exact flange material and standard. Using the nominal Class or PN number alone is not sufficient for a high-temperature or otherwise demanding service.

Material Selection Is Part of the Rating Decision

Material selection should also be considered together with pressure and temperature rather than treated as a separate purchasing item. ASME B16.5 includes material requirements and pressure-temperature ratings as part of the same standard framework.

For ASME projects, materials may be specified using ASTM material specifications referenced by the applicable standard and project specification, such as forged carbon steel or stainless steel grades. ISO-based projects may reference European or other internationally recognized material designations depending on the selected flange standard and project requirements.

Equivalent-looking material names should not automatically be treated as interchangeable grades, even when ASME flanges are specified for the same application. Chemical composition, mechanical properties, heat treatment, manufacturing route, certification requirements, and applicable material standard all need to be confirmed. This is especially important when a project requires a specific material certificate or when replacement flanges are being sourced for an existing installation.

Testing and Documentation Should Match the Project Specification

Pressure Testing Should Be Checked Against the Applicable Standard

Pressure testing is an important part of flange quality control, but testing requirements should be attributed to the correct standard rather than generalized across every product described as an ISO or ASME flange. ASME B16.5 includes a dedicated section on pressure testing, together with requirements covering materials, dimensions, tolerances, and marking.

The exact test method and acceptance requirements depend on the applicable standard and the product being tested. Therefore, a statement such as “all ASME flanges are hydrostatically tested at 1.5 times working pressure” is too broad for a general purchasing article. Engineers should instead confirm the required test pressure and procedure from the applicable edition of the governing standard and project specification.

This approach is also useful when comparing supplier quotations. A quotation that simply states “pressure tested” provides less technical information than one that identifies the applicable standard, test procedure, acceptance criteria, and inspection documentation.

Inspection and Certification Should Be Defined Before Ordering

Inspection requirements can vary considerably between ordinary piping components and flanges intended for more demanding applications. Visual inspection, dimensional inspection, material verification, surface examination, and other examinations may be required by the project specification or applicable product standard.

It is therefore better to avoid assuming that every flange manufactured to an ASME or ISO standard automatically receives the same level of non-destructive examination. The purchasing documents should state the required inspection scope, material certificates, heat numbers, dimensional reports, pressure-test records, and any additional examination requirements when these documents are necessary.

This documentation becomes particularly valuable when the flange will be installed in an existing process plant. Traceability allows the purchaser to confirm that the supplied flange corresponds to the specified material, size, pressure rating, and manufacturing requirements instead of relying solely on the product marking.

Choosing the Standard Based on the Complete Piping System

Follow the Existing Engineering Basis

The most practical starting point is the standard already used by the project. If the piping design, valves, pressure vessels, equipment nozzles, gaskets, and existing pipework are based on ASME dimensions, using ASME B16.5 or another applicable ASME flange standard can simplify dimensional coordination. If the project documentation is based on an ISO flange series, the relevant ISO standard should normally remain the reference for new components.

This does not mean that one system is universally suitable for every application. ISO 7005-1:2011 is intended for a broad range of industrial and general-service piping applications, while ASME B16.5 has a defined scope covering specific pipe flange and flanged fitting sizes and pressure classes.

Check Equipment Interfaces Before Mixing Standards

Mixed-standard systems require additional engineering attention. A pump nozzle, valve, vessel nozzle, or existing pipeline may already have a specific flange dimensional configuration. Installing a flange based only on nominal pipe size can result in mismatched bolt holes, incompatible facing, incorrect flange thickness, or unsuitable gasket geometry.

When a project requires an ISO-to-ASME connection, the interface should therefore be checked as a complete assembly, including the relevant ASME flanges. Engineers should verify the mating dimensions, pressure-temperature requirements, materials, facing, gasket, bolts, and installation requirements rather than assuming that a nominal PN-to-Class conversion is sufficient.

Consider Procurement and Replacement Requirements

Availability can also influence the practical choice of flange standard. A project operating in a region where a particular flange series is widely stocked may benefit from easier replacement procurement, while an international project may need to maintain a defined standard across several plants or suppliers.

For procurement teams, the specification should be detailed enough for different manufacturers to quote the same technical product. The purchase description should identify the applicable standard and edition, nominal size, pressure class or PN designation, flange type, facing, material grade, schedule or bore where applicable, testing requirements, and documentation requirements.

This level of detail reduces the possibility of receiving products that have the same nominal size but incompatible dimensions. It also gives the supplier a clear basis for manufacturing and inspection.

A Practical Engineering Approach to ISO and ASME Flanges

There is no universal rule that makes every project an “ISO project” or an “ASME project.” The appropriate choice comes from the design basis and the interfaces that the flange must satisfy. The first step is to identify the exact governing flange standard rather than treating ISO or ASME as a generic product category. The next step is to confirm nominal size, pressure designation, operating temperature, material, facing, bolt configuration, and dimensional requirements.

After these details are established, the engineering team can verify whether the selected flange matches the connected pipe, valve, equipment nozzle, gasket, and bolting. For replacement projects, the existing flange dimensions should also be checked before changing standards. For new projects, the flange specification should be aligned with the piping class and equipment design from the beginning.

Suppliers can also play an important role in this process by providing dimensional drawings, material certificates, inspection records, pressure-test documentation, and other project-specific quality documents. A manufacturer that understands both the product standard and the project's documentation requirements can make procurement more predictable and reduce avoidable compatibility issues.

Conclusion

The comparison between ISO and ASME flanges is ultimately a question of project compatibility rather than a simple choice between two competing standards. ASME B16.5 establishes detailed requirements for dimensions, materials, pressure-temperature ratings, tolerances, marking, and pressure testing within its defined scope, while ISO 7005-1:2011 provides requirements for steel pipe flanges used in industrial and general-service piping applications.

Before ordering, engineers should confirm the exact applicable standard, pressure-temperature conditions, material, flange dimensions, facing, bolting, testing, and documentation requirements. When these factors are checked together, the selected flange can be coordinated with the rest of the piping system instead of being chosen from a nominal pressure or size designation alone. For expert guidance on flange selection and to explore our range of high-quality flange products, don't hesitate to contact us at oudi-04@oudiguandao.com.

FAQ

1. Can ISO and ASME flanges be used interchangeably?

Generally, ISO and ASME flanges are not directly interchangeable due to differences in dimensions and pressure ratings. Always consult with an engineer before attempting to mix standards.

2. Which standard is more widely used globally?

ASME flanges are more commonly used in North America and in the oil and gas industry worldwide, while ISO flanges are prevalent in Europe and many other international markets.

3. Are there significant cost differences between ISO and ASME flanges?

Cost differences can vary depending on factors such as material, size, and availability. In some regions, one standard may be more cost-effective due to local manufacturing practices.

4. How do I determine which standard is required for my project?

Consider factors such as project location, industry regulations, client specifications, and compatibility with existing systems when choosing between ISO and ASME standards.

References

1. ASME B16.5 - Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard

2. ISO 7005 - Metallic flanges -- Part 1: Steel flanges

3. Becht, C. (2018). Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair. CRC Press.

4. Smith, P., & Zappe, R. W. (2004). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application. Gulf Professional Publishing.

5. American Petroleum Institute. (2016). API Standard 600: Steel Gate Valves—Flanged and Butt-welding Ends, Bolted Bonnets.

6. European Committee for Standardization. (2015). EN 1092-1: Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories, PN designated - Part 1: Steel flanges.
