Why Flange Dimensions Must Follow International Standards?

In industrial piping, flange dimensions are part of a larger connection system rather than isolated measurements. A Steel Flange has to work with a pipe, valve, fitting, gasket, and bolting arrangement under defined operating conditions. Even if the flange is built from the right material, if the measurements or design specifications don’t line up, it may not be able to join properly or work the way it should. This is the point when accepted standards become so vital throughout engineering, manufacture, procurement and maintenance. International and generally accepted standards offer a single technical reference for dimensions, tolerances, pressure-temperature ratings, materials, labelling and testing. For example, ASME B16.5 covers pipe flanges and flanged fittings from NPS 1/2 to NPS 24 and contains regulations pertaining to pressure-temperature ratings, materials, dimensions, tolerances, labelling and pressure testing." ISO 7005-1:2011 specifies the basic requirements for steel pipe flanges for use with piping systems for industrial and general use. ISO has certified the status of ISO 7005-1:2011 as current. Just because a flange conforms to the relevant standard does not indicate that all flanges from all manufacturers are interchangeable. Compatibility is determined by whether the linked components are of the same or compatible dimensions system, pressure rating, facing, fastening arrangement, material requirements, and relevant project parameters. It is crucial to understand this difference when choosing a Steel Flange for an industrial plumbing installation.

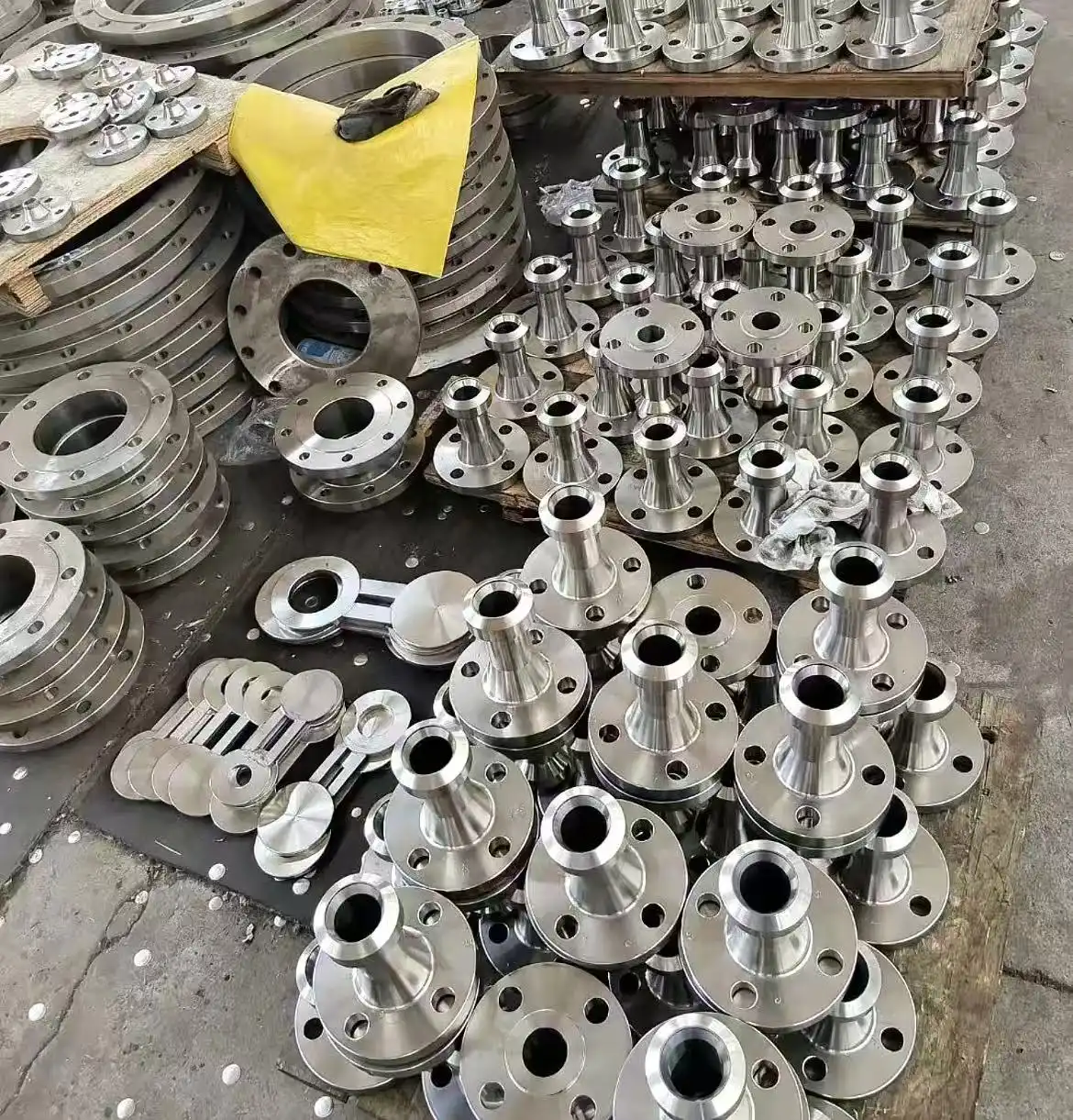

Standardized Dimensions Create a Common Engineering Reference

Why Dimensional Consistency Matters in Piping Design

A flange has several parameters that will determine how it will join another component. These may comprise outer diameter, thickness of flange, bolt-circle diameter, size and spacing of bolt holes, bore dimensions, and sealing-face parameters. Any one of these differences may preclude appropriate assembly while the nominal pipe size may be the same.

International standards provide engineers, manufacturers and procurement teams with specified dimensional relationships to work from a common technical reference. ASME B16.5, for example, specifies criteria for specific dimensions and tolerances, as opposed to nominal size names.

This common reference becomes quite crucial when a project has components from many firms. The project team may just describe the appropriate standard and check that each component complies with it, instead of designing a new connection for each manufacturer. This leads to better engineering documentation and less procurement uncertainty.

Standardization Does Not Mean Every Flange Is Interchangeable

One of the most crucial things to remember is that “standardized” doesn’t equal “universally interchangeable.” The dimensions may be in ASME, ISO, EN, or any other national or industry standard recognised by a project. It is a mistake to assume that both systems are the same only because they fulfill the same broad function.

For example, a procurement specification may specify a flange by nominal size, pressure class, face type, material specification, and relevant standard. Each of these details is significant in establishing the adequacy of the flange for the desired connection. The whole technical requirement should thus be provided to the supplier and not just a request such as “DN100 steel flange”.

This is especially the case if equipment is purchased overseas. It doesn't matter where a part is made. That has nothing to do with it working or not. The important issue is whether the component has been made and tested in accordance with the dimensions and performance specifications stated for the project.

International Standards Improve Procurement and Component Compatibility

Supporting More Predictable Global Sourcing

Standardised Steel Flange dimensions make international sourcing more practicable, since vendors may build to recognised technical specifications. Engineers may use known identifiers to express needs instead of specifying all dimensions from the start.

This is useful for huge industrial projects where pipe components may arrive from several nations. A procurement team may compare supplier bids against the same technical specification, and quality staff can evaluate the supplied items against stated specifications. The standard is therefore a common technical language between customer and manufacturer.

However, the buying team still needs to confirm the specific standard edition and project requirements. For example, ISO 7005-1:2011 provides a foundation standard for steel flanges and leaves it up to the customer to pick the correct flange series.

Reducing Unnecessary Customization

If a standard dimensional specification is not established, manufacturers may have to make parts for relatively frequent applications from individual designs. Custom dimensions may be suitable for a project with exceptional needs, but they may add engineering effort, tooling requirements, inspection labour, and replacement complexity.

The use of standard dimensions whenever possible enables frequently requested flanges to be more effectively fabricated and supplied. It may also make it easier for maintenance personnel to arrange replacements, since it provides a better reference when locating the essential component.

The advantage is not only the cost of purchase. Standardisation also shortens engineering time spent verifying fundamental connection dimensions, and reduces the potential of buying a component that will not fit the current pipe system.

Proper Standards Help Control Pressure and Joint Performance

Dimensions Work Together With Pressure-Temperature Requirements

Flange dimensions cannot be separated from pressure and temperature requirements. A flange selected for an industrial system must be suitable for the specified operating conditions, material, pressure rating, and applicable standard.

ASME B16.5, for example, includes pressure-temperature ratings as part of its requirements. This illustrates why selecting a flange only by nominal diameter is inadequate. Two flanges with the same nominal pipe size may have different pressure classes and therefore different application requirements.

For engineers and purchasers, this means that a Steel Flange should be evaluated as part of the complete piping connection. Nominal size, pressure class or PN designation, material, facing, and standard should be checked together before an order is released.

Correct Mating Dimensions Support Reliable Sealing

A flange connection depends on more than the metal components themselves. The gasket and bolting system must also work with the flange facing and dimensional arrangement. Correctly matched dimensions help ensure that the connected components can be assembled as designed and that the gasket is positioned appropriately.

It would therefore be inaccurate to say that standardized dimensions alone “guarantee” leak prevention. A reliable Steel Flange joint also depends on gasket selection, surface condition, bolt condition, tightening procedure, alignment, temperature, pressure, and service medium.

This distinction makes a technical article more useful because it reflects how flange connections actually perform in the field. Standards provide the engineering framework, while correct selection, manufacturing, inspection, and installation determine whether the finished joint meets the project's requirements.

Standard Dimensions Make Inspection More Systematic

Dimensional Inspection Becomes Easier to Define

A manufacturer cannot effectively inspect a flange without knowing which dimensions and tolerances apply. Once the applicable standard has been identified, quality personnel can use the relevant dimensional requirements as the basis for inspection.

For a Steel Flange, inspection may involve checking outside diameter, thickness, bore, bolt-hole dimensions, bolt-hole spacing, facing dimensions, and other characteristics specified by the applicable standard. ASME B16.5, for instance, contains separate sections covering dimensions and tolerances as well as pressure testing.

This provides a clearer basis for communication between manufacturers and purchasers. Instead of relying on subjective descriptions such as “standard size” or “normal thickness,” the inspection process can refer to documented requirements.

Documentation Becomes More Valuable During Procurement

Standardization also improves the usefulness of technical documentation. When a purchaser requests dimensional inspection records, material documentation, marking information, or test records, the applicable standard helps define what should be reviewed.

This is particularly useful for projects involving strict quality-control procedures. A purchasing team can compare the supplier's documentation with the purchase order and project specification, while inspectors can verify the physical product against the required dimensions.

The result is a more traceable procurement process. If a component needs to be replaced years later, the original standard designation and product documentation can also provide useful information for identifying the appropriate replacement.

Standardized Flanges Simplify Maintenance and Replacement

Replacement Parts Are Easier to Specify

Industrial piping systems may operate for many years, and maintenance teams eventually need to replace worn or damaged components. If the original flange was manufactured according to a recognized standard and the relevant specifications were properly documented, identifying a replacement is generally more straightforward.

This does not mean that maintenance personnel can order any flange with the same nominal size. They still need to verify the applicable standard, pressure rating, facing, material, and connection details. However, standardized specifications provide a starting point for this verification instead of requiring a completely new dimensional design.

For plants with multiple production lines, consistent specifications can also make spare-parts management more organized. Maintenance teams can maintain clearer records of which flange types are installed in different systems and what requirements apply to their replacements.

Standardization Helps Reduce Unplanned Engineering Work

Custom dimensions may require drawings, additional technical confirmation, and special inspection before a replacement can be manufactured. Standardized components can reduce some of this engineering workload when the original design already conforms to an established specification.

The greatest benefit appears when engineering, procurement, quality control, and maintenance teams use the same technical language. A replacement request can then reference the existing flange specification rather than relying only on photographs or approximate measurements.

Better Standards Control Can Reduce Installation Problems

Matching Bolt Patterns and Facing Requirements

Installation errors often occur when components appear similar but have different connection details. Bolt-hole diameter, number of holes, bolt-circle diameter, flange thickness, and facing configuration all influence whether two components can be assembled correctly.

Standardized dimensions give installers a defined reference, but they still need to verify the actual Steel Flange identification before installation. A nominal size alone is not sufficient because different pressure classes or standards may have different dimensional requirements.

For this reason, flange markings and procurement records are valuable parts of the installation process. They allow workers to confirm that the component being installed corresponds with the engineering specification before the joint is assembled.

Consistent Specifications Improve Project Coordination

Large industrial projects often involve engineers, fabricators, contractors, inspectors, and suppliers working at different locations. Standardized flange requirements make communication between these groups more precise.

A project specification can identify the required standard, size range, pressure rating, material, facing, and inspection requirements. Suppliers can then manufacture against those requirements, while inspectors and installation teams use the same information during subsequent stages.

This reduces the need for different parties to interpret basic dimensional requirements independently. It also helps project managers identify discrepancies earlier, before components reach the installation stage.

What Should Buyers Verify Before Ordering a Steel Flange?

A purchaser should not treat “international standard” as a sufficient specification on its own. Before ordering a Steel Flange, the buyer should confirm the exact applicable standard and edition required by the project. ASME B16.5 and ISO 7005-1 are examples of recognized standards, but they are not interchangeable labels for the same dimensional system.

The buyer should then verify the nominal pipe size, pressure class or PN designation, flange type, facing, material specification, bore, and connection requirements. The compatibility of the gasket and bolting should also be considered because a flange joint functions as an assembled system rather than as a single component.

For international procurement, the supplier's drawings, dimensional inspection records, material documentation, markings, and test records should correspond with the purchase specification. If a project has additional requirements beyond the governing flange standard, those requirements should be stated clearly before production begins.

This approach is more reliable than assuming that two products are compatible simply because both are described as steel flanges.

Conclusion

Following international standards for flange dimensions provides a common technical foundation for engineering, manufacturing, procurement, inspection, installation, and maintenance. Standards such as ASME B16.5 define important requirements covering dimensions, tolerances, materials, pressure-temperature ratings, marking, and testing, while ISO 7005-1 provides a corresponding specification framework for steel pipe flanges used in industrial and general-service applications.

The main value of standardization is not that every flange becomes automatically interchangeable. Its value is that engineers and buyers have a recognized set of requirements against which compatibility and performance can be evaluated. When the correct standard, size, pressure rating, facing, material, and inspection requirements are confirmed together, a Steel Flange becomes easier to specify, manufacture, inspect, install, and replace. For manufacturers such as Cangzhou Oudi Pipe Manufacture Co., Ltd., applying the applicable dimensional standards consistently can also provide purchasers with a clearer basis for technical verification and international procurement. For more information or inquiries, please contact us at oudi-04@oudiguandao.com.

FAQ

1. Why are international standards important for flange dimensions?

International standards ensure interchangeability, compatibility, safety, and performance across global systems, reducing costs and facilitating trade.

2. How do standardized flange dimensions contribute to safety?

They ensure consistent pressure ratings, leak prevention, and system integrity, reducing the risk of failures in industrial applications.

3. What are the cost benefits of using standardized steel flanges?

Standardization reduces inventory and procurement costs, simplifies maintenance, and minimizes the need for custom-made components.

4. How do uniform flange specifications impact installation processes?

They reduce human error, enhance quality control, and facilitate efficient project planning and execution.

References

1. International Organization for Standardization. (2021). "ISO 7005: Metallic flanges - Part 1: Steel flanges."

2. American Society of Mechanical Engineers. (2020). "ASME B16.5: Pipe Flanges and Flanged Fittings."

3. European Committee for Standardization. (2019). "EN 1092-1: Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories, PN designated."

4. Petrochemical Industry Association. (2022). "Global Standards for Flange Dimensions in Industrial Applications."

5. Journal of Pressure Vessel Technology. (2021). "The Impact of Standardized Flange Dimensions on Industrial Safety and Efficiency."

6. International Piping Systems Engineering Association. (2023). "Best Practices in Flange Standardization for Global Industrial Applications."
