ASME B16.9 vs B16.11 Carbon Steel Reducers: What’s the Technical Difference

This is important to know if you work with pipe systems because the different parts need to be safe and work well. For instance, ASME B16.9 and B16.11 carbon steel reducers are often put next to each other. These two rules say how pipe fittings, like reducers, should be planned and made. They were made by the American Society of Mechanical Engineers (ASME). Builders, engineers, and building managers all need to know the big technical differences between them, even if they look the same at first. It talks in great detail about how ASME B16.9 and B16.11 Carbon Steel Pipe Reducers are not the same. It talks about how they're used and what makes them different, as well as which one to use in different business situations. They can pick pipe systems that are safer, work better, and last longer if they know about these changes.

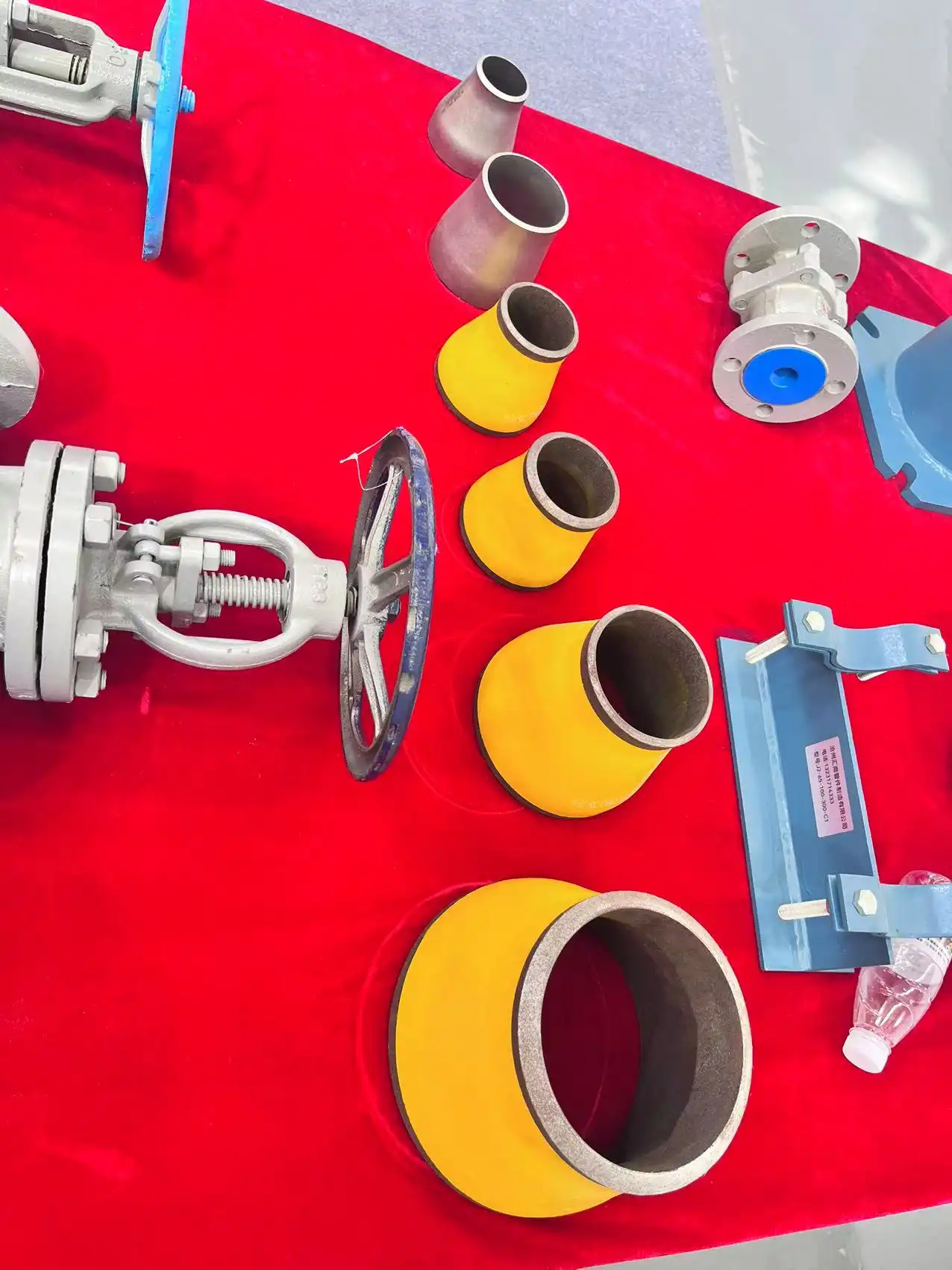

What are the key design differences between ASME B16.9 and B16.11 carbon steel reducers?

Dimensional variations

Most people can tell the difference between B16.9 and B16.11 carbon steel reducers by how big or small they are. Most ASME B16.9 reducers are bigger and designed for butt-welding. This means they can be used in systems with a lot of heat and pressure. They are made of carbon steel and come in a range of sizes, from 1/2 inch to 48 inches across. This is different from an ASME B16.11 reducer, which is smaller and ranges in size from 1/8 inch to 4 inches. They work great with pipe systems that have smaller sizes because they are made for socket welding or threaded connections. The different sizes of these two kinds of carbon steel pipe reducers have a direct effect on where they can be used and how they are installed.

Wall thickness considerations

The thickness of the walls is another important design difference between ASME B16.9 and B16.11 carbon steel reducers. The schedule of the joining pipes determines whether the wall thickness of an ASME B16.9 reducer is the same all the way through the fitting. For large-diameter pipe systems, this even thickness gives them great resistance to pressure and structural stability. On the other hand, ASME B16.11 carbon steel pipe reducers often have walls that are different widths at different ends. The thinner end usually has thicker walls so that they can be threaded or socket-welded. This part of the design makes it easier to spread stress in small, high-pressure situations. When it comes to carbon steel pipe reducers, the wall thickness is a big part of what determines their pressure ratings and general strength.

End connection types

The main difference between ASME B16.9 and B16.11 carbon steel reducers is the type of end link. ASME B16.9 reducers are made with beveled ends that can be butt-welded together. This makes the link between the pipes flush. In large-scale industrial settings where high integrity and low pressure loss are important, this type of connection is chosen. On the other hand, ASME B16.11 carbon steel pipe reducers have either socket-weld or threaded ends. For small pipes, socket-weld connections make a strong, leak-proof joint. Threaded connections, on the other hand, make it easy to put things together and take them apart for maintenance. The carbon steel pipe reducers are set up differently depending on the type of end link you pick. They also need to be serviced more or less often depending on the type of end link you pick.

 How do ASME B16.9 and B16.11 carbon steel reducers differ in terms of pressure ratings and temperature limits?

 Pressure rating comparisons

There are big changes between ASME B16.9 and B16.11 carbon steel reducers when it comes to their pressure ratings. ASME B16.9 reducers are usually made to handle higher pressures, which means they can be used in high-pressure situations in oil and gas, petrochemical, and power generation businesses. Depending on the type of steel and the thickness of the walls, these carbon steel pipe reducers can handle pressures of up to 10,000 psi or more. ASME B16.11 reducers, on the other hand, can handle high pressures but usually have smaller pressure ratings than their B16.9 counterparts. Part of the reason for this is that they are smaller and have different types of end connections. B16.11 carbon steel pipe reducers, on the other hand, work very well in small, high-pressure systems with limited room because they are very reliable.

 Temperature limit considerations

The temperature ranges for ASME B16.9 and B16.11 carbon steel reducers are another important difference. ASME B16.9 reducers are made to work in a wide range of temperatures, from very cold to over 1000°F (538°C). Because they can work in a lot of different temperatures, they are great for many industrial uses, like steam systems and process lines that work at high temperatures. High temps don't bother ASME B16.11 carbon steel pipe reducers either, though their limits may be a little lower because of how their ends are joined. When temperatures get really high, socket-weld and threaded connections can leak more easily than butt-welded parts. However, different kinds of carbon steel can be used to make both types of reducers so that they can work with different temperatures.

Impact on material selection

The ASME B16.9 and B16.11 pressure grades and temperature limits for carbon steel reducers have a big effect on the material choice that is made for a given job. Carbon steel can be used with either standard, but the grade and make-up may be different based on how it will be used. Materials like ASTM A234 Grade WPB are often used for ASME B16.9 reducers because they are strong and don't break down easily at high temperatures or pressures. In them, things like ASTM A105 are often used because they work well for forged joints and meet the requirements of ASME B16.11 for carbon steel pipe reducers. If you pick the right kind of material for the job, the carbon steel pipe reducers will be able to handle the pressure and temperature that are needed while still being physically sound and working well over time.

What are the installation and maintenance differences between ASME B16.9 and B16.11 carbon steel reducers?

 Installation techniques

Because of how they are made and how their ends are connected, ASME B16.9 and B16.11 carbon steel reducers are set up in different ways. To butt-weld an ASME B16.9 reducer, you need to prepare the pipe ends, line up the reducer with the pipes next to it, and weld all the way through. You will need skilled welders and the right tools to make sure the joint is strong and doesn't leak. On the other hand, ASME B16.11 carbon steel pipe reducers let you fit more things. To connect with a socket-weld, you put the pipe into the reducer's socket and then weld around the joint. There are times when this is easier and faster than butt-welding. To connect the ends of the lines correctly, all that needs to be done is to use a thread sealer or tape. This makes it simple to put together and take apart. With a different building method, you will need different people, more time, and new ways to check the work.

Inspection and testing requirements

There are also different ways to test and check ASME B16.9 and B16.11 carbon steel reducers. Most of the time, ASME B16.9 reducers go through tighter inspection and testing procedures because they are bigger and used in more important situations. To do this, x-rays of the welds, sound tests to see how thick the walls are, and hydrostatic pressure tests to see how strong the joints are could all be used. Quality control checks are still done on ASME B16.11 carbon steel pipe reducers, but they might not need as many tests since they are smaller and have different types of links. The ASME rules say that both types of reducers need to be made of the right material and be the right size. While they are in use, both types of reducers need to be checked often for signs of wear, rust, or possible leaks. This keeps the pipes safe and makes sure they work right.

 Maintenance and replacement considerations

When it comes to repair and care, ASME B16.9 and B16.11 carbon steel reducers need very different things. Most of the time, it takes more work to repair or fix an ASME B16.9 reducer because it is butt-welded into the pipe system. They might have to cut out the broken part of the pipe, make new weld joints, and then put the pipe back together while it's still in place. This process makes sure the link is strong, but it may need the computer to be turned off for a long time. On the other hand, ASME B16.11 carbon steel pipe reducers are simple to fix and maintain. Threaded joints are easy to take apart to fix something or put a new part on. Socket-weld joints last longer than bigger butt-welded parts, but it is still easier to cut them out and put them back on. You can pick either of these two kinds of reducers. The one you pick will rely on how well you take care of your pipes and how much downtime you need.

Conclusion

Finally, ASME B16.9 and B16.11 Carbon Steel Pipe Reducers are very different in how they are used, installed, and kept. ASME B16.9 reducers are strong and have joints that are butt-welded together. They work well in systems with a lot of pressure and a big diameter. ASME B16 can be used with a number of pipes that have a smaller diameter.11 reducers that have threaded or socket-weld joints. You need to know these differences to choose the right reducer for the job and make sure that pipe systems work well, are safe, and last a long time. For more information or to discuss your specific needs, please contact us at oudi-04@oudiguandao.com.

FAQ

Q: What is the main difference in size range between ASME B16.9 and B16.11 reducers?

A: ASME B16.9 reducers range from 1/2 inch to 48 inches, while B16.11 reducers range from 1/8 inch to 4 inches.

Q: Which type of reducer is better for high-pressure applications?

A: ASME B16.9 reducers are generally better suited for high-pressure applications due to their design and butt-welded connections.

Q: Can ASME B16.11 reducers be used in high-temperature systems?

A: Yes, but they may have lower temperature limits compared to B16.9 reducers due to their connection types.

Q: Which reducer type is easier to install?

A: ASME B16.11 reducers are typically easier to install due to their socket-weld or threaded connections.

Q: Are there differences in material selection between B16.9 and B16.11 reducers?

A: While both can use carbon steel, the specific grades may vary based on pressure and temperature requirements.

References

1. American Society of Mechanical Engineers. (2018). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings.

2. American Society of Mechanical Engineers. (2017). ASME B16.11-2016: Forged Fittings, Socket-Welding and Threaded.

3. Smith, J. R. (2019). Piping Materials Guide: Selection and Applications for Process Plants. Elsevier.

4. Johnson, A. L. (2020). Handbook of Process Plant Piping Design and Construction. McGraw-Hill Education.

5. American Petroleum Institute. (2018). API 570: Piping Inspection Code: In-service Inspection, Rating, Repair, and Alteration of Piping Systems.

6. National Board of Boiler and Pressure Vessel Inspectors. (2019). NBIC: National Board Inspection Code.
