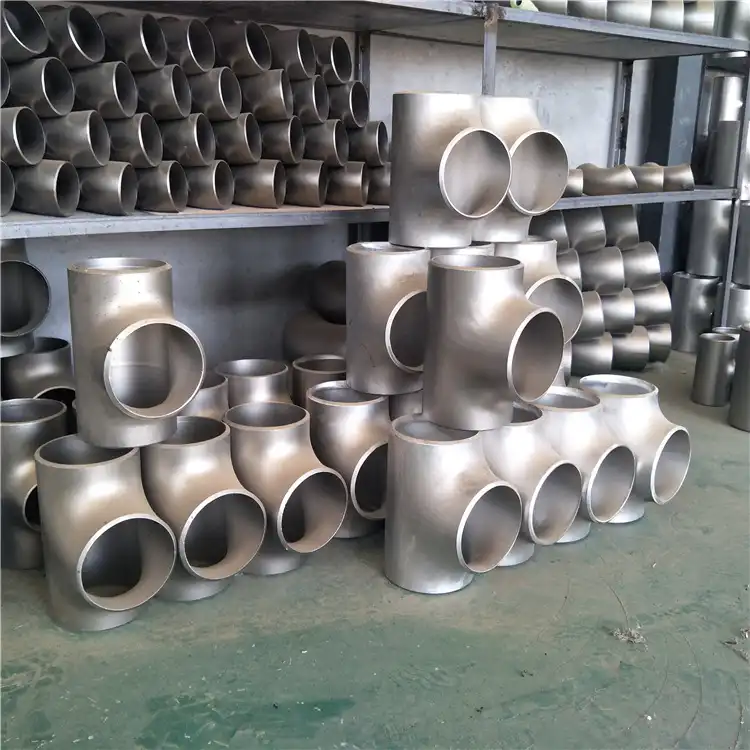

Carbon Steel Pipe Tees: Balancing Strength and Weight in Design





Carbon steel pipe tees play a practical role in piping systems where one main line needs to connect with a branch line while maintaining reliable mechanical and pressure performance. They were not only designing the fitting to be as thick as feasible. Too much material adds weight, handling requirements, and material expense. Too low wall thickness or an inappropriate design might decrease the capacity of the fitting to resist internal pressure and external stresses. This is why a well-designed tee must have adequate structure to withstand its working circumstances without carrying any additional mass. The equilibrium is especially critical in industrial pipe systems. Internal pressure, temperature variations, branch loads, vibration, thermal expansion, and stress transfer from attached pipes may affect a tee. The performance of the fitting in service is influenced by material grade, wall thickness, outlet geometry, manufacturing technique, and relevant requirements. Knowing these variables will enable engineers and procurement departments to pick a tee appropriate for the real needs of the pipe system instead of selecting a heavier product just because it seems to be stronger.

How Wall Thickness Shapes Tee Strength and Service Performance？

Pressure Capacity Depends on More Than Wall Thickness

But wall thickness cannot be treated in isolation as one of the more obvious parameters influencing the structural capacity of a pipe tee. The more steel you have, the more material can withstand stress from pressure. This might be handy if you have a pipe system that is under some tough pressure circumstances. However, the pressure capacity of a tee is also affected by its nominal size, the material qualities, the shape, the temperature, the manufacturing quality, and the requirements of the relevant design standard.

This difference is important since a thicker wall does not indicate that a fitting can have any pressure rating that is needed. The fitting must still meet the applicable dimensions and material standards, and the pipe system itself must be verified under its design circumstances. Standard butt-welding tees are often sized according to criteria such as ASME B16.9, and materials such as ASTM A234 carbon steel grades may be used based on service requirements.

For example, a tee in a high-pressure process line may be required to be of a different material and wall design than a tee in a very low-pressure utility system. This is why the choice of the right wall thickness is based on the design pressure and temperature, but not on a mere desire for a thicker fitting.

Thicker Walls Can Improve Load Resistance, but Weight Rises Too

A pipe tee is not only a pressure containment thing. Its connection to a branch may also induce localized strains when linked piping exerts axial, bending, or heating pressures on the fitting. Wall thickness may help in resisting such pressures, especially in the regions where stresses become concentrated.

And every millimeter of steel that goes into the fitting adds to its weight, too. A single little tee may not seem like much, but when a project has hundreds or thousands of fittings, the impact becomes more evident. Heavier components may need extra handling equipment and increase the effort of shipping and installation.

This leads to the aim of not maximizing the wall thickness. A preferable method is to find the minimal practicable material configuration that gives the needed structural margin under the stated operating circumstances. Here is where engineering calculations and, for more challenging applications, finite element analysis may assist to find the regions where extra material is really needed.

Corrosion Allowance Must Match the Service Environment

For a carbon steel pipe tee that will be used in a corrosive service, the design may incorporate a corrosion allowance to account for the projected material loss throughout the planned service life. This tolerance is in addition to the standard pressure-retaining wall thickness. It is associated with the predicted corrosion environment and the necessary service life of the pipe system.

The acceptable amount is determined by criteria such as the medium of the operation, temperature, moisture, chemical exposure, operating history, and the efficacy of corrosion-control methods. A tee carrying a comparatively benign medium will not need the same permit as one exposed to a demanding process environment.

Corrosion allowance for carbon steel pipe tees should, however, not be lowered to make the fitting lighter. Any decrease must be justified by the appropriate technical design foundation and corrosion-control plan. Coatings, material improvements, or process controls may minimize corrosion risk in certain systems. The effectiveness of these should be considered as part of the full pipe design, not as a general replacement for wall thickness.

Which Design Choices Have the Greatest Effect on Tee Weight?

Material Grade Affects Performance More Than Basic Density

The mechanical qualities, weldability, temperature capability, and applicability to service of a carbon steel tee are determined by the grade of material used. It also has an indirect effect on weight, as a material with adequate mechanical qualities may enable an engineer to meet the design performance requirement without unnecessary material.

However, it is vital not to assume that shifting from one grade of carbon steel to another would result in a large weight decrease just because the grades include different proportions of carbon or alloying elements. The density differences between most regularly used steels are rather modest. In practical tees, the size and wall thickness are typically significantly more important to the total mass in the design.

Therefore, the material selection should be started from service conditions and suitable standards. Tensile strength, yield strength, impact requirements, weldability, operating temperature, and compatibility with the process environment should be considered before weight becomes the determining factor.

Geometry Determines Where Material Is Actually Needed

The strength and weight of a tee will be directly affected by its form. A tee is not only a straight pipe with a hole cut in the side. The connection of the branch introduces a change in shape where stresses might be focused. Therefore, the transition from run to branch has to be planned carefully.

The distribution of loads through the fitting is affected by the branch diameter, the run diameter, the outlet arrangement, the distribution of the wall thickness, and the geometry of the junction. A bad geometry may need more material to compensate for stress concentrations in some areas, while a good geometry can distribute loads better.

For this reason, weight optimization should be material efficiency rather than uniform material removal. To thin the wall in all places may unduly weaken the fitting. A more efficient design method involves determining where the tee encounters the highest pressures and retaining sufficient material in those areas while minimizing needless thickness elsewhere.

This idea is especially important when developing bespoke fittings for non-standard dimensions or operating circumstances. The aim is to make the geometry operate effectively, not to make the whole component thinner.

Manufacturing Method Influences Dimensional Consistency

Manufacturing is also a big part in tee performance. Typical industrial ways of making the carbon steel fittings may include forming, forging, machining, etc., based on the kind, size, material specification, and relevant standard of the fitting. The chosen method should be capable of producing the desired dimensions and material attributes with uniform quality.

Standard tee manufacture is generally managed to meet specified dimensions and material standards, not just to save weight. A fitting that is somewhat lighter but has uneven wall thickness, poor surface quality, or dimensional deviations might be more trouble than it is worth.

Thus, every endeavor to optimize the use of materials should be followed with quality control. The wall thickness measurements, dimensional inspection, material verification, and suitable testing offer proof that the final tee conforms to the stated specifications. This information is typically more relevant to purchasers than a vague claim that a product has been “optimized for weight.”

How Engineers Can Reduce Unnecessary Weight Without Sacrificing Strength？

Use FEA to Identify Local Stress Concentrations.

Finite element analysis can be valuable when the geometry or loading conditions are more complex than those covered by a standard fitting selection. Instead of relying entirely on a uniform wall thickness, engineers can use a digital model to examine how stress is distributed around the run, branch, and transition areas.

FEA is particularly useful during the custom design of carbon steel pipe tees because different wall configurations can be evaluated before a physical prototype is produced. If one region carries relatively low stress while another experiences a concentration of load, the design can be reviewed accordingly.

The value of FEA, however, depends on how the model is built and how its results are interpreted. It should support established engineering calculations and applicable standards rather than replace them. Boundary conditions, material data, loading assumptions, mesh quality, and safety criteria all affect the usefulness of the analysis.

For standard commercial tees, engineers may not need a separate FEA study for every fitting. In many cases, selecting a correctly specified standard fitting is the more efficient solution. FEA becomes more valuable when the dimensions, loads, service conditions, or geometry fall outside conventional applications.

Avoid Treating Coatings as a Substitute for Structural Design

Protective coatings can help manage external corrosion and may extend the service life of carbon steel components in suitable environments. They can be an important part of a corrosion-control system, particularly where fittings are exposed to moisture or other external environmental conditions.

Nevertheless, a coating should not be presented as a direct way to reduce structural wall thickness in every application. The relationship between corrosion protection and wall design depends on the service environment, coating system, inspection program, expected service life, and engineering requirements.

For a piping system where internal corrosion is the main concern, the appropriate solution may involve material selection, corrosion allowance, process control, internal protection, or another strategy. The important point is that corrosion management and structural design should be considered together rather than using one as a simplistic replacement for the other.

Match the Tee to the Actual Piping Configuration

One of the most practical ways to avoid unnecessary weight is to select the fitting according to the actual piping configuration. A tee that is much heavier than necessary may add cost without providing a useful performance benefit, while a fitting that is too light for the design conditions can introduce unacceptable risk.

The selection process should consider the run size, branch size, wall thickness or schedule, material specification, pressure and temperature conditions, connection type, and installation environment. The loads transmitted by connected pipes should also be considered when the system involves significant thermal expansion, vibration, equipment movement, or unsupported branch piping.

This is particularly important for large industrial projects. A small difference in the weight of one fitting may appear insignificant, but the cumulative effect across a large piping network can influence material cost, transportation, installation time, and structural support requirements.

Why Application-Specific Design Matters for Carbon Steel Pipe Tees？

Standard Dimensions Provide a Starting Point, Not the Entire Design

Standardized carbon steel tees offer major advantages because they provide established dimensions and manufacturing requirements that simplify selection and installation. For many conventional piping systems, a standard fitting is the most practical choice.

However, standard dimensions do not eliminate the need to check the actual service conditions. Two piping systems may use tees of the same nominal size but operate at different pressures, temperatures, or environmental conditions. Their material specifications and design requirements may therefore differ.

For procurement teams, the important question is not simply whether a supplier offers a tee in the required size. The product should also match the requested material grade, dimensional specification, wall thickness, manufacturing requirements, and documentation package.

Custom Tees Can Address Unusual Loads and Dimensions

Custom carbon steel pipe tees may be appropriate when a project involves non-standard branch dimensions, unusual wall thicknesses, space limitations, special connection requirements, or particular loading conditions. Customization can also be useful when the standard fitting creates unnecessary material or does not provide the geometry required by the piping layout.

A successful custom design begins with accurate project information. The supplier may need the nominal pipe sizes, branch configuration, design pressure, design temperature, material specification, applicable standards, connection details, and any special inspection requirements.

The advantage of customization is not simply that the tee can be made lighter. More importantly, its geometry can be developed around the actual application. This can help avoid unnecessary material while maintaining the structural performance required by the project.

Documentation Helps Confirm the Product Matches the Design

For industrial procurement, technical documentation is an important part of product verification. Depending on the project requirements, buyers may request material certificates, dimensional inspection records, test reports, product specifications, and other quality documents.

Material traceability is particularly useful when the piping system has strict specification requirements. The documentation should allow the purchaser to verify that the supplied carbon steel tee corresponds to the specified material grade and production requirements.

A reliable supplier should also be able to discuss dimensions, wall thickness, manufacturing process, inspection procedures, and customization requirements before production begins. This type of technical communication is often a stronger indicator of product suitability than a generic claim of “high strength” or “lightweight design.”

Conclusion

The design of carbon steel pipe tees is ultimately a matter of using material where it contributes to performance and avoiding material that does not provide a meaningful engineering benefit. Wall thickness is important for pressure and load resistance, but it works together with material grade, tee geometry, operating conditions, corrosion requirements, and manufacturing quality. Simply making a fitting thicker is not the same as optimizing its design.

For standard applications, selecting a tee that complies with the relevant dimensional and material requirements is often the most practical approach. More demanding or customized projects may benefit from detailed stress analysis, application-specific geometry, and closer control of manufacturing and inspection. From a procurement perspective, the best choice is not necessarily the heaviest or lightest fitting but the one that satisfies the actual design requirements with appropriate material efficiency and verifiable quality.

By treating strength and weight as connected design considerations rather than competing objectives, engineers and buyers can make more informed decisions about carbon steel tees and build piping systems that are reliable, practical to install, and economical over their service life.
