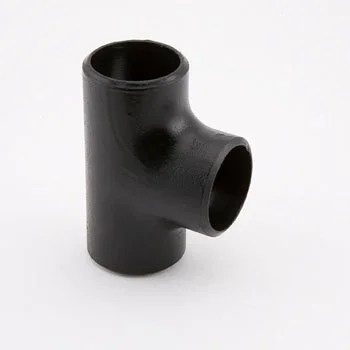

Corrosion Resistance Strategies for Carbon Steel Pipe Tees

Corrosion is a persistent challenge in industrial applications, particularly for carbon steel pipe tees, which are crucial components in various piping systems. These fittings, used to create branch connections in pipelines, are often exposed to harsh environments that can accelerate corrosion processes. Implementing effective corrosion resistance strategies is essential to ensure the longevity and reliability of carbon steel pipe tees. This blog explores various approaches to enhance the corrosion resistance of these vital components, discussing the causes of corrosion, coating and lining options, and selection criteria for corrosion-resistant carbon steel pipe tees in demanding environments. By understanding and applying these strategies, engineers and maintenance professionals can significantly improve the performance and lifespan of their piping systems, reducing downtime and maintenance costs while ensuring safer operations.

What Causes Corrosion in Carbon Steel Pipe Tees?

Environmental Factors

Carbon steel pipe tees are susceptible to corrosion due to various environmental factors. Moisture is a primary culprit, as it facilitates the electrochemical reactions that lead to rust formation. In industrial settings, carbon steel pipe tees may be exposed to atmospheric humidity, water spray, or even full immersion, accelerating the corrosion process. Additionally, the presence of corrosive chemicals in the environment, such as acids, alkalis, or salts, can significantly increase the rate of corrosion. These substances can break down the protective oxide layer that naturally forms on the surface of carbon steel pipe tees, leaving the metal vulnerable to further degradation. Temperature fluctuations also play a role, as higher temperatures generally accelerate chemical reactions, including those responsible for corrosion.

Material Composition

The composition of carbon steel pipe tees itself contributes to their susceptibility to corrosion. Carbon steel, while strong and cost-effective, contains iron as its primary component, which readily oxidizes in the presence of oxygen and moisture. The carbon content in these fittings can affect their corrosion resistance, with higher carbon content generally leading to increased corrosion rates. Impurities or inconsistencies in the metal structure of carbon steel pipe tees can create localized areas more prone to corrosion, leading to pitting or crevice corrosion. Furthermore, the manufacturing process of carbon steel pipe tees can introduce stress points or microscopic defects that serve as initiation sites for corrosion, particularly in welded areas or where the metal has been subjected to cold working.

Operational Conditions

The operational conditions under which carbon steel pipe tees are used significantly influence their corrosion behavior. Flow-induced corrosion is a common issue, where high-velocity fluids or particulates in the stream can erode the protective oxide layer on the inner surfaces of the tees. This is particularly problematic at points of turbulence, such as the junction where the branch meets the main run in carbon steel pipe tees. Pressure variations and cyclic loading can also contribute to stress corrosion cracking, especially in environments containing specific corrosive agents. Temperature gradients across the carbon steel pipe tees can lead to thermal stresses and differential expansion, potentially creating gaps or crevices where corrosive substances can accumulate. Additionally, galvanic corrosion can occur when carbon steel pipe tees are in contact with more noble metals in the presence of an electrolyte, accelerating the corrosion of the less noble carbon steel.

Which Coating and Lining Options Improve Corrosion Resistance?

Metallic Coatings

Metallic coatings offer excellent corrosion protection for carbon steel pipe tees. Galvanization, which involves applying a layer of zinc, is widely used due to its effectiveness and relatively low cost. The zinc layer acts as a sacrificial anode, corroding preferentially to protect the underlying carbon steel. For more severe environments, carbon steel pipe tees can be coated with nickel, chromium, or even stainless steel cladding. These metallic coatings not only provide a physical barrier against corrosive agents but also offer cathodic protection. Thermal spraying techniques, such as flame spraying or plasma spraying, can be used to apply metallic coatings to carbon steel pipe tees, allowing for precise control over coating thickness and composition. In some cases, multi-layer metallic coatings are employed to combine the benefits of different metals, providing enhanced corrosion resistance for carbon steel pipe tees in particularly challenging environments.

Organic Coatings

Organic coatings provide a versatile solution for protecting carbon steel pipe tees against corrosion. Epoxy coatings are popular due to their excellent adhesion, chemical resistance, and durability. These coatings form a tough, impermeable barrier that shields the carbon steel pipe tees from corrosive elements. Polyurethane coatings offer similar protection with the added benefits of UV resistance and flexibility, making them suitable for carbon steel pipe tees exposed to outdoor conditions or subject to thermal cycling. For high-temperature applications, phenolic coatings can be applied to carbon steel pipe tees, providing corrosion resistance up to 400°F (204°C). Fusion-bonded epoxy (FBE) coatings are particularly effective for carbon steel pipe tees in pipeline applications, offering excellent corrosion protection and resistance to cathodic disbondment. Advanced multi-layer organic coating systems can be designed to provide specific performance characteristics tailored to the operating conditions of the carbon steel pipe tees.

Ceramic and Composite Linings

Ceramic and composite linings offer superior corrosion resistance for carbon steel pipe tees in extremely aggressive environments. Ceramic linings, such as alumina or zirconia, provide excellent resistance to both chemical attack and abrasion, making them ideal for carbon steel pipe tees in applications involving corrosive slurries or high-temperature fluids. Glass-reinforced epoxy (GRE) linings combine the chemical resistance of epoxy with the strength and durability of fiberglass, offering a lightweight yet highly effective protective layer for carbon steel pipe tees. For applications requiring extreme corrosion resistance, carbon steel pipe tees can be lined with fluoropolymers like PTFE or PFA, which are virtually inert to most chemicals. Ceramic-filled epoxy coatings represent a hybrid approach, providing the chemical resistance of ceramics with the ease of application of organic coatings. These advanced lining systems can significantly extend the service life of carbon steel pipe tees in environments where traditional coatings would quickly fail.

How to Select Corrosion-Resistant Carbon Steel Pipe Tees for Harsh Environments?

Material Grade Considerations

Selecting the appropriate material grade is crucial when choosing corrosion-resistant carbon steel pipe tees for harsh environments. While standard carbon steel grades like A234 WPB are suitable for many applications, more demanding conditions may require specialized alloys. Low-alloy steels, such as A420 WPL6, offer improved low-temperature toughness and moderate corrosion resistance. For environments with higher corrosion potential, carbon steel pipe tees made from weathering steels like A242 or A588 can be considered, as these form a protective rust layer that slows further corrosion. In extremely corrosive environments, it may be necessary to opt for high-alloy steels or even switch to stainless steel tees. When selecting carbon steel pipe tees, it's essential to consider not only the corrosive nature of the environment but also factors such as operating temperature, pressure, and mechanical stresses to ensure the chosen material grade can withstand all aspects of the service conditions.

Design and Manufacturing Considerations

The design and manufacturing process of carbon steel pipe tees play a significant role in their corrosion resistance. Seamless tees generally offer better corrosion resistance than welded ones, as they lack the potential weak points introduced by welding. For welded carbon steel pipe tees, proper post-weld heat treatment is crucial to relieve residual stresses and homogenize the microstructure, reducing susceptibility to stress corrosion cracking. The wall thickness of carbon steel pipe tees should be carefully selected, possibly incorporating a corrosion allowance to extend the service life in harsh environments. Surface finish is another important consideration; smoother surfaces are less prone to corrosion initiation. Advanced manufacturing techniques, such as hot isostatic pressing (HIP), can be employed to produce carbon steel pipe tees with improved density and reduced porosity, enhancing their overall corrosion resistance. Additionally, the use of computer-aided design and finite element analysis can help optimize the geometry of carbon steel pipe tees to minimize areas of high stress or turbulence that could accelerate corrosion.

Inspection and Maintenance Strategies

Implementing robust inspection and maintenance strategies is essential for ensuring the long-term corrosion resistance of carbon steel pipe tees in harsh environments. Regular visual inspections can help identify early signs of corrosion, such as discoloration or pitting. Non-destructive testing methods, including ultrasonic thickness measurement and radiographic inspection, should be employed to monitor wall thickness and detect internal corrosion in carbon steel pipe tees. For critical applications, online monitoring systems using electrochemical sensors or acoustic emission techniques can provide real-time data on corrosion rates. Implementing a cathodic protection system can significantly enhance the corrosion resistance of carbon steel pipe tees, especially in buried or submerged applications. Proper maintenance practices, such as regular cleaning and reapplication of protective coatings, are crucial for preserving the integrity of carbon steel pipe tees. Establishing a comprehensive corrosion management program that includes periodic risk assessments, corrosion mapping, and predictive modeling can help optimize maintenance schedules and extend the service life of carbon steel pipe tees in harsh environments.

Conclusion

Effective corrosion resistance strategies are crucial for ensuring the longevity and reliability of carbon steel pipe tees in harsh environments. By understanding the causes of corrosion, selecting appropriate coating and lining options, and implementing thoughtful material selection and maintenance practices, engineers can significantly enhance the performance of these critical components. As industrial applications continue to push the boundaries of material capabilities, ongoing research and development in corrosion-resistant technologies will play a vital role in meeting these challenges. Ultimately, a comprehensive approach to corrosion management, combining materials science, engineering design, and proactive maintenance, will be key to maximizing the service life and safety of carbon steel pipe tees in demanding industrial settings.

For more information on our high-quality carbon steel pipe tees and comprehensive corrosion resistance solutions, please contact us at oudi-04@oudiguandao.com. Since 1998, Cangzhou Oudi Pipe Manufacture Co., Ltd. has been a leading manufacturer of carbon steel pipe fittings, valves, and flanges in China. Our state-of-the-art facility and stringent quality control processes ensure that we deliver products that meet the highest industry standards. With a global network serving over 300 customers in 40 countries, we are committed to providing exceptional products and services to meet your specific needs.
