Common Industry Standards for Carbon Steel Elbows Explained

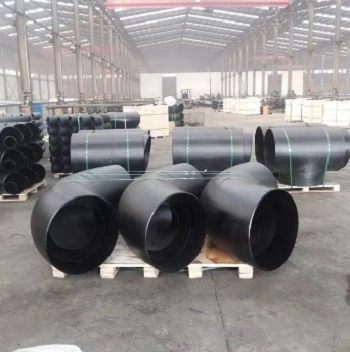

A carbon steel elbow changes the direction of a piping run while maintaining a continuous pressure boundary between connected sections of pipe. Because elbows are welded into systems that may operate under different pressures, temperatures, and service conditions, buyers cannot select them by size alone. The applicable material specification, dimensional standard, piping code, and project requirements all need to be considered together. ASTM specifications such as A234/A234M and A420/A420M address different material and service conditions, while ASME B16.9 establishes important requirements for factory-made wrought butt-welding fittings. Other codes, including ASME B31.3, govern how these components are incorporated into a complete piping system. For engineers, contractors, distributors, and purchasing teams, understanding the relationship between these standards makes it easier to specify the right carbon steel elbow without treating every industry standard as if it served the same purpose.

Understanding the Main Standards Behind Carbon Steel Elbows

Elbows often fall into many related categories of industry norms. A material specification outlines the kind of steel, chemical composition, mechanical qualities, heat treatment, and testing criteria to be used. Dimensional standards define features such as exterior measurements, tolerances, end preparation, and fitting geometry. The full pipe system is then planned, built, inspected, and tested in accordance with a piping code.

This is significant since one elbow may be linked to more than one standard. For example, ASTM A234/A234M covers wrought carbon steel and alloy steel fittings of moderate and high temperature use. ASME B16.9 covers factory-made wrought butt-welding fittings, their dimensions and other product specifications. ASTM itself has A234/A234M and A420/A420M as one of the appropriate standards utilised with general requirements for wrought steel fittings.

Thus, a specification such as ‘carbon steel elbow, ASME B16.9’ may not be enough for procurement purposes. The material grade, nominal pipe size, wall thickness or schedule, elbow radius, service temperature, pressure conditions, and inspection requirements may also need to be indicated.

ASTM Specifications for Carbon Steel Fitting Materials

ASTM A234/A234M for Moderate and High Temperature Service

One of the most essential material requirements for wrought carbon steel and alloy steel pipe fittings is ASTM A234/A234M. The ASTM standard covers wrought seamless and welded construction fittings for pressure pipe and pressure vessel fabrication at moderate and high temperatures. The specification covers fittings covered by the appropriate ASME and MSS dimensional standards and requirements related to the material and manufacturing process.

For a carbon steel elbow, an A234/A234M certification consequently informs the customer more about the material and product requirements than the overall shape of the elbow. The precise grade is still important since the chemical composition and mechanical requirements differ from grade to grade. The final product may also be affected by heat treatment, testing, and any other criteria stated in the purchase order.

This difference is handy when examining supplier bids. ASTM A234/A234M is cited in a quote; however, there is no indication of the material grade and dimensional standards. The buyer should check the whole specification and not just assume that the ASTM designation covers all the features of the elbow.

ASTM A420/A420M for Low Temperature Service

ASTM A420/A420M covers wrought carbon steel and alloy steel pipe fittings for low-temperature usage. At present, A234/A234M and similar fitting specifications like A420/A420M are included in the ASTM standards information.

The main distinction is the setting of service. Low-temperature piping may impose further requirements for material toughness, and therefore the relevant material specification and testing requirements must be consistent with the design temperature. Therefore, rather than assuming a general-purpose carbon steel elbow is interchangeable with a low-temperature fitting, a buyer working on a low-temperature process, gas, or energy project should check the requisite material grade and impact testing requirements.

Also, the existence of an A420 designation should be assessed in conjunction with the appropriate dimensional standard. Material appropriateness and dimensional compatibility are independent but linked problems. One standard does not take precedence over the other.

ASTM A860/A860M for High-Strength Butt-Welding Fittings

The original article makes ASTM A860/A860M seem more generic than it is. Not “high-yield strength carbon steel” but “Standard Specification for Wrought High-Strength Ferritic Steel Butt-Welding Fittings.” This title appears in the current ASTM standards directory as A860/A860M-25a.

This standard is applicable when a project needs high-strength ferritic steel butt-welding fittings and the specified material grade fits within its scope.  However, it should not be considered a general standard for all high-pressure carbon steel elbows. The actual use relies on the specified grade, design circumstances, pipe code, and project needs.

For procurement reasons, this implies that the A860 designation should be accompanied by the relevant grade and dimensional information.  The standard sets the material and fitting standards, but the engineer still has to validate whether the chosen elbow is adequate for the full pipe system.

ASME Requirements for Elbow Dimensions and Piping Systems

ASME B16.9 and Standardized Butt-Welding Dimensions

ASME B16.9 is one of the most important standards to understand when purchasing a factory-made wrought butt-welding elbow. The current ASME B16.9-2024 covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought butt-welding fittings from NPS 1/2 through NPS 48, or DN 15 through DN 1200.

For elbows, this standard helps establish a consistent dimensional framework so that fittings from different manufacturers can be specified and connected within standardized piping arrangements. The relevant details include fitting dimensions, tolerances, and end conditions rather than simply the chemical composition of the steel.

One important point is that compliance with B16.9 does not mean every carbon steel elbow can be installed into every piping system without further review. The purchaser still needs to check the nominal size, wall thickness, material specification, pressure-temperature requirements, connection details, and applicable piping code.

Short-Radius Elbows and the Current B16.9 Framework

The original article treats ASME B16.28 as a current standalone standard for short-radius elbows. That treatment needs updating.

ASME's current B16.9-2024 information states that short-radius elbows and returns that were previously included in ASME B16.28-1994 are included in B16.9.

This is an important distinction for technical content published today. A historical reference to B16.28-1994 can be useful when explaining older specifications or legacy documentation, but it should not be presented as though it has the same current role as B16.9-2024.

When a project calls for a short-radius carbon steel elbow, the purchaser should therefore check the current applicable dimensional requirements rather than relying on an old standard designation without verification.

ASME B31.3 and the Complete Process Piping System

ASME B31.3 has a different function from ASTM A234/A420 or ASME B16.9. It is a piping code for process piping rather than a material specification for elbows. ASME's current publications list B31.3-2024 as Process Piping.

In an industrial process plant, B31.3 can influence how the piping system is designed and constructed, including the selection and integration of components such as elbows. However, saying that an elbow is simply “B31.3 compliant” does not provide the same information as identifying its material and dimensional specifications.

A more useful procurement description would connect the standards. The elbow may have an ASTM material designation, conform to the applicable ASME dimensional standard, and be installed as part of a piping system designed and constructed under ASME B31.3. This combination gives engineers and purchasers a much clearer understanding of what the specification actually covers.

Where API Standards Fit into Carbon Steel Elbow Selection?

API 5L Applies Primarily to Line Pipe

API 5L is important in pipeline projects, but it should not be described as a direct elbow specification. API's current information identifies API Spec 5L as the Specification for Line Pipe. In June 2026, API announced its 47th edition, which establishes requirements for the manufacture of seamless and welded steel line pipe, including material specifications, manufacturing, inspection, testing, marking, and traceability.

This distinction becomes important when an elbow is connected to API 5L line pipe. The pipe and the elbow may be governed by different product standards, while the project specification determines how those components are selected and joined.

Consequently, an elbow used in an API 5L pipeline should not automatically be described as an “API 5L elbow.” The purchaser should identify the applicable fitting specification separately and then verify compatibility with the line pipe grade, dimensions, welding requirements, and pipeline design.

API 6A and Specialized Wellhead Equipment

API 6A also needs to be placed in the correct category. API identifies Spec 6A as the Specification for Wellhead and Christmas Tree Equipment, rather than a general specification for carbon steel elbows. API's current standards information lists work associated with the 6A specification and its revisions.

If a piping component forms part of specialized wellhead or Christmas tree equipment, project requirements may refer to API 6A or other applicable specifications. That does not mean API 6A replaces the normal material and dimensional standards used to specify an ordinary butt-welding elbow.

For this reason, API 6A is better understood as an equipment-specific reference that may become relevant in particular oil and gas applications. It should not be presented as one of the basic universal standards for carbon steel elbows.

API 17D and Subsea Equipment Applications

API 17D has a similarly specialized role. API identifies it as the Specification for Subsea Wellhead and Tree Equipment. Its scope is therefore centered on subsea wellhead and tree equipment rather than generic subsea pipe elbows.

When a carbon steel elbow is incorporated into a subsea project, engineers may need to consider several standards and project specifications depending on where the component sits in the system. The fact that a project is offshore or subsea does not, by itself, make API 17D the governing standard for every elbow.

This is an important point for technical buyers because application environment and product standard are not interchangeable concepts. The correct specification depends on the component's actual function, material, connection type, operating conditions, and governing project documents.

How to Specify the Right Carbon Steel Elbow?

A useful specification process starts with the piping design rather than the product name. The engineer or purchaser should first establish the nominal pipe size, wall thickness or schedule, elbow radius, connection type, design pressure, design temperature, and service medium. The required material grade can then be selected according to the applicable material specification.

The dimensional standard should be identified separately. For a factory-made wrought butt-welding elbow, ASME B16.9 may provide the relevant dimensional framework. The material specification may then come from ASTM A234/A234M, A420/A420M, A860/A860M, or another specification selected for the actual service conditions. The complete piping system may also fall under ASME B31.3 or another applicable piping code.

Project documentation can introduce additional requirements. These may concern inspection, testing, material certificates, traceability, non-destructive examination, marking, heat treatment, or purchaser-specific quality requirements. Such requirements should be confirmed before production rather than added after the fittings have already been manufactured.

For suppliers, a detailed quotation should therefore identify the actual standard and grade rather than simply stating “carbon steel elbow.” Providing the material designation, size, schedule or wall thickness, radius, manufacturing standard, and inspection documentation gives the buyer a much stronger basis for comparing products from different manufacturers.

Conclusion

Common industry standards for carbon steel elbow products do not all perform the same function. ASTM specifications such as A234/A234M, A420/A420M, and A860/A860M primarily address different material and fitting requirements, while ASME B16.9 provides a standardized framework for factory-made wrought butt-welding fittings. ASME B31.3 operates at the piping-system level, establishing requirements for process piping rather than serving as a standalone elbow product specification. API standards such as API 5L, API 6A, and API 17D can become relevant in specific pipeline, wellhead, or subsea applications, but their scopes should not be confused with general elbow standards.

For engineers and purchasing teams, the most reliable approach is to evaluate these standards as a connected specification system. Confirming the material grade, dimensions, service conditions, applicable piping code, inspection requirements, and project-specific documentation before ordering helps ensure that the selected elbow matches the actual requirements of the piping system. For more information on our range of carbon steel elbows and other piping components, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the main purpose of industry standards for carbon steel elbows?

Industry standards ensure consistency, reliability, and interoperability of carbon steel elbows across different manufacturers and applications.

2. Which standard is most commonly used for general-purpose carbon steel elbows?

ASTM A234 is widely recognized for specifying material requirements and properties of general-purpose carbon steel elbows.

3. Are there specific standards for carbon steel elbows used in low-temperature applications?

Yes, ASTM A420 provides specifications for carbon steel elbows designed for low-temperature service.

4. What standard addresses the dimensional requirements of carbon steel elbows?

ASME B16.9 covers the dimensional requirements and tolerances for factory-made wrought butt-welding fittings, including carbon steel elbows.

References

1. American Society for Testing and Materials. (2019). ASTM A234 / A234M - 19 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service.

2. American Society of Mechanical Engineers. (2018). ASME B16.9-2018 Factory-Made Wrought Buttwelding Fittings.

3. American Petroleum Institute. (2018). API Specification 5L, 46th Edition: Specification for Line Pipe.

4. American Society for Testing and Materials. (2021). ASTM A420 / A420M - 21 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service.

5. American Society of Mechanical Engineers. (2015). ASME B31.3-2014 Process Piping.

6. American Petroleum Institute. (2019). API Specification 17D, 3rd Edition: Design and Operation of Subsea Production Systems—Subsea Wellhead and Tree Equipment.
