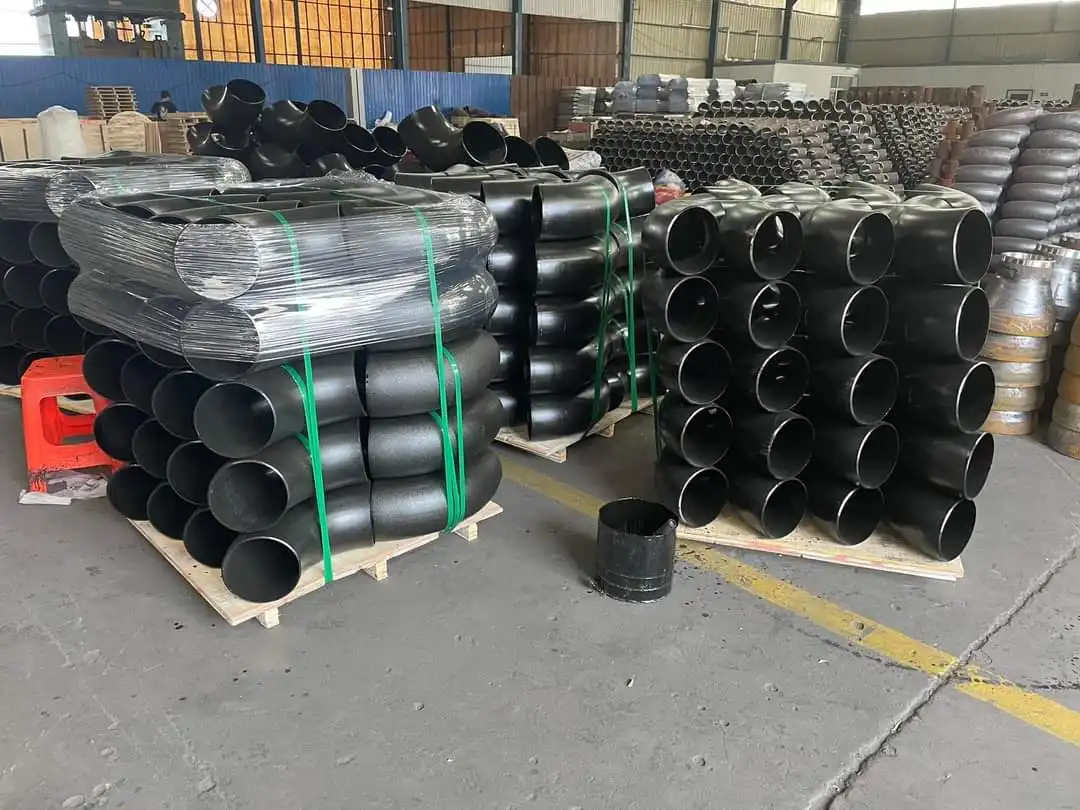

How Carbon Steel Elbows Contribute to Pipeline Safety？

Pipeline safety depends on much more than the strength of the pipe itself. Every change in direction, connection, support point, and operating condition can affect how a piping system performs over time. A carbon steel elbow is one of the fittings used to change the direction of a pipeline while maintaining a continuous flow path. An elbow is very tiny when compared to the whole pipe network, but its material, size, wall thickness, manufacturing quality, and installation may all affect system dependability. Carbon steel elbows are a popular choice for industrial pipe applications because carbon steel provides a convenient mix of mechanical strength, ease of fabrication, ready availability, and affordability. They may be made in various diameters, pressure ratings, and bend geometries to fit particular pipe schemes. But the safety aspect of a carbon steel elbow is not just due to the material. The suitable fitting must be chosen for the design pressure, temperature, fluid, pipe size, relevant standards, and installation circumstances. Carbon steel elbows, when correctly selected, are a dependable means for routing piping through complicated industrial plants and preserving the mechanical continuity of the piping system.

Mechanical Strength Supports Reliable Direction Changes

One of the main reasons why carbon steel elbows are utilised in industrial plumbing is their mechanical robustness. In regular operation, a pipeline may be subjected to internal pressure, external loads, vibration, thermal expansion, and variations in operating conditions. Thus, the fittings that are fitted between straight pipe sections must be able to bear forces and not represent a weak spot in the system.

A well-made carbon steel elbow allows for a continuous route curved between two pipe lengths. The shape of the pipeline enables it to shift direction without having to make an abrupt connection that would disrupt the planned piping architecture. But the real pressure-bearing capacity of the fitting is determined by a number of elements and is not only a function of its being built from carbon steel. Selection must be based on material grade, nominal size, wall thickness, mode of manufacture, design temperature, and the appropriate piping code.

Thus, engineers generally examine the elbow in relation to the whole pipe system. A fitting that works for one pressure and temperature range may not work for another application. The mechanical continuity throughout the system is maintained when the elbow is suitable for the pipe specification and design circumstances, and the likelihood of a wrong choice of component creating a weak link is lessened.

Quality of manufacturing is equally crucial. Controlled forming and heat-treating procedures may create elbows with more uniform dimensions and material qualities. Quality control, dimensional inspection, and proper testing may further assist in confirming that the completed fitting satisfies the specified standard. These issues become more critical in industrial applications where pipe systems may function constantly for extended periods of time.

Elbow Geometry Helps Manage Flow Through Piping Layouts

It is not as simple as joining two pipes at an angle to change the path of a pipeline. The shape of the fitting affects the flow of fluid through the system and the pipe configuration to the operational circumstances. As such, carbon steel elbows are available in many bend forms such as the popular long radius and short radius.

The long radius elbow has a more gradual shift in direction than the short radius elbow. This design may aid in preventing sudden changes in flow direction and may lessen localised turbulence and pressure loss compared to a tighter bend, depending upon the application. The proper radius still relies on system design, installation space availability, flow needs, and relevant technical parameters.

This concern becomes more significant in systems where flow efficiency counts. Excessive turbulence, needless pressure loss, or improper shifts in flow direction may increase the demands imposed on pumps and other equipment. A well-planned pipe architecture employs elbows and other connections, including a carbon steel elbow where appropriate, in a manner that balances space limits with hydraulic needs.

The elbow's design may also impact how forces are dispersed across the piping system.  Changes in flow direction may create reaction forces, while thermal expansion can induce movement in the pipeline when operating temperatures vary.  Engineers consequently need to evaluate elbows along with pipe supports, anchors, guides, expansion arrangements, and other components rather than considering the fitting as a standalone item.

Material Selection Matters in Different Operating Environments

Carbon steel is typically utilised for industrial pipelines because it has beneficial mechanical qualities and is available in a large variety of specifications.  However, carbon steel should not immediately be classified as corrosion-resistant.  Its usefulness in any specific environment is very much a function of the fluid, temperature, water content, chemical composition, exposure circumstances, and corrosion control methods in the system.

For pipelines that convey generally non-corrosive fluids, an elbow of carbon steel may be a feasible and inexpensive alternative, if its material and dimensions are compatible with the design criteria. If corrosion is an issue, engineers may need to consider coatings, linings, corrosion allowances, chemical control, inspection intervals, or a substitute material.

This difference is especially crucial for industrial applications. Oil and gas, chemical processing, water treatment, and other operations may expose pipe components to moisture, chemicals, temperature variations, and other circumstances that may accelerate material deterioration.  Choosing a carbon steel elbow does not make these problems go away. Instead, the fitting should be part of the same material-selection and corrosion-management approach as the rest of the pipeline.

Specifying the material properly will also make it easier to check and prepare for replacement. By making the elbow to an approved specification and keeping the material paperwork, engineers and buyers have better information to assess compliance with the remainder of the pipe system.

Manufacturing Standards and Quality Control Affect Reliability

The safety of a pipeline depends on the quality of the components put in it. Even a decent material may cause issues if the fitting measurements are wrong, if the faults are intolerable, or if the manufacturing quality is not consistent. This makes quality control and production standards a vital concern when acquiring carbon steel elbows.

Industrial elbows may be built to standards that include dimension requirements, material specifications, testing, and other technical qualities. Depending on the project, engineers may reference standards such as ASME B16.9 for factory-made wrought butt-welding fittings, together with a corresponding material specification such as ASTM A234 for carbon steel and alloy steel fittings used in pressure pipes. The precise requirements should be defined by the corresponding project specification and piping code.

Dimensional correctness is important since the elbow has to mesh well with the surrounding pipe and welding system. Differences in outer diameter, wall thickness, end preparation, or bend measurements might make installation more difficult and can impact the quality of the finished connection.

Material traceability and inspection data for each carbon steel elbow should be included in the quality assurance documentation. Buyers may want such documents as material certifications, dimensional inspection records, heat-treatment details, and applicable test results depending on the application. Such records are valuable proof that the supplied fittings meet the stipulated material and manufacturing standards.

Procurement choices of important pipe systems should thus be based on more than pricing. Reliable paperwork, consistent manufacture, traceable materials, and sufficient testing may all help to ensure that each elbow is fit for its intended duty.

Applications in Oil and Gas Piping Systems

Oil and gas plants include large pipe systems that convey crude oil, refined products, natural gas, water and other process fluids. There tend to be a lot of direction changes with these systems since pipes are needed to link equipment, storage systems, processing units, and utility networks in tight places.

For these applications, carbon steel elbows are often employed because of the mechanical qualities and extensive industrial availability of the material. However, the right elbow needs to be in compliance with the operational requirements for the particular line. Pressure, temperature, fluid composition, pipe size, material grade, wall thickness, corrosion allowance, and relevant project requirements affect the selection procedure.

In a refinery or processing plant, an elbow, for example, might link piping around pumps, heat exchangers, vessels, and other equipment. The fitting must be compatible with the pipe arrangement around it and tolerate the mechanical conditions imposed by the system. Proper support and alignment are also vital since you can’t expect an elbow to make up for bad installation procedures.

The pipeline may need further protection in corrosive fluids or conditions. The material selection procedure might involve corrosion evaluation, coating systems, inspection programs, or alternative materials, depending on the service. In this respect, the contribution of safety of a carbon steel elbow in a pipeline is not in the carbon steel substance but in proper engineering and application.

Chemical Processing Requires Careful Compatibility Checks

Chemical processing facilities place additional demands on piping components because the transported media can vary considerably in composition and operating temperature. Some process fluids can be corrosive or chemically aggressive, while others may require elevated temperatures or pressures.

Carbon steel elbows can be used in many process piping applications, but chemical compatibility must be evaluated before the material is selected. A carbon steel elbow that performs well in one process may not be appropriate for another fluid with a different chemical composition. Factors such as concentration, temperature, water content, exposure duration, and process conditions can influence corrosion behavior.

The piping configuration itself also matters. Chemical plants often contain complicated networks with multiple branches, equipment connections, and changes in direction. A carbon steel elbow allows engineers to route these lines around equipment and structural obstacles while maintaining a defined flow path. When the fitting dimensions and connection method are properly matched to the rest of the system, installation can be more predictable, and maintenance planning can be simplified.

Where the process presents a significant corrosion concern, engineers may specify protective systems or alternative materials rather than relying on carbon steel alone. This approach provides a more technically accurate understanding of how carbon steel elbows can be incorporated into chemical piping while maintaining the required level of system reliability.

Water and Utility Piping Benefit From Practical Fitting Design

Water treatment plants and industrial utility systems also use elbows to create practical piping layouts. Treatment facilities can contain networks for raw water, treated water, process water, wastewater, compressed air, chemicals, and other services. Each system has its own material and operating requirements.

Carbon steel elbows can be suitable for selected utility and industrial water applications when the fluid and environmental conditions are compatible with carbon steel. However, the assumption that carbon steel is inherently resistant to chlorine, fluoride, or other treatment chemicals should be avoided. Some water-treatment environments can accelerate corrosion, so material compatibility and corrosion control must be evaluated for the particular service.

The physical layout of a treatment facility can also make directional fittings important. Pipes may need to pass around tanks, pumps, filtration equipment, structural supports, and access areas. Properly selected elbows allow these changes in direction to be incorporated without creating unnecessary complexity in the piping arrangement.

Long-term reliability also depends on maintenance. Inspection programs can identify signs of corrosion, coating deterioration, deformation, leakage, or other conditions that may require attention. A well-designed system therefore combines appropriate fittings with suitable inspection and maintenance practices rather than relying on component strength alone.

Conclusion

Carbon steel elbows play an important role in industrial piping because they provide a practical and reliable method for changing pipeline direction while maintaining mechanical continuity. Their strength, dimensional versatility, availability, and compatibility with many industrial piping systems make them widely used in oil and gas facilities, chemical plants, water systems, and other process applications.

However, pipeline safety should not be attributed to the fitting alone. The suitability of a carbon steel elbow depends on material grade, wall thickness, bend radius, pressure and temperature conditions, fluid compatibility, manufacturing quality, installation, and corrosion control. Carbon steel itself should not be treated as inherently corrosion-resistant, particularly in aggressive environments.

When engineers and purchasers evaluate these factors together, a properly specified carbon steel elbow can contribute to a dependable piping system and support safe, long-term operation. Choosing fittings according to recognized standards and project requirements, while maintaining appropriate inspection and documentation practices, provides a more reliable foundation for industrial pipeline performance. For more information on high-quality carbon steel elbows and other pipeline fittings, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What makes carbon steel elbows suitable for high-pressure applications?

Carbon steel elbows are suitable for high-pressure applications due to their exceptional strength, durability, and ability to withstand extreme conditions.

2. How do carbon steel elbows contribute to pipeline corrosion resistance?

Carbon steel elbows are often treated with specialized coatings or linings that enhance their resistance to corrosive substances, helping to prevent pipeline degradation.

3. Can carbon steel elbows be customized for specific pipeline requirements?

Yes, carbon steel elbows offer flexibility in design, allowing for customization in angles, sizes, and wall thicknesses to meet specific pipeline needs.

4. What industries commonly use carbon steel elbows in their pipeline systems?

Carbon steel elbows are widely used in industries such as oil and gas, chemical processing, and water treatment facilities.
