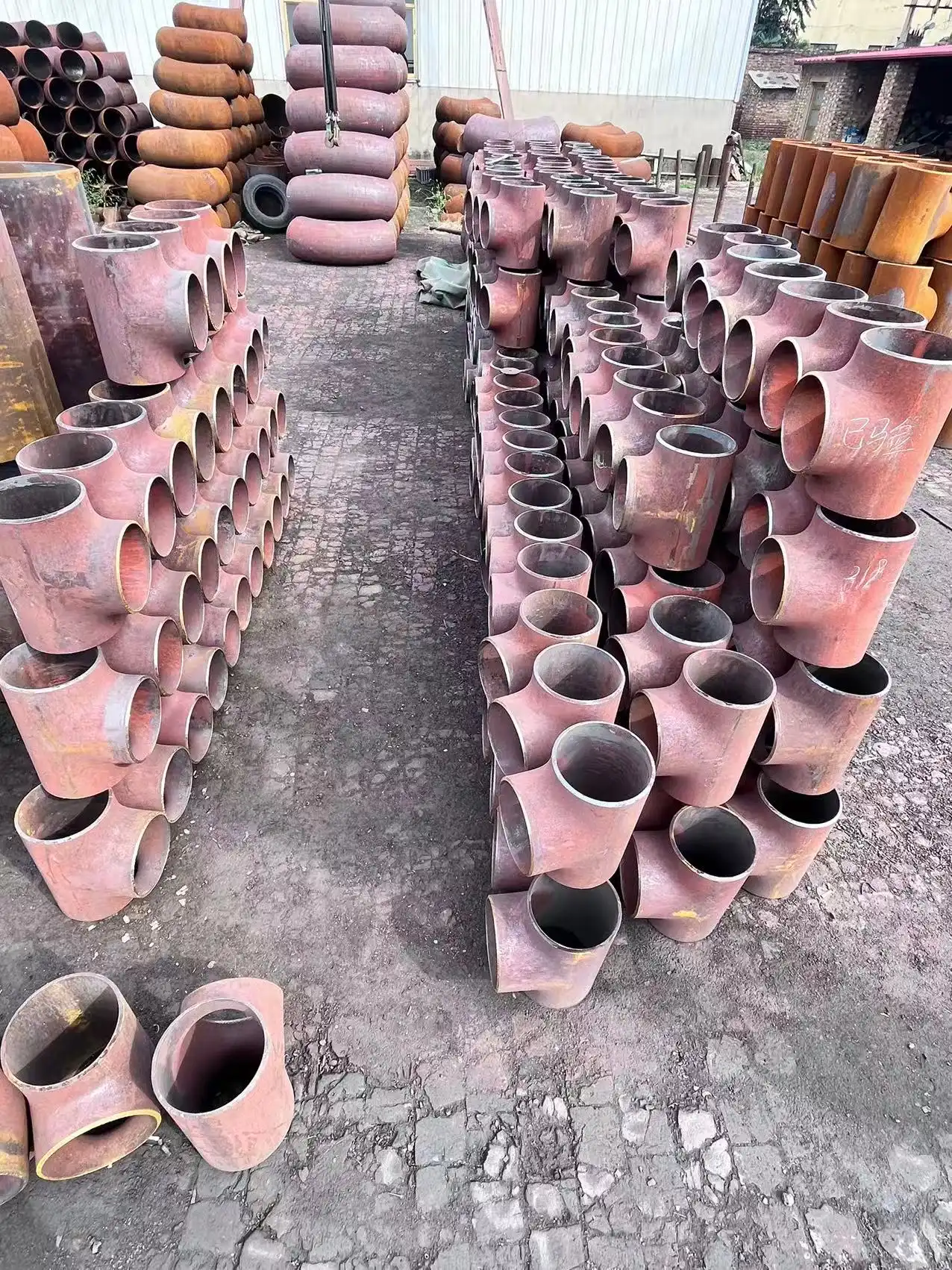

Common Mistakes to Avoid When Installing Pipe Tee Fittings

Pipe tee fittings provide a practical way to create a branch connection within a piping system, but installing one correctly involves more than simply joining three pipe ends. The tee must be compatible with the pipe material, size, connecting technique, and pressure and temperature conditions of the system. The orientation must also be determined before the surrounding pipe is set in place. Any error in one of these areas may be stressful to the joint and make future care more difficult. Some installation difficulties start far before the fitting arrives at the project site. Problems due to an inaccurate size, inappropriate material, improper connection technique, or insufficient pressure rating cannot be remedied simply by tightening the connection. Further issues might arise during installation, especially when pipe ends are not properly prepped, the tee is pressed into place, welding protocols are not followed, or the branch is left unsupported. For contractors, maintenance crews, engineers, and buying departments, knowing these typical blunders may lead to a more predictable installation. The following sections will describe common issues and what to verify before considering a pipe tee fittings installation as finished.

Confirm the Tee Specification Before Starting Installation

Check Size, Wall Thickness, and Connection Type

One of the simplest errors to avoid but the costliest to ignore is installing a tee that is not in compliance with pipe specifications. This is the nominal pipe size. Outside diameter when appropriate. Wall thickness or schedule. Material quality. Connection type. Check all of them before starting work. A tee that is OK on the work site could nevertheless be wrong if it does not have the right dimensions or end preparation for the pipes it is joining.

Its connections are important too. A butt-weld tee, threaded tee, socket-weld fitting, compression fitting, and plastic solvent-weld fitting will have varying installation needs. Prior to prepping the pipe ends, the installer should be aware of which connection has been requested. Attempting to change a fitting that does not fit in the field may result in extra joints, dimensional difficulties, or excessive stress.

This information must be validated by the procurement staff before placing an order. The proper identification, material, nominal size, wall thickness or schedule, end connection, appropriate specification, inspection standards, and documentation should be commensurate with the pipe design. A good specification at the purchase stage decreases the risk of obtaining a fitting that cannot be fitted as planned.

Verify Material Compatibility With the Piping System

Material selection should not be a distinct subject from installation. The tee must be appropriate for the pipe material and the fluid or gas the system is transporting. The choice of materials may be influenced by factors like temperature, pressure, chemical exposure, external environmental conditions, and the potential of galvanic contact.

As an example, when joining different metals, a proper transition arrangement may be necessary, rather than just putting the two elements together. Plastic fittings also have restrictions to their applicability based on temperature, pressure, and chemical exposure. Thus, the correct answer is based on the whole pipe specification and not the appearance or nominal size of the fitting.

Check the pipe specification against the fitting literature prior to installation. If the conditions of the material or service are not clear, the matter should be addressed prior to the fitting being fitted and not after the system has been commissioned.

Prepare the Pipe Ends Before Joining the Tee

Remove Burrs, Debris, and Surface Contamination

Poor pipe preparation is usually the source of connection issues with pipe tee fittings. When you cut a pipe, the end might be contaminated with burrs, sharp edges, metal particles, etc. If they stay on the pipe end, they might prevent correct assembly or influence the quality of a welded or sealed junction.

The pipe must be cut in a manner appropriate to the material and kind of connection, with the necessary deburring and cleaning. The preparation should leave the end of the pipe in the state needed by the operation of fitting and connecting. Surfaces of welded connections should be free of oil, moisture, paint, scale, or other impurities that might interfere with welding.

Cleaning is especially crucial if the pipe system is carrying a demanding service fluid or if the junction is to be inspected. A clean, visible connection does not always mean a well-prepared connection. Therefore, the preparation process must comply with the respective installation protocol.

Avoid Forcing the Tee Into an Incorrect Position

Another error is when the installer sees that the tee doesn’t line up naturally with the existing pipe and then employs force to pull the components together. This might happen if the pipe supports are not installed properly or if the pipe was cut to the wrong size.

A tee should not be utilized to make up for substantial dimensional faults in the surrounding pipework. The junction might be difficult to check, and residual tension can be created in the pipe when the fitting is forced into place. The welded systems may potentially be affected by the welding process due to high external loading during fit-up.

The best is to verify measurements and alignment before the final connecting. Temporary supports, clamps, or other acceptable means of positioning may be used to keep the tee and pipe in the proper place while the connection is being made. When the assembly is in the proper position, the permanent connection may be made as described in the method.

Get the Branch Orientation and Alignment Right

Confirm the Tee Direction Before Final Connection

A tee has three apertures; however, the orientation of these in the system is not interchangeable. The branch has to be pointed in the right direction, especially in systems where the branch connects to another process line, instrument connection, drain, or equipment connection.

A frequent installation error is to concentrate on the straight run and not consider the eventual orientation of the branch. If a welded or permanent connection has been made, cutting and rebuilding the pipe may be necessary to rectify the alignment.

Before connecting, verify the tee against the pipe schematic or installation pattern. Ensure the run end and branch end are in the right place and there is enough space for the connecting pipe and any adjacent equipment. This basic check will avoid rework.

Allow for Installation Tolerances and Thermal Movement

Pipes aligned are not necessarily firmly fixed with no possibility for movement. As working temperatures fluctuate, piping systems may expand and contract. The degree of movement is affected by pipe material, temperature range, pipe length, and system layout.

Hence, the tee should be included in the pipe design rather than being viewed as a standalone component. Where thermal movement is envisaged, the system could need some kind of flexibility, guides, anchors, expansion loops, or other technical features. The right configuration relies on the full pipe layout.

This is particularly critical for bigger systems because pipe tee fittings may be subjected to extra strains imposed by attached pipework. Even with the right selection of the tee, insufficient support of the piping around the fitting might subject the fitting to undue mechanical stress.

Use the Correct Joining Method for the Tee

Follow the Applicable Welding Procedure

For welded pipe tee fittings, joint preparation and welding need to be controlled according to the applicable procedure and material requirements. The pipe ends should be prepared correctly, the fitting should be properly aligned, and the welding process should be suitable for the material and joint configuration.

A frequent mistake is treating all welded tees as if they require the same welding conditions. In practice, welding parameters depend on factors such as material grade, wall thickness, welding process, joint design, position, and applicable procedure. The installer should therefore work from the approved welding procedure or manufacturer requirements rather than relying on a generic temperature or travel-speed rule.

Particular attention should be given to the area where the branch meets the run. This geometry can require careful fit-up and controlled welding to produce a sound joint. Where a specific material or welding procedure requires shielding or backing gas, it should be used as specified. The completed weld should also be allowed to reach the required condition before the piping is placed into service.

Do Not Treat Threaded and Sealed Connections Like Welded Joints

Threaded pipe tee fittings require a different installation approach. The threads should be clean and undamaged, and the selected sealing material should be compatible with the pipe material, service fluid, temperature, and pressure conditions.

PTFE tape or liquid thread sealant should not be applied automatically in the same way for every threaded connection. The manufacturer's instructions and the requirements of the specific service should determine the appropriate sealing method. Excessive sealant can also become a problem if it enters a sensitive part of the piping system.

For compression, flanged, and other mechanical connections, the same principle applies. Use the specified gasket, sealing component, ferrule, or tightening method rather than relying on a universal rule. The correct torque or assembly procedure should come from the fitting manufacturer or applicable installation specification.

Do Not Overtighten the Tee Connection

Excessive Tightening Can Damage Threads and Fittings

Overtightening is often associated with the assumption that a tighter connection is automatically a better connection. That is not the case. Excessive force can damage threads, deform components, distort sealing surfaces, or create stress in the fitting.

This is particularly important for threaded connections, where the installer may continue tightening after the fitting has reached the intended position. The correct stopping point depends on the fitting design, material, sealant, and manufacturer's installation requirements.

Where a specified torque is available, use the recommended value and suitable tooling. Where no universal torque value applies, the installation procedure should be followed instead of applying an arbitrary number.

Do Not Leave Mechanical Connections Too Loose

The opposite problem is an under-tightened connection. A fitting that has not been properly assembled may move, leak, or lose sealing performance when the system is pressurized or exposed to vibration and thermal changes.

The installer should check that all components are seated correctly before applying system pressure. For flanged connections, bolts should be tightened according to the required sequence and torque procedure so that the gasket is loaded evenly. For other mechanical fittings, the manufacturer's assembly instructions should take priority over generalized tightening rules.

The objective is not to make every connection as tight as possible. When installing pipe tee fittings, the objective is to achieve the specified joint condition without damaging the fitting or its sealing components.

Provide Adequate Support Around the Tee

Support the Branch and Connected Piping

A tee can become a stress concentration point when the connected branch is heavy, poorly supported, or exposed to vibration. This is especially relevant when the branch connects to a long section of pipe, a valve, equipment, or another fitting.

Pipe supports should therefore be considered as part of the installation rather than an afterthought. The location and type of support depend on pipe size, material, weight, operating temperature, and the overall piping layout.

A support should not be positioned in a way that creates a new unwanted load on the fitting. The piping design should determine where the pipe is anchored, guided, or allowed to move. In vertical systems, the weight of the riser and connected components should also be considered when determining the appropriate support arrangement.

Consider Vibration and Thermal Expansion

Piping connected to pumps, compressors, machinery, or other vibrating equipment may require additional attention around branch connections. Repeated movement can place cyclic loads on the tee and nearby joints.

Temperature changes create another source of movement. A rigidly restrained system may transfer thermal loads into fittings and connections if the piping layout does not provide sufficient flexibility. The solution is not necessarily to add more supports; it is to use a support and flexibility arrangement appropriate for the system design.

Match Pressure and Temperature Ratings

Check the Fitting Rating at the Actual Operating Temperature

Pressure rating should be checked together with temperature rather than treated as a single fixed number. Depending on the material and fitting specification, the allowable pressure can change as operating temperature increases.

Before installation, compare the fitting rating with the maximum design pressure and design temperature of the piping system. Normal operating conditions should not be the only consideration if the system can experience pressure surges, temperature excursions, or other foreseeable operating conditions.

This check is particularly important when different components are connected within the same piping system. The presence of a higher-rated pipe does not make a lower-rated fitting suitable. The complete assembly needs to be evaluated according to the applicable design requirements.

Avoid Assuming Similar-Looking Materials Have the Same Performance

Two fittings can have similar dimensions while having different material grades or service limitations. This is why visual inspection alone is not enough for specification control.

Material markings, certificates, purchase specifications, and inspection documentation can help confirm that the delivered tee corresponds to the ordered grade and requirements. For projects with formal quality-control procedures, these records should be reviewed before installation rather than after the system has been completed.

Conclusion

Installing pipe tee fittings correctly requires more than making three pipe connections. The fitting has to be suitable for the piping system before installation begins, and the installation itself needs to account for alignment, pipe preparation, connection method, tightening, support, pressure, temperature, and inspection requirements.

Many avoidable problems can be traced back to decisions made before installation, such as selecting the wrong material, overlooking wall thickness, choosing an unsuitable connection type, or failing to confirm the required pressure and temperature conditions. On the job site, forcing an incorrectly positioned tee, using an unsuitable sealing method, applying excessive tightening force, or leaving a branch inadequately supported can create additional problems even when the fitting itself meets the original specification.

A reliable installation therefore starts with accurate specifications and continues with controlled preparation, correct joining practices, appropriate support, and final inspection. When the fitting and the surrounding piping are considered as one complete system, the risk of leakage, unnecessary stress, rework, and premature maintenance can be reduced considerably. For engineering and purchasing teams, selecting a supplier that can provide the required material, dimensions, connection configuration, quality documentation, and technical support is equally important to achieving a dependable pipe tee fitting installation. For more information or assistance with high-quality pipe fittings, please contact us at oudi-04@oudiguandao.com.

FAQ

1. How important is proper alignment when installing pipe tee fittings?

Proper alignment is crucial, as it prevents stress on pipes, ensures even pressure distribution, and reduces the risk of leaks and system failures.

2. What are the risks of overtightening pipe tee fittings?

Overtightening can lead to cracked fittings, damaged threads, or distorted pipe ends, compromising the integrity of the connection.

3. Why is it important to choose compatible materials for pipe tee fittings?

Incompatible materials can cause corrosion, leaks, and premature system failure, reducing the lifespan of the piping system.

4. How does temperature affect pipe tee fitting selection?

Temperature can impact material properties, pressure ratings, and thermal expansion, all of which must be considered to prevent fitting failures and leaks.
