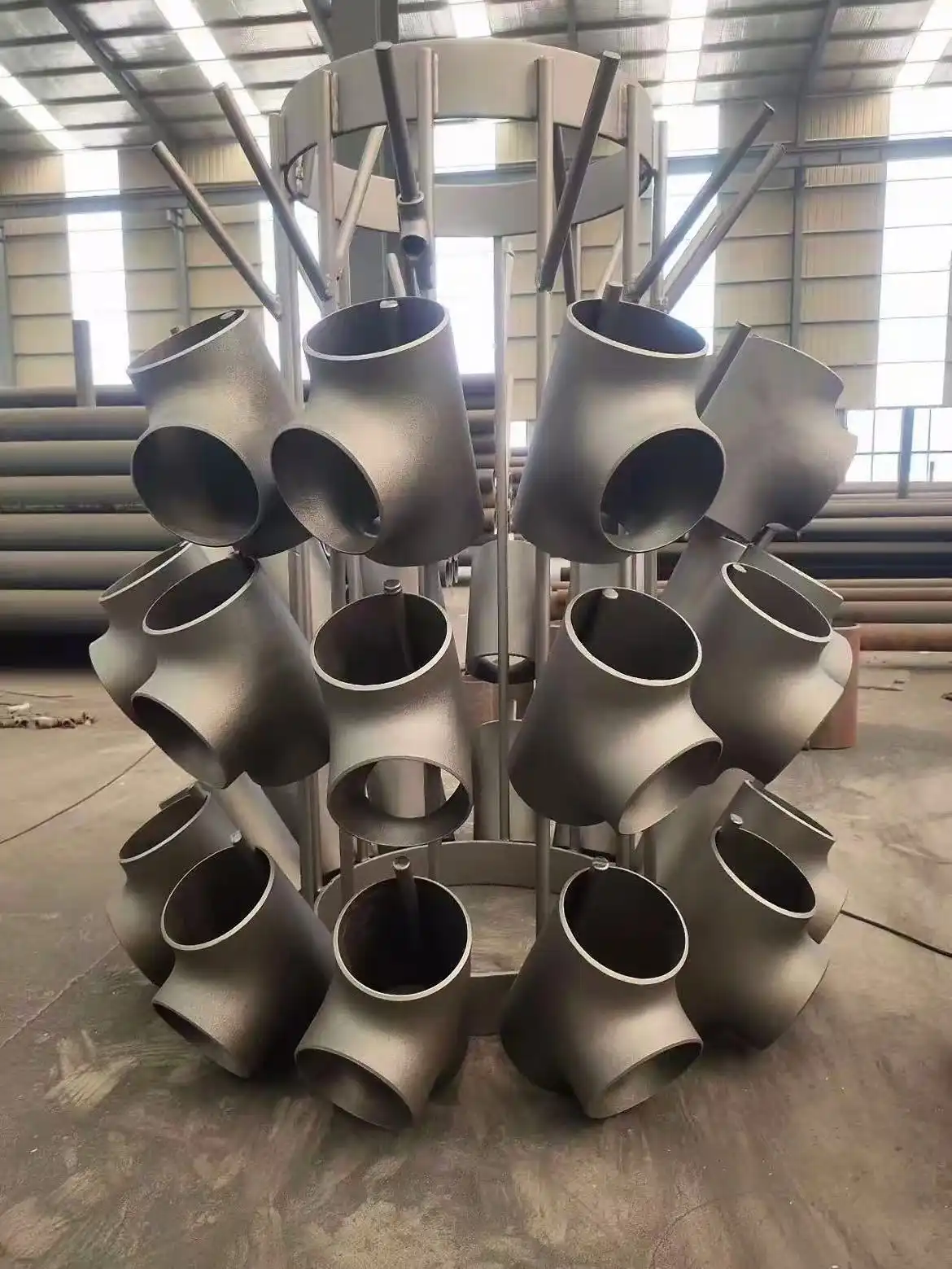

Common Pipe Tee Defects and How to Avoid Them in Sourcing

Pipe tees may look like relatively simple fittings, but their quality can have a direct effect on the safety and service life of a piping system. A tee has to connect the main run and branch line accurately while maintaining the required wall thickness, material properties, and dimensional tolerances. If a defect is introduced during forming, heat treatment, machining, or handling, the problem may not become obvious until the fitting is installed or exposed to pressure and temperature changes. For buyers, this is why choosing pipe tees should involve more than comparing prices and checking the appearance of a sample.  Surface cracks, dents, incomplete forming, dimensional errors, uneven wall thickness, material mix-ups, and faults below the surface are typical difficulties. Some may be identified by a visual examination, others by dimensional inspection, material verification, or non-destructive testing. So a realistic sourcing procedure begins before the purchase order is even placed and goes through manufacturing inspection and arrival inspection. Having insight into the potential fault areas and what documentation should be provided by a supplier, buyers may limit the chance of acquiring fittings that cause installation issues or do not satisfy project specifications.

Where do pipe tee defects usually begin?

The condition of the pipe tee is strongly tied to the manner it is constructed. Manufacturing processes may include hot or cold forming, machining, heat treating, and end preparation, depending on the product. Each step has various potential for flaws; thus, the examination should not be limited to the completed surface.

Surface Damage and Forming Cracks

Surface flaws are among the most simple problems to identify but should not be immediately considered cosmetic. Scratches, dents, pits, laps, seams, or visible fissures may indicate poor handling or issues during forming. Transportation may leave a superficial mark with no influence on the performance, but a fracture or deep discontinuity may become a stress concentration site when the fitting is under internal pressure.

Care should be taken with the formation-related flaws in the neighborhood of the branch connection and the run-branch transition. These regions vary their shape and the flow of material throughout the production process. If the forming circumstances are not adequately regulated, the metal may not flow uniformly, resulting in localized thinning, folds, or other discontinuities.

Buyers should verify a batch of pipe tees to ensure the surface quality is uniform. Buyers should not expect every fitting to be polished. A better inquiry is whether the obvious flaws are addressed by the relevant standard and if they impact the pressure containment function of the fitting. For important applications, the supplier should also be able to describe how surface flaws are detected and managed throughout manufacturing.

Dimensional Deviations That Affect Installation

The material chemistry of a tee may be OK and yet pose difficulties if it is out of dimension. Overall length, run diameter, branch diameter, wall thickness, branch alignment, end preparation, and other factors all have an effect on whether the fitting can be put on successfully.

Dimensional difficulties are particularly difficult since they may not be seen until fitting takes place at the manufacturing or installation stage. If a branch is a little off true, it may be difficult to line up with the connecting pipe. Fabrication problems may arise from the wrong outer diameter or wall thickness, and mismatches during fit-up can be caused by too much variance in dimensions within the same batch.

Always refer to the appropriate product standard, authorized design, buy specification, and project requirements—not to some generic size table you saw on the internet. For instance, pipe tees and other wrought butt-welding fittings produced in a shop may be ordered to standards such as ASME B16.9, with the material specification established individually for every grade needed. The customer should ensure that the supplier understands both needs before manufacturing starts.

Uneven Wall Thickness and Incomplete Forming

Wall thickness is especially significant in pressure-containing fittings.   The material is not always dispersed in precisely the same manner across the fitting during forming. If the manufacturing process is not well managed, certain sections may be thinner than expected.

This does not imply that every tiny alteration is inevitably a rejection.   Generally, engineering standards will include tolerances, and the actual acceptance criteria should be derived from the appropriate specification. The key issue for sourcing is that the supplier should have a reliable process to regulate and verify wall thickness, not only eye examination.

Buyers may decrease this risk by defining the wall thickness and material grade necessary in the purchase papers and by inquiring how the manufacturer checks the final specifications. Dimensional inspection records or third-party inspection may provide extra assurance for crucial orders, especially if the fitting will be put in high-pressure or high-temperature service.

Material Problems Can Be Harder to Detect

A fault in the material is often more significant than a visible scratch, the issue not necessarily being noticeable in the completed fitting. A pipe tee may seem to be entirely appropriate but may be of the incorrect material grade, have poor mechanical qualities, or lack traceability.

Incorrect Material Grade or Mixed Heat Numbers

Once pipe tees are received, material identity is one of the first things purchasers should check. The material grade on the purchase order should match the material certificate and the identifying marking on the fitting. The heat number should be traceable (if relevant) from source material through manufacture and final inspection.

Mix-ups of materials may occur if several grades are handled in one facility or if procedures for identification are insufficient. This is especially crucial to stainless steel, alloy steel, and other materials chosen for severe temperature, corrosion, or pressure conditions. A wrong grade of fitting may seem good to the naked eye, yet it may not function well in service.

A suitable material test certificate or material test report must include pertinent chemical and mechanical information as specified by the applicable standard. Buyers should not think of the agreement as just some paperwork that may be stored away. The certificate should be examined against the purchase order, grade, heat number, measurements, and marking of real fittings.

Internal Defects and Metallurgical Concerns

Certain flaws originate in the material itself or during the formation and heat treatment phases. Depending on the material and the manner by which it is manufactured, problems might include internal discontinuities, inclusions, incorrect grain structure, or unsatisfactory mechanical qualities. Not all internal indications are a product failure, but inexplicable or unsatisfactory indications might become a problem when the fitting is employed in demanding service.

Here is where inspection has to be matched to the application. A general service plumbing project does not need the same kind of scrutiny as a critical process line. In higher-risk applications the buyer may include suitable NDT or other testing in the purchase specification rather than request it after manufacturing has already been finished.

The supplier should also be able to describe its heat treatment technique for pipe tees if heat treatment is required by the material or relevant standard. Relevant documents may assist in showing that the fitting has been processed under controlled circumstances and that the specified mechanical qualities were obtained.

How Inspection Can Catch Defects Before Shipment？

Inspection is most effective when it is designed to focus on the real dangers posed by the product. After delivery, the fittings must be looked at, but it is not enough in itself. A better technique is a combination of visual examination, dimensional verification, material documentation, and extra testing when needed for the application.

Start With a Careful Visual Examination

The naked eye is still one of the easiest methods to find evident abnormalities. Each lot will be inspected for apparent cracks, deep scratches, dents, surface laps, corrosion, damaged ends, and anomalous forming markings. Also check the branch and run for noticeable misalignment or distortion.

Special care has to be paid to the weld ends, as inadequate preparation of the weld ends might make fabrication more difficult. The ends will need to fulfill certain standards for bevel shape, size, and surface quality based on the specifications. Any damage in transit should also be noted, since even a perfectly built fitting might be destroyed before reaching the point of installation.

Do not consider visual examination to constitute a pass/fail decision based on whether the fitting “looks good.” The inspector must compare the observed condition with the appropriate acceptance criteria. Photographs and inspection documents might also be beneficial should you need to talk to the provider about an issue.

Verify Dimensions With Suitable Measuring Tools

Dimensional inspection is very useful for discovering flaws that may not be obvious during a comprehensive assessment. Inspectors may also measure the exterior diameter, internal diameter, wall thickness, overall dimensions, branch dimensions, alignment, and end preparation, depending on the fitting size and specification.

The measuring equipment should be appropriate for the precision necessary, and the examination shall be limited to dimensions affecting installation and performance. One fitting from a big shipment may not be sufficient to understand batch uniformity. Sampling should thus be based on the project requirements and the quality strategy of the client.

If you are ordering a significant number of fittings, it is recommended negotiating dimensional uniformity with your supplier before manufacturing. A producer that regularly documents the findings of its dimensional inspections is better able to detect process drift prior to completion of an entire batch.

Use NDT When the Application Justifies It

Visual examination cannot provide the information that non-destructive testing can. Ultrasonic testing may locate certain internal discontinuities or measure wall thickness. Radiographic testing can locate some internal flaws in appropriate circumstances. The magnetic particle is helpful for identifying surface and near-surface defects in ferromagnetic materials.

The choice of NDT should not be dictated by the fact that one approach sounds more sophisticated than another. Each approach has its own strengths and weaknesses, and the optimal technique relies on the material, geometry, manufacturing process, defect kind, and relevant specification.

Buyers should establish the NDT technique and acceptance criteria necessary for important pipe tees in the purchase papers prior to the commencement of manufacture. Inspection reports should explicitly identify the examined batch or components so that the findings may be tracked back to the actual items delivered.

What Should Buyers Check Before Choosing a Supplier?

A reliable sourcing process begins with supplier evaluation rather than waiting for defects to appear during incoming inspection. Price matters, but it should be considered alongside manufacturing capability, quality control, documentation, traceability, and the supplier's ability to consistently meet technical requirements.

Look Beyond Certifications When Evaluating a Manufacturer

An ISO 9001 certificate can indicate that a supplier operates a formal quality management system, but certification alone does not prove that a particular batch of pipe tees will meet every requirement. Buyers should also ask about manufacturing equipment, inspection procedures, material control, heat-treatment capability where applicable, and experience with the required material grades and sizes.

A supplier should be able to discuss the product in technical terms rather than giving only general assurances about quality. If a buyer asks about dimensional tolerances, MTRs, heat-number traceability, NDT, or inspection procedures, the supplier should be able to provide a clear and consistent answer.

Previous project experience can also be useful. A manufacturer that regularly produces similar fittings for oil and gas, chemical processing, power generation, water treatment, or other industrial applications may already understand the documentation and inspection requirements associated with those projects.

Make Material Traceability Part of the Purchase Process

Traceability is especially valuable when a problem is discovered after delivery. If each batch can be connected to a material heat number, production record, inspection result, and shipment document, the supplier and buyer can investigate the issue much more efficiently.

The basic principle is straightforward: the material certificate should correspond to the material actually used to manufacture the fittings, and the identification on the finished products should allow that material to be traced back to its documentation. Buyers should confirm this process before placing the order rather than discovering later that the supplier cannot connect the documents to the delivered fittings.

For projects with strict documentation requirements, the purchase order should clearly state what records must accompany the shipment. Depending on the application, these may include material certificates, dimensional inspection reports, NDT reports, heat-treatment records, certificates of conformity, and other project-specific documents.

Define Acceptance Requirements Before Production

Many sourcing disputes begin because the buyer and supplier have different ideas about what constitutes an acceptable product. A vague instruction such as “supply high-quality pipe tees” leaves too much room for interpretation.

The purchase specification should identify the required standard, material grade, size, schedule or wall thickness, applicable tolerances, end preparation, marking, testing, inspection requirements, and documentation. If third-party inspection is required, the inspection stage and scope should also be agreed upon in advance.

This approach makes quality control much more objective. Instead of debating whether a fitting “looks acceptable,” both parties can compare the product with agreed technical requirements. It also gives the supplier a clear manufacturing target and gives the buyer a stronger basis for rejecting products that genuinely fail to meet the contract.

Conclusion

Common pipe tee defects are not limited to visible surface damage. Dimensional deviations, uneven wall thickness, forming problems, material mix-ups, internal discontinuities, and poor traceability can all create problems if they are not identified before the fittings enter service. The best way to reduce these risks is to combine clear purchasing specifications with supplier qualification, material verification, dimensional inspection, appropriate NDT, and complete quality documentation.

For buyers, the goal should not be to inspect every possible problem after delivery. A better approach is to establish quality requirements early, work with a manufacturer that has suitable production and inspection capabilities, and maintain traceability throughout the order. When these practices are applied consistently, pipe tees are much more likely to arrive ready for installation and perform reliably throughout the service life of the piping system.

If you have any questions about how we choose quality pipe fittings like pipe tees, please email us at oudi-04@oudiguandao.com. Since 1998, Cangzhou Oudi Pipe Fabricate Co., Ltd. has been a leader in making carbon steel pipe fittings, valves, and ribs. Customers in 40 countries have enjoyed our great goods and services.

FAQ

1. What are the most common types of pipe tee defects?

The most common defects include surface imperfections, dimensional inaccuracies, and material defects.

2. How can I ensure the quality of pipe tees during sourcing?

Implement proper inspection techniques, qualify suppliers, ensure material traceability, and establish quality assurance agreements.

3. What inspection methods are used for pipe tees?

Common methods include visual inspection, non-destructive testing (NDT), and dimensional verification.

4. Why is material traceability important for pipe tees?

It ensures quality, facilitates troubleshooting, and helps maintain consistency in the manufacturing process.
