Concentric vs Eccentric Reducer: What’s the Difference and When to Use?

Choosing the right reducer is an important part of designing a reliable piping system. A reducer connects pipes with different nominal diameters and provides a controlled transition between them, allowing engineers to manage changes in flow velocity while keeping the piping layout practical. Two of the most widely used designs are the concentric reducer and the eccentric reducer. Although they perform the same basic function, their different centerline arrangements make them suitable for different operating conditions. A concentric reducer has a common centerline for the larger and smaller pipe ends, while an eccentric reducer has offset centerlines and a flat side. This variation may look minor but may impact installation, drainage, air buildup, connections to equipment, and local flow behavior. Therefore, choosing between the two involves more than comparing their shapes. The proper selection for engineers, contractors, and buying teams is based on the direction of the pipe, the fluid being delivered, the position of pumps or equipment, and the system’s working circumstances. This tutorial describes the practical differences between concentric and eccentric reducers and indicates when to generally use each type.

How Does a Concentric Reducer Work in a Piping System?

Centered Geometry and Flow Transition

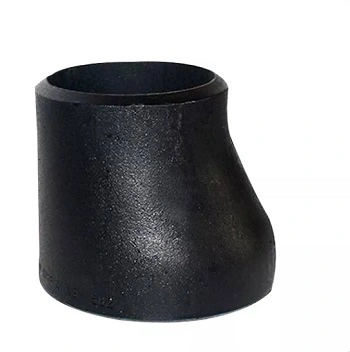

The concentric reducer features a symmetrical cone-shaped body that maintains the centerlines of both pipe ends in alignment. The bigger diameter progressively turns into the smaller diameter on the same central axis. This shape is especially well-suited to pipe configurations where it is critical to keep the centerline straight.

When the flow goes from the bigger pipe to the smaller pipe, the available cross-sectional area is reduced. The continuity relation for a steady, incompressible flow requires the average fluid velocity to rise with decreasing pipe diameter. The actual velocity distribution throughout the reducer is a function of the reducer shape, flow rate, fluid characteristics, and upstream and downstream circumstances.

The symmetrical form makes it also possible to place the fitting easily in vertical pipes. There is no elevated or lowered side by design; therefore, installation is usually simple when connecting pipes are on the same centerline.

Pressure Loss Depends on More Than Reducer Type

A reducer usually results in some local change in flow behavior, as the fluid must accelerate or decelerate as the cross-sectional area changes. But you can't just claim one sort of reducer is "low loss" while the other is "high loss." You can't tell how much pressure loss there is.

The pressure loss via a reducer relies on parameters such as the ratio of diameters, the transition angle, the flow velocity, the fluid density, the viscosity, the surface condition, and the design of the fitting. The configuration of the adjacent elbows, valves, pumps, and other fittings may also impact the total pressure behavior.

A concentric reducer, if constructed correctly, may provide a regulated transition from one pipe size to another and is helpful when a centered flow route is required. For situations where pressure loss is a significant design characteristic, engineers should utilize the manufacturer's dimensions data or related hydraulic calculations and not depend just on the form of the reducer.

Where Concentric Reducers Are Commonly Used？

Concentric reducers are often employed in vertical pipework, process lines, utility systems, and many other industrial applications. These are especially good when the pipe centerline has to be kept in line and when there is no particular need to avoid liquid drainage difficulties or air entrapment due to an offset fitting.

For example, a circular reducer may offer a smooth transition between various diameters of pipe without offsetting the flow route in a vertical liquid line. Many industrial and utility lines have similar issues if the equipment and pipes are already oriented around a common centerline.

They may also be utilized in gas systems if the material, size, pressure rating, and connecting technique of the reducer are suitable for the service. The same concept applies to chemical, water treatment, electricity, and general industrial systems—the fitting should be chosen against the whole operational specification and not just the industry name.

What Makes an Eccentric Reducer Different?

Offset Centerlines Create a Flat Side

Unlike a concentric reducer, an eccentric reducer has two pipe ends whose centerlines are offset. This creates a flat side and an angled side rather than a symmetrical cone around a single centerline.

This geometry gives engineers an additional installation option that is not available with a concentric reducer. The flat side can be oriented upward or downward depending on the function of the pipe and the requirements of the system.

That feature becomes especially useful in horizontal piping. In a liquid line where complete drainage is important, the reducer may be installed with the flat side at the bottom so that the pipe does not create an unnecessary low point or pocket. In other applications, particularly around pump suction piping, the flat side may be installed at the top to reduce the risk of air becoming trapped along the suction line.

The correct orientation should not be selected by habit alone. Engineers need to consider the equipment connection, flow direction, drainage requirements, venting arrangements, and the manufacturer's or project engineer's piping specifications.

Why Air and Liquid Accumulation Matter？

Air pockets and liquid pockets can create operational problems in piping systems. Air trapped at a high point may interfere with pump suction, reduce effective flow area, contribute to unstable operation, or make system venting more difficult. On the other hand, unwanted liquid pockets in certain process or drain lines can make complete emptying and maintenance more difficult.

The eccentric reducer gives the designer more control over the internal profile of a horizontal line. Its flat side can be deliberately aligned with the surrounding pipe to address these concerns.

This does not mean that every horizontal pipe should use an eccentric reducer. The decision depends on the service. A horizontal line carrying a clean liquid under ordinary conditions may not require an eccentric fitting, while a pump suction line, drainable process line, or system where gas accumulation is a concern may benefit considerably from the offset geometry.

Flow Behavior Is Influenced by Installation

The offset shape of an eccentric reducer can produce an asymmetric flow transition. That does not automatically make it unsuitable for demanding services. Instead, it means that the fitting's orientation and position should be considered as part of the overall piping design.

For example, the effect of an eccentric reducer near a pump inlet can be more important than its effect in a relatively simple straight process line. If the reducer is installed too close to the pump or in an unsuitable orientation, the resulting flow disturbance may contribute to poor suction conditions. This is why piping engineers generally evaluate the reducer together with the adjacent straight pipe, elbows, valves, and equipment nozzle.

Rather than treating turbulence as inherently good or bad, the practical question is whether the local flow behavior is acceptable for the specific system. In slurry or solids-handling applications, preventing deposits may be more important than achieving the most symmetrical flow profile. In precision process systems, minimizing disturbances may have greater importance.

When Is a Concentric Reducer the Better Choice?

Vertical Piping and Centered Equipment Connections

A concentric reducer is often a practical choice for vertical piping because its two ends remain on the same centerline. This makes alignment relatively simple and avoids intentionally shifting the pipe toward one side.

The same advantage can be useful when a reducer connects equipment nozzles or pipe sections that have been designed around a common axis. Maintaining this alignment can simplify fabrication and installation, particularly when the piping layout contains several components arranged vertically.

However, vertical installation alone does not automatically require a concentric reducer. The fluid, equipment, drainage requirements, and project specifications still need to be reviewed before the final selection is made.

Applications Where Symmetrical Geometry Is Preferred

Some piping systems benefit from the predictable geometry of a centered transition. When there is no need for a flat side to control drainage or air accumulation, a concentric design can provide a straightforward connection between different pipe sizes.

This is one reason concentric reducers are frequently encountered in general process piping and utility systems. Their geometry is simple to understand, easy to orient, and compatible with many conventional pipe arrangements.

For a procurement team, this also makes the basic dimensional requirements relatively straightforward to communicate. The buyer still needs to specify the pipe sizes, material grade, wall thickness or schedule, end connection, applicable standard, and design conditions, but there is no additional flat-side orientation requirement.

High-Pressure Service Requires a Complete Specification

It is common to associate concentric reducers with high-pressure piping, but the reducer's centerline arrangement does not by itself determine whether the fitting can withstand high pressure.

Pressure capability depends on the material, wall thickness, manufacturing method, dimensions, temperature, corrosion allowance, applicable design code, and the pressure-temperature rating of the piping system. A concentric reducer manufactured from an unsuitable material or with inadequate wall thickness would not become a high-pressure component simply because its geometry is symmetrical.

For this reason, high-pressure projects should specify the fitting according to the complete engineering requirement. Where applicable, standards such as ASME B16.9 may be relevant to factory-made wrought butt-welding fittings, while material requirements may be specified separately through standards such as ASTM A234 for wrought carbon and alloy steel fittings. The exact standards should always be confirmed against the project's design specification.

When Does an Eccentric Reducer Make More Sense?

Pump Suction Lines

Pump suction piping is one of the clearest examples where reducer geometry and orientation can become important. Poorly arranged suction piping can encourage air accumulation or create unfavorable flow conditions at the pump inlet.

For horizontal pump suction lines, an eccentric reducer is commonly considered when maintaining a level upper surface helps reduce the possibility of an air pocket. In this arrangement, the flat side is generally placed on top, often described as “flat side up.” The actual configuration should still be checked against the pump manufacturer's requirements and the project piping design.

The objective is not simply to use an eccentric reducer because it is associated with pumps. The objective is to create a suction arrangement that supports reliable pump operation and avoids unnecessary changes in elevation or trapped gas.

Drainable Horizontal Piping

An eccentric reducer can also be valuable when a horizontal line needs to drain effectively. In such a situation, placing the flat side at the bottom can help maintain a more continuous lower surface through the size transition.

This can be important in process systems where residual liquid needs to be removed during shutdown, cleaning, maintenance, or product changeover. It can also matter in systems where standing liquid could create contamination, corrosion, freezing, or other operational concerns.

The appropriate orientation depends on the purpose of the line. A drainable process pipe and a pump suction pipe may require opposite orientations, which is why simply specifying an eccentric reducer or concentric reducer without identifying the installation requirement may lead to an incorrect result.

Slurry and Solids-Handling Systems

Piping that carries slurry, suspended solids, or fluids with a tendency to settle requires additional consideration. Deposits can reduce the effective flow area and increase maintenance requirements over time.

An eccentric reducer may sometimes be selected to support a piping arrangement that reduces unfavorable pockets or helps maintain the desired pipe profile. However, the reducer itself does not guarantee that solids will remain suspended. Flow velocity, particle size, fluid density, viscosity, pipe diameter, concentration, and system layout all influence settling behavior.

For abrasive slurry services, material selection is equally important. The fitting may need suitable wear resistance or corrosion resistance in addition to the required pressure and dimensional characteristics.

What Should You Check Before Ordering a Reducer?

Before placing an order, the engineering and purchasing teams should make sure the reducer type matches the actual piping arrangement. The pipe sizes should be confirmed at both ends, followed by the material and wall thickness required for the service.

The installation orientation should be clearly stated when an eccentric reducer is involved. If the fitting is being installed near a pump, the supplier should know whether the design requires a particular flat-side orientation. For drainable process lines, the desired orientation should likewise be communicated rather than left to interpretation during installation.

The applicable manufacturing and dimensional standards should also be confirmed. Projects may use different international or regional standards depending on the country, industry, owner specification, and piping code. Material certificates and inspection documents may be required for critical services, while more demanding applications may also require additional non-destructive examination or dimensional verification.

Working with an experienced manufacturer can reduce the risk of receiving a fitting that technically has the correct nominal size but does not meet the project's actual requirements. A capable supplier should be able to review the drawing or specification, confirm material and dimensions, and clarify any questions about reducer orientation before production.

Conclusion

The main difference between a concentric reducer and an eccentric reducer is the relationship between their centerlines. A concentric reducer keeps both pipe ends aligned around the same axis, making it a practical choice for many vertical and general-purpose piping applications where a symmetrical transition is desirable. An eccentric reducer offsets the two centerlines and creates a flat side, giving engineers more control over drainage and air accumulation in horizontal piping.

Neither design is universally better. The right choice depends on the piping orientation, fluid characteristics, pump or equipment connection, drainage requirements, pressure and temperature conditions, and applicable engineering standards. A concentric reducer may be the simpler solution when centerline alignment is the priority, while an eccentric reducer can provide a practical advantage when air pockets, liquid pockets, or drainability need to be controlled.

For buyers, the selection should therefore go beyond the basic question of “concentric or eccentric.” Pipe sizes, material grade, wall thickness, connection type, standards, operating conditions, and installation orientation all need to be confirmed before production. Cangzhou Oudi Pipe Manufacture Co., Ltd. can support customers with carbon steel pipe fittings, valves, and flanges for different industrial applications. With experience in pipe fitting manufacturing since 1998, the company can work with project specifications to help customers select and manufacture reducers that match their piping requirements. Email us at oudi-04@oudiguandao.com if you want to know more.

FAQ

1. What is the main difference between concentric and eccentric reducers?

Concentric reducers have a symmetrical design with aligned centerlines, while eccentric reducers have offset centerlines with one flat side.

2. When should I use a concentric reducer?

Use concentric reducers in vertical installations, high-pressure systems, and applications requiring laminar flow.

3. What are the advantages of eccentric reducers?

Eccentric reducers are better for preventing liquid accumulation or air entrapment in horizontal pipes.

4. Can concentric reducers be used in horizontal pipes?

Yes, but they may not be ideal for applications where complete drainage or air elimination is crucial.
