Equal Tee vs Straight Tee: What’s the Difference and Why It Matters？

At first glance, an equal tee and a straight tee may appear to be two different types of pipe fittings. In actual piping terminology, however, the two names are often used to describe the same basic fitting: a tee with three outlets of the same nominal size. The important distinction is usually between an equal or straight tee and a reducing tee, where the branch outlet is smaller than the run of the fitting. Understanding this terminology matters because an incorrect assumption about the fitting type can lead to the wrong dimensions, flow arrangement, or connection details being specified during procurement. For engineers, contractors, and purchasing teams, knowing how these tees are identified makes it easier to select the correct fitting for a particular piping system and avoid unnecessary changes after production begins.

How Are Equal and Straight Tees Defined in Piping Systems?

Why “Equal Tee” and “Straight Tee” Are Often Used Interchangeably？

A tee fitting creates a 90-degree branch from the main run of a pipe. When the run and branch have the same nominal pipe size, the fitting is commonly described as an equal tee. In many industrial piping references, it is also called a straight tee. For example, a tee specified as NPS 4 would normally indicate an equal or straight tee, while a fitting specified with different run and branch sizes would be identified as a reducing tee.

This distinction is important because the original assumption that a straight tee has a smaller branch outlet can create confusion during ordering. A smaller branch is characteristic of a reducing tee rather than a standard straight or equal tee. Reducing tees are commonly identified by the run size and branch size, such as a 4 × 4 × 2 configuration, depending on the applicable specification and manufacturer designation.

For that reason, engineers should not assume that “straight tee” means a tee designed specifically to reduce branch flow. When reviewing a drawing, purchase specification, or quotation, the actual nominal sizes of all three connections should be checked rather than relying on the product name alone.

What the Geometry Tells You？

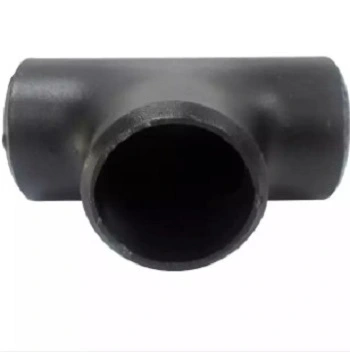

An equal or straight tee has three connection ends with the same nominal size. The two ends along the main run have the same size as the branch, creating a symmetrical T-shaped fitting. This configuration is useful when a branch line needs to connect to a main line without changing the nominal diameter at the branch connection.

A reducing tee has a different arrangement. The run may remain at one nominal size while the branch is reduced to a smaller size. This allows the piping system to connect a smaller branch line directly to a larger main line without adding a separate reducer and tee combination.

The physical difference is therefore straightforward, but the engineering consequences depend on how the fitting is installed. Equal dimensions do not automatically mean equal flow in every direction. The actual flow distribution depends on the system layout, pressure conditions, branch resistance, valves, downstream equipment, and operating point.

How Does a Straight Tee Affect Flow and Pressure Loss?

Flow Through the Main Run and Branch

When fluid reaches a tee, the flow can continue through the run, turn into the branch, or combine from the branch into the main line, depending on how the fitting is being used. This change in direction creates local turbulence and pressure loss. The tee itself does not determine the final flow split; the connected piping system does.

In a straight or equal tee, the branch connection has the same nominal size as the run. That makes the fitting suitable when the branch line is designed around the same nominal pipe size. It does not mean that one-third of the flow will automatically enter each outlet. If the downstream branch has a higher resistance than the main route, less fluid will move through that branch even though the tee has three equal-sized connections.

This is an important point for system designers. The word “equal” refers primarily to the physical dimensions of the fitting, not to a guaranteed hydraulic balance. Flow balancing must be achieved through the complete system design rather than through the tee alone.

Why Pressure Drop Cannot Be Judged by the Fitting Name Alone？

Every tee introduces some local pressure loss because the flow path changes and may divide or combine. The amount of loss depends on the flow direction and the geometry of the fitting as well as the operating conditions.

For example, when fluid travels straight through the run while a portion branches off, the pressure-loss behaviour will differ from a situation in which two streams combine into one. A branch that carries a significant proportion of the total flow can produce a different hydraulic condition from a branch that only supplies a small downstream circuit.

For this reason, statements such as “a straight tee always has lower pressure loss” or “an equal tee always provides balanced pressure” are too broad to be reliable. Engineers should use the applicable hydraulic calculation method and the manufacturer's technical data when pressure loss is a critical design parameter.

A well-selected tee should therefore be evaluated as part of the complete piping network. Pipe diameter, fluid properties, flow rate, velocity, downstream resistance, valve configuration, and fitting geometry all contribute to the final pressure profile.

When Should a Straight Tee Be Used?

Applications That Require an Equal-Sized Branch

An equal or straight tee is appropriate when the branch connection needs to remain the same nominal size as the main run. This arrangement is common in industrial piping where a full-size branch is required for process flow, equipment connections, distribution headers, or other parts of a system.

The fitting can also be useful when the design requires flexibility in how the branch is connected downstream. Because the branch is not reduced at the tee itself, the designer can later use a reducer, valve, or other component if a smaller connection is needed.

The choice should still be based on the required flow capacity and connection dimensions rather than on the appearance of the fitting. A tee may look suitable on a drawing while having the wrong nominal size, wall thickness, material grade, or end preparation for the actual project.

When a reducing tee is more appropriate？

If the branch line is intentionally smaller than the main run, a reducing tee is normally the more direct fitting choice. It provides the required size transition within the tee and can simplify the piping arrangement.

For example, a large process line may need a smaller branch leading to an instrument connection, auxiliary line, drain arrangement, or secondary process circuit. In such cases, using a reducing tee can avoid the need to install a full-size equal tee followed by a separate reducer.

The correct selection depends on more than branch diameter. Designers also need to consider the required pressure rating, material compatibility, operating temperature, connection method, corrosion conditions, and applicable dimensional standard.

What Should Engineers Check Before Ordering a Tee?

Nominal Size and Wall Thickness

Nominal pipe size should be one of the first items confirmed when purchasing a tee. For an equal or straight tee, all three connections are normally specified at the same nominal size. For a reducing tee, the run and branch sizes need to be clearly identified.

Wall thickness is equally important because two fittings with the same nominal size may have different wall requirements. In butt-weld piping, the tee must be compatible with the wall thickness and outside diameter of the connecting pipe. ASME B16.9 dimensional references distinguish straight tees from reducing tees and provide dimensional requirements for these fittings.

A procurement specification should therefore avoid relying only on a product name such as “straight tee". The complete dimensional requirements should be included so the supplier can manufacture or supply the correct configuration.

Material and Service Conditions

The material of the tee should match the requirements of the piping system and the fluid being handled. Carbon steel, stainless steel, alloy steel, and other materials may be selected depending on temperature, pressure, corrosion exposure, mechanical requirements, and applicable project specifications.

For demanding industrial service, the material grade should be confirmed together with the required documentation. Material certificates, inspection records, dimensional reports, and other quality documents may be necessary depending on the project.

This is also where communication between the buyer and manufacturer becomes valuable. If the fitting is intended for a high-temperature, corrosive, or otherwise demanding service, simply specifying “straight tee” does not provide enough information for reliable production.

Connection Type and Applicable Standard

The connection method should also be confirmed before an order is placed. Butt-weld tees, socket-weld tees, and threaded tees can have different dimensional and installation requirements. The selected fitting needs to match the connection method used elsewhere in the piping system.

For butt-weld fittings, ASME B16.9 is a commonly referenced dimensional standard. Industry dimensional references identify straight and reducing tees separately under this framework.

A purchasing document should therefore identify the applicable standard instead of leaving the supplier to interpret the requirement. This reduces the possibility of receiving a fitting with the correct nominal size but the wrong dimensional or manufacturing specification.

How Does the Choice Affect Project Cost?

Purchase Price Is Only One Part of the Decision

The purchase price of a tee depends on factors such as material, nominal size, wall thickness, manufacturing specification, quantity, certification requirements, and supplier capabilities. It would be misleading to assume that one tee type is always cheaper simply because of its shape.

An equal or straight tee and a reducing tee may have different manufacturing requirements, but the final price can vary considerably from one project to another. Large-diameter fittings, special alloys, unusual wall thicknesses, and additional inspection requirements can have a greater effect on price than the basic tee classification itself.

For procurement teams, the better approach is to compare complete quotations rather than comparing fitting names in isolation. A low unit price may not represent the lowest total cost if the product requires additional machining, adaptation, inspection, or replacement after delivery.

Installation and Modification Costs

The fitting selected can also influence installation work. If the branch line is already designed at the same nominal size as the main line, an equal or straight tee may provide a direct connection. If the branch is smaller, a reducing tee may eliminate the need for a separate reducer and additional weld.

The cost difference depends on the actual piping layout. A reducing tee may have a higher purchase price than a standard equal tee, but it could reduce the number of components and welding operations required in the field. Conversely, an equal tee combined with a separate reducer may sometimes provide greater flexibility for future modifications.

This is why the most economical solution should be evaluated at the system level rather than by looking at the price of one fitting.

How Can Buyers Avoid Common Tee Selection Mistakes?

Do Not Treat a “Straight Tee” as a Reducing Fitting.

The first mistake to avoid is assuming that a straight tee has a smaller branch. In standard piping terminology, a straight or equal tee generally has three equal-size connections, while a reducing tee has a smaller branch connection.

This distinction should be reflected consistently across drawings, bills of materials, purchase orders, and supplier quotations. If different documents use the terms differently, the supplier should confirm the intended configuration before production begins.

Confirm the Three Connection Sizes

A simple way to reduce ambiguity is to state the size of each connection explicitly. For a straight tee, the three nominal sizes should match. For a reducing tee, the main run and branch dimensions should be clearly stated.

This approach is especially useful for large projects where multiple tee configurations are purchased at the same time. Clear size information reduces the chance of receiving a fitting that looks correct but cannot be connected to the specified pipe.

Review Technical Documentation Before Production

For customised or safety-critical components, documentation should be agreed upon before manufacturing starts. Depending on the project, this may include drawings, material certificates, dimensional inspection reports, test reports, and other quality records.

A supplier with established manufacturing and inspection procedures can also help identify inconsistencies between the purchase specification and the intended application. This is particularly useful when the project involves non-standard dimensions, special materials, or demanding operating conditions.

Why Does the Difference Matter in Real Piping Projects?

The terminology may seem minor, but it can have practical consequences during design and procurement. If a buyer requests a straight tee while assuming that it means a reduced branch, the supplier may interpret the requirement as an equal tee. That mismatch can result in an incorrect quotation, unsuitable component selection, or additional fabrication work.

The issue becomes even more important when several piping standards or supplier catalogues are involved. Different organisations may use slightly different commercial terminology, so the safest practice is to confirm the actual dimensions and applicable standard rather than depending on a product name alone.

For engineering teams, this also improves communication between design, procurement, fabrication, and installation. Once the tee configuration is clearly defined, the supplier can manufacture or select the fitting according to the required dimensions, material, connection type, and inspection requirements.

In other words, the real difference that matters is not simply the wording “equal tee” versus “straight tee"; it is whether the fitting has equal-sized connections or a reduced branch and whether that configuration matches the requirements of the piping system.

Conclusion

'Equal tee' and 'straight tee' are commonly used as equivalent terms for a tee with three equal-sized connections, while a 'reducing tee' has a smaller branch connection. This distinction corrects a common misunderstanding and is important when selecting fittings for industrial and commercial piping systems. A straight or equal tee does not automatically produce equal flow or identical pressure at all three outlets; actual hydraulic behaviour depends on the complete piping arrangement, operating conditions, and downstream resistance.

For engineers and purchasing teams, the safest approach is to look beyond the fitting name. Nominal size, wall thickness, material grade, connection type, applicable standard, pressure and temperature requirements, and documentation should all be confirmed before production or purchase. When these details are clearly specified, the supplier can provide a fitting that matches the actual piping design rather than relying on potentially ambiguous terminology.

A well-defined specification also helps control installation costs and prevents avoidable changes during fabrication. Whether an equal or straight tee or a reducing tee is ultimately selected, the right choice is the one that matches the required connection dimensions and system conditions. Clear technical communication at the purchasing stage is therefore just as important as the fitting itself.
