How Carbon Steel Elbows Improve Flow Efficiency in Pipelines？

Pipeline systems rarely run in a perfectly straight line. Changes in equipment location, plant layout, elevation, and process routing often require the pipe to change direction several times before the fluid reaches its destination. These changes may appear simple, but the way a pipeline turns can influence pressure loss, operating stability, installation space, and the energy required to move a fluid through the system. This is why selecting the right carbon steel elbows is an important part of pipeline design. A carbon steel elbow enables a regulated change of flow direction without the need for several straight lengths of pipe and extra connecting procedures. But it is not only the material that determines performance. The elbow angle, bend radius, internal diameter, wall thickness, surface condition, connecting technique, and operating circumstances impact the performance of the fitting in a pipeline. Carbon steel elbows are able to maintain steady flow when correctly matched with the system and provide a practical option for demanding industrial pipe applications.

How Elbow Geometry Influences Fluid Movement?

The smooth change of direction of a fluid depends on the shape of an elbow. As the fluid goes around a bend, the velocity profile changes. The induced turbulence and secondary flow may cause a local pressure drop. The geometrical shape of a well-chosen elbow may assist in reducing the extra resistance to flow caused by the change of direction, but cannot remove this loss entirely.

The bend radius is quite crucial. Long radius elbows allow a more gradual change in direction than the short radius design, and may be appropriate if the minimisation of local pressure loss is a key design factor. For example, a 90-degree elbow will produce greater change in direction than a 45-degree elbow, and the two arrangements should not be assumed to be interchangeable merely because they link pipes of the same nominal size.

The interior passage is important too. The right size elbow (inner diameter) and the right flow route shape aid in preserving continuity between the pipe sections to be linked. Sudden changes in the interior dimensions might upset the flow and cause more turbulence. Therefore, engineers fold in the elbow shape with the pipe size and system flow circumstances rather than choose a fitting on the basis of its nominal diameter alone.

Reducing Unnecessary Pressure Loss

Every round adds a certain amount of local resistance to a pipeline. The pressure loss occurring from a single elbow may be minor, but a system with multiple bends might build a large loss. This is important in lengthy industrial pipelines, process systems, and applications where pumps or compressors must maintain a certain flow rate.

The object of utilising a well-chosen carbon steel elbow is not to claim that the fitting causes no pressure loss. Instead, the aim is to find a design that gives the appropriate change of direction without undue disruption to the fluid.

The last pressure-loss calculation is a function of elbow angle, radius, pipe diameter, flow velocity, and fluid characteristics. With existing pipe calculations and fitting-loss coefficients, engineers are able to determine the impact of each bend in the whole system. This is a more conservative design foundation than presuming that all elbows affect flow in the same way.

When pressure losses are adequately handled, the pumping or compression equipment does not have to compensate for unnecessary resistance elsewhere in the pipeline. Even moderate changes in system resistance may be crucial to overall operational efficiency over a lengthy period of operation.

Choosing the Right Radius and Angle

Not all pipelines need the same elbow setup. The right selection is a function of the physical configuration of the system and the desired flow characteristics. Common designs include 45- and 90 degrees elbows. Other angles may be used for more specialised routing needs.

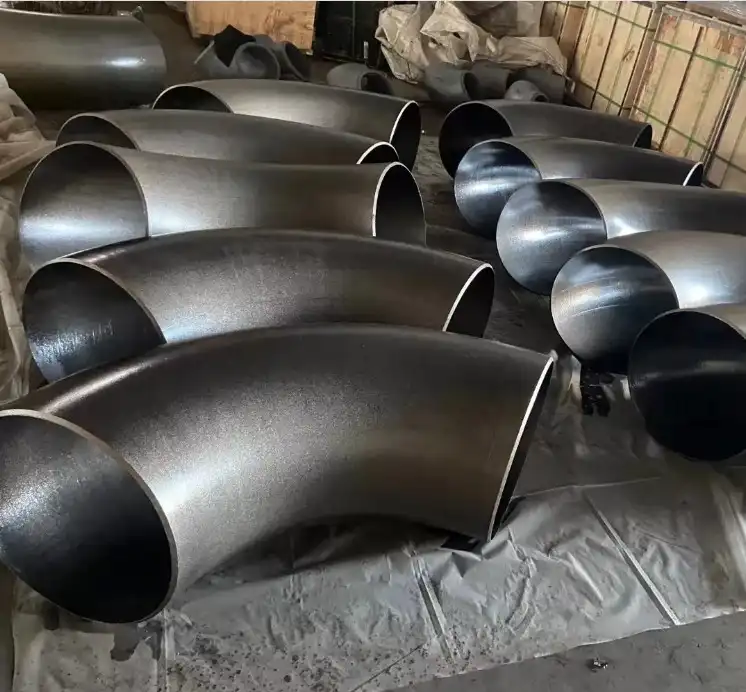

A 90-degree elbow, such as carbon steel elbows, is often utilised when a pipeline must be turned at a right angle in a restricted installation space. A 45-degree elbow is a less severe directional shift and may be advantageous in a plan when the flow pattern can take a more progressive course. Long-radius elbows are generally chosen when decreasing turbulence and local pressure loss are more essential than minimising installation area.

This implies that the shortest fit is not always the most efficient solution. While a compact short-radius elbow may be advantageous in a packed plant, a long-radius arrangement may provide varied hydraulic performance. Hence, the engineer has to compromise between the hydraulic needs and the space available, routing of pipes, maintenance access, and cost of installation.

Also the number of elbows should be taken into account in the design of the pipeline. Even with good individual fittings, a system with multiple changes of direction would inherently have larger local losses than a similar system with fewer bends. So good pipeline routing takes into account the whole flow route, not just each elbow in isolation.

Carbon Steel Provides a Practical Structural Base

Carbon steel is the most often used kind of industrial pipe because it offers the combination of mechanical strength, manufacturability, and economy for many general-purpose applications. These properties are critical for elbows, since the fitting must survive the mechanical and pressure conditions of the linked pipeline.

The material itself does not always increase fluid flow. Carbon steel is not the actual material of the elbow. Instead, it is the structural basis that enables the elbow to keep its designed shape under the given working circumstances. Properly fitted and properly matched, it will retain the essential connection between pipe sections without overdeformation.

The material selection must still be adapted to the application. Carbon steel is not suited for all fluids, temperatures, or corrosive environments, and the correct grade must be chosen on the basis of the corresponding design criteria. Apart from the elbow shape, engineers may also need to consider coating systems, corrosion allowances, process conditions, or alternative materials in locations where corrosion is a problem.

This difference is crucial for judging pipeline efficiency. Flow performance is an outcome of interaction between the fitting geometry, pipe dimensions, fluid characteristics, and operating circumstances. The carbon steel material offers the mechanical qualities required for the fitting to function reliably within its stipulated service conditions.

Maintaining a Consistent Flow Path

A pipeline is not a collection of individual fittings but a group of related parts. Hence, the transition between straight pipe and elbow should be examined very carefully. A well-matched elbow offers a continuous path between the linked pipe sections and helps minimise unwanted changes of internal dimensions.

Fluid mobility may also be affected by the surface condition. Internal roughness may contribute to the frictional resistance, but its importance relies on pipe size, flow regime, fluid characteristics, and overall system design. A smooth, correctly made inside surface of a flow path may aid to prevent unneeded extra resistance compared to a badly finished or damaged flow passage.

Hence, the quality of manufacturing is not just a matter of appearance. For carbon steel elbows, dimensional precision, uniformity of wall thickness, end preparation, and internal condition all influence how easily an elbow can be incorporated into the pipe system. For the industrial buyer, these features are worth evaluating alongside material certifications and dimensional inspection records.

A good fit also decreases the probability of installation issues. When elbow dimensions and end preparation match the linked pipe and joining technique, installers may assemble more consistently without pushing components into alignment. Proper alignment helps retain the desired pipeline shape after installation.

Supporting Long-Term Pipeline Performance

The efficiency of a pipeline should not be assessed at the time of commissioning of a system. The performance of the installation during its lifetime might be affected by the quality of the fittings and surrounding pipes. The elbow properly chosen for design circumstances will provide a solid connection and will keep the pipeline in its original route.

The durability factor is of particular significance for industrial systems subject to pressure variations, temperature changes, vibration, and mechanical loads. Additional requirements on fittings and their connections may be necessary under such situations. The elbow consequently must be chosen to meet the same technical criteria as the remainder of the pipeline.

It is also vital to differentiate between material strength and corrosion resistance. Carbon steel will offer the mechanical performance needed for many industrial services, but applicability for a specific environment will depend on the medium, temperature, moisture, chemical exposure and corrosion-control techniques utilised by the system operator.

Whatever the material, regular inspection and maintenance are always critical. Inspection of pipework, welds, supports and neighbouring pipe sections may be useful in identifying changes that may influence the overall condition of the pipeline. In this context, the importance of a correctly designed carbon steel elbow is not so much that it will endure a long time, but that it can be compliant with the mechanical and dimensional requirements of the system throughout its intended service life.

Matching Elbows to Different Pipeline Applications

Carbon steel elbows are used across many industrial piping systems because their configurations can be adapted to different routing and operating requirements. They may be found in process piping, water and utility systems, oil and gas infrastructure, power-related applications, and other installations where carbon steel is compatible with the service conditions.

The appropriate elbow for each application depends on more than the industry name. A water pipeline and a process line in a chemical plant may both require a 90-degree elbow, but their material requirements, pressure conditions, corrosion considerations, inspection requirements, and operating temperatures may be very different.

For this reason, engineers and procurement teams should evaluate the fitting against the complete specification. Nominal pipe size, wall thickness, elbow radius, angle, material grade, connection method, pressure requirements, and applicable manufacturing standards should all be considered before an order is placed.

This approach also helps avoid a common purchasing mistake: selecting carbon steel elbows solely because they match the pipe diameter. Dimensional compatibility is necessary, but it does not by itself confirm that the fitting is suitable for the pressure, temperature, fluid, or installation conditions of the pipeline.

Selecting Carbon Steel Elbows for Efficient Pipeline Design

For buyers, the most useful question is not simply whether a carbon steel elbow is available, but whether the proposed fitting matches the requirements of the complete pipeline. A supplier should be able to provide clear information about dimensions, material grade, manufacturing specifications, applicable standards, inspection documentation, and available configurations.

The required elbow angle and radius should first be determined from the pipeline layout and hydraulic requirements. The material and wall thickness should then be checked against the design conditions. If the system operates under demanding pressure or temperature conditions, the fitting should be evaluated as part of the same engineering calculation used for the connected pipe.

Manufacturing and inspection capabilities also deserve attention. Consistent dimensions and reliable end preparation can make installation easier, while material documentation and inspection records provide useful evidence that the supplied fittings correspond to the agreed specification. For projects involving large quantities or strict engineering requirements, these details can be just as important as the initial purchase price.

A supplier that understands these requirements can also help buyers avoid over-specification. Not every pipeline needs the same elbow radius, material grade, or wall thickness. Selecting according to actual service conditions can create a more balanced solution between hydraulic performance, mechanical requirements, installation constraints, and procurement cost.

Conclusion

Carbon steel elbows play an important role in pipeline systems because they provide controlled changes in flow direction while maintaining the structural connection between sections of pipe. Their influence on flow efficiency depends largely on geometry, radius, angle, internal dimensions, surface condition, and the characteristics of the fluid being transported. A properly selected elbow can help control unnecessary local pressure losses and support a stable flow path without treating the fitting itself as the sole factor determining system efficiency.

For industrial pipeline projects, the most effective approach is to select carbon steel elbows according to the complete operating and design requirements. Considering material grade, dimensions, radius, pressure conditions, installation method, and inspection requirements allows engineers and buyers to choose fittings that are compatible with the wider piping system. With the right specification and manufacturing quality, carbon steel elbows can contribute to reliable pipeline routing and efficient long-term operation across a wide range of industrial applications.

Companies such as Cangzhou Oudi Pipe Manufacture Co., Ltd. offer knowledge and high-quality goods to meet the needs of a wide range of industries that need pipeline solutions that work well and are reliable. Email them at oudi-04@oudiguandao.com to find out more.

FAQ

1. What are the main advantages of using carbon steel elbows in pipelines?

Carbon steel elbows reduce pressure loss, enhance durability, and offer versatility in various applications, improving overall flow efficiency.

2. How do carbon steel elbows contribute to energy savings in pipeline systems?

By minimizing pressure loss and turbulence, carbon steel elbows reduce the energy required for pumps and compressors, leading to lower operational costs.

3. Can carbon steel elbows be used in high-temperature applications?

Yes, carbon steel elbows can withstand high temperatures, making them suitable for use in various industrial processes.

4. What industries commonly use carbon steel elbows in their pipeline systems?

Oil and gas, chemical processing, power generation, and water treatment industries frequently utilize carbon steel elbows.
