How to Identify a High-Quality Pipe Reducer: Buyer’s Checklist

Selecting the right reducer is not simply a matter of matching one pipe diameter to another. In an industrial piping system, the fitting must also suit the material, pressure, temperature, connection method, dimensional requirements, and service environment. Pipe reducers are commonly used to connect pipes of different nominal sizes, and the quality of the reducer can influence installation accuracy, joint integrity, flow behavior, and long-term service reliability. Buyers need to overcome the issue that two reducers may seem quite similar but be very different in material grade, manufacturing quality, dimensional tolerance, heat treatment, and inspection paperwork. Thus, a purchase selection must be based on more than the inspection of exterior look or the comparison of pricing. Here is a checklist of things to consider before ordering, from material selection and dimensions to relevant standards, inspection records, and supplier capacity.

Start With the Service Conditions Before Comparing Reducers

The first step in assessing a reducer is to understand where it is to be put. The specifications for a reduction for regular water service are not always the same as for a reducer placed in a high-temperature process line, chemical plant, refinery, or pressure piping system.

First check the pipe diameters at both ends, design pressure, operating and design temperature, the medium being conveyed, and the predicted corrosion conditions. How you connect counts, too. For example, a butt-weld reducer must fit the pipe’s outer diameter, wall thickness, material, and welding requirements at the connection.

At this step the kind of reducer also should be confirmed. A concentric reducer has a shared centerline between the big and small ends. An eccentric reducer has an offset centerline. The selection is decided by the pipe layout and service needs, not by the popular belief that one kind is always superior. They are often used in pipe layouts when a symmetrical flow transition is desirable. In certain horizontal piping arrangements, an eccentric type might be selected to handle drainage or prevent undesirable liquid collection.

This information should be provided before requesting a supplier estimate. Otherwise, the customer may obtain a reducer of the right dimensions that is not adequate for the real circumstances of operation.

Check the material grade and its documentation

Material is one of the first areas where consumers need to differentiate between a product that seems acceptable and one that can be thoroughly checked. Material grade should be in accordance with the pipe specification and service circumstances. The supplier should be able to provide evidence to substantiate the grade specified.

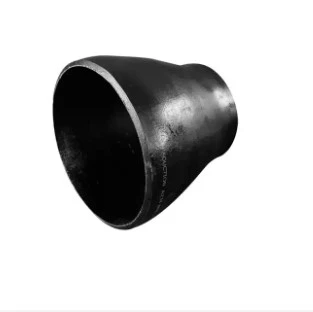

Carbon Steel Reducers for General Industrial Piping

Carbon steel reducers are used in industrial pipelines because they offer a reasonable mix of strength, availability, and affordability. ASTM A234/A234M is one of the material requirements for wrought carbon steel and alloy steel fittings for pressure pipe applications at moderate and high temperatures. The standard provides criteria for material, forming, mechanical qualities, and testing as they pertain to seamless and welded construction of fittings.

When evaluating a carbon steel reducer, don’t rely on the grade designation alone as an assurance of quality. The certificate should include the exact grade and heat or batch number so the fitting may be traced back to its material source. The chemical composition and mechanical qualities also should meet the appropriate standard.

It is also vital to note that carbon steel should not be characterized as a corrosion-resistant material. If the reducer is exposed to moisture, chemicals, saltwater, or other corrosive environments, the project may need an appropriate coating, corrosion allowance, corrosion-resistant alloy, or other protective approach. The material selection should thus be based on the whole service environment and not on strength alone.

Stainless Steel Reducers for Corrosive or Hygienic Environments

Stainless steel reducers are often used for applications that need corrosion resistance, cleanliness, or temperature performance. Standard grades are 304 and 316; however, different grades may be used to meet particular temperature, corrosion, or manufacturing requirements. The choice of grade should be based on the process media and project requirements, not just the stainless steel grade with the best apparent corrosion resistance.

ASTM A403/A403M covers specifications for wrought austenitic stainless steel fittings, including material, forming, heat treatment, chemical composition, mechanical qualities, and inspection. The standard permits both seamless and welded fabrication for the appropriate classes of fittings.

Therefore, when purchasing pipe reducers, the buyer should ask for the material test certificate and check that the grade in the paperwork is the same as the marking on the reducer and the purchase order. If the project needs a certain heat treatment or surface condition, these requirements should also be stated in the procurement specification, not left to assumption.

Alloy Steel Reducers for Higher-Temperature Service

Alloy steel reducers are used when the piping system requires properties beyond those normally expected from carbon steel, particularly in elevated-temperature applications. Chromium-molybdenum alloys such as those associated with P11 and P22 materials are commonly encountered in high-temperature piping, but buyers should distinguish between pipe material specifications and fitting material specifications when reviewing supplier documentation.

For example, ASTM A234/A234M covers wrought carbon and alloy steel fittings for moderate and high-temperature service, while the exact fitting grade needs to correspond to the material requirements of the project.

Heat treatment deserves particular attention with alloy steel reducers. The supplier should be able to identify the applicable heat-treatment condition and provide records when required by the specification. This is more useful than a generic statement that the fitting has been “heat treated,” because different materials and applications may require different treatment procedures and acceptance criteria.

Verify the Reducer Dimensions Before Approval

A reducer that has the correct nominal size but incorrect dimensions can still create installation problems. Dimensional verification should therefore cover the large-end and small-end outside diameters, wall thickness, overall length, end alignment, and other dimensions specified by the applicable standard.

For factory-made wrought butt-welding fittings, ASME B16.9 covers overall dimensions, tolerances, ratings, testing, and markings. The current ASME listing identifies B16.9-2024 as the applicable edition and states that the standard covers sizes from NPS 1/2 through NPS 48.

Wall Thickness Should Match the Piping Design

Wall thickness is directly connected to the pressure design of the piping system, but buyers should be careful about treating “Schedule 40” or “Schedule 80” as a complete description of the reducer. The schedule identifies a nominal wall-thickness series, while the actual fitting dimensions and tolerances need to be checked against the applicable fitting standard and pipe connection.

The reducer should be suitable for the wall thickness of the pipes being joined, including the welding preparation at the ends. If the fitting has significant wall thinning, local deformation, or dimensional variation beyond the applicable requirements, it may create difficulties during fit-up and welding.

For this reason, a dimensional inspection report is more useful than a simple supplier statement that the reducer is “standard size.” The report should identify the measured dimensions and the relevant acceptance criteria.

Confirm Overall Length and End Alignment

Overall length can become especially important when a reducer is replacing an existing fitting or must fit within a restricted installation space. A small dimensional difference may affect pipe spool fabrication, support locations, valve alignment, or the position of adjacent equipment.

End alignment should also be checked because the two ends need to connect properly with the mating pipes. ASME B16.9 includes dimensional tolerances for factory-made butt-welding fittings, which provides a more objective basis for inspection than visual judgment alone.

For projects with tight installation tolerances, buyers should provide the supplier with the required dimensional standard and any special dimensions for pipe reducers before production begins. Custom dimensions should not be assumed to fall under a standard fitting specification unless they have been agreed between the purchaser and manufacturer.

Inspect Roundness, Bevels, and Surface Condition

Visual inspection is useful, but it should be treated as the first stage of quality verification rather than the entire inspection process. The reducer should be checked for visible cracks, deep scratches, pits, excessive dents, irregular forming marks, and other conditions that could interfere with installation or indicate manufacturing problems.

The pipe ends and bevels deserve particular attention because they are directly involved in butt welding. The end geometry should be compatible with the applicable welding and piping requirements, while excessive deformation can make fit-up more difficult.

Surface appearance should also be evaluated according to the material and intended service. A polished stainless steel reducer and a painted carbon steel reducer will naturally have different acceptable surface conditions, so a generic requirement for a “smooth surface” is not sufficient. The purchasing specification should define what surface condition is actually required.

Match the Reducer With the Correct Standard

Standards are valuable because they provide an objective reference for dimensions, materials, manufacturing, testing, and marking. However, buyers should verify which standard applies to which part of the product instead of assuming that one standard covers everything.

Use Dimensional Standards and Material Standards Together

ASME B16.9 is primarily concerned with factory-made wrought butt-welding fittings and addresses dimensions, tolerances, ratings, testing, and markings. ASTM A234/A234M, by comparison, specifies requirements for wrought carbon steel and alloy steel fittings used for moderate and elevated-temperature service.

This distinction matters when reviewing a quotation. A supplier may state that a reducer is “ASME B16.9 compliant,” but the buyer still needs to know what material specification applies. Similarly, a material certificate alone does not confirm that the reducer's dimensions and configuration meet the required fitting standard.

A stronger purchasing description connects the two. For example, the purchase order can identify the fitting type and dimensional standard together with the required material grade, size, schedule, and inspection requirements.

Review Marking and Traceability

Product marking is another practical quality indicator. Depending on the applicable standard and project requirements, markings may identify information such as manufacturer, material grade, size, schedule or wall designation, and applicable standard.

Traceability becomes particularly important for critical piping systems. The heat or batch number on the reducer should be traceable to the material certificate when the project requires material traceability. If the supplier cannot explain how the physical product is connected to its inspection documentation, the paperwork provides much less value.

The goal is not simply to collect certificates. The goal is to create a clear connection between the pipe reducers installed in the piping system and the records that demonstrate what material and manufacturing requirements they were produced against.

Examine the Manufacturer's Quality Control Process

A high-quality reducer is the result of controlled manufacturing rather than a final visual inspection alone. For wrought fittings, forming may involve processes such as pressing, forging, extrusion, bending, machining, or combinations of these methods, depending on the material and fitting design. ASTM A234/A234M, for example, recognizes several forming and shaping processes for covered carbon and alloy steel fittings.

The buyer does not necessarily need a complete production manual, but the supplier should be able to explain how critical characteristics are controlled. These may include incoming material verification, forming temperature where applicable, heat treatment, dimensional inspection, surface inspection, and required non-destructive examination.

A supplier with a documented inspection process can usually provide clearer answers when a buyer asks how material identity, dimensions, and testing results are controlled from raw material to finished fitting.

Understand Which Tests Are Actually Required

Inspection methods should be selected according to the material, specification, and project risk. Ultrasonic testing and radiographic testing are commonly used forms of non-destructive examination for detecting internal or volumetric discontinuities. Magnetic particle inspection is applicable to suitable ferromagnetic materials and is generally used to identify surface or near-surface discontinuities. Liquid penetrant testing is useful for detecting surface-breaking discontinuities on suitable non-porous surfaces.

These methods should not simply be listed as proof that a reducer is high quality. The buyer should ask which examination is required, what acceptance criteria apply, and whether the inspection report corresponds to the actual supplied batch.

Pressure testing also needs to be described correctly. A hydrostatic test is a pressure test rather than simply another form of NDT. In addition, ASME B16.9 specifies the capabilities and requirements applicable to fittings, while project or piping-code requirements may determine whether additional pressure testing is required.

Conclusion

A high-quality reducer should be evaluated as a complete engineered component rather than as a simple piece of connecting hardware. The material grade needs to suit the service conditions, the dimensions need to match the piping design, and the manufacturing and inspection processes should provide reasonable confidence in the finished product. Applicable standards such as ASME B16.9 and ASTM material specifications provide an objective foundation for these checks, but the exact requirements still need to be matched to the project.

For buyers, the most useful approach is to review the product and its documentation together. Confirm the reducer type, size, wall thickness, material grade, applicable standard, dimensional tolerances, testing requirements, marking, and traceability before approval. A supplier that can clearly demonstrate how these elements are controlled is generally in a stronger position to provide consistent products for industrial piping applications.

By turning these checks into part of the purchasing process, buyers can move beyond comparing price and appearance and make a more defensible decision based on technical suitability, documented quality, and supplier reliability.

For more information about our high-quality pipe reducers and other piping components, please contact us at oudi-04@oudiguandao.com. Since 1998, Cangzhou Oudi Pipe Manufacture Co., Ltd. has been China's go-to for carbon steel pipe fittings, valves, and flanges for many years now.   Deliveries that are up to par with industry standards are guaranteed by our dedication to quality, cutting-edge manufacturing equipment, and substantial technical knowledge.  We are committed to meeting all of your pipe requirements with our first-rate goods and services, and our worldwide network serves more than 300 clients in 40 countries.

References

1. ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings

2. ASTM A234 / A234M - 19: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service

3. API 5L: Specification for Line Pipe

4. ISO 9001:2015: Quality management systems — Requirements

5. NACE MR0175/ISO 15156: Materials for use in H₂S-containing environments in oil and gas production

6. PED 2014/68/EU: Pressure Equipment Directive
