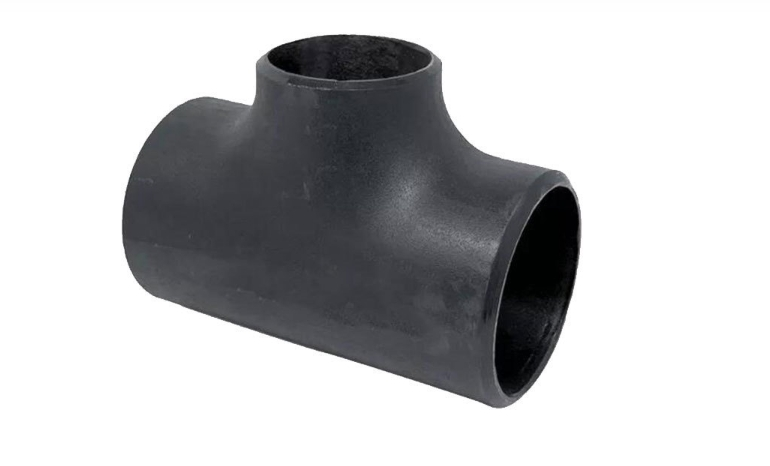

How to Identify a High-Quality Pipe Tee Fitting for Long-Term Use

The quality of a tee fitting can have a direct effect on the reliability and service life of an industrial piping system. In water treatment, chemical processing, oil and gas, power generation, and general manufacturing, a tee is not simply a component used to create a branch connection. It must withstand the pressure, temperature, fluid characteristics, and mechanical loads of the system throughout its expected service life. This is why buyers should look beyond price and appearance when sourcing pipe tee fittings. Material grade, manufacturing process, dimensional correctness, surface condition, relevant standards, inspection records, and supplier capabilities are all valuable evidence of product quality. Even a fitting that seems to be OK on a cursory visual inspection might cause issues during installation or servicing if its dimensions, wall thickness, material qualities, or manufacture documents do not conform to project specifications. The variables that follow are a practical approach to assessing tee fittings before their purchase and installation.

What Makes a Pipe Tee Fitting Suitable for Long-Term Service?

A good shirt fitting is not only a pretty face; it is judged on its appearance. The suitable product must be compatible with the operating conditions of the pipe system and have enough mechanical integrity under those parameters.

For example, a tee in a typical water line may not have the same material or manufacturing properties as a tee in a high-temperature process line. Selection is based on pressure, temperature variations, fluid composition, exposure to corrosion, method of connection, and projected life in service.

This implies that quality has several aspects. The material must be suitable, the manufacturing process must create a sound and even component, and the completed fitting must fulfill the specified dimensions and requirements. Buyers are then presented with proof that they have been satisfied via documentation and inspection records.

Therefore, for long-term applications, the most dependable purchase choice is the link between the fitting and the operational environment and not one isolated specification.

How Should Material Selection Be Evaluated?

Comparing carbon steel, stainless steel, and alloy steel

One of the first choices purchasers should make is material selection, since the steel grade impacts strength, corrosion resistance, temperature capability, weldability, and service performance.

Carbon steel tee fittings are often used in industrial pipelines because they provide a reasonable balance between mechanical strength and cost. They are appropriate for many standard plumbing applications when the working environment does not need high corrosion or temperature requirements. But customers still need to specify the material grade and not assume all carbon steel fittings are equivalent.

Corrosion resistance and cleanliness are often more critical, and stainless steel is usually used. It is widely utilized in chemical processing, food equipment, pharmaceutical plants, and other areas where the material being carried or the atmosphere around the area might be corrosive. However, the choice of the precise stainless steel grade must be based on the fluid and operating circumstances.

Alloy steel is better suited if a pipe system demands more strength or superior performance at higher temperatures. For instance, in power production and energy-related applications, the material may be required to retain sufficient mechanical characteristics under severe operating circumstances.

The idea is that the more costly material is not always the better option. The material used for pipe tee fittings should be compatible with the fluid, pressure, temperature, corrosion conditions, connecting technique, and service life needed. Over-specifying the material might needlessly raise the procurement cost, while a material not appropriate for the environment could lead to premature degradation.

Why Does the Manufacturing Method Matter?

Understanding forging, forming, and machining

The manner in which a T-fitting is made may affect its strength, uniformity, dimensional precision, and its fitness for a specific use.

Forging is a process that is often used for fittings that need good mechanical qualities. In forging, regulated pressure is used to form the material. This may generate a dense structure and correct grain flow. When suitably made and heat treated, forged fittings may provide practical benefits in situations where pressure resistance and mechanical durability are critical.

For bigger fittings or specific product combinations, forming and welding may also be acceptable. The appropriateness of the approach is dependent on the design, material, size, wall thickness, relevant standard, and operational requirements. There is no single manufacturing procedure that is inherently ideal for any tee fitting.

Another key aspect of manufacturing is machining. The ends, branch area, and other connection surfaces should be machined perfectly so that the fitting may be properly joined or welded with the matching pipe. Very modest dimensional variations during manufacture might become large variances after installation if a number of prefabricated components have to coordinate.

A reliable manufacturing process should consequently comprise management of incoming raw materials, forming or forging, heat treatment where needed, machining, dimensional inspection, and final quality checks. They may also check if the steps are supported by inspection records, rather than depending on a supplier’s description of the product.

Which Standards Help Verify Pipe Tee Fitting Quality?

Connecting product standards with actual requirements

There are known industry norms that may be used as a baseline to assess if a tee fitting has been constructed to the dimensions and material criteria.

ASME B16.9 is a significant reference for butt-welding fittings since it provides dimensions, tolerances, and associated standards for factory-made wrought buttwelding fittings. For forged fittings for socket weld or threaded connections, ASME B16.11 is often cited. Also used for wrought carbon steel and alloy steel fittings are material requirements like ASTM A234.

Such norms are not to be taken as labels on a quote. Buyers must ensure that the particular fitting, material grade, size, wall thickness, and connection arrangement are in compliance with the appropriate standard.

For example, just because a supplier says a product meets a standard, it doesn’t obviate the need to check the material paperwork and measurements. A material certificate may offer information on the actual material provided, and inspection records may indicate if the completed fitting fits the dimensions standards stated.

Quality management certification may give an additional layer of supplier assessment for pipe tee fittings. For example, a quality management system accredited to ISO 9001 may show that the firm has created documented quality management systems. It does not, by itself, establish that each individual fitting is suited to a given application, but it might be helpful in evaluating the general quality-control philosophy of the supplier.

How Can Buyers Inspect the Physical Quality of a Tee Fitting?

Looking for visible defects before installation

One of the easiest methods to uncover evident flaws before a fitting is placed in the pipe system is a visual check. A well-finished fitting should have a generally homogeneous surface and should not have noticeable cracks, heavy corrosion, deep gouges, excessive burrs, or other faults that might interfere with installation or servicing.

The branch region is of special interest since the tee geometry is a transition between the main run and branch connection. Any surface faults, distortion, or poor finishing in this area should not be overlooked, especially when the fitting is to be used under severe pressure or temperature conditions.

And inspect the connector ends carefully. Threads of threaded items should be clean, well-formed, and free of evident damage. For butt-welding fittings, the end preparation and overall geometry should be compatible with the connection criteria indicated.

“Visual inspection will not see every internal or material problem, but it can still be valuable. This enables purchasers and installers to spot evident flaws before the fitting is installed, welded, or put into use.

How Important Are Dimensional Accuracy and Surface Condition?

Checking dimensions before the fitting reaches the job site

An appropriately graded material tee might nonetheless present complications during installation if the tee dimensions are not compatible with the piping system.

Buyers will check project-specific measurements such as outer diameter, wall thickness, branch dimensions, end-to-center dimensions, and other necessary criteria. Threaded tees also need matching thread type and size to the mating components.

Dimensional correctness is especially critical if a number of prefabricated pipe pieces have to be joined together. A little variation in branch location or end dimensions might cause alignment problems and generate extra stress during installation. For welded systems, pushing mismatched parts into place may also make assembly more difficult.

Therefore, dimensional examination should be seen as part of product approval rather than being relegated exclusively to the installation stage. Dimensional inspection data from suppliers provide purchasers a better foundation for checking conformance.

Matching surface finish to the application

Another consideration is surface quality, while “smoother” is not necessarily “better.” The finish needed will depend on the material, fluid, connecting technique, cleanliness standards, and relevant project parameters.

A clean and well-polished surface helps minimize difficulties with contamination and installation. Internal cleanliness considerations in applications may need further consideration of the surface state. At the same time, purchasers are warned against seeking unreasonably rigorous surface requirements when the application does not call for them, since this might raise manufacturing costs without offering a significant performance advantage.

The preferred way is to specify the surface requirements for pipe tee fittings in terms of the actual working environment.

What Installation Practices Can Protect Fitting Performance?

Avoiding installation-related damage

Even a well-manufactured tee fitting can experience premature problems if installation is poorly controlled. Before assembly, the pipe ends and fitting surfaces should be free from dirt, oil, rust, moisture, and other contaminants that could interfere with the connection.

Threaded connections require particular care because excessive tightening can damage threads or introduce unnecessary mechanical stress. The sealing material should also be compatible with the service conditions rather than selected solely for convenience.

For welded connections, the welding procedure should correspond to the material and project requirements. Proper positioning is equally important. The pipe and tee should be aligned naturally rather than forced into place to compensate for dimensional differences.

The surrounding piping system also needs adequate support. A tee should not be expected to carry loads created by unsupported pipe runs, vibration, thermal movement, or improperly positioned equipment. When these factors are controlled during installation, the fitting is more likely to perform as intended throughout its service life.

How Can Regular Maintenance Extend Service Life?

Detecting corrosion, leakage, and mechanical problems early

Maintenance requirements depend heavily on the application. A tee operating in a relatively stable environment may require a different inspection frequency from one exposed to corrosive fluids, high temperatures, vibration, or pressure fluctuations.

During routine inspection, attention should be given to visible corrosion, leakage around connections, surface damage, unusual movement, vibration, and other changes in operating conditions. If a fitting is part of a critical industrial system, visual inspection alone may not provide sufficient information.

Where appropriate, non-destructive testing methods such as ultrasonic testing can provide additional information about potential internal or material-related discontinuities without requiring the component to be destroyed. The specific testing method should be selected according to the fitting, material, application, and applicable inspection requirements.

Maintenance is most effective when small issues are addressed before they develop into larger failures. Early identification of corrosion or connection problems can reduce the likelihood of unplanned shutdowns and more extensive repairs.

Protecting fittings during storage and handling

The service life of pipe tee fittings can also be affected before installation. Poor storage conditions can expose fittings to moisture, contaminants, impact, or other sources of damage.

Fittings should generally be stored in a clean and dry environment, with threaded portions protected where necessary. They should not be left directly on wet ground or in locations where water can accumulate. During transportation and handling, appropriate packaging and lifting methods can help prevent deformation, impact damage, or surface deterioration.

For projects with long storage periods, keeping products in their original protective packaging where practical can help preserve their condition. Good inventory control also reduces the chance that older fittings remain unused for extended periods while newer stock is installed first.

Conclusion

Price should not be the deciding factor when selecting high-quality pipe tee fittings for long-term use. A reliable choice depends on whether the fitting's material, manufacturing method, dimensions, surface condition, applicable standards, and inspection documentation are appropriate for the intended piping system.

For buyers, the most effective approach is to connect every quality check to an actual project requirement. Confirm the material against the operating environment, verify dimensions before installation, review relevant standards and certificates, inspect the physical condition, and evaluate whether the supplier can maintain consistent quality across the required production volume.

Selecting a suitable fitting from an experienced manufacturer can reduce installation difficulties and help limit the risks associated with leakage, corrosion, dimensional mismatch, and premature replacement. For industrial and commercial piping projects, careful evaluation at the purchasing stage can therefore contribute to more predictable performance and lower lifecycle costs.
