Butt Weld vs Socket Weld Tee: Pros and Cons for Pipeline Projects

Choosing the right tee fitting is not simply a matter of comparing two connection styles. In a pipeline project, the tee has to work with the pipe size, wall thickness, material grade, pressure, temperature, welding procedure, inspection requirements, and expected service conditions. Butt weld and socket weld tees can both provide reliable branch connections, but they are designed for different installation methods and are commonly selected for different piping configurations. For engineers, contractors, and procurement teams, understanding these differences before purchasing can help prevent installation difficulties and avoid choosing a fitting that does not suit the operating environment. Butt weld tees, in particular, are often considered when the project requires a welded connection integrated closely with the main piping system, while socket weld tees can be attractive for smaller-diameter piping where installation space and assembly efficiency are important. Cangzhou Oudi Pipe Manufacture Co., Ltd. is a manufacturer of carbon steel pipe fittings, valves, and flanges, supplying tees and other pipeline components for industrial applications. The company provides fittings manufactured according to applicable international standards and can support customers in selecting products according to material, dimensions, pressure requirements, and project specifications.

Understanding How Butt Weld and Socket Weld Tees Connect to the Pipe?

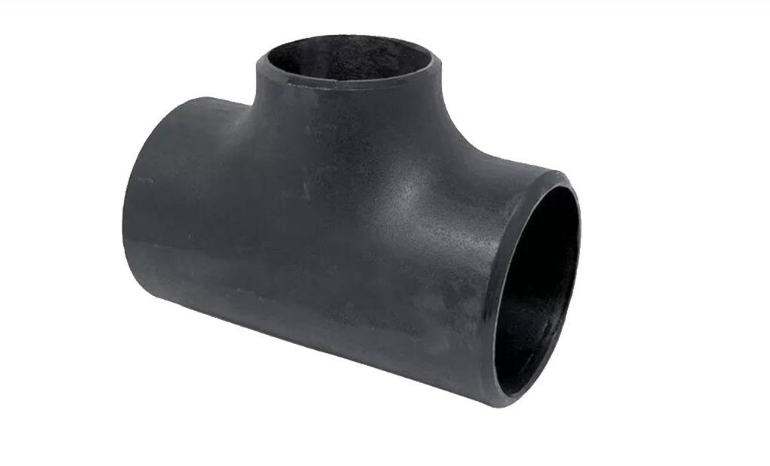

Butt-weld tees create a continuous welded joint

A butt weld tee is designed with ends that match the outside diameter and wall configuration of the connecting pipe. During installation, the pipe and tee are aligned end to end, prepared for welding, and joined using a qualified welding procedure. Depending on the design and applicable code, the joint can be produced with full penetration through the pipe wall.

This connection method creates a relatively continuous transition between the pipe and fitting. Because there is no socket extending inside the fitting to receive the pipe end, the internal passage can be maintained with a geometry that is well suited to process piping where flow characteristics matter.

Butt weld tees are commonly manufactured under dimensional standards such as ASME B16.9, although the actual material specification, wall thickness, dimensions, and manufacturing requirements depend on the project specification and applicable standards. They are widely encountered in process plants, oil and gas facilities, chemical installations, power-generation systems, and other industrial piping where welded construction is part of the overall pipeline design.

The main point is not that a butt weld tee is automatically suitable for every high-pressure application. Rather, its welded configuration makes it a useful choice when the tee needs to become an integrated part of a larger welded piping system.

Socket weld tees use a different joint configuration

A socket weld tee has recessed sockets into which the pipe ends are inserted before the joint is welded around the fitting. This arrangement makes initial alignment relatively straightforward, particularly for small-bore piping. The installer does not need to prepare the pipe end with the same bevel configuration normally associated with a butt weld joint.

Socket weld fittings are commonly covered by standards such as ASME B16.11, with pressure classes and dimensional requirements specified according to the applicable product standard. They are frequently used in smaller-diameter piping, utility lines, instrument connections, and industrial systems where the physical configuration makes socket welding practical.

However, the internal geometry of the socket connection is different from a butt weld connection. The pipe enters the fitting rather than meeting it end to end, and the resulting joint therefore needs to be evaluated with consideration for service conditions, thermal movement, vibration, corrosion, and fatigue.

This does not make socket weld tees inherently unsuitable for demanding service. Instead, it means that engineers need to consider whether the socket configuration is appropriate for the particular piping design and operating conditions.

How Installation Requirements Affect the Choice of Tee?

Butt Welding Requires More Preparation Before Assembly

Installing a butt weld tee generally involves more preparation work. The pipe ends may need to be cut to the required dimensions, beveled according to the welding procedure, cleaned, aligned, and tack welded before the final weld is completed.

Alignment is especially important because a mismatch between the pipe and fitting can affect weld quality and the finished geometry of the pipeline. Welding parameters also need to be controlled according to the qualified procedure for the material and thickness involved.

This additional preparation can increase installation time, but it also gives the project team a familiar welded connection that can be incorporated into a larger fabrication and inspection program. For prefabricated piping assemblies, butt welding can be particularly practical because several components can be accurately positioned and welded into a continuous spool before the spool is transported to the installation site.

The actual welding requirements for butt weld tees will depend on the material, wall thickness, project specification, and applicable welding code. For this reason, procurement teams should avoid treating “butt weld” as a complete specification by itself.

Socket Welding Can Simplify Small-Bore Assembly

Socket weld tees can reduce some of the preparation associated with butt welding because the pipe fits into the socket before the weld is made. This can make alignment easier during fabrication and can be useful when working with small-diameter piping.

The compact configuration can also be helpful where space is restricted. For maintenance or plant modification work, installation crews may find socket weld fittings easier to position than fittings that require the same degree of pipe-end preparation associated with a butt weld.

At the same time, easier assembly does not mean that socket welding can be performed without careful workmanship. The pipe insertion, fit-up, welding procedure, and required dimensional clearance all need to follow the applicable requirements. Improper installation can introduce defects or unwanted stresses, regardless of how convenient the fitting may be to assemble.

For this reason, installation efficiency should be considered together with inspection requirements and the actual operating conditions rather than treated as the only selection criterion.

Comparing Pressure, Temperature, and Fatigue Performance

Butt Weld Connections Integrate Well With Welded Pipeline Systems

In pressure piping, the behavior of the tee and its connection must be considered as part of the entire piping system. A properly designed and welded butt connection can provide a continuous structural connection between the pipe and fitting, which is one reason this configuration is widely used in process and transmission piping.

The absence of an internal socket step can also help maintain a more continuous internal profile. This can be useful in systems where flow disturbance, product accumulation, erosion, or cleaning requirements are important design considerations.

However, pressure performance should never be judged by connection type alone. The tee material, wall thickness, branch geometry, pipe schedule, weld quality, design pressure, temperature, and applicable design code all influence the final suitability of the component.

Therefore, saying that butt weld tees are simply “better for high pressure” is too broad. A more useful engineering approach is to determine whether the complete fitting and piping design meet the pressure and temperature requirements of the project.

Socket Weld Tees Can Be Effective When Their Application Limits Are Understood.

Socket weld tees are widely used in small-bore piping because their installation method is convenient and their compact design fits many industrial layouts. They can provide dependable service when the fitting, material, pressure class, welding procedure, and operating conditions have been properly selected.

Nevertheless, the socket geometry introduces a different stress profile from a butt weld connection. The area around the socket can require particular attention in systems exposed to repeated thermal cycling, vibration, or cyclic loading.

For projects involving severe vibration or frequent pressure and temperature changes, engineers may therefore compare socket weld and butt weld configurations more carefully. The decision should be based on the actual stress analysis and applicable piping requirements rather than on a general assumption that one connection type always outperforms the other.

Temperature Cycling and Fatigue Need Special Attention

Temperature changes can cause repeated expansion and contraction in a piping system. Over many operating cycles, these movements can contribute to fatigue stresses at connections and supports.

A butt weld connection using butt weld tees provides a continuous welded transition when properly designed and executed, which can be advantageous in piping systems where cyclic loading is a significant design consideration. The overall performance, however, still depends on weld geometry, material properties, residual stresses, support arrangement, and system design.

Socket weld connections require the same level of engineering consideration. Their geometry can create localized stress concentrations, so applications involving severe vibration, thermal cycling, or repeated mechanical loading may warrant additional evaluation.

This distinction is particularly important for process plants and other facilities that operate continuously and experience frequent start-up and shutdown cycles. Selecting the tee based only on purchase price or installation convenience can overlook the stresses imposed on the fitting throughout its service life.

What About Flow Characteristics and Inspection?

Internal Geometry Can Matter in Process Piping

The internal shape of a fitting can influence how fluid moves through a pipeline. A properly installed butt weld tee can provide a relatively smooth internal transition between the pipe and fitting, with no socket extending into the flow passage.

This characteristic may be valuable in applications where pressure drop, turbulence, erosion, product accumulation, or internal cleaning are important concerns. It can also matter in process systems carrying fluids that are sensitive to dead zones or deposits.

Socket weld tees have a different internal configuration because the pipe terminates within the socket. The resulting geometry should therefore be considered when designing systems in which internal flow behavior is particularly important.

This does not mean that socket weld tees are unsuitable for process service. Many industrial systems use them successfully. The appropriate choice depends on the fluid, pipe size, operating conditions, cleanliness requirements, and design criteria of the system.

Inspection Requirements Should Be Considered Before Fabrication

Inspection is another practical difference between the two configurations. Butt weld joints can often be incorporated into established non-destructive examination programs, with inspection methods selected according to the project specification and applicable code. Depending on the material and service, methods may include radiographic testing, ultrasonic testing, liquid penetrant testing, or visual examination.

Socket weld connections can also be inspected, but their geometry and access conditions differ from those of butt weld joints. The project team should determine in advance what level of inspection is required and whether the selected connection allows the necessary examination to be performed effectively.

For critical piping, inspection should not be treated as something that happens only after welding. The fitting specification, welding procedure, welder qualification, inspection plan, and documentation requirements should ideally be established before fabrication begins.

Which Option Makes More Sense From a Cost Perspective?

Purchase Price Is Only One Part of the Budget

The initial purchase price of a tee is influenced by its material, size, pressure class, manufacturing requirements, standard, and quantity. Socket weld tees may be economically attractive for smaller sizes, while butt weld tees can involve additional manufacturing and installation preparation.

However, comparing unit prices alone can produce an incomplete result. A fitting that costs less to purchase may require different installation procedures, inspection arrangements, or maintenance considerations.

For procurement teams, the better approach is to compare the complete installed cost rather than focusing only on the price shown on the quotation.

Installation labor can change the overall cost.

Butt welding generally requires more pipe-end preparation and careful alignment. Depending on the project, this can involve additional fabrication time, qualified welding personnel, inspection, and post-weld activities.

Socket welding can simplify some stages of assembly, especially in small-bore applications, and may therefore reduce fabrication time. Whether that advantage translates into meaningful project savings depends on the number of fittings, site conditions, labor rates, inspection requirements, and project schedule.

For a large industrial project, even a small difference in installation time per fitting can become significant when multiplied across hundreds of connections. This is why contractors should evaluate installation conditions alongside the fitting price.

Lifecycle Cost Should Be Part of the Decision

A pipeline fitting remains in service long after installation is completed, so the original purchase price should not be the only financial consideration. Maintenance accessibility, inspection requirements, operating conditions, potential leakage risks, and expected service life can all affect the total lifecycle cost.

For systems where flow quality, cyclic loading, or severe operating conditions are important, the additional preparation associated with butt welding may be justified by the requirements of the overall piping design. In smaller and less demanding applications, the installation advantages of socket welding may make greater economic sense.

The right decision is therefore not necessarily the one with the lowest initial cost. It is the fitting that meets the engineering requirements without adding unnecessary fabrication or maintenance costs.

Conclusion

Depending on the pipeline needs, butt weld tees and socket weld tees each have their advantages and disadvantages. Socket weld tees can provide convenient installation and a compact solution for many small-bore piping applications, while butt weld tees can be a strong choice for welded piping systems where continuous connections, internal geometry, fabrication practices, and demanding service conditions need to be considered together.

The best choice should be based on more than pressure or purchase price. Pipe size, material grade, wall thickness, temperature, cyclic loading, fluid characteristics, inspection requirements, fabrication conditions, and applicable standards all influence the final decision. A socket weld tee may be entirely appropriate for one application, while a butt weld tee may be more suitable for another even within the same facility.

Cangzhou Oudi Pipe Manufacture Co., Ltd. has been manufacturing carbon steel pipe fittings, valves, and flanges in China since 1998. Located in Mengcun Hui Autonomous County, known as an important production center for pipe fittings in China, the company combines manufacturing equipment with experienced technical personnel to serve industrial piping requirements.

The company supplies bends, flanges, tees, reducers, and related fittings in carbon steel, stainless steel, and alloy steel according to applicable international standards. With an annual manufacturing capacity of 16,000 tonnes, Cangzhou Oudi supports customers across different industrial sectors and can provide fitting solutions based on project-specific requirements.

For a pipeline project, selecting the tee should begin with the actual operating and fabrication conditions rather than with a general preference for one welding method. If you are comparing butt weld tees with socket weld tees, providing the pipe size, material, schedule, pressure, temperature, applicable standard, and intended service to the manufacturer can help ensure that the recommended fitting matches the project requirements.
