How to Prevent Corrosion in Carbon Steel Pipe Elbows？

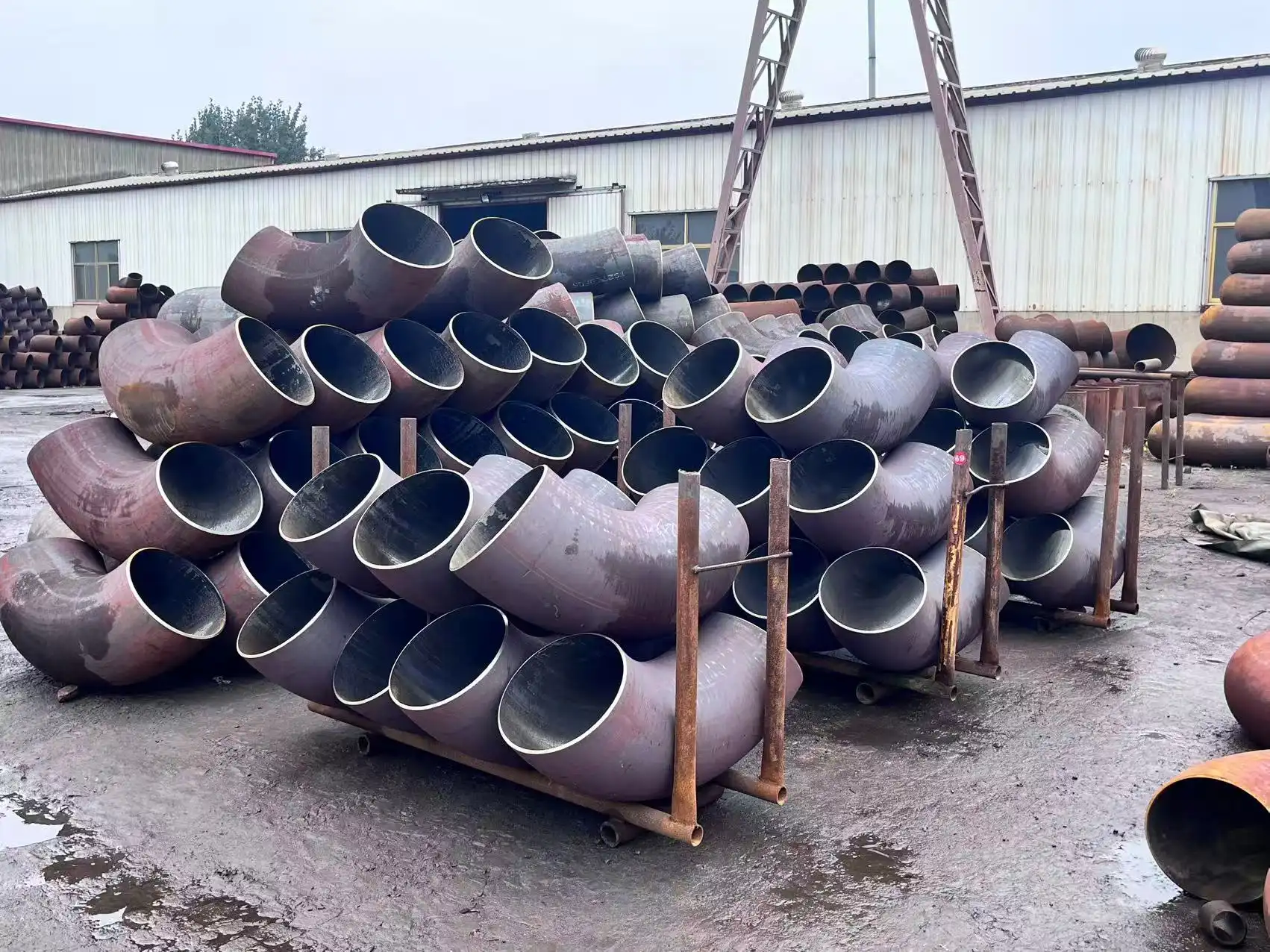

Carbon steel pipe elbows are widely used to change flow direction in industrial piping systems because they offer a practical balance of strength, availability, and cost. However, carbon steel can corrode when it is exposed to moisture, oxygen, chemicals, salts, or other aggressive service conditions. For companies operating in process, water, oil and gas, or utility piping, corrosion of a carbon steel elbow can gradually reduce wall thickness and create maintenance concerns if it is not properly controlled. Corrosion prevention therefore needs to begin before the elbow enters service. Surface protection, suitable material selection, sound piping design, environmental control, and routine inspection all have a role to play. The right combination depends on whether corrosion is expected on the outside of the fitting, inside the flow passage, or at specific areas such as welds and connections. Understanding these factors makes it easier to select a protection method that fits the actual operating environment rather than relying on a single treatment for every application.

Use Suitable Surface Protection

For many carbon steel pipe systems, the first line of defence against air corrosion is protection of the exterior surface. A well-prepared surface and suitable coating can isolate the steel from water, oxygen, salts and other corrosive pollutants. The coating used should be based on the environment and not on the look or first cost of the product.

Select Coatings for the Actual Service Environment

Because carbon steel components often offer a lasting barrier when the surface is adequately prepared, and the coating technique is acceptable for the operating circumstances, they are often chosen for epoxy coatings. Coating performance is highly dependent on surface cleanliness, application thickness, curing conditions, and exposure following installation.

Zinc-rich primers may also be used as a part of a corrosion prevention system. Their protection method is different; unlike a simple barrier coating, zinc may give sacrificial protection to exposed steel under certain circumstances. However, the whole coating system for humidity, temperature, chemical and mechanical abrasion has not yet been specified.

Carbon steel elbow surface preparation is especially critical, as the curved shape may make coating application more difficult than painting a flat surface. Areas surrounding welds, edges and connections should be given due care to ensure that the completed coating does not leave weak areas where corrosion may develop.

Consider Galvanizing Where It Fits the Application

Hot-dip galvanising is one in which steel is coated with a layer of zinc to protect it against external corrosion. Zinc is electrochemically more active than steel and may therefore function as a sacrificial anode if the coating is locally damaged. This makes galvanising suitable for certain outdoor, atmospheric and general industrial use.

But galvanising should not be seen as a panacea. Prior to a fitting being specified, the service temperature, chemical environment, dimensional requirements, manufacturing process and intended use all need to be considered. In particular, internal process conditions are critical, since the exterior zinc coating does not automatically offer corrosion protection of the pipe from the fluid passing through the pipe.

Engineers should additionally consider the effects of field cutting, welding, handling and installation on the zinc coating when galvanised elbows are used in an integrated pipe system, particularly where a carbon steel elbow is incorporated. Damaged areas of the protective covering may need a suitable repair method.

Match Electroplating to Specific Requirements

Electroplating technology may be used to deposit a thin metallic coating on a prepared steel surface in cases where certain surface properties are needed. Nickel- or chromium-based finishes, for example, may offer a regulated surface layer for specified applications.

The utility of electroplating relies on the coating thickness, adherence, substrate preparation, chemical exposure, and mechanical service conditions. It should be picked for a particular technical reason and not just because it is corrosion resistant and looks good. Other coating or protection technologies may be more practicable for big industrial pipe systems, depending on the elbow’s size and working environment.

Select Materials and Designs With Corrosion in Mind

Surface treatment alone cannot compensate for an inappropriate material or a poorly planned pipe layout. If materials are selected and mechanicals are designed from the start of a project, corrosion control is more successful.

Evaluate Material Compatibility

Carbon steel is still a typical pipe material because of the combination of good mechanical qualities and reasonably affordable material prices. Its corrosion performance is therefore highly dependent on the operating environment.

If the process fluid comprises water, dissolved gases, chlorides, acids, or other aggressive components, the engineers should examine the probable corrosion mechanism before the elbow material is selected. In certain situations, a low alloy steel or other material more resistant to the particular environment may be suitable. In some instances, carbon steel may still be acceptable with an adequate coating, inhibitor program, corrosion allowance, or other means of control.

Thus, the selection of the materials should be done on the basis of the actual process circumstances, rather than by picking a more corrosion-resistant alloy. The final specification is influenced by temperature, pressure, fluid composition, flow velocity, anticipated service life, manufacturing needs, and maintenance plan.

Improve Geometry and Drainage

Piping geometry may affect the location of corrosive material deposition and the rate of localised damage development. Bad drainage, standing spots, sudden changes, and fissures may generate more hostile conditions than the surrounding ecosystem.

A good pipe system should provide for drainage of moisture and process fluids when appropriate and should eliminate needless dead legs or locations where pollutants might stay trapped. Smooth transitions may also assist in avoiding excessive turbulence and localised erosion-corrosion in high flow velocity or suspended particles applications.

The bend shape and wall thickness of a carbon steel elbow must be adequate for the flow conditions and pressure requirements of the system. At the same time, engineers should consider erosion at the outer radius or other locations where a high-velocity flow is encountered, especially if the conveyed medium has abrasive particles.

Account for Galvanic and Localized Corrosion

Carbon steel elbows may be joined to parts composed of various metals. Galvanic corrosion may occur under proper circumstances when dissimilar metals are electrically linked in the presence of an electrolyte. The danger varies with the mix of metals, the exposed surface areas, the electrical connection and the atmosphere.

Designers may limit this risk by considering material combinations in system design and by implementing suitable isolation or corrosion-control measures where necessary. Localised corrosion may occur when moisture or pollutants accumulate; thus welds, fissures, flange joints and coating flaws should also be considered.

Use Cathodic Protection in Appropriate Environments

Cathodic protection is of use for carbon steel pipelines and fittings that are exposed to an electrolyte, especially when buried or submerged. The essential premise is to have the protected steel act as the cathode of an electrochemical cell, thereby minimising the propensity of the steel to undergo anodic dissolution.

Sacrificial-anode systems use a more active metal (e.g. zinc, magnesium in appropriate applications) to offer the necessary electrochemical protection. Impressed current systems use an external power source to manage the protective current and are generally chosen for bigger or more demanding installations.

Cathodic protection involves correct engineering, monitoring, and system design. It is not intended as a replacement for proper coatings, drainage, material selection, and inspection. In reality, cathodic protection may be a part of a more comprehensive corrosion-control approach.

Control External and Internal Corrosion Conditions

The environment around the pipe and the fluid moving through it can both contribute to corrosion. Controlling these conditions is therefore essential when carbon steel elbows are expected to remain in service for long periods.

Keep Moisture Away From External Surfaces

Atmospheric moisture is one of the most common contributors to external corrosion of carbon steel. Water can remain on the surface of an elbow after rain, condensation, cleaning, or leakage, creating conditions that support electrochemical corrosion.

Good drainage and insulation practices can reduce water accumulation around piping. Outdoor installations may also benefit from suitable shelters or protective arrangements where the surrounding environment makes persistent wetting likely. Insulation systems require particular attention because damaged or poorly sealed insulation can retain moisture against the steel surface.

Leaks should be addressed promptly because continuous exposure to water or process fluid can damage coatings and accelerate localized corrosion. Areas beneath supports, around connections, and near low points in the piping system can deserve additional inspection because moisture may remain there for longer periods.

Manage the Process Fluid

Internal corrosion is influenced by the chemistry of the fluid flowing through the piping system. Water content, dissolved oxygen, carbon dioxide, chlorides, acidity, temperature, and flow conditions can all affect corrosion behavior.

In systems where chemical treatment is appropriate, corrosion inhibitors may be introduced to reduce the interaction between the fluid and the internal steel surface. The specific inhibitor chemistry should be selected according to the process rather than assuming that one chemical treatment will work for every application.

pH control may also form part of an internal corrosion-management program where the process allows it. Changes in fluid composition or operating conditions should be considered because a treatment that works under one set of conditions may not provide the same level of control after the process changes.

Consider Flow Velocity and Erosion-Corrosion

Corrosion prevention is not only about chemical exposure. Excessive flow velocity can contribute to erosion-corrosion, particularly where the fluid contains solid particles, gas bubbles, or other phases capable of damaging the internal surface.

Elbows are especially relevant because they change the direction of flow. Depending on the system, the geometry of the bend can influence turbulence and localized wear. Engineers should therefore consider flow velocity, fluid properties, particle content, and elbow geometry when evaluating internal degradation.

This is one reason why simply applying an external coating cannot address every corrosion mechanism affecting a carbon steel elbow. External corrosion and internal erosion-corrosion may require completely different control measures.

Build Inspection Into Long-Term Maintenance

Even a well-chosen and properly shielded carbon steel pipe system requires examination. Corrosion protection may be compromised by coating degradation, changes in process conditions, mechanical impact, moisture intrusion, or progressive changes in the fluid being conveyed.

Inspect External Surfaces Regularly

Visual examination may detect evident indicators of corrosion, coating degradation, discolouration, leaking or mechanical damage. Inspection should not be limited to readily accessible straight pipe. Special care may be needed for a carbon steel elbow, supports, joints, low points and regions susceptible to splash or moisture.

If a coating is blistered, split, peeled or otherwise mechanically damaged, the affected area should be inspected before corrosion develops below the coating. Instead of painting over the visible rust, cleaning, surface preparation and recoating should be carried out as per the criteria of the chosen coating system.

Monitor Wall Thickness

The outside look is not necessarily a good indicator of corrosion or metal loss within. Where wall-thickness decline is a problem, non-destructive examinations, such as ultrasonic thickness measurement, may offer helpful information on remaining wall thickness. Depending on the component, the suspected damage process, the accessibility, and the inspection purpose, radiographic or other inspection techniques may also be considered.

When inspection findings are documented over time, they become more valuable. Comparison of readings across several inspection periods helps reveal if the metal loss is steady, localised, or progressing. This gives a more relevant foundation for making maintenance choices than visual appearance alone.

Maintain Traceable Inspection Records

Organising inspection and maintenance data improves the effectiveness of a corrosion-control program. Records may contain fitting specifications, material information, coating systems, inspection dates, sites where corrosion was found, thickness measurements, repairs, and changes in operating circumstances.

These data provide maintenance crews with the history of a pipe component and the ability to spot recurring issues. They may also help in making future replacement selections and make it simpler to evaluate whether a change in process conditions has changed corrosion behaviour.

Choose Carbon Steel Elbows According to Service Requirements

Selecting a fitting that is suitable for the pipe system is the first step in preventing corrosion. Before acquiring a carbon steel elbow, engineering and procurement teams should verify the needed nominal size, wall thickness or schedule, material grade, elbow type, connection standard, pressure requirements, temperature range, and relevant inspection or documentation requirements.

The service environment to be served also has to be defined properly. An elbow in a dry, indoor utility system may call for different protection than one outside, underground, in a humid plant environment, or in touch with an aggressive process fluid. The fundamental dimensions specification should thus be viewed in conjunction with the surface treatment, coating requirements, corrosion allowance and inspection expectations.

The supplier’s manufacturing and quality-control capabilities are also important, as the reliability of the finished piping component can be affected by dimensional accuracy, traceability of material, surface condition and inspection documentation. For projects that require large quantities or demanding service conditions, clear technical communication between the purchaser, the engineer, and the manufacturer can prevent gaps in the specifications prior to the start of production.

Conclusion

Preventing corrosion in carbon steel pipe elbows requires more than applying a protective coating after manufacturing. The most effective approach considers the complete service environment, including the transported fluid, moisture exposure, temperature, flow conditions, material compatibility, piping geometry, and expected service life. Surface coatings, galvanizing, suitable material selection, cathodic protection, chemical treatment, and proper drainage can each contribute to corrosion control when they are matched to the actual application.

Regular inspection is equally important because corrosion protection can deteriorate during transportation, installation, and long-term operation. Checking coating condition, monitoring wall thickness, examining vulnerable areas, and maintaining inspection records can help identify changes before they become major maintenance problems. When selecting a carbon steel elbow, buyers should therefore look beyond price and confirm the material, dimensions, manufacturing requirements, surface condition, and documentation needed for the intended piping system.

For industrial projects that require carbon steel pipe fittings, including elbows, valves, and flanges, Cangzhou Oudi Pipe Manufacture Co., Ltd. has supplied pipe components since 1998. A supplier that can clearly communicate product specifications, manufacturing requirements, and quality documentation can make corrosion-control planning easier from the procurement stage through installation and maintenance. For more information or inquiries, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the most common cause of corrosion in carbon steel pipe elbows?

The most common cause is exposure to moisture and oxygen, which facilitates the oxidation process.

2. How often should carbon steel pipe elbows be inspected for corrosion?

Regular inspections should be conducted at least annually, with more frequent checks in harsh environments.

3. Can corrosion in carbon steel pipe elbows be completely prevented?

While complete prevention is challenging, proper measures can significantly reduce and control corrosion.

4. What is the most effective coating for protecting carbon steel pipe elbows?

Epoxy-based coatings are highly effective due to their excellent adhesion and chemical resistance properties.
