How to Repair a Leaking Pipe Flange Connection?

A leaking pipe flange connection should not be treated as a simple matter of tightening a few bolts. In an industrial piping system, a flanged joint works as a complete mechanical and sealing assembly. The leak-tightness of the connection in service depends on the flange faces, gasket, bolts, nuts, pipe alignment, operating pressure, temperature, and the medium being conveyed. Leakage may occur as a consequence of gasket degradation, unequal loading of the bolts, faulty assembly, damage to the flange surfaces, corrosion, misalignment of the pipe, vibration, or change in the operating circumstances. In certain circumstances the bolts may be tightened to temporarily minimize the leaking, but the fundamental issue has not been corrected. If the flange, gasket, or bolting has been broken, continuing to operate might enable a tiny leak to become a more major maintenance problem. For this reason, the repair of a leaky flange should start with safe isolation and a thorough examination. The objective is to do more than just halt the obvious leaks but to repair the joint such that the flange assembly will function reliably in its designated service environment.

Start With a Safe Shutdown and Leak Assessment

The pipe system should be arranged in such a state that the connection may be safely examined before any flange is removed. The method of isolation will depend on the process, fluid, pressure, temperature, and plant safety standards. A maintenance crew should locate the valves and other isolation points that control the damaged part and shut down the equipment if necessary, following the site’s lockout/tagout protocols.

Depressurising is also crucial. A closed valve is not a safe flange to open since pressure or trapped fluid might still be present between the isolation points. Pressure should be monitored by appropriate instruments, and designated drains or vents should be utilized if permitted by the system design and operating procedure.

Also, the state of the fluid is important. Water, steam, hydrocarbons, caustic chemicals, and other process media provide very diverse dangers. Thus, the PPE must be chosen according to the real service and not with the same equipment for each repair.

After isolating and making safe the system, check for leaks before removing the joint. Check for the source of the fluid and any symptoms of corrosion, discolouration, gasket extrusion, broken bolts, or flange deformation. This first look may be helpful in determining what the probable problem is and how thorough the repair has to be.

Inspect the Flange Joint Before Replacing Components

When isolated, remove the joint carefully in accordance with the relevant maintenance procedure. The aim is to look at the complete connection and not just change the gasket and hope it fixes the issue.

Check the gasket for cracks, hardness, compression damage, chemical degradation, extrusion, or other evidence of service-related failure. If a gasket is subjected to the wrong temperature, pressure, or process medium, it may not be able to make the requisite seal. "Replacement gaskets must consequently be matched to the kind of flange and the actual working circumstances.

Also, check the flange faces closely. Check the sealing area for deep scratches, corrosion, pitting, fractures, severe surface damage, or deformation. Surface blemishes might be of quite different importance than serious corrosion or deformation. If the flange face is very severely damaged, then fitting a new gasket may not provide a dependable long-term repair.

Alignment should be looked at simultaneously. Do not over-tighten the bolts to push a flange joint into alignment, as this might introduce undesirable stresses into the joint and attached pipework. Misalignment might be a symptom of other problems, such as pipe support difficulties, thermal movement, installation flaws, or overloading external loads.

Don’t assume the bolts and nuts are reusable; examine them as well. Inspect fasteners for corrosion, damaged threads, galling, deformation, or other evidence of abnormal service conditions. When replacement is called for in the engineering specification or maintenance procedure, use new fasteners of the proper grade and size.

Determine Whether the Gasket, Bolting, or Flange Is the Problem

To succeed with the repair, it's very vital to determine what is in fact causing the leak. A broken gasket is typical, but not the only possibility.

Gasket difficulties may come from poor material selection, overcompression, undercompression, installation damage, chemical incompatibility, heat cycling, or degradation in service. A gasket may lose its sealing effectiveness even if it looks to be physically intact. It is important to evaluate the service history and application of the gasket, as well as its visual condition.

Problems of bolt loosening might develop when the joint has not been tightened uniformly, when the initial preload was inadequate, or when fasteners have degraded in service. If the Pipe flange bolts are not all loaded equally, the tension on the gasket will not be uniform, and some of the sealing area will not be squeezed properly. Over-tightening may also be an issue, as it might damage the gasket or impose too much stress on the flange and fasteners.

If the sealing surface of the flange is broken or warped, the fault may be in the flange itself. The effective sealing area may be reduced by severe corrosion, and distortion may prevent the gasket from being loaded properly and uniformly. If the flange is badly damaged structurally, just changing the gasket is not likely to be a long-term solution.

Don't forget the pipes around it. External loads, vibration, thermal expansion, and misalignment may all impair the functioning of a flange. Repeated leaks in the same joint after proper gasket and bolting work should be looked into by the maintenance crew for the piping system rather than repeated tightening of the same connection.

Install the Replacement Gasket Correctly

If the examination shows the gasket needs replacing, the replacement gasket must be appropriate for the joint, not only the size. 20 Think about the gasket type, material, size, flange face, temperature, pressure, and process media.

Before installation, the flange faces must be clean and free of loose debris, oil contamination, old gasket residue, or any other material that might prevent proper sealing.

The new gasket should be put in place properly without jamming it or harming the sealing surface. Unless explicitly allowed by the corresponding gasket maker or engineering technique, it must not be reused. In most traditional industrial applications, a gasket that has been compressed should not simply be treated as a new gasket.

Likewise, it’s just as crucial not to use sealants or other compounds just because a flange is leaking. The permissibility of a compound relies on the joint design and on the manufacturer’s or technical specification. Adding the wrong kind of material may hurt gasket performance; it may not help it.

Align the Flanges Before Tightening the Bolts

Flange assembly is a key step of correct alignment. The pipe should not be forced into place by tightening the bolts too tight, but the flange faces should be drawn together.

Once the gasket is properly in place, the bolts and nuts may be fitted according to the prescribed assembly technique. The threads and bearing surfaces should be prepared as specified by the bolting specification. This is because of the effect of friction on the relationship of applied torque to the resulting bolt preload.

That’s one reason why you don’t pick a torque value from a generic chart without reference to the actual joint. The correct assembly method can be affected by bolt size, material, lubrication condition, gasket type, flange configuration, required preload, and service conditions.

The assembly technique for important pressure-boundary joints must be in accordance with appropriate technical requirements and standards. ASME PCC-1 covers bolted flange joint assembly and provides guidelines on preparation, alignment, gasket installation, bolting, tightening techniques, and joint dependability. ASME’s current training material also notes that the appropriate bolt load is a function of flange size, gasket type, flange class, flange and bolt materials, and piping service.

Tighten the Joint Using a Controlled Sequence

Once the Pipe flange is aligned and the gasket is correctly installed, the bolts should be tightened using a controlled sequence rather than tightening them randomly around the flange.

A cross or other specified pattern distributes the load progressively through the joint. The exact tightening procedure shall be in accordance with the applicable specification, particularly for larger or more critical connections. Several controlled passes may be required so that the target bolt load is approached progressively rather than applied in one operation.

A calibrated torque wrench may be suitable for many applications, but torque is only an indirect method of achieving bolt preload because friction can vary considerably.   The engineering requirements may call for alternative methods of tensioning the critical joints or more detailed assembly procedures.

It is crucial to distinguish between system pressure and bolt preload. Pressure acts on the piping and joint during operation, while bolt preload provides the clamping force needed to maintain gasket compression. The correct assembly target should therefore come from the joint design or applicable procedure rather than from the operating pressure alone.

ASME PCC-1 is specifically concerned with pressure-boundary bolted flange joint assembly, and ASME's technical training materials identify torque tightening, bolting patterns, gasket behavior, alignment, and preload as important parts of reliable flange assembly.

Check the Repair Before Returning the System to Service

After assembly, the repaired connection should be checked according to the applicable inspection and testing procedure before the system returns to normal operation.

The inspection should confirm that the flange faces are properly aligned, the bolts have been assembled as specified, and there are no obvious signs of gasket extrusion, flange distortion, or damaged fasteners. Where a formal pressure or leak test is required, it should be performed using the procedure appropriate for the piping system and service.

The system should then be returned to service in a controlled manner. A gradual increase in operating conditions can make it easier to identify abnormal behavior than an immediate return to full operating pressure or temperature.

If leakage appears again after the repair, simply tightening the bolts further is not necessarily the correct response. Repeated leakage should prompt another inspection of the gasket, flange faces, bolting, alignment, and external loads. A recurring leak often indicates that the original cause has not been addressed.

For process piping and other pressure-boundary applications, the relevant piping code, equipment specification, plant procedure, and manufacturer's instructions should take precedence over a general maintenance article. ASME B16.5, for example, establishes requirements covering pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and other characteristics of pipe flanges and flanged fittings within its scope.

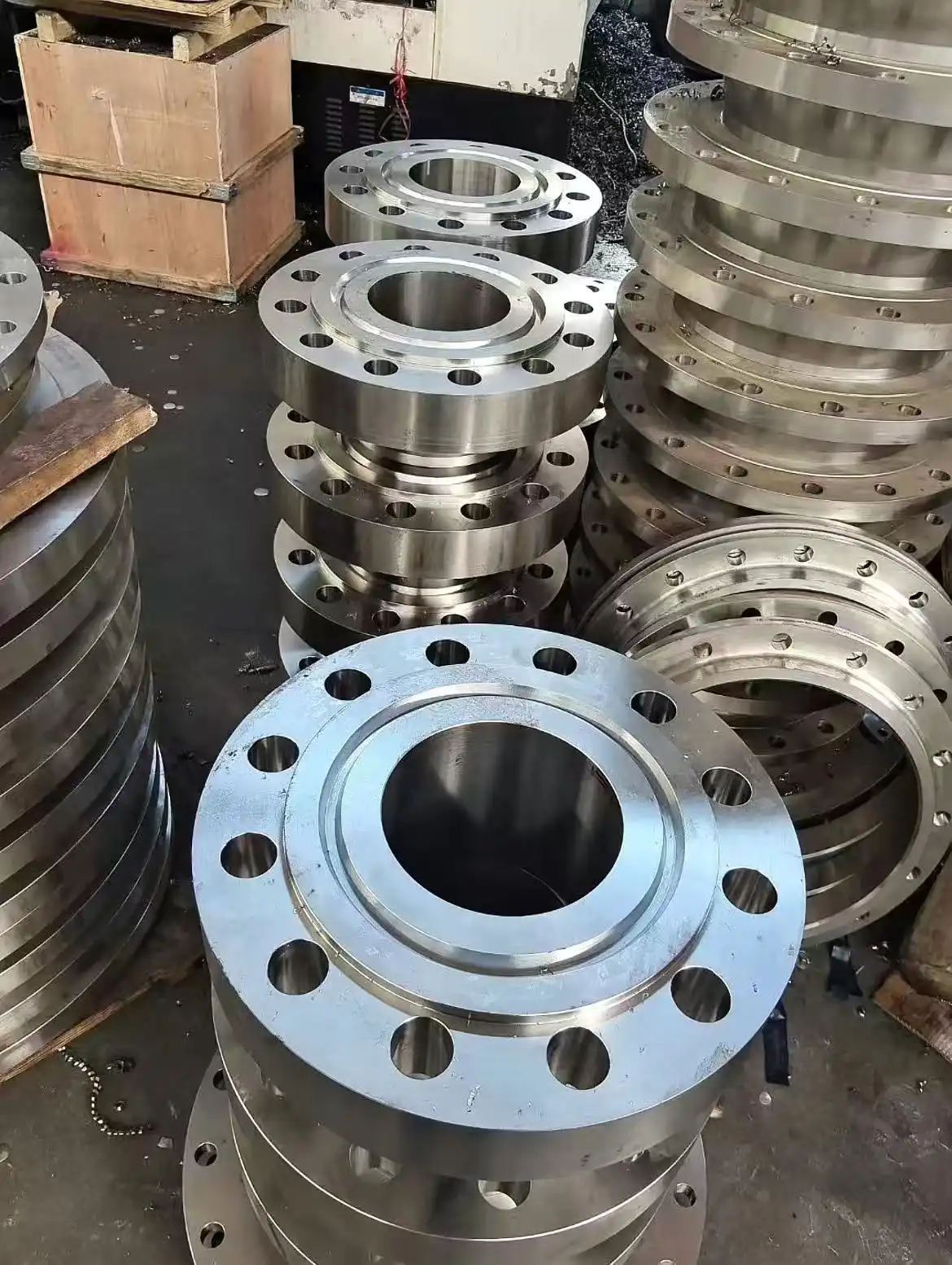

When Should a Pipe Flange Be Replaced?

Not every leaking flange requires replacement, but some conditions make replacement or professional engineering assessment more appropriate than a gasket change.

A flange may need replacement when there are significant cracks, severe corrosion, excessive pitting, permanent deformation, damaged bolt holes, or serious deterioration of the sealing face. A flange that has repeatedly failed to maintain a leak-tight joint despite correct assembly should also be investigated carefully before being returned to service.

The decision should be based on the actual condition of the component and the requirements of the piping system. For example, a flange operating in a corrosive environment may require a different material or corrosion allowance than one used in a relatively benign service. Temperature changes can also influence joint behavior because connected components expand and contract during operation.

This is where experienced engineering and manufacturing support can add value. Instead of treating every leakage problem as a simple gasket replacement, the supplier or engineering team can review flange dimensions, material requirements, pressure class, connection type, and service conditions to determine whether the existing component is suitable or whether a replacement is more appropriate.

Conclusion

Repairing a leaking pipe flange connection requires more than tightening bolts or replacing a gasket. A reliable repair begins with safe system isolation, followed by inspection of the gasket, flange faces, bolting, alignment, and surrounding piping. The cause of the leak should be established before components are replaced, because a damaged flange or misaligned pipe can cause a new gasket to fail again.

Correct assembly is equally important. The replacement gasket must suit the service, the flange faces must be clean and suitable for sealing, and the bolts should be tightened according to an appropriate and controlled procedure. For pressure-boundary bolted flange joints, ASME PCC-1 provides recognized guidance for joint assembly and reliability, while applicable flange standards such as ASME B16.5 establish requirements for flange dimensions, materials, pressure-temperature ratings, and testing within their scope.

Most importantly, a recurring flange leak should be treated as an engineering problem rather than a tightening problem. When corrosion, deformation, poor alignment, unsuitable materials, or abnormal external loads are involved, replacing the gasket alone may only provide a temporary result. Careful inspection and correct component selection are what turn a short-term repair into a dependable piping connection.

For industrial buyers, maintenance teams, and engineering contractors, selecting the right flange from an experienced manufacturer can also reduce problems later in the installation and maintenance cycle. When you need a pipe flange for a new project or replacement application, Cangzhou Oudi Pipe Manufacture Co., Ltd. can provide product and specification support based on the required dimensions, materials, standards, and service conditions.

Please email us at oudi-04@oudiguandao.com if you have any questions or would like more information about our pipe flange goods. We have been dedicated to offering the finest carbon steel pipe fittings, valves, and flanges since 1998. Our products are exported to more than 40 countries and are widely used in oil & gas, petrochemical, power generation, and industrial pipeline projects worldwide.

FAQ

1. How often should you check for leaks in pipe joint connections?

Industrial flange connections should be inspected regularly according to operating pressure, media type, temperature conditions, and maintenance schedules, or more often in tough settings or serious situations.

2. Can I use the same patch to fix a pipe joint that is leaking?

Reusing gaskets is usually not a good idea because they may have changed shape or become less durable, which could make the seal less reliable.

3. What makes a pipe flange leak?

Common reasons are bad fitting, changing temperatures, shaking, rust, and seals or nuts wearing out over time.

4. How do I tell if I only need to change the seal or the whole flange?

Look at the joint for harm, like cracks or rust. If the joint is badly broken, it might need to be replaced. If not, replacing the seal and tightening the nuts might be enough.
