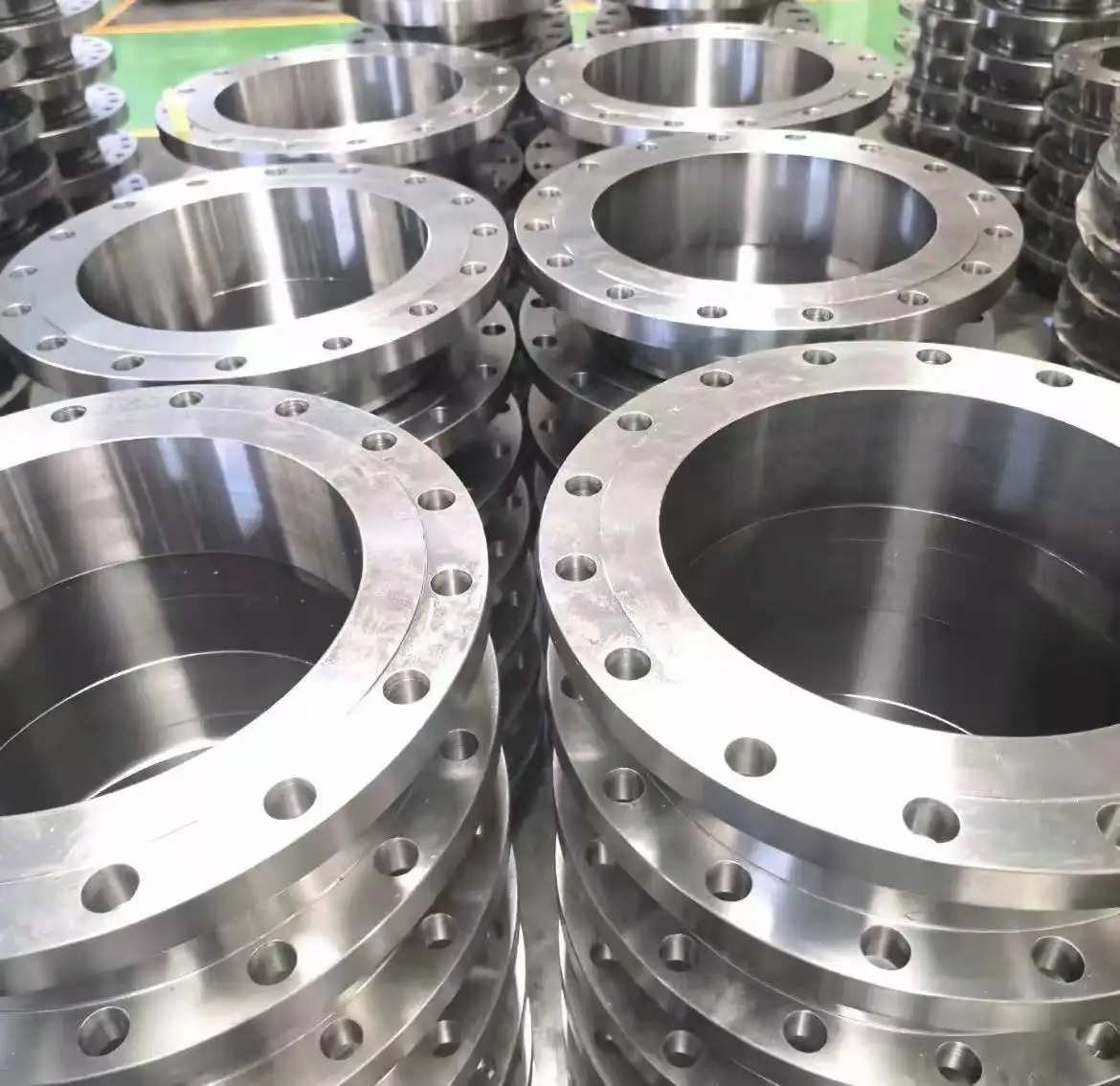

Selecting a Protective Surface Treatment for Carbon Steel Pipe Flanges
When Epoxy Coatings Are a Practical Choice？
Epoxy coatings are commonly used when a barrier is needed for moisture and environmental contaminants for a carbon steel surface. An epoxy system, when correctly applied and cured, may separate the steel from water, oxygen, salts, and selected chemicals, reducing the circumstances that allow corrosion to develop.
Surface preparation is one of the most important aspects affecting the coating performance. Oil, oil, mill scale, loose rust, dust, and other contaminants, if not removed prior to coating, may affect adherence. May need abrasive blasting or other approved preparatory technique depending on coating requirements and service environment.
The coating should also be applied to an appropriate thickness and cured as per the criteria of the coating manufacturer. Attention must be paid to regions around corners, bolt holes, transitions, and other difficult geometries of carbon steel pipe flanges, where coating application may not be consistent.
Epoxy is not inherently appropriate for all operating environments. The selected form must be compatible with the expected temperature range and chemical environment. In the case of UV radiation, salt spray, immersion, or aggressive process chemicals being expected on the flange, then the full coating system should be examined, not just a product on general corrosion resistance alone.
Where Powder Coating Fits Into Flange Protection？
Powder coating is another option for protecting external carbon steel surfaces. In this method a dry powder is sprayed on to a prepared metal surface and cured by heating under regulated circumstances to form a continuous protective coating. The resulting finish may give good adhesion, abrasion resistance, and resistance to several environmental contaminants.
Powder coating may look good, assuming you want a tough and somewhat consistent exterior surface. It is often used for components that can be manufactured in a controlled production environment before being sent to the installation site. A controlled application method may encourage consistent covering of the treated area.
However, the service conditions and flange geometry should be addressed. Dimensional or functional regions such as machined sealing faces, threads, and bolt holes should not be coated irrespective of their purpose in the connection. You also want to choose the coating system based on the anticipated temperature and chemical environment.
Therefore, the coating specification of carbon steel pipe flanges used in challenging industrial settings should include the preparation process, coating material, thickness, curing requirements, and inspection standards. The quality of a coating is closely tied to the quality of the preparation and application procedure that produced it.
When Specialized Linings May Be Appropriate？
In the case when the resistance of a conventional exterior coating is not adequate for a given working environment, the consideration of speciality linings is advised. For example, if chosen and applied appropriately, systems based on ceramics may provide considerable resistance to abrasion and to certain hostile chemical conditions.
They are less a coating and more an engineering consideration. In case of severe temperature fluctuations, differences in the thermal expansion of the liner and the carbon steel substrate might be crucial. You also have to consider mechanical impact, substrate preparation, method of application, and the flange geometry.
Therefore, ceramic or other specialty lining systems are usually selected to meet specific service requirements rather than as a standard method of rust prevention. The lining must be compatible with the process medium and temperature. Areas performing a sealing or dimensional function must be protected from inappropriate coating build-up.
Using Cathodic Protection in the Right Environment
Sacrificial Anodes for Buried and Submerged Systems
Cathodic protection is not the same as a surface coating. Instead of relying on a physical barrier, the system changes the electrochemical conditions around the protected steel, reducing corrosion of the steel structure.
A sacrificial anode system uses a more electrochemically active metal, commonly based on zinc, aluminum, or magnesium alloys, that preferentially corrodes while providing protection to the connected steel structure, including carbon steel pipe flanges. The selection of anode depends on the environment, electrical characteristics, the required level of protection, and the design of the system.
This method can be useful for suitable buried or submerged piping systems where an electrolyte is present. It is less relevant to an ordinary flange exposed only to dry indoor air because cathodic protection requires an appropriate electrical path and electrolyte to function effectively.
The size and placement of the anodes also matter. Engineers need to consider the total protected surface area, environmental resistivity, current demand, and expected service period. Anodes gradually consume during operation, so their condition needs to be monitored and replacements planned where required.
ICCP for Large or Complex Piping Systems
Impressed current cathodic protection, commonly abbreviated as ICCP, uses an external DC power source to provide a controlled protective current. Compared with sacrificial anodes, ICCP systems may be changed to fit the needs of bigger or more complicated structures.
An ICCP installation generally involves a power source, anodes, electrical connections, reference electrodes or other monitoring equipment, and a control system. Proper design is essential because excessive or poorly controlled current can create its own problems, while insufficient current may not provide the intended level of protection.
For this reason, ICCP should be engineered as part of the complete piping protection system rather than added simply because a flange is made from carbon steel. Buried pipes, underwater structures, offshore systems, and other installations with proper electrolytic conditions are more usual uses.
The system also needs monitoring after installation. Electrical potential, current output, anode condition, and other important parameters should be examined according to the project design and maintenance requirements.
Combining Coatings With Cathodic Protection
In difficult settings, a coating system and cathodic protection may complement each other. The coating minimizes the exposed steel surface, while cathodic protection may give extra protection at regions where the coating has faults or gets damaged.
This method is especially applicable to underground or submerged infrastructure when lengthy service life is needed and access for maintenance is constrained. The coating still has to be correctly chosen and applied since a poor coating might increase the current demand of a cathodic protection system.
A combined system should thus be developed as an integrated corrosion-control method. The coating specification, electrical design, anode selection, monitoring system, and inspection program should function together instead of being viewed as separate choices.
Environmental Conditions That Increase Flange Corrosion
Moisture, Condensation, and Salt Exposure
Moisture is one of the most common factors behind rust on carbon steel pipe flanges. Even when a piping system is not directly exposed to rain or standing water, condensation can create a thin layer of moisture on the steel surface. Repeated wetting and drying can make the problem worse, especially in humid industrial areas.
Salt exposure deserves additional attention in coastal and marine environments. Chloride-containing deposits can remain on metal surfaces and contribute to localized corrosion when moisture is present. Outdoor flanges should therefore be protected according to the actual atmospheric conditions rather than treated as though they were operating in a dry indoor environment.
Good drainage and moisture control can reduce exposure. During storage, flanges should be kept away from direct contact with wet ground and protected from rain and condensation. After installation, areas where water can accumulate should be examined because persistent moisture can undermine even a well-designed corrosion protection system.
Temperature Changes and Thermal Cycling
Temperature does not cause rust by itself, but changes in temperature can influence corrosion conditions and the mechanical performance of a protective system. Repeated heating and cooling can cause the steel and coating to expand and contract. If the coating system is not suitable for the operating temperature range, repeated thermal cycling may contribute to cracking, loss of adhesion, or other coating defects.
Higher temperatures can also accelerate some corrosion reactions and increase the aggressiveness of certain chemical environments. At the same time, rapid temperature changes can create condensation when a surface temperature falls below the surrounding air's dew point.
For these reasons, the selected coating or lining should be compatible with both the normal operating temperature and expected temperature excursions. Thermal conditions should be considered together with chemical exposure, humidity, insulation, and process conditions rather than evaluated separately.
Chemical Exposure and Process Conditions
Chemical exposure can significantly change the corrosion behavior of carbon steel. Acids, alkaline solutions, chlorides, dissolved gases, and other process contaminants can affect the corrosion rate in different ways. The concentration, temperature, exposure time, and flow conditions of the chemical environment can all influence material performance.
A suitable protection strategy therefore begins with identifying what the flange will actually encounter during service. A coating that performs well in a humid atmosphere may not have the same performance in continuous chemical immersion. Likewise, a general-purpose coating may not be appropriate for a process area with aggressive chemicals.
Where chemical exposure is significant, the coating or lining should be selected using the chemical compatibility information supplied by the coating manufacturer. If the process environment is beyond the practical limits of carbon steel, material selection itself may need to be reconsidered instead of relying entirely on a surface treatment.
Conclusion
Rust prevention is not just a matter of putting a protective coating after the production of carbon steel pipe flanges. Effective corrosion control begins with an awareness of the service environment and extends through material handling, surface preparation, coating selection, application, inspection and maintenance.
External protection against numerous applications may be provided by epoxy and powder coatings if the surface is adequately prepared and the coating is suitable for the working environment. Specialised linings may be considered if chemical or abrasion resistance demands a particular solution. Additional electrochemical protection may be obtained for suitably buried and submerged systems via the use of sacrificial anodes or properly designed impressed current cathodic protection.
The best strategy is to pick the protection method according to the real circumstances and not to regard all the flange applications as similar. Corrosion may be caused by moisture, salt, chemicals, temperature cycling, coating degradation, and bad installation, whereas good surface treatment, environmental management, inspection, and maintenance can greatly enhance long-term performance.
So for carbon steel pipe flange projects, corrosion protection has to be a component of the total flange specification and not an afterthought. Matching the flange material, surface treatment, operating environment, and maintenance approach may all improve the usable service life of the pipe system, dependable sealing performance, and avoidance of corrosion.
Please email us at oudi-04@oudiguandao.com to learn more about our high-quality carbon steel pipe flanges and ways to keep them from rusting. Cangzhou Oudi Pipe Manufacture Co., Ltd. has been one of China's top companies since 1998, making carbon steel pipe fittings, valves, and flanges for over 300 customers in 40 countries around the world.
FAQ
1. How do I keep carbon steel pipe fittings from rusting? What is the best covering for that?
Epoxy coats work very well because they stick well and don't react badly with chemicals.
2. How often should carbon steel pipe flanges be inspected for rust?
Inspection frequency depends on the operating environment, but generally, quarterly inspections are recommended.
3. Can cathodic protection be used in conjunction with protective coatings?
Yes, combining cathodic protection with coatings can provide enhanced rust prevention for carbon steel pipe flanges.
4. What environmental factors pose the greatest risk to carbon steel pipe flanges?
Moisture, temperature fluctuations, and exposure to corrosive chemicals are the most significant risk factors.
