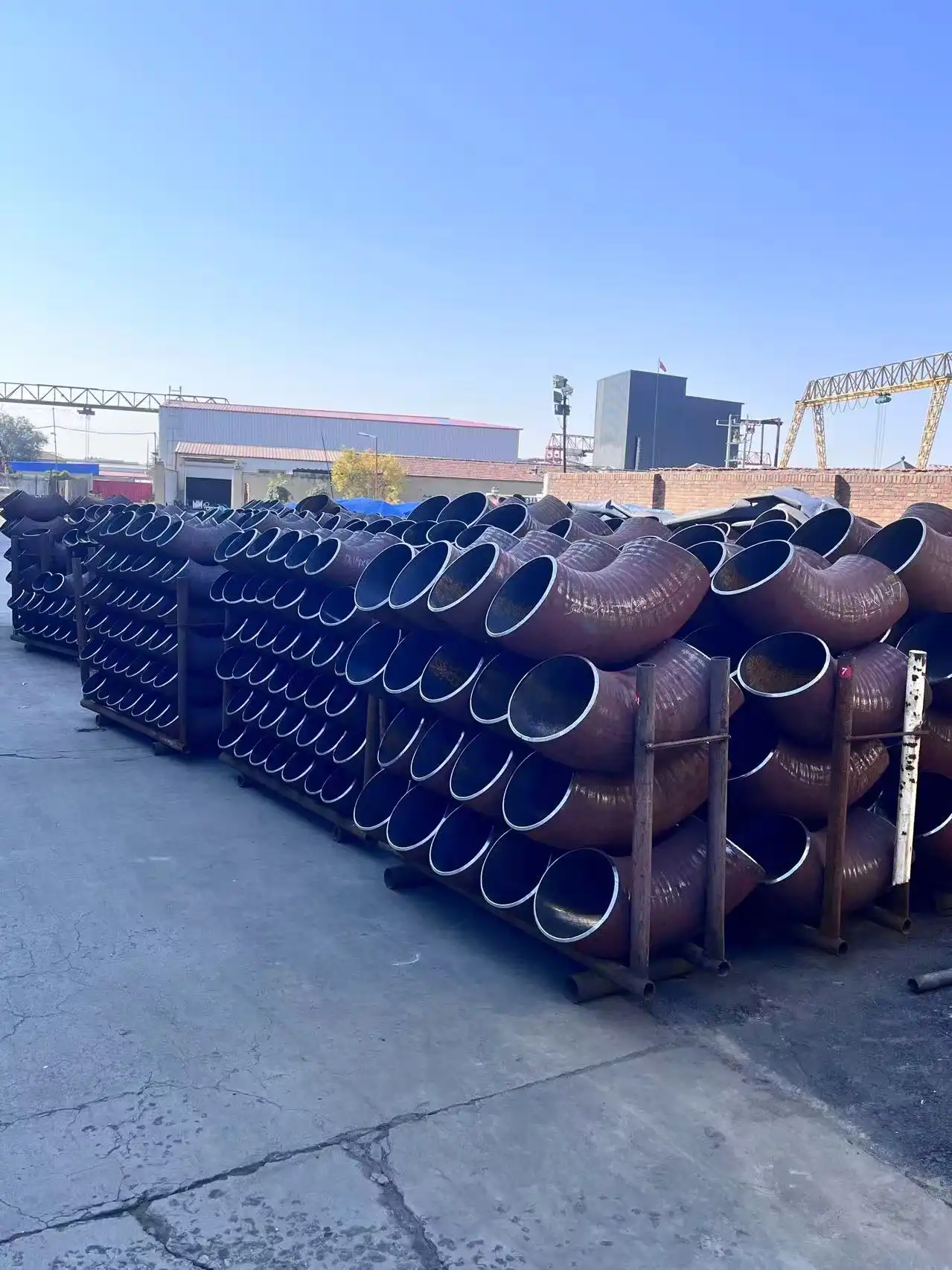

How to Select the Right Carbon Steel Elbow for High-Pressure Applications?

It is very important to choose the right carbon steel elbow for high-pressure uses so that industrial pipe systems stay safe, work well, and last a long time. Firms are always pushing the limits of what is possible at work, so they need things that are strong and last a long time. It's important to think carefully about which carbon steel bends to choose because they are so important for changing flow and pressure in complicated pipe networks. If you want to make sure your system can handle the rough conditions it will be in, you should keep these things in mind when you buy carbon steel elbows for places with a lot of pressure. The important things we'll talk about will help you make a choice that will help your pipe system last longer and work better. Two of these are the safety norms and the quality of the goods.

Wall Thickness and Pressure Ratings: Ensuring Structural Integrity

Understanding Schedule Numbers and Their Impact

It is very important to know the schedule numbers when choosing carbon steel elbows for high-pressure uses. The schedule number is directly related to the elbow's wall thickness, which in turn impacts its ability to hold pressure. Higher schedule number elbows, like Schedule 80 or Schedule 160, are often better for high-pressure systems because their walls are stronger. These carbon steel elbows make the structure stronger and can handle higher forces inside without breaking or deforming. It is important to figure out the maximum allowed working pressure (MAWP) for the elbow's plan and size to make sure it meets or goes beyond what the system needs. When choosing the right wall thickness for your carbon steel elbow, you should also think about things like temperature and the amount of rust that can happen.

Pressure-Temperature Ratings and Their Significance

When choosing carbon steel elbows for high-pressure uses, the pressure-temperature numbers are very important. These numbers tell you how much pressure an elbow can safely take at different temperatures. The highest pressure that can be used has to be lowered because carbon steel loses strength as the temperature rises. It's important to think about both the working pressure and temperature of your system when picking out a carbon steel elbow. Manufacturers offer pressure-temperature rate charts that you can use to make sure the elbow you choose can handle the conditions you expect. For uses with a lot of pressure, you might need elbows with higher pressure classes, like Class 3000 or Class 6000. Always leave some room for error to account for sudden changes in temperature or pressure in your system.

Stress Analysis and Reinforcement Considerations

When used in high-pressure situations, carbon steel elbows are put under a lot of stress, especially where the straight pipe meets the bent piece. To find possible weak spots and figure out if more support is needed, it is important to do a full stress analysis. You can use finite element analysis (FEA) to model the strains on the carbon steel elbow when it is subjected to different temperatures and pressures. Based on these results, you might need to think about adding external supports or making the knees stronger to spread the load out more evenly. For uses involving very high pressure, carbon steel elbows may need to be custom-made with thicker walls at key spots or extra support ribs to make sure the system is safe and reliable in the long run.

Material Grades: Choosing the Right Alloy for High-Pressure Systems

Carbon Content and Its Effect on Strength

A big part of how strong carbon steel elbows are and whether they can handle high pressures depends on how much carbon they contain. In general, steel gets stronger as the amount of carbon in it rises. Carbon steel elbows with more carbon, like those made from ASTM A234 Grade WPB or WPC, are often better for high-pressure systems. The tensile and yield strengths of these grades are higher, which means they are less likely to bend when internal stresses are high. But it's important to remember that materials with more carbon can also be more rigid and less flexible. When choosing a carbon steel elbow, you should think about how much power and flexibility you need for your purpose. When picking the right carbon content for your high-pressure carbon steel elbows, you should think about things like the chance of heat cycling or mechanical shock.

Alloying Elements for Enhanced Performance

Even though carbon is the main element that changes the qualities of carbon steel elbows, other alloying elements can make them work much better in high-pressure situations. Different amounts of manganese, silicon, chromium, and molybdenum can be added to carbon steel to make certain properties better. For example, manganese makes steel harder and more resistant to wear, while chromium makes it more resistant to rust. Molybdenum can make steel stronger at high temperatures, so it can be used in situations with a lot of pressure and heat. If you're looking for carbon steel elbows for tough settings, you should think about types with optimized metal ratios, like ASTM A234 Grade WP11 or WP22, which offer better resistance to creep and strength at high temperatures. The working conditions and possible harmful agents in your high-pressure system should help you decide which alloying elements to use.

Heat Treatment and Microstructure Optimization

A lot can depend on how carbon steel elbows are heated and the microstructure that forms as a result on how well they work under high pressure. When carbon steel elbows are heated in the right way, they get stronger, tougher, and less likely to bend when they're pressed. Carbon steel elbows are often heated in order to normalize, cool, or soften them. Normalizing helps make the structure of the grains more even, which makes the material harder and tougher all around. If you cool and strengthen the carbon steel elbow, you can make its mechanical properties even better. To make the steel ready for high-pressure work, this changes the way it feels. When you buy carbon steel elbows for your system, find out what kind of heat treatment was used. If you think it's necessary, you might want to ask for more heat treatments. Carbon steel elbows can last longer and be more reliable in high-pressure settings if their microstructures are optimized. This lowers the chance of failure and the downtime that comes with it.

Compliance with Industry Standards: Ensuring Quality and Safety

ASME B16.9 and Other Relevant Standards

Adhering to industry norms is very important when choosing carbon steel elbows for high-pressure uses. To make butt-welding parts, like carbon steel elbows, correctly, ASME B16.9 is one of the most important standards. It describes the measurements, limits, and testing methods for different kinds of elbows. When buying carbon steel elbows for your high-pressure system, make sure they are made according to ASME B16.9 or a similar standard. Additionally, you should think about other important standards, like ASTM A234 for material requirements and ASME B31.3 for process pipes. Combining these standards makes sure that the carbon steel elbows meet the quality and safety standards needed for high-pressure uses. For quality security and legal compliance in many businesses, you should always ask makers for proof papers to prove they meet these standards.

Non-Destructive Testing and Quality Control Measures

To ensure the integrity and reliability of carbon steel elbows in high-pressure applications, rigorous non-destructive testing (NDT) and quality control measures are essential. Common NDT methods for carbon steel elbows include radiographic testing (RT), ultrasonic testing (UT), magnetic particle inspection (MPI), and dye penetrant testing (PT). These tests help identify potential defects such as cracks, porosity, or inclusions that could compromise the elbow's performance under high pressure. When selecting carbon steel elbows, inquire about the specific NDT procedures employed by the manufacturer and request relevant test reports. Additionally, consider implementing supplementary quality control measures, such as positive material identification (PMI) to verify the chemical composition of the carbon steel elbow. Establishing a comprehensive quality control program that includes regular inspections and testing can help maintain the integrity of your high-pressure piping system and prevent costly failures.

Certification and Traceability Requirements

For high-pressure uses, making sure that carbon steel elbows are properly certified and can be tracked is very important for quality, safety, and following the rules. When choosing elbows, make sure the company that makes them gives you all the paperwork you need, like material test reports (MTRs), certificates of compatibility, and records of the heat treatment. The carbon steel elbow's material grade, chemical make-up, mechanical qualities, and heat treatment information should all be made clear in these papers. It's also important that you can trace the elbow back to where the raw materials came from and how it was made. This is especially important in case of future quality problems or probes. Set up a strong way to keep track of and manage these certifications and tracking papers for as long as your high-pressure system is in use. You could also use third-party testing and verification services to make even more sure that the carbon steel elbows you use in your high-pressure uses are of good quality and meet all the rules.

Conclusion

Selecting the right carbon steel elbow for high-pressure applications is a critical process that requires careful consideration of various factors. By focusing on wall thickness, pressure ratings, material grades, and compliance with industry standards, you can ensure the structural integrity and safety of your piping system. Remember to consider the specific demands of your application, including operating pressures, temperatures, and potential corrosive environments. Always prioritize quality and seek products from reputable manufacturers like Cangzhou Oudi Pipe Manufacture Co., Ltd., who have a proven track record in producing high-quality carbon steel fittings. For further assistance or inquiries about our products, please contact us at oudi-04@oudiguandao.com. With the right selection, your high-pressure system can operate efficiently and safely for years to come.

FAQ

Q: What is the most important factor to consider when selecting a carbon steel elbow for high-pressure applications?

A: The most critical factor is ensuring that the elbow's pressure rating meets or exceeds the system's maximum operating pressure while considering temperature effects.

Q: How does carbon content affect the performance of carbon steel elbows in high-pressure systems?

A: Higher carbon content generally increases strength but may reduce ductility. The optimal carbon content depends on the specific application requirements.

Q: What are the key industry standards to look for when selecting carbon steel elbows?

A: ASME B16.9, ASTM A234, and ASME B31.3 are crucial standards governing the manufacture and use of carbon steel elbows in high-pressure applications.

Q: Why is non-destructive testing important for carbon steel elbows in high-pressure systems?

A: NDT helps identify potential defects that could lead to failure under high pressure, ensuring the integrity and safety of the piping system.

Q: How does heat treatment affect the performance of carbon steel elbows?

A: Proper heat treatment can optimize the microstructure of carbon steel elbows, improving their strength, toughness, and resistance to deformation under high pressure.

References

1. ASME. (2018). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings. American Society of Mechanical Engineers.

2. ASTM International. (2019). ASTM A234/A234M-19: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service.

3. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.

4. American Petroleum Institute. (2016). API 570: Piping Inspection Code: In-service Inspection, Rating, Repair, and Alteration of Piping Systems.

5. Antaki, G. A. (2003). Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair. CRC Press.

6. Smith, P. (2005). Piping Materials Guide: Selection and Applications. Elsevier Science.
