ASME B16.9 vs ASME B16.28 Elbow: What’s the Difference?

Because they change the direction of flow, elbows are very important in many areas where pipes are used. Most of the time, ASME B16.9 and ASME B16.28 are used for bends. It's important for engineers, planners, and people who work on pipe projects to understand how these rules are different. We will talk about the changes between ASME B16.9 and ASME B16.28 elbows in this blog post. We will also talk about their uses and what you should think about when picking one. You'll know a lot more about these two kinds of elbows by the end of this article. This will help you plan your pipe systems better. It is very important to know these elbow guidelines if you work in the power production, oil and gas, or chemical processing fields. Their job is to make sure that your line systems are safe and work well.

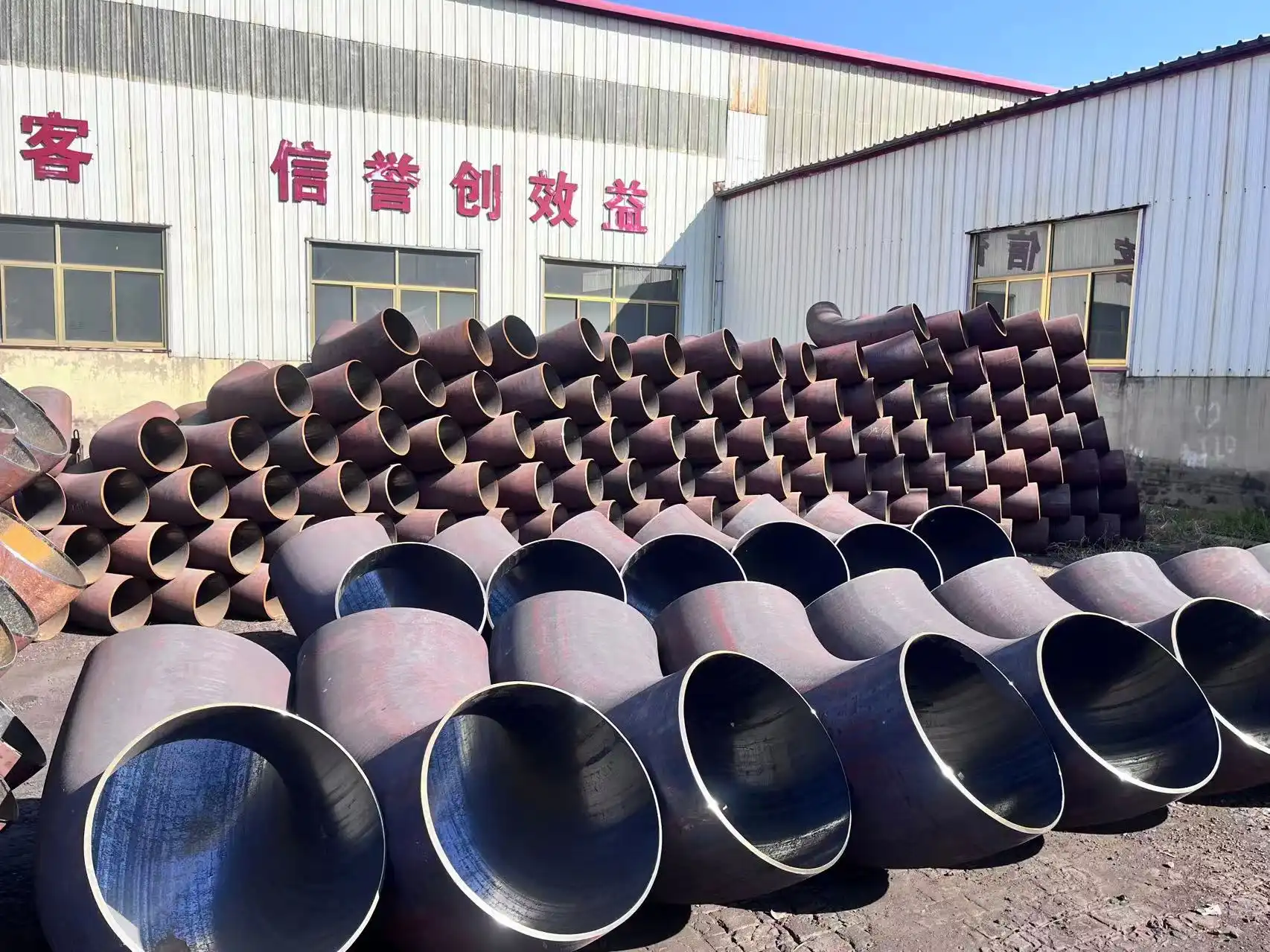

ASME B16.9 Elbow: Standard for Long Radius Buttweld Fittings

Characteristics and Specifications

Long radius ASME B16.9 elbows are known to have many benefits in pipe systems. Centerline radius of these bends is usually 1.5 times the standard pipe size. This makes the flow path smoother and lowers the pressure drop. Additionally, the ASME B16.9 elbows' long radius form makes pigging operations easier and lowers the risk of damage in high-velocity situations. Different shapes of these elbows are available, but the most popular ones are 45-degree and 90-degree bends. Asme B16.9 elbows are made from different materials, like metal steels, carbon steel, and stainless steel, to meet the needs of different industries. Elbows usually have walls that are the same thickness as the pipes they join to, so they fit into the system of pipes without any problems.

Manufacturing Process and Quality Control

Precision casting and welding are used to make ASME B16.9 elbows, which are parts of high quality and dependability. These elbows are usually made by hot forming or cold forming, based on the material and the size that is needed. After being shaped, the elbows go through a lot of quality control steps, such as checking the dimensions, making sure the material is what it says it is, and using non-destructive testing methods like x-rays or ultrasound to look at it. A lot of strict quality control methods make sure that ASME B16.9 elbows meet the standards and work well in tough industrial settings. To keep things consistent and up to ASME standards, manufacturers often use high-tech production tools and strict quality control systems.

Applications and Industries

Owing to their flexibility and performance, ASME B16.9 elbows are used in many different businesses. In oil and gas pipes, industrial plants, power plants, and water treatment systems, these bends are often used. Their long radius makes them perfect for uses with lots of flow or where keeping the pressure drop as low as possible is very important. In process pipe systems where smooth flow changes are needed to keep product quality high or stop material growth, ASME B16.9 elbows are often the best choice. These elbows are also often used in places with a lot of pressure and heat, like steam systems in power plants or process lines in refineries. ASME B16.9 elbows are often used for projects that need to last for a long time with little upkeep because they are strong and reliable.

ASME B16.28 Elbow: Standard for Short Radius Buttweld Fittings

Characteristics and Specifications

When used with certain types of pipes, ASME B16.28 elbows are especially useful because they have a short radius. These elbows usually have a central radius that is the same size as the pipe, which makes the fitting smaller than elbows with a long radius. ASME B16.28 elbows have a short radius, which lets them make shorter turns and make better use of room in small spaces. Like ASME B16.9 elbows, B16.28 elbows come in different angles. The most typical angles are 45 degrees and 90 degrees. To meet the needs of a wide range of industries, these elbows are made from carbon steel, stainless steel, and metal steels, among other materials. The wall thickness of ASME B16.28 elbows is usually the same as that of the pipes they join to. This makes sure that the elbows fit correctly into the pipe system and keep the required pressure ratings.

Manufacturing Process and Quality Control

In order to make ASME B16.28 elbows with the needed short radius form while still keeping the structural integrity, special methods are used. Hot forming or cold forming are often used to make these elbows, based on the material and size requirements. For the short radius design to work, the making process needs to be carefully managed to make sure that the walls are all the same width and have the right shape. ASME B16.28 elbows go through strict quality control steps after they are formed. These include checking the dimensions, making sure the material is what it says it is, and using non-destructive testing methods like x-rays or ultrasounds to look at the elbows. These quality control steps are necessary to make sure the elbows meet the requirements and can work in the situations they are meant to in. To keep things consistent and in line with ASME standards, companies that make ASME B16.28 elbows often buy high-tech production tools and set up full quality control systems.

Applications and Industries

Elbows that meet ASME B16.28 standards work especially well in situations where room is limited. Offshore platforms, chemical processing plants, and HVAC systems that need to keep pipe plans small often use these short radius elbows. Because ASME B16.28 elbows can make tight turns, they make it easier to route lines in small areas. This makes them very useful for repair projects or setups that don't have much room to grow. There may be a slightly higher pressure drop with short radius elbows than with long radius elbows, but in many situations, the benefits of saving room are greater than this. Also, ASME B16.28 bends are often used in systems with low pressure or where flow features are not as important. These bends are often used in pipe systems in the food processing, pharmacy, and general production industries to make the best use of room while still meeting industry standards.

Choosing Between ASME B16.9 and B16.28 Elbows: Application Considerations

Flow Characteristics and Pressure Drop

One of the most important things to think about when choosing between ASME B16.9 and B16.28 elbows is how they will affect flow and pressure drop. Because they have a longer radius, ASME B16.9 elbows usually have better flow performance and less pressure drop than B16.28 elbows. Long radius elbows are great for situations where keeping the flow efficient is very important because they have a cleaner shift that lowers noise and energy loss. ASME B16.28 elbows, on the other hand, may cause a little more pressure drop and turbulence because they have a short radius. It may not matter much, though, in many low- to medium-pressure situations, how much pressure drops at each elbow type. When engineers choose between ASME B16.9 and B16.28 elbows, they need to carefully look at the system needs, flow rates, and pressure limits to make sure the best performance and energy economy in the pipe system.

Space Constraints and Installation Considerations

When choosing between ASME B16.9 and B16.28 elbows, the amount of space available is very important. Because they have a short radius, ASME B16.28 elbows are very useful in places where room is limited, like remote platforms, small industrial facilities, or repair projects. These elbows make it possible to make tighter turns and better use of space, which could mean that the pipe system takes up less room overall. On the other hand, ASME B16.9 elbows need more space to be installed because their radius is longer, but they make flow changes easier. When engineers look at room limitations, they need to think about more than just the installation area. They also need to think about how to get to the area for upkeep in the future and how the system might grow. Choosing between ASME B16.9 and B16.28 elbows can have a big effect on the overall plan and complexity of the pipe system. It can change things like how much support is needed, how insulation is installed, and how easy it is to check.

Material Selection and Compatibility

Whether to use ASME B16.9 or B16.28 elbows depends on how much space you have. The short radius shape of ASME B16.28 elbows makes them very useful in places with limited room, like remote platforms, small industry facilities, or repair projects. With these elbows, you can make tighter turns and better use of the space you have, which could mean that the pipe system takes up less room overall. In contrast, ASME B16.9 elbows need more space to be installed because their radius is longer, but they make flow changes easier. When engineers look at how much room they have, they have to think about not only the immediate installation area, but also how to get to it for upkeep in the future and how the system might grow. The choice between ASME B16.9 and B16.28 elbows can have a big effect on the general plan and complexity of the pipe system. It can change things like how much support is needed, how insulation is installed, and how easy it is to check.

Conclusion

In conclusion, the choice between ASME B16.9 and ASME B16.28 elbows depends on various factors specific to each piping system application. ASME B16.9 elbows offer superior flow characteristics and lower pressure drop, making them ideal for high-flow and high-pressure applications. ASME B16.28 elbows excel in space-constrained environments, providing compact solutions for tight installations. Engineers must carefully evaluate flow requirements, space limitations, and material considerations when selecting the appropriate elbow type. By understanding the unique advantages of each standard, designers can optimize piping systems for efficiency, safety, and long-term performance. For more information or assistance with selecting the right elbow for your application, please contact us at oudi-04@oudiguandao.com.

FAQ

Q: What is the main difference between ASME B16.9 and ASME B16.28 elbows?

A: The main difference is the radius of the elbow. ASME B16.9 elbows have a long radius (1.5 times the nominal pipe size), while ASME B16.28 elbows have a short radius (equal to the nominal pipe size).

Q: Which elbow type is better for reducing pressure drop?

A: ASME B16.9 elbows generally offer lower pressure drop due to their long radius design, which provides smoother flow transitions.

Q: When should I choose ASME B16.28 elbows over ASME B16.9 elbows?

A: ASME B16.28 elbows are preferable when space is limited, as their short radius design allows for tighter bends and more compact piping layouts.

Q: Are there any material differences between ASME B16.9 and ASME B16.28 elbows?

A: Both standards are available in similar materials, including carbon steel, stainless steel, and alloy steels. The choice depends on the specific application requirements.

Q: Which elbow type is better for high-pressure applications?

A: ASME B16.9 elbows are often preferred for high-pressure applications due to their smoother flow characteristics and potentially better stress distribution.

References

1. American Society of Mechanical Engineers. (2018). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings. New York, NY: ASME.

2. American Society of Mechanical Engineers. (2015). ASME B16.28-2015: Wrought Steel Buttwelding Short Radius Elbows and Returns. New York, NY: ASME.

3. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.

4. Smith, P. (2018). Piping Materials Guide: Selection and Applications. Elsevier.

5. Kannappan, S. (2009). Introduction to Pipe Stress Analysis. John Wiley & Sons.

6. Antaki, G. A. (2003). Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair. CRC Press.
