How to Select the Right Pipe End Cap for Your Project?

Choosing the right end closure is an important part of designing, repairing, or extending a piping system. Whether the application involves plumbing, mechanical equipment, industrial piping, or a small maintenance project, the end of a pipe needs to be closed in a way that matches the system's operating conditions and future use. A suitable pipe end cap can help protect an open pipe from contamination, provide a reliable closure, and support the overall integrity of the piping arrangement. But the appropriate option does not come down just to pipe diameter. The kind of cap to be used depends on the pipe material, connection type, pressure, temperature, chemical exposure, installation environment, and whether the closure is temporary or permanent. A threaded cap may be ideal if future removal is envisaged, but a welded cap may be more appropriate for a permanent metal pipe connection. Plastic push-fit solutions might be advantageous in certain plumbing and maintenance applications where speedy installation is of the utmost importance. Being aware of these variations before you buy may save you from getting issues like poor fit, premature corrosion, broken threads, or inadequate pressure rating. The following sections cover the various kinds of pipe end caps and the considerations that should be made when choosing one for a specific project.

How Different Pipe End Cap Designs Fit Different Applications？

Threaded Pipe End Caps for Removable Connections

Threaded pipe end caps are typically picked when it is required to securely shut the pipe but also readily open it for inspection, maintenance, or future changes. The cap is attached with mating threads to facilitate installation of the closure without welding. This makes threaded designs especially useful in situations where access is more vital than making a permanent connection.

The most crucial thing to consider is the thread compatibility. Pipe threads are available in many profiles, standards, sizes, and applications. Therefore, a cap that seems to have the right nominal diameter may not fit if the thread specification is wrong. Before purchase, buyers should validate the suitable thread standard and if the connection needs a male or female configuration.

The choice of material is also significant. Stainless steel, brass, carbon steel, and other polymers are available for diverse situations, but they are not interchangeable in every service. The cap should be compatible with the material of the pipe and the fluid or gas it is handling. When different metals are connected, galvanic corrosion should also be addressed.

Push-Fit Pipe End Caps for Fast Plumbing Work

Push-fit end caps are meant to make installation easier by enabling the fitting to be pressed into a matching pipe without the usual threading or welding required. They are widely utilized in plumbing, maintenance, and installation work when speed and simplicity of removal are desirable. The sealing system might be an O-ring, grasping mechanism, or other internal sealing arrangement depending on the product design.

There are several varieties of push-fit items, so never presume compatibility just because two fittings are the same nominal size. The cap should be authorized for the particular pipe material and outer diameter. Follow the manufacturer's installation instructions.

You’ll find these fittings in systems that use copper, PEX, CPVC, and other suitable pipe products. However, the range of temperature and pressure allowed is determined by the exact combination of fitting and pipe. A device designed for domestic water supply should not be assumed to be suited for a higher-pressure industrial application.

So, if the product specs match the system, then push-fit caps might be an easy option. The major benefit of their simplicity of installation. But convenience does not negate the necessity to check measurements, operating conditions, and manufacturer requirements.

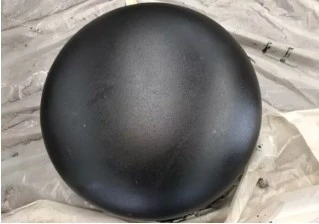

Weld-On Pipe End Caps for Permanent Metal Piping

Elongated pipe end caps are often used to provide a permanent closing for a metal piping system. The cap is welded to the pipe, which is a permanent connection, and is not typically meant to be removed during normal operation. This sort of closure may be useful for industrial pipelines, pressure-related systems, and manufactured assemblies and equipment where a detachable cap would not give the needed configuration.

Common material options include carbon steel and stainless steel; however, the proper grade depends on the pipe system and service circumstances. The cap and pipe should be suitable from a material and welding standpoint, and the fabrication procedure should be in accordance with the appropriate project standards.

The pipe wall thickness, outside diameter, cap dimensions, welding process, and needed inspection all need to be considered before installation. It is not the cap that makes a good welded connection but correct preparation and execution. Critical pipe may additionally involve welding processes, certified people, non-destructive inspection, and pressure testing per the project or appropriate standard.

For this reason, weld-on pipe end caps are often better suited for instances where the installation is done by people with the required fabrication knowledge.

What Should You Check Before Ordering a Pipe End Cap?

Match the Cap Material to the Pipe and Service Environment

Material compatibility should be one of the first criteria when choosing a pipe end cap. The cap will be in the same general environment as the pipe; hence, the material must be able to endure the predicted operational temperature, pressure, moisture, and chemical conditions.

Stainless steel is suitable for situations where corrosion resistance is crucial. Carbon steel may be a feasible alternative for many common industrial pipe systems provided the service environment and protection needs permit. Some appropriate low-temperature or water applications may be acceptable with plastic end caps; check the individual grade and product rating.

Special care should be paid to the exposure to chemicals. A material that works well with water may not work well with acids, solvents, ammonia, hydrocarbons, or other harsh compounds. Therefore, chemical compatibility tables and manufacturer data are more credible than generic assumptions based upon names of materials.

The usage of combinations of dissimilar metals should be considered, as galvanic corrosion may be a problem in appropriate environments. This danger may be minimized by choosing suitable materials or by utilizing a proper isolation approach.

Confirm Dimensions Instead of Relying Only on Nominal Size

When a proper fit is made, a good connection is made. The necessary dimensions may include nominal pipe size, outer diameter, internal diameter, wall thickness, thread dimensions, or dimensions as specified by a specific fitting standard.

A typical error is to purchase a cap based on nominal pipe size and not verify the actual product specification. The nominal size is not the actual size of the pipe, especially when dealing with multiple schedules, standards, or material systems.

Thread size and type must correspond to threaded caps. With push-fit caps, the actual outer diameter and permitted pipe material are extremely critical. For welded caps, cap dimensions need to be consistent with the pipe and fabrication requirements.

When the project includes an existing pipe, instead of a new defined system, proper pipe measuring and identification of the pipe standard help ensure the pipe end cap is correctly selected, saving needless returns and installation complications.

Evaluate Pressure and Temperature Requirements Together

Pressure and temperature should be considered together, not in isolation. An end cap for a pipe may be suitable under one set of circumstances but may not have the same permitted service range at a greater temperature or pressure.

The buyers should determine the design pressure, operational pressure, design temperature, and predicted temperature changes of the system. The cap chosen should next be tested against the manufacturer’s stated ratings and the specifications of the appropriate piping standard.

It is also vital to differentiate between a component’s nominal size and actual pressure capabilities. A bigger cap is not always stronger, and a stronger material for the cap is not necessarily suited for every pressure application. Geometry, wall thickness, connection design, material grade, manufacturing process, and temperature might impact performance.

In pressure-containing applications, check appropriateness with the manufacturer's technical documentation. If the system contains pressurized gas, hazardous fluid, or another high-consequence medium, an extra engineering assessment may be necessary before installation.

Consider Chemical Exposure and Corrosion Conditions

The fluid passing through the pipe system affects the service life of the end closure. Even if the pipe itself has appropriate corrosion resistance, the cap should have the same resistance under the same circumstances.

Temperature may speed up chemical reactions and corrosion; thus, it is important to consider the projected operating range while considering material compatibility. Humidity, rain, salt exposure, UV radiation, and other environmental conditions may also need to be considered for outdoor installations.

Don’t just choose a material because it’s common. Compare the actual service circumstances with the material data given by the manufacturer. This becomes particularly critical if the system works with harsh chemicals or in a unique environment.

How Installation Conditions Affect Pipe End Cap Performance？

Prepare the Pipe End Before Installation

Even a correctly specified cap can perform poorly if the pipe end has not been prepared properly. Dirt, rust, old sealant, burrs, damaged threads, or an uneven pipe surface can interfere with the connection and create avoidable sealing problems.

Metal pipe ends should be inspected for corrosion, deformation, and mechanical damage before installation. Depending on the connection type, the surface may need to be cleaned or prepared according to the manufacturer's instructions. Threaded connections require clean, undamaged threads, while welded connections require suitable surface preparation before fabrication begins.

Plastic piping also requires careful preparation. The pipe should be cut cleanly and checked for burrs or deformation where the fitting design requires a smooth insertion surface. Push-fit products should be installed only on pipe materials and dimensions approved for that specific fitting.

Taking time to prepare the pipe end for a pipe end cap is a relatively simple step, but it can make a significant difference to the reliability of the finished connection.

Use Sealants and Lubricants Only When the Connection Requires Them

The correct sealing method depends on the design of the end cap. Threaded connections may require a compatible thread sealant or PTFE tape when specified for the application. The sealant should be suitable for the fluid, temperature, pressure, and thread material involved.

Using too much sealant can be just as undesirable as using too little. Excess material may enter the piping system or interfere with proper assembly. PTFE tape should also be applied according to accepted practice for the particular thread and application rather than simply adding more layers in an attempt to prevent leaks.

Push-fit connections normally rely on their built-in sealing components and should not be treated like threaded fittings unless the manufacturer specifically recommends a lubricant or installation aid. If lubrication is permitted, it should be compatible with the seal material.

Welded caps require a different approach. The welding area should be properly prepared, and coatings, contamination, or other materials that could affect weld quality should be removed in accordance with the welding procedure.

Check Alignment and Avoid Excessive Tightening

Correct alignment helps prevent unnecessary stress on the cap and pipe. Threaded caps should engage smoothly rather than being forced into position. If the threads begin to cross, continuing to tighten can damage both components and make it difficult to achieve a reliable connection.

Threaded connections should be tightened according to the applicable installation practice or manufacturer's guidance. Excessive torque can damage threads or fittings, while insufficient tightening may leave the connection vulnerable to leakage.

For push-fit caps, the pipe should be fully inserted according to the fitting manufacturer's specified insertion requirements. Any visual indicators or depth marks provided with the product should be checked after installation.

For welded caps, alignment should be maintained throughout fabrication so that the cap sits correctly on the pipe and the weld can be completed according to the required procedure. Critical systems may require inspection or testing after installation to verify the integrity of the connection.

What Information Should You Give a Supplier When Buying a Pipe End Cap?

A supplier can recommend a suitable product more accurately when the application information is complete. Instead of asking only for a cap based on pipe size, provide the pipe material, nominal size, wall thickness or schedule where applicable, connection type, operating pressure, design pressure, operating temperature, and the medium carried by the system.

It is also useful to explain whether the cap is intended for a temporary closure, maintenance work, fabrication project, or permanent piping installation. The installation environment can affect material selection as well, particularly for outdoor, corrosive, high-temperature, or chemically demanding applications.

If the project follows a specific piping standard, drawing, or engineering specification, that information should also be shared with the supplier. This allows the supplier to check the proposed product against the actual project requirements rather than recommending a generic cap based on size alone.

For OEM and industrial projects, asking a supplier to confirm dimensions, material grade, pressure-temperature capability, manufacturing standard, inspection requirements, and available documentation can make the purchasing process much more reliable.

Conclusion

Selecting the right pipe end cap involves more than matching a fitting to the nominal diameter of a pipe. The connection type, material compatibility, dimensions, pressure, temperature, chemical exposure, installation method, and intended service all need to be considered together. Threaded caps can provide convenient removable connections, push-fit designs can simplify certain plumbing and maintenance applications, while welded caps can provide a permanent solution for suitable metal piping systems.

The most reliable approach is to start with the actual operating conditions and then compare those requirements with the manufacturer's product specifications. Checking the pipe dimensions, material grade, connection details, and pressure-temperature requirements before ordering can prevent many common installation problems. Proper preparation, sealing, alignment, and tightening are equally important once the cap arrives on site.

For projects involving demanding service conditions or pressure-containing systems, product selection should be supported by applicable standards, engineering requirements, and manufacturer documentation. By treating the pipe end cap as a functional component of the piping system rather than a simple closure, buyers can make a more informed choice and improve the reliability and service life of the completed installation.

For master exhortation and high-quality pipe fittings, including a wide range of pipe end caps, consider coming out to Cangzhou Oudi Pipe Fabricate Co., Ltd. at oudi-04@oudiguandao.com. They are an incredible resource to any plumbing venture due to their commitment to greatness and a long history of experience in the field.

FAQ

1. What is the purpose of a pipe end cap?

Pipe end caps seal off the ends of pipes to prevent leaks and contamination and protect the integrity of the piping system.

2. How do I choose the right size pipe end cap?

Measure the pipe's nominal size or outside diameter and consult the manufacturer's specifications to select the correct size.

3. Can I use a plastic pipe end cap on a metal pipe?

It's generally not recommended due to potential material incompatibility and different thermal expansion rates.

4. How often should pipe end caps be replaced?

Replace pipe end caps when signs of wear, damage, or leakage are observed, or as part of regular maintenance schedules.
