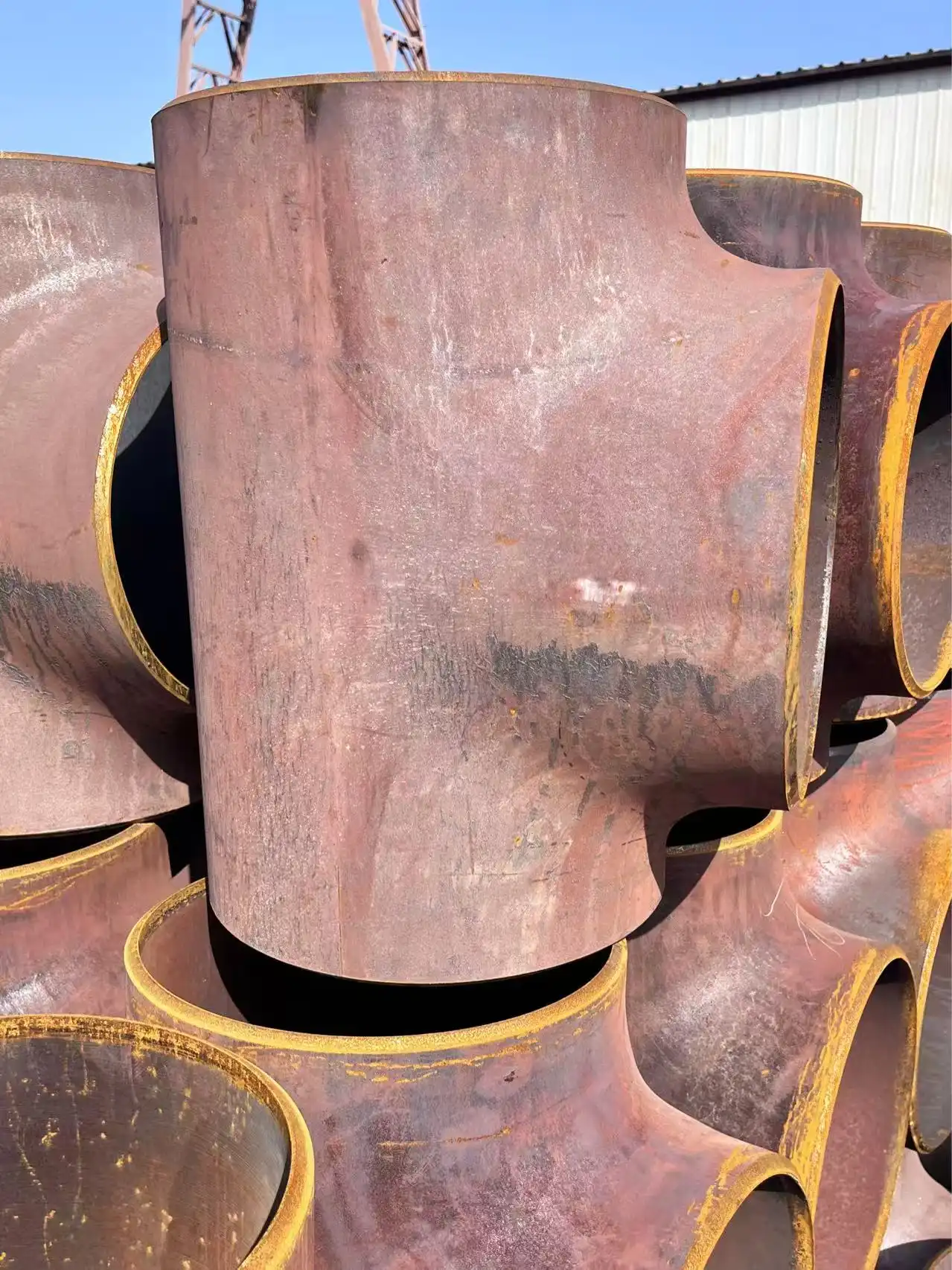

How to Select the Right Pipe Tee Fitting for Oil & Gas Projects?

Selecting a pipe tee fitting for an oil and gas project involves more than matching the fitting size to the pipeline. Tee is a branch connection. The pressure carrying and flow distribution of the pipe system are affected by the geometry, material, wall thickness, manufacturing technique, and connection type of the tee. The selection also must comply with the design code, material specification, operating circumstances, and inspection criteria of the project. Tee fittings may be subjected to high pressure, temperature fluctuation, corrosive fluids, vibration, and cyclic loading in upstream gathering systems, transmission pipelines, refineries, petrochemical plants, and other process facilities. These circumstances necessitate that the service needs be determined before the fitting is selected. A tee may be acceptable for a low-pressure utility line but not for a high-pressure hydrocarbon service even if the nominal pipe size is the same. A realistic selection procedure begins with the design conditions of the pipeline and continues with the size, branch arrangement, material, wall thickness, manufacturing technique, relevant standards, and quality documentation. Knowing how these aspects interact together may allow engineering and buying teams to specify the correct pipe tee fitting for the application without only depending on size or material grade.

Start With the Actual Piping Design Conditions

Confirm Design Pressure and Temperature

The design temperature and design pressure should be determined prior to the specification of a tee fitting. These numbers are the mechanical requirements for the fitting and the pressure allowed for the specified material and component.

The fitting should be rated for the maximum design circumstances of the pipe system, not just the usual operating pressure. Temperature is of special significance because the permissible stress for many metallic materials varies as temperature rises. The allowable pressures for a given material and fit-up may be different at greater temperatures than at ambient settings.

The plumbing code relevant to the project and the design calculations should thus be reviewed by the engineering team prior to finalizing the tee specification. The fitting should be suitable with the pipe, working circumstances, and other components in the same pressure boundary. It is also significant to understand the difference between design pressure and operational pressure, as the two numbers are used for distinct purposes during engineering and selection of equipment.

Define the Tee Configuration and Branch Requirement

The next stage is to understand what kind of branch connection pipeline it really needs. A straight tee has the same nominal pipe size on the run and branch, but a decreasing tee has a lower size on the branch connection. This difference influences the flow configuration, pipe sizes, and the overall architecture of the pipeline.

Before ordering, the engineer should validate the run size, branch size, pipe outer diameter, wall thickness, and end connection. Do not pick a decreasing tee solely because the branch pipe seems smaller. The sizes must match the real pipe specification and the fitting standard at the same time.

For butt welding applications, the tee ends must also conform to the pipe's outer diameter and wall thickness specifications to allow for proper preparation and welding of the connection. If the project involves socket-weld or threaded connections, a separate fitting standard may be used. By defining the connecting technique early, dimensional discrepancies during installation are avoided.

Match Material to the Service Environment

Carbon Steel for Common Pipeline Applications

Carbon steel is the most often used material for oil and gas pipelines because it offers a good mix of strength, availability, weldability, and affordability. A popular material standard for fittings is ASTM A234 WPB for wrought carbon steel and alloy steel fittings used in pressure pipe applications.

But you shouldn’t choose carbon steel just because it’s generally popular. The engineer should evaluate the fluid to be conveyed, design temperature, design pressure, corrosion allowance, welding requirements, and the material specification of the project before selecting a pipe tee fitting. A fit may satisfy the minimum material requirement and yet need extra controls for a specific service environment.

Therefore, while purchasing, the material grade should be precisely specified, not just “carbon steel." The procurement specification may need to include the governing ASTM or ASME material standard, grade, dimensions, heat treatment requirements, and inspection data.

Stainless Steel, Duplex, and Nickel Alloy Options

More severe service circumstances may necessitate materials such as stainless steel, duplex stainless steel, or nickel alloy. Stainless steel may be useful when corrosion resistance is an essential feature of the pipe design. Duplex stainless steels may be considered for applications that need a mix of strength and corrosion resistance.

In very severe corrosive situations the material performance needed is not provided by normal carbon steel or stainless steel, and so nickel alloys might be used. The decision relies on the particular fluid chemistry and project needs, rather than on a generic assumption that the more costly alloy is always preferable.

Material selection for settings with hydrogen sulphide or other situations requiring sour-service specifications should be considered further in sour service. The project specification may impose criteria on hardness, material condition, testing, and qualification. In these circumstances, the tee fitting should be considered as part of the material system, not as an individual component.

Consider Corrosion and Material Compatibility

Corrosion allowance and material compatibility might have a direct impact on tee selection. The flow direction and the local flow velocity in the branch region, while the fitting becomes part of the pressure boundary itself. If the medium to be carried is corrosive, the material grade and the corrosion allowance indicated must be based on the anticipated service circumstances.

Also, the fitting material should be suitable with the connected pipe and welding method. Mixing materials without due consideration for welding requirements, temperature behavior, or corrosion compatibility may lead to issues in fabrication and service. Therefore, the material selection has to be coordinated with the pipe material class and project welding documents.

Check Dimensions and Wall Thickness Before Ordering

Match Nominal Size With the Connected Pipe

Nominal pipe size alone does not indicate a tee. Buyers must check the actual pipe outer diameter and wall thickness needed at the run and branch connections.

This is especially true with decreasing tees, when the branch diameter is not the same as the run diameter. A fitting that has the proper nominal identification but is not in conformance with the project dimensional standard might cause installation complications or need unnecessary field modification.

Dimensional compatibility also plays a role in butt-welding preparation. The pipe tee fitting and attached pipe shall be appropriate for the welding configuration indicated, and the end measurements shall comply with the relevant fitting and piping standards.

Select the Required Wall Thickness

The wall thickness influences the capacity of the fitting to resist internal pressure and mechanical force. Typical pipe specs may reference schedules such as SCH 40 or SCH 80; however, certain projects will call for standard wall, extra strong, or other wall thickness needs.

The thickness should be based on the technical design and not chosen just because a heavier schedule seems safer. Excessive wall thickness may influence weight, cost, welding preparation, and dimensional compatibility. Insufficient thickness may not meet the design criteria.

So the tee should be specified according to the pipe wall thickness, pressure calculations, corrosion allowance, and relevant standard of the project. Where a fitting needs a customized wall thickness or a bespoke geometry, this should be included in the procurement specification and validated with the manufacturer before manufacturing.

Verify the Applicable ASTM and ASME Standards

Understand the Role of ASTM Material Standards

ASTM standards are commonly used to define material and manufacturing requirements for pipe fittings. ASTM A234, for example, covers wrought carbon steel and alloy steel fittings for pressure piping applications. ASTM A403 covers wrought austenitic stainless steel piping fittings.

These standards can address areas such as chemical composition, mechanical properties, heat treatment, and other manufacturing requirements. The specific material standard should match the material grade and service requirements defined by the project.

It is important not to treat ASTM compliance as a substitute for the complete fitting specification. A fitting can have the correct material designation while still requiring separate verification of dimensions, end preparation, inspection, and project-specific requirements.

Use ASME B16.9 for Factory-Made Butt-Welding Fittings

ASME B16.9 is an important reference for factory-made wrought butt-welding fittings, including tees. It establishes dimensional requirements, tolerances, and other provisions that help ensure fittings can be integrated into standardized piping systems.

For an oil and gas project using butt-welded tees, the purchasing specification should identify the applicable dimensional standard and confirm that the selected fitting corresponds with the connected pipe and project requirements.

ASME B16.9 should not be confused with a material specification. The fitting may need to comply with both an appropriate ASTM material standard and the relevant ASME dimensional standard. These standards serve different purposes and should be checked together.

Apply ASME B16.11 Where the Connection Type Requires It

ASME B16.11 applies to forged fittings used with socket welding and threaded connections. If a project uses these connection methods instead of butt welding, the applicable fitting standard can therefore be different from the requirements for a factory-made butt-welding tee.

This distinction is important when purchasing because the connection type affects fitting dimensions, installation method, welding requirements, and inspection procedures. The purchase order should clearly identify the required connection rather than leaving the manufacturer to determine it from the pipe size alone.

Decide Between Seamless and Welded Tee Manufacturing

When Seamless Construction May Be Appropriate？

Seamless tee fittings are manufactured without a longitudinal welded seam in the fitting body and are commonly considered for demanding pressure applications. Their manufacturing route can provide a uniform construction that is attractive for certain critical piping services.

However, “seamless” should not automatically be treated as synonymous with “better.” The suitability of a pipe tee fitting depends on the complete design specification, including material, dimensions, pressure, temperature, manufacturing requirements, and inspection criteria. A seamless fitting that does not meet the required material or dimensional specification is still unsuitable for the project.

For critical oil and gas service, the decision should therefore be based on the project's engineering requirements rather than on the manufacturing description alone.

Where Welded Tees Can Be a Practical Choice？

Welded tee fittings can be advantageous for larger diameters and certain custom configurations where manufacturing a seamless fitting may be less practical. They can provide flexibility in production and can be manufactured to project-specific dimensions when permitted by the applicable standard and engineering specification.

The quality of a welded tee depends heavily on the manufacturing process and inspection controls. Welding procedures, heat treatment where required, dimensional control, weld examination, and traceability all contribute to the quality of the finished fitting.

For large-diameter oil and gas piping, a welded tee may therefore be a technically appropriate solution when it satisfies the applicable design and manufacturing requirements. The key is to verify the required manufacturing method and inspection level instead of assuming that seamless construction is mandatory for every high-pressure application.

Review Inspection and Documentation Before Purchase

Check Material Test Records and Traceability

Material documentation is an important part of oil and gas fitting procurement. Material test reports can provide information about chemical composition, mechanical properties, heat treatment, and material identification, depending on the applicable specification and certification requirements.

Traceability should also be considered for projects where each fitting needs to be connected to its production records. Heat numbers, batch information, inspection records, and material certificates can help maintain traceability from the raw material through manufacturing and final delivery.

Purchasing teams should confirm the documentation requirements before production begins. If the project requires specific certification or inspection records, those requirements should be included in the purchase order rather than requested after manufacturing is complete.

Confirm Non-Destructive Examination Requirements

Non-destructive testing may be required depending on the fitting type, project specification, material, manufacturing route, and service conditions. Depending on the application, inspection can include radiographic testing, ultrasonic testing, magnetic particle testing, liquid penetrant testing, or other examination methods.

The appropriate method should be determined by the applicable specification and project requirements. It is not sufficient to simply request “NDT” without identifying the required examination scope when the project has specific inspection criteria.

Third-party inspection may also be required for some oil and gas projects. If an independent inspection agency needs to witness testing, dimensional inspection, material verification, or final examination, the manufacturer should receive this requirement early enough to coordinate the inspection schedule.

Conclusion

Choosing the right pipe tee fitting for an oil and gas project requires more than selecting a matching pipe size. Design pressure and temperature, tee configuration, material grade, wall thickness, corrosion conditions, connection method, applicable ASTM and ASME standards, manufacturing route, and inspection requirements all need to be considered as part of the same selection process.

For routine applications, carbon steel fittings such as ASTM A234 WPB may provide a practical solution, while stainless steel, duplex stainless steel, or nickel alloy materials may be considered when the service environment requires greater corrosion resistance or other specific material properties. The choice between seamless and welded construction should likewise be based on the project's technical requirements, fitting size, manufacturing availability, and specified inspection criteria rather than on a general assumption that one manufacturing method is always superior.

A clear purchase specification is just as important as the initial engineering selection. Confirming the fitting designation, material grade, dimensions, wall thickness, connection type, applicable standards, inspection scope, and required documentation before production can help prevent costly procurement and installation issues. By evaluating these factors together and working with an experienced fitting manufacturer, oil and gas project teams can select fittings that are better aligned with the pipeline design, fabrication requirements, and quality expectations of the finished system.

Email them at oudi-04@oudiguandao.com. We can support your oil and gas projects by providing high-quality carbon steel pipe fittings, valves, and flanges manufactured in China. We've been dedicated to excellence since 1998 and have extensive experience.

FAQ

1. What is the most important factor to consider when selecting a pipe tee fitting for oil and gas projects?

The most important factor is the pressure rating, which must match or exceed the maximum operating pressure of your system to ensure safety and reliability.

2. How do I choose between carbon steel and stainless steel pipe tee fittings?

Consider the fluid composition, operating temperature, pressure, and potential for corrosion. Carbon steel is cost-effective but may require corrosion protection, while stainless steel offers excellent corrosion resistance.

3. What are the key ASTM and ASME standards for pipe tee fittings?

Key standards include ASTM A234 for carbon steel fittings, ASTM A403 for stainless steel fittings, and ASME B16.9 and B16.11 for dimensions and tolerances.

4. When should I choose seamless over welded pipe tee fittings?

Opt for seamless fittings in high-pressure applications, critical systems, or when superior fatigue resistance is required. Welded fittings are more cost-effective for larger sizes and custom configurations.
