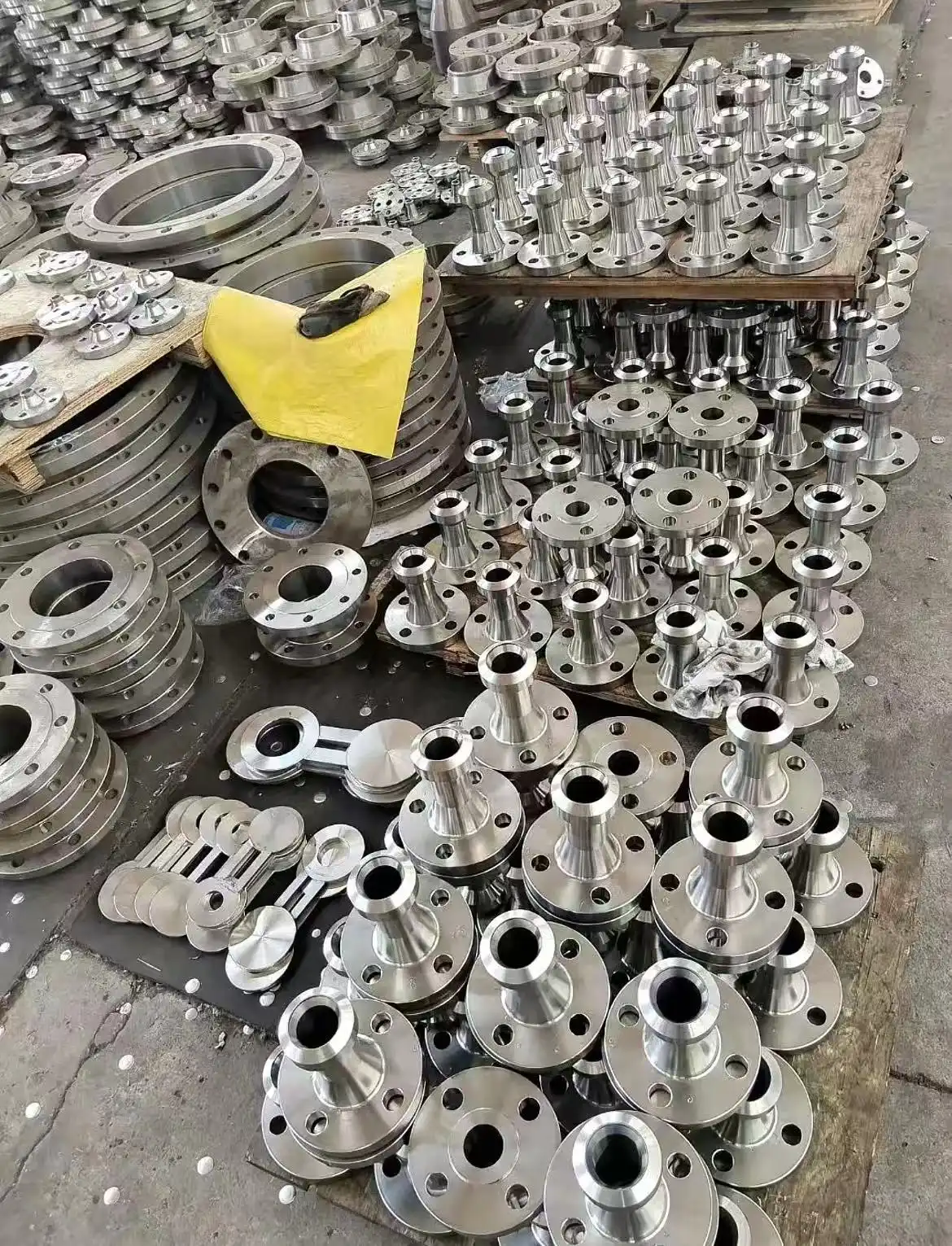

How to Verify the Quality of Forged Steel Flanges

Use the Appropriate Non-Destructive Testing Method

Apply Magnetic Particle Testing to Ferromagnetic Steel

Magnetic particle inspection is a very frequent NDT method used to find surface and near-surface defects in ferromagnetic materials. During the inspection process, the flange is magnetised, and magnetic particles are injected into the inspection region. A localised indication may be caused by a discontinuity in the magnetic field at which particles collect.

This technique may be beneficial in detecting fractures, seams, laps and other linear signs in forged steel flanges that may not be visible by eye examination. Magnetic particle testing is not a universal procedure for all materials and all types of defects. Suitability is determined by the magnetic characteristics of the flange material and the needs of the inspection.

When MT is required, the inspection technique, equipment, people qualifications, examination coverage, and acceptance criteria should be stated prior to testing. The report thus obtained should specify the area tested and note any relevant indications and their disposition.

Use Liquid Penetrant Testing for Surface-Breaking Defects

If the goal is to detect surface-breaking discontinuities, then liquid penetrant testing may be used. A penetrant is applied to the properly prepared surface and allowed to flow into any openings that extend to the surface. Any excess penetrant is then removed and developer applied, which may render relevant indications visible.

For forged steel flanges, penetrant testing can be useful on areas where surface-breaking cracks or discontinuities are to be examined and where magnetic particle testing is not suitable or not specified. The method is especially sensitive to proper surface preparation as coatings, dirt, oil, scale, or excessive surface roughness may interfere with the examination.

The inspection report shall identify the surfaces inspected and the applicable acceptance requirements. As with other NDT methods, the presence or absence of an indication should be evaluated against the relevant specification and not merely described as acceptable or unacceptable without a defined criterion.

Examine Internal Material With Ultrasonic Testing

Ultrasonic testing may be used to inspect forged steel flange bodies for discontinuities. High-frequency sound waves are propagated into the material. Changes in the return signals can indicate changes or discontinuities in the inspection volume.

UT can be especially useful when the specification calls for examination for internal discontinuities which cannot be detected by visual or surface testing. Depending on the procedure and the equipment used, the examination can give information about the location and features of the findings detected.

The success of ultrasonic inspection is dependent on a number of factors, such as material geometry, surface condition, probe selection, calibration, coverage and operator competence. Hence, a quality inspection requires more than a statement that “UT was performed.” The report should be linked to a defined procedure and acceptance standard to enable a consistent assessment of the result.

Consider Radiographic Testing When Specified

Radiographic testing uses X-rays or gamma radiation to produce an image representing variations in material thickness or density. It can reveal certain internal discontinuities and provide a permanent record of the examination.

However, radiography and ultrasonic testing do not detect every type of discontinuity in exactly the same way. Their effectiveness depends on defect orientation, size, geometry, material thickness, and the examination technique. Therefore, the appropriate NDT method should be selected according to the product specification and the type of discontinuity that needs to be evaluated.

For forged steel flanges, radiographic testing should not automatically be treated as a mandatory replacement for other inspection methods. Where it is required by a project specification or customer purchase order, the examination should be performed according to the applicable procedure, with the resulting radiographs or digital images properly identified and retained as part of the inspection record.

Verify the Steel Grade and Mechanical Properties

Confirm Chemical Composition With Material Analysis

Chemical composition is an important part of material verification because the steel grade determines the range of elements permitted in the material. Depending on the applicable specification and testing arrangement, optical emission spectroscopy and other analytical methods can be used to determine the concentrations of key alloying and residual elements.

The measured composition should be compared with the limits specified for the ordered material grade. This is more meaningful than simply reporting the test values because the purpose of chemical analysis is to establish whether the supplied material corresponds to the specified grade.

Material identification should also be connected to the relevant heat or batch number whenever the production and certification system uses heat-based traceability. This allows the chemical analysis, material certificate, heat-treatment records, and finished flange to be connected within the same quality system.

Review Tensile, Yield, Elongation, and Hardness Results

Mechanical testing of forged steel flanges provides another way to confirm whether the material has achieved the properties required by its specification. Depending on the applicable material standard, testing may include tensile strength, yield strength, elongation, reduction of area, hardness, or impact properties.

Tensile testing evaluates how the material behaves under controlled loading and can establish values such as tensile strength and yield strength. Elongation provides information about deformation before fracture, while hardness testing measures resistance to localized indentation. Impact testing, when required, evaluates the material's behavior under a specified impact condition.

These results should be assessed against the requirements for the actual steel grade and heat-treatment condition. A flange should not be considered compliant simply because its measured tensile strength appears high. The complete set of specified mechanical requirements needs to be reviewed because the relationship between strength, ductility, hardness, and toughness matters to the material's specified application.

Check Heat Treatment and Material Traceability

For many forged flange specifications, heat treatment is an important part of achieving the required mechanical and metallurgical condition. Depending on the material and applicable standard, the manufacturing process may involve normalizing, quenching and tempering, solution treatment, or another specified heat-treatment condition.

A buyer should therefore review whether the supplied documentation identifies the required heat-treatment condition and whether the corresponding records can be linked to the material heat or production batch. When mechanical test results are available, they should also be considered together with the heat-treatment information rather than viewed as isolated numbers.

This type of traceability strengthens the connection between the raw material, forging process, heat treatment, testing, and finished product, which is especially important for forged steel flanges. It is particularly useful when a flange is being supplied for a project where documentation and quality records must be retained throughout the equipment lifecycle.

Compare Inspection Results With the Applicable Requirements

Use the Correct Standard as the Acceptance Basis

One of the most important points in flange quality verification is identifying the correct acceptance basis before inspection begins. A flange may be manufactured according to a product standard while also being subject to material specifications, NDT requirements, dimensional tolerances, project specifications, or additional customer requirements.

Consequently, phrases such as “meets industry standards” are not sufficiently specific on their own. The inspection documentation should identify which standard or specification governs the relevant characteristic. Dimensions should be compared with the applicable dimensional requirements, chemical composition with the material-grade requirements, mechanical properties with the specified mechanical criteria, and NDT results with the acceptance criteria established for that examination.

This approach also helps prevent a common purchasing problem in which a supplier provides a certificate for forged steel flanges, but the certificate does not clearly demonstrate compliance with the actual requirements stated in the purchase order.

Connect the Certificate With the Physical Product

A material test certificate is most useful when the buyer can connect it to the products being delivered. Heat numbers, batch numbers, product markings, or other identification methods can provide this connection.

For example, the material composition and mechanical properties shown on a certificate should correspond to the material used to produce the supplied flange. Similarly, NDT records should identify the products or batches that were actually examined. Dimensional reports should describe the relevant size and configuration rather than provide unrelated sample measurements.

This traceability makes the quality verification process more transparent. It also gives engineers and purchasing teams a clearer basis for reviewing whether the supplied forged steel flanges match the order requirements.

Build a Complete Quality Verification Process

Combine Multiple Inspection Stages

No single inspection method can establish every aspect of flange quality. Visual examination can identify obvious surface conditions, dimensional inspection verifies geometry, chemical analysis confirms material composition, mechanical testing evaluates specified properties, and NDT can investigate selected surface or internal discontinuities.

These methods work best as complementary parts of one inspection system. The inspection scope should be established according to the flange design, material, applicable standards, service conditions, and customer requirements rather than applying the same testing package to every product.

For manufacturers, this means quality control should begin with material identification and continue through forging, heat treatment, machining, inspection, marking, and final documentation. For buyers, it means reviewing not only the final certificate but also whether the documentation provides enough evidence to connect the reported results with the actual products supplied.

Evaluate the Supplier's Quality Documentation

A supplier's inspection capability can often be assessed through the consistency and traceability of its quality documentation. Clear material certificates, dimensional inspection records, NDT reports where required, mechanical test results, and product identification provide more useful evidence than broad claims about quality.

Buyers should also ensure that inspection requirements are communicated before production rather than introduced after the flanges have been manufactured. If a project requires particular NDT coverage, documentation, third-party inspection, or special dimensional controls, these requirements should be included in the technical specification or purchase order.

For manufacturers, providing organized inspection documentation can make the purchasing process more efficient because engineers and quality teams can review the evidence without having to request missing information after shipment.

Conclusion

Verifying the quality of forged steel flanges requires more than checking their appearance or confirming that a material certificate is available. A dependable evaluation combines dimensional and visual inspection with appropriate non-destructive testing, chemical composition analysis, mechanical property verification, heat-treatment records, and product traceability. The results should always be assessed against the specific product standard, material specification, drawing, and customer requirements that govern the order. When these inspection stages are properly connected, manufacturers and buyers can establish a clearer record of material identity, manufacturing quality, and product conformity. This structured approach also makes it easier to identify documentation gaps before installation and supports more consistent quality control for forged steel flanges used in demanding piping applications. For more information on our high-quality forged steel flanges and other pipe fittings, please contact us at oudi-04@oudiguandao.com.
