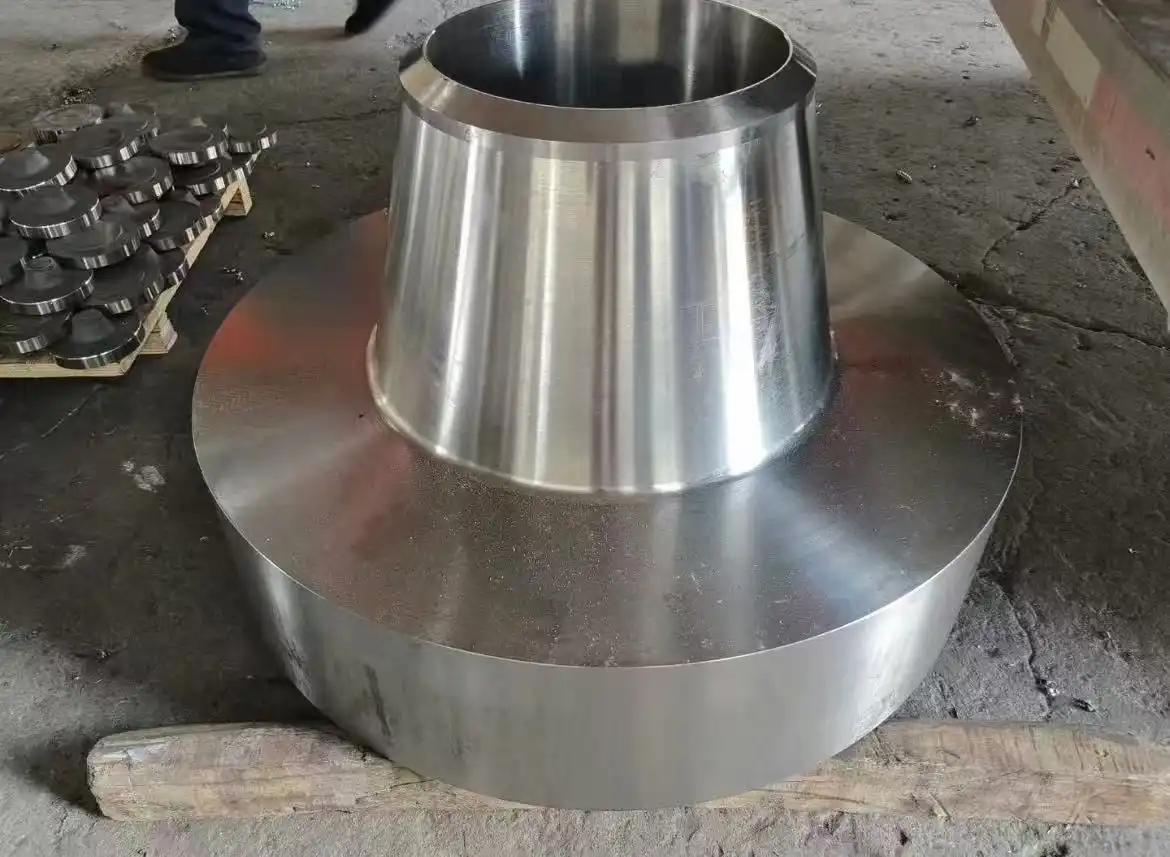

Why Pressure Testing Is Crucial for CS Pipe Flanges?

Why Do Testing Requirements Depend on Pressure Class and Service Conditions?tions？

Understanding Pressure-Temperature Ratings

A flange pressure class is not just a signal of a universal allowable pressure. Pressure-temperature ratings depend on flange material, temperature, size, and applicable standard. For instance, ASME B16.5 provides pressure-temperature ratings for the flange classes defined by the standard, such as Classes 150, 300, 400, 600, 900, 150,0 and 2500 in particular size ranges.

This is particularly true in the case of purchasing CS pipe flanges for industrial applications. A Class 150 flange and a Class 600 flange are not interchangeable merely because they are both made of carbon steel. They may be of varied sizes, different fastening methods, different pressure-temperature ratings, different purposes, etc.

Another factor to consider is the operating temperature. There is not one carbon steel pressure capacity that applies at all temperatures. The appropriate pressure-temperature rating will change with temperature as specified by the applicable standard and material specification. So the flanges should be chosen not only on the pressure class but on the actual design pressure, design temperature, material requirements, size, and the proper piping code.

Determining the Appropriate Test Conditions

The test pressure should be dictated by the governing standard and project requirements, not by a blanket requirement that testing must always be done at a defined percentage over operating pressure. Different pressure-containing components and pipe systems may be governed by different norms or standards.

API documents also state that inspectors must determine the operating pressure and the minimum or maximum system hydrostatic test pressure required based on the flange material, temperature,rature and flange class under the applicable ASME requirements.

Therefore, a buyer should be cautious if a supplier offers just a generic statement such as “hydrotested” without specifying the right test procedure. A relevant test record should be traceable to the component or assembly and should include enough information so that the purchaser or inspector can understand what was tested and to what standards.

Considering the Actual Operating Environment

And pressure is just one facet of a flange’s service environment. For CS pipe flanges, joint performance may be influenced by temperature variations, fluid characteristics, external forces, vibration, thermal expansion, and pressure cycling.

For example, in a manufacturing line with considerable variations in temperature, a flange may expand and contract thermally in ways not shown by a conventional pressure test at ambient temperature. In addition to pressure verification, a connection exposed to corrosive media must be chosen from suitable materials and considered for corrosion issues.

Therefore, a pressure test cannot be considered as proof that the flange is suitable for service under all situations likely to arise. Rather, it indicates how it performs under the given test conditions. Suitability for practical service is a product of correct engineering design, material selection, installation,n and conformity to the required code or project specification.

What Pressure Testing Can and Cannot Demonstrate?

Identifying Leakage and Obvious Pressure-Boundary Problems

One of the clearest benefits of pressure testing is its ability to identify leakage from the tested pressure boundary. A visible leak, pressure loss beyond the permitted criteria, or other unacceptable observation can indicate that the connection, including CS pipe flanges, or component requires further investigation before service.

This can be especially valuable after piping components have been assembled because installation-related issues may not be visible during a simple dimensional or visual inspection. Incorrect gasket positioning, insufficient or uneven bolt loading, damaged sealing faces, and connection misalignment can all contribute to leakage.

However, the test result needs to be interpreted according to the applicable acceptance criteria. A pressure drop does not automatically prove that a flange has failed, because temperature changes, trapped air, test-system conditions, and measurement uncertainty can influence pressure readings. Proper test procedures therefore specify how the test is to be conducted and evaluated.

Separating Pressure Testing From Material and Weld Inspection

Pressure testing should not be presented as a universal method for finding every manufacturing defect. Internal inclusions, material composition problems, improper heat treatment, and many forms of internal discontinuity may require other inspection or testing methods.

The same principle applies to weld quality. A pressure test may reveal leakage associated with a defective welded joint, but it does not replace welding procedure qualification, welder qualification, visual inspection, or applicable nondestructive examination. Depending on the piping design and governing requirements, methods such as radiographic, ultrasonic, magnetic-particle, or liquid-penetrant examination may be required.

This distinction makes the technical explanation more accurate: pressure testing verifies the behavior of the pressure boundary under specified conditions, while other inspection methods investigate particular characteristics of the material, weld, dimensions, or manufacturing process.

Avoiding Unsupported Claims About Fatigue Life

Another important limitation is fatigue performance. A conventional pressure test should not be described as a direct prediction of the service life of a CS pipe flange.

Fatigue depends on the number and magnitude of pressure cycles, temperature changes, mechanical loads, stress concentrations, material properties, joint configuration, and other factors. If a piping system is expected to experience significant cyclic loading, fatigue assessment should be performed using the applicable design rules and engineering analysis.

This distinction prevents a common misunderstanding. Passing a pressure test provides evidence that the component or system met the specified test requirements. It does not guarantee a particular number of years of service, nor does it establish a specific fatigue life without an appropriate engineering assessment.

How Testing Fits Into Manufacturing and Procurement?

Combining Pressure Testing With Other Inspections

For a manufacturer of carbon steel flanges, a reliable quality-control process normally involves several types of verification rather than relying on pressure testing alone. The exact inspection plan depends on the product standard and customer specification, but documentation may include material identification, dimensional inspection, visual examination, marking verification, and applicable mechanical or nondestructive testing.

ASME B16.5 itself covers a broad range of requirements beyond pressure testing, including materials, dimensions, tolerances, marking, and pressure-temperature ratings. This broader scope is a useful reminder that flange quality should be evaluated as a complete specification rather than through a single test result.

For buyers, the same principle can make supplier evaluation more effective. Instead of asking only whether a supplier performs pressure testing, it is more useful to determine which standard applies, what material specification is used, how the flange is identified, which inspections are included, and what documentation accompanies the shipment.

Reviewing Test Records Before Installation

Test documentation becomes particularly valuable when CS pipe flanges are purchased for a project with formal inspection requirements. The buyer may need to verify that the supplied components correspond to the specified material grade, pressure class, size, and manufacturing requirements.

A well-prepared quality document package can make this verification easier. Depending on the project, the purchaser may request material certificates, dimensional reports, inspection records, pressure-test records, and other documentation specified in the purchase order.

The exact documents required should always be agreed upon before production rather than assumed after shipment. This is especially important for oil and gas, chemical processing, power generation, and other applications where project specifications can impose requirements beyond the basic product standard.

Choosing a Supplier With Traceable Quality Procedures

The value of pressure testing ultimately depends on how consistently the testing and documentation are controlled. A supplier should be able to explain which standard applies to the product, how the test is performed, what equipment is used, how results are recorded, and how nonconforming products are handled.

For procurement teams, this information provides a more meaningful basis for supplier evaluation than a general claim that products are “high quality” or “fully tested.” A technically sound supplier should be able to connect the product identification with its manufacturing and inspection records.

It is also worth checking whether the supplier can manufacture the required flange type, size, material grade, pressure class, facing, and applicable standard. ASME B16.5 currently covers flanges and flanged fittings from NPS 1/2 through NPS 24 within its defined scope, while ASME B16.47 addresses large-diameter steel flanges from NPS 26 through NPS 60. Selecting the correct standard is therefore part of the purchasing process itself.

Making Pressure Testing Part of a Reliable Flange Selection Process

Pressure testing is most useful if it is used as one aspect of a broader engineering and QA process. The customer should specify the size, material, pressure class, design temperature, flange face, relevant standard, and any project-specific inspection requirements before buying CS pipe flanges.

After manufacture, appropriate inspections and testing should be carried out in accordance with specified specifications, with findings recorded in a verifiable manner. The flanged connection also must be fitted properly during installation since even a perfectly built flange might leak if the gasket, bolts, alignment, or tightening process is incorrect.

This technique also precludes pressure testing from being taken as a general guarantee of the performance of a system. A successful test reveals adherence to the requirements and acceptance criteria of that test. Long-term dependability is still a function of engineering design, proper installation, appropriate materials, operating conditions, maintenance, and the quality of the overall pipe system.

This is one of the most essential reasons to talk about testing needs before placing an order for industrial purchasers. When the testing standard, acceptance criteria, documentation, and traceability requirements are understood from the outset, the provided flanges are more easily inspected and included in the project quality records.

Conclusion

Pressure testing plays an important role in verifying the integrity of CS pipe flanges and the pressure-containing connections in which they are installed. It can help identify leakage and other unacceptable behavior under specified test conditions while providing useful quality records for manufacturing and project inspection. However, pressure testing should not be treated as a replacement for material verification, dimensional inspection, weld examination, or engineering assessment of fatigue and long-term service conditions. The correct test requirements depend on the applicable standard, flange class, material, temperature, size, and project specification. ASME B16.5 specifically establishes requirements covering pressure-temperature ratings, materials, dimensions, marking, and testing for the flange products within its scope. When these requirements are combined with appropriate manufacturing controls, inspection, documentation, and correct installation, pressure testing becomes a practical part of building reliable industrial piping systems. For more information on our pressure testing services and high-quality CS pipe flanges, please contact us at oudi-04@oudiguandao.com.
