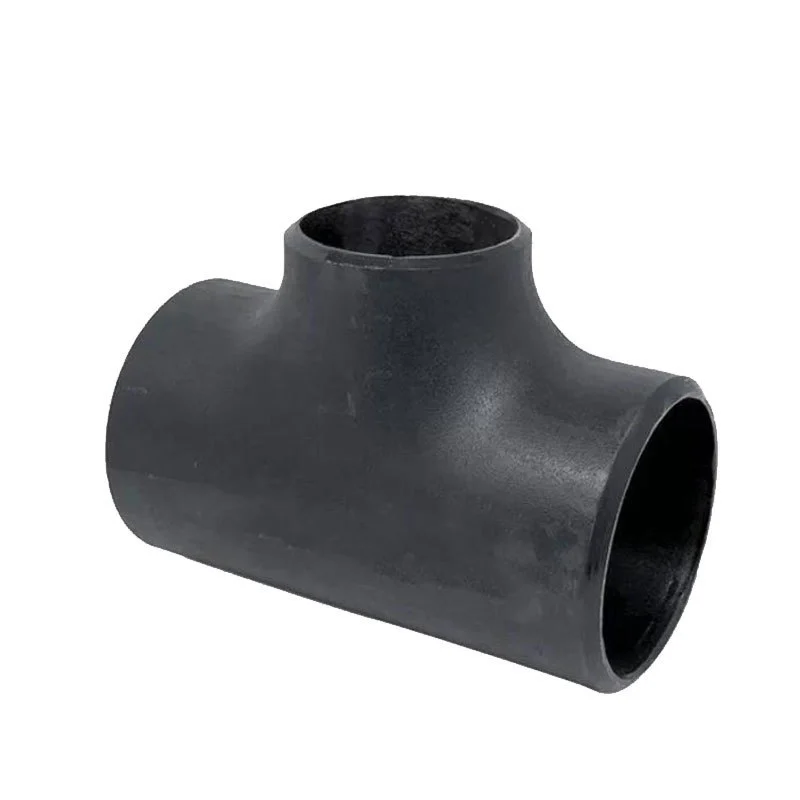

How to Verify the Quality of Forged Steel Tee Fittings?



When purchasing forged steel tee fittings for an industrial piping system, appearance alone is not enough to determine whether the product is suitable for service. A tee may have a clean machined surface and accurate dimensions while still requiring verification of its material grade, heat treatment, internal integrity, mechanical properties, and traceability. For this reason, quality verification should be treated as a combination of inspection methods and manufacturing records rather than a single test. This is particularly important for forged fittings used in oil and gas facilities, chemical plants, power generation systems, refineries, and other pressure piping applications. The actual inspection requirements depend on the material specification, fitting standard, service conditions, purchase order, and project requirements. ASTM A105/A105M, for example, covers forged carbon steel piping components and specifies requirements relating to chemical composition, heat treatment, mechanical properties, hardness, marking, and testing. ASME B16.11 addresses forged socket-welding and threaded fittings, including ratings, dimensions, tolerances, marking, and material requirements. A reliable inspection process therefore starts with identifying the exact specification for the fitting and then checking whether the physical product and its documentation consistently meet that specification.

Start With Material Identification and Manufacturing Records

Confirm the Steel Grade Before Reviewing the Fitting

Material verification is one of the first steps when assessing a forged steel tee. The purchase specification should identify the required material grade, such as ASTM A105/A105M where applicable, together with the applicable fitting standard and end connection requirements. ASTM A105/A105M is specifically intended for forged carbon steel piping components used in pressure systems at ambient and elevated temperatures.

The material grade should not be accepted solely because it is printed on a certificate. The heat number or other traceability marking on the fitting should correspond with the material test report. This connection between the physical product and the MTR is important because the chemical and mechanical test results are meaningful only when they can be associated with the actual material batch used to manufacture the fitting.

For buyers, this means that the inspection process should compare the marking on the forged steel tee with the heat number, material grade, dimensions, and other identifying information shown in the supplied documentation. Any discrepancy should be resolved before the fitting is released for installation.

Review Heat Treatment and Mechanical Test Information

Heat treatment has a direct relationship with the final properties of a forged fitting. ASTM A105/A105M includes heat treatment requirements and mechanical property requirements for covered forgings, including tensile strength, yield strength, elongation, reduction of area, and hardness.

A quality review should therefore go beyond confirming that a heat treatment process was performed. The relevant records should identify the applicable batch or heat, treatment condition, and associated inspection results when such records are required by the purchasing specification.

Mechanical test results also provide useful evidence of material conformity. Tensile testing evaluates characteristics such as tensile strength and yield strength, while hardness testing provides another means of checking whether the material falls within the specified range. These results should be assessed against the requirements applicable to the selected material grade rather than against a generic hardness or strength value.

Use Nondestructive Testing According to the Application

Ultrasonic Testing for Internal Discontinuities

Ultrasonic testing can be useful when the inspection plan requires evaluation of internal discontinuities within a forged component. The method uses high-frequency sound waves introduced into the material. Changes in the returning signal can indicate discontinuities or changes in material structure that require further evaluation.

For a forged steel tee, UT can be particularly useful where section thickness or component geometry makes internal inspection important. The value of the test depends on the equipment, calibration, scanning procedure, operator qualification, and acceptance criteria specified for the job. Simply stating that “UT was performed” does not provide enough information to evaluate the result.

A meaningful UT report should identify the component or batch inspected, the applicable procedure or specification, and the inspection result. Where the purchase order requires a particular NDT standard or acceptance criterion, the report should demonstrate compliance with that requirement rather than simply confirming that the fitting passed an unspecified ultrasonic examination.

Magnetic Particle Inspection for Surface and Near-Surface Defects

Magnetic particle inspection is another useful method for ferromagnetic forged steel components. After the fitting is magnetized, magnetic particles are applied to the inspection area. Discontinuities that disturb the magnetic field can create visible particle indications.

For forged steel tee fittings, MPI can be used to examine areas where surface or near-surface discontinuities are a concern. The method is different from ultrasonic inspection because it is primarily suited to detecting indications associated with the surface and near-surface region of suitable ferromagnetic materials.

The inspection report should state the areas examined and the relevant acceptance criteria. If MPI is required by a project specification, the purchaser should also confirm that the examination was carried out using an appropriate procedure and that the recorded result corresponds to the actual batch or fitting being purchased.

Radiographic Examination When Internal Imaging Is Required

Radiographic testing uses penetrating radiation to produce an image of the inspected material. Depending on the technique and component geometry, the resulting image can reveal certain internal discontinuities.

However, radiographic testing should not automatically be presented as a universal quality test for every forged steel tee. Whether RT is appropriate depends on the product design, material, inspection specification, geometry, and purchaser requirements. Different NDT methods have different capabilities, and the inspection plan should select the technique that addresses the defects or characteristics of concern.

This distinction is important because a high-quality inspection program is not simply a matter of performing as many tests as possible. It is about selecting appropriate tests and applying clearly defined acceptance criteria.

Check Dimensions, Surface Condition, and End Connections

Verify the Critical Dimensions

Dimensional inspection is one of the most practical ways to verify whether a forged steel tee is ready for installation. Depending on the type of fitting, the inspection may include outside dimensions, center-to-end dimensions, branch dimensions, wall thickness, bore dimensions, thread characteristics, or socket dimensions.

ASME B16.11 covers forged socket-welding and threaded fittings and includes requirements for ratings, dimensions, tolerances, marking, and materials.

The inspector should therefore compare actual measurements with the dimensional requirements applicable to the ordered fitting. A product can have the correct material grade and still create installation problems if its dimensions fall outside the required tolerance.

For procurement teams, dimensional inspection is particularly valuable when the fittings will be connected to existing piping, valves, equipment, or prefabricated assemblies. The inspection report should record actual measurements where required instead of simply stating “dimensions accepted.”

Inspect Threads, Sockets, and Machined Surfaces

The connection area deserves special attention because it directly affects installation and sealing. Threaded forged steel tee fittings should be checked for thread condition, profile, cleanliness, and conformity with the specified thread requirements. Socket-welding fittings should be examined for the required socket geometry, bore condition, and surface quality.

The fitting should also be free from obvious surface conditions that could interfere with installation or indicate manufacturing problems. Machined surfaces should be inspected for damaging marks, excessive tool marks, dents, or other conditions that fall outside the applicable specification.

These checks are relatively straightforward, but they are often more useful to an installation team than a general statement that the product has “good surface quality.”

Verify Material Properties Rather Than Relying on Appearance

Chemical Composition and Positive Material Identification

Chemical composition is a fundamental part of material verification. For an ASTM A105/A105M forged component, the applicable chemical composition requirements cover elements including carbon, manganese, phosphorus, sulfur, silicon, and specified alloying elements.

The supplier's material test report should therefore be reviewed against the specified grade. Where project requirements call for positive material identification, PMI can provide an additional check on the alloy composition of the actual component.

This becomes particularly useful when a purchase includes multiple material grades or when fittings are being received into a warehouse containing similar-looking components. Two fittings may have nearly identical external appearances while requiring completely different material specifications.

Hardness and Microstructure as Supporting Evidence

Hardness testing can help confirm that the material and heat treatment condition are consistent with the applicable requirements. It should not, however, be treated as a standalone proof of overall product quality. Hardness is one property, while tensile strength, yield strength, ductility, chemical composition, heat treatment, and dimensional conformity address other aspects of the product.

Microstructure examination can also be useful when a specific investigation or quality program requires it. Metallographic examination can provide information about grain structure and phases, but it is generally more specialized than routine receiving inspection. Whether it is necessary should be determined by the material specification, manufacturing quality plan, purchaser requirements, or a particular quality investigation.

This approach avoids the common mistake of treating every possible laboratory test as mandatory for every forged steel tee. A well-designed inspection plan should be proportional to the material, service conditions, applicable standards, and project requirements.

Check Compliance With the Applicable Standards

Understand What ASTM A105 and ASME B16.11 Actually Cover

One of the most important parts of quality verification is using the correct standard for the correct purpose. ASTM A105/A105M is a material specification for forged carbon steel piping components, while ASME B16.11 is a product standard for forged socket-welding and threaded fittings. ASME identifies B16.11 as covering ratings, dimensions, tolerances, marking, and material requirements for these fittings.

This means that a purchaser should not simply ask whether a forged steel tee is “ASTM A105 and ASME B16.11 certified.” Instead, the buyer should establish which requirements apply to the specific product and purchase order and then verify the corresponding records.

For example, the material specification may govern the steel grade and mechanical properties, while the fitting standard governs the applicable dimensions, ratings, marking, and connection configuration. Additional project specifications may then introduce supplementary inspection or documentation requirements.

Review Pressure Testing Requirements Carefully

Pressure testing is another area where specifications should not be oversimplified. ASTM A105/A105M includes hydrostatic testing when applicable, but the precise testing requirements should be established from the governing specification and purchasing requirements rather than applying one universal pressure value to every forged steel tee.

If pressure testing is required, the purchaser should review the test procedure, medium, test pressure, duration, acceptance criteria, and identification of the tested components. The test record should also be traceable to the relevant product or manufacturing batch.

This is more useful than simply stating that a fitting is “pressure tested.” The purpose of inspection documentation is to demonstrate what was tested, how it was tested, under which requirement, and what the result was.

Make Traceability Part of the Final Inspection

Match Product Markings With Quality Documents

Traceability is often the point that connects all other inspection activities. A forged steel tee should have identifying marks appropriate to the applicable product and purchase requirements. Those markings may be used to connect the physical fitting to its material certificate, manufacturing batch, heat treatment information, inspection reports, and other quality records.

A buyer receiving a large shipment should be able to select a fitting and trace it through the documentation without relying on assumptions. If the heat number on the product cannot be matched to the MTR, the paperwork may not provide meaningful evidence for that particular fitting.

This is why traceability should be checked during receiving inspection rather than being treated as an administrative task after the products have already entered inventory.

Review the Complete Quality Package Before Approval

The final quality review should bring the individual records together. Depending on the purchase requirements, the documentation package may include the material test report, dimensional inspection results, hardness results, heat treatment records, NDT reports, pressure test records when applicable, and certificates or declarations of conformity.

The goal is not to collect paperwork for its own sake. Each document should answer a specific question about the product. The MTR establishes material information, dimensional records demonstrate physical conformity, NDT reports document specified examinations, and traceability records connect those results to the actual fittings delivered.

For procurement teams, this documentation also becomes valuable when the fittings are installed months after delivery or when project records must be reviewed during an audit.

What Buyers Should Confirm Before Purchasing？

A dependable supplier should be able to explain the material grade, manufacturing route, applicable fitting standard, inspection scope, and available quality documentation before the order is finalized. Buyers should also make sure that special requirements are written into the purchase order instead of assuming that every supplier follows the same inspection program.

For a forged steel tee, the most useful discussion with a supplier is therefore specific rather than general. Instead of asking whether the fittings are “high quality,” ask which material specification applies, which fitting standard is being followed, how heat numbers are controlled, what inspection records are supplied, whether NDT is required, how dimensions are verified, and how the final documentation is linked to the delivered products.

This approach gives engineers and purchasing teams a clearer basis for comparing suppliers. It also reduces the possibility of discovering a documentation or dimensional problem after the fittings have already reached the installation stage.

Conclusion

Verifying the quality of forged steel tee fittings requires more than checking their appearance or requesting a general certificate of conformity. A reliable evaluation should connect the material grade, heat treatment, mechanical properties, dimensions, surface condition, applicable NDT methods, pressure testing requirements, marking, and traceability into one consistent inspection process.

ASTM A105/A105M provides requirements for applicable forged carbon steel piping components, while ASME B16.11 addresses forged socket-welding and threaded fittings and their relevant ratings, dimensions, tolerances, marking, and material requirements. The exact inspection scope should always be determined by the applicable standard, purchase order, project specification, and intended service rather than by assuming that one testing package fits every application.

For buyers, the most reliable approach is to verify the physical fitting against its documentation and confirm that the heat number, material certificate, inspection records, dimensions, and required test results remain traceable to the delivered product. When these checks are performed systematically, a forged steel tee is not judged simply by how it looks but by measurable evidence that supports its material, dimensional, manufacturing, and quality requirements. For more information on high-quality forged steel tee fittings and other pipe components, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the most common non-destructive testing method for forged steel tee fittings?

Ultrasonic testing is one of the most common and effective non-destructive testing methods for forged steel tee fittings.

2. How often should forged steel tee fittings be inspected?

The frequency of inspection depends on the application and operating conditions. Generally, regular inspections are recommended, with more frequent checks in critical or high-stress applications.

3. What is the significance of ASTM A105 in relation to forged steel tee fittings?

ASTM A105 is a standard specification for carbon steel forgings for piping applications, including forged steel tee fittings. It defines the material requirements and properties.

4. Can forged steel tee fittings be repaired if defects are found?

Minor surface defects may be repairable, but significant internal defects typically require the fitting to be replaced to ensure system integrity.

References

1. ASTM International. (2021). ASTM A105/A105M-21 Standard Specification for Carbon Steel Forgings for Piping Applications.

2. American Society of Mechanical Engineers. (2022). ASME B16.11-2021 Forged Fittings, Socket-Welding and Threaded.

3. Hellier, C. J. (2013). Handbook of Nondestructive Evaluation. McGraw-Hill Education.

4. ASM International. (2004). ASM Handbook, Volume 9: Metallography and Microstructures.

5. American Welding Society. (2015). AWS B1.11M/B1.11:2015 Guide for the Visual Examination of Welds.

6. Nayyar, M. L. (2000). Piping Handbook. McGraw-Hill Education.
