Industrial Pipe End Caps: Design, Function, and Standards

Pipe end caps are used at the end of industrial piping to close an open section, protect the pipe interior, or create a defined boundary within a piping system. A properly specified pipe end cap can help maintain system integrity during operation, fabrication, transportation, maintenance, or future modification. The component may appear simple, but its material, geometry, wall thickness, connection method, and inspection requirements all need to match the conditions of the piping system. This becomes particularly important in oil and gas, chemical processing, power generation, water treatment, food processing, and other industries where pressure, temperature, corrosion, and cleanliness can affect service performance. For engineers and purchasing teams, selecting an end cap should therefore involve more than matching the cap diameter to the pipe. The design needs to be considered together with the pipe material, operating conditions, joining method, applicable standards, and expected service environment. This article explains how industrial pipe end caps are designed, what functions they provide, how material and connection choices affect performance, and which standards and quality checks should be considered before an order is finalized.

How Industrial Pipe End Caps Are Designed for Service Conditions？

Geometry, Wall Thickness, and Load Considerations

The geometry of a pipe end cap has a direct relationship with how loads are distributed across the component. When an end cap is installed on a pressurized line, the closed end is exposed to internal pressure, while the connection area transfers loads into the surrounding pipe and weld or other joint. For this reason, the shape and thickness of the cap should not be selected independently from the pipe design.

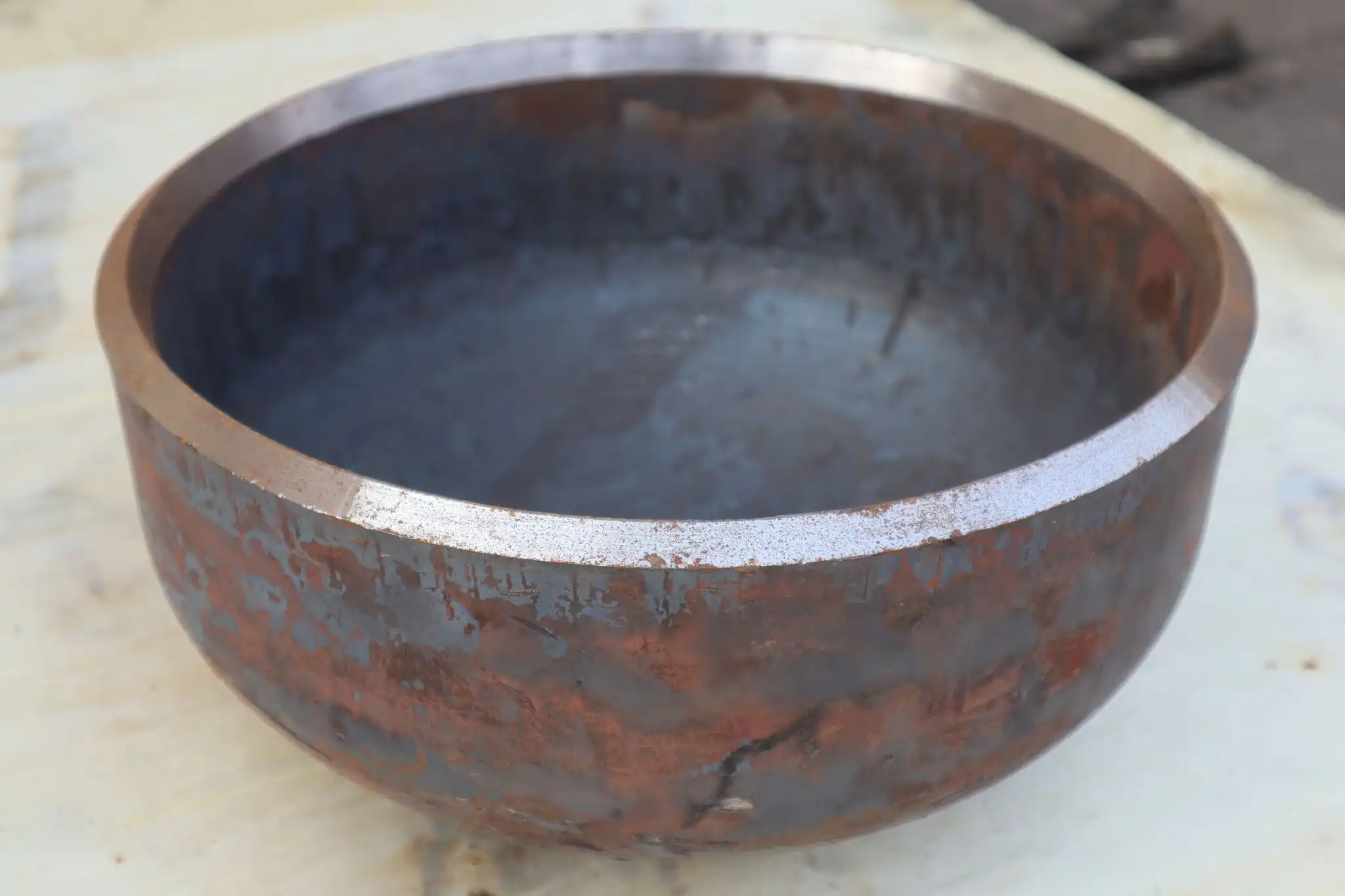

Industrial end caps may use different geometries depending on their application and manufacturing route. A formed or dished configuration can provide a more favorable pressure-carrying shape than a simple flat plate in some applications, while other closures may be designed for temporary service, non-pressure applications, or mechanical protection. The correct configuration depends on the applicable design code, pipe size, pressure class, temperature, material properties, and fabrication method rather than on the cap shape alone.

Wall thickness is also more than a simple function of nominal pipe size. The designer may need to consider allowable stress, design pressure, design temperature, corrosion allowance, manufacturing tolerances, and local loading around the connection. For large diameter or demanding service, the end closure may require a more detailed engineering assessment instead of relying only on a catalogue dimension.

Manufacturing quality becomes important at this stage because dimensional deviations can affect fit-up and welding. Forging, forming, machining, and other manufacturing processes must be controlled so that the finished component meets the specified geometry and does not contain defects that could compromise service performance. ASTM A234, for example, covers wrought carbon steel and alloy steel fittings for pressure piping and pressure vessel fabrication at moderate and elevated temperatures, with requirements covering material, forming, and testing.

Material Selection Based on the Operating Medium

Material selection should begin with the fluid or gas that will pass through the piping system and the conditions under which the component will operate. Carbon steel is widely used in general industrial service because it provides a practical combination of strength, availability, and cost. It may be appropriate for many water, utility, structural, and process applications when corrosion control and temperature requirements are properly addressed.

Alloy steels can be considered when higher temperature strength or other mechanical properties are required. Stainless steels are often selected where corrosion resistance, cleanliness, or resistance to certain process media is important. ASTM A403, for example, covers wrought austenitic stainless steel fittings for pressure piping applications and includes requirements related to material composition, heat treatment, mechanical properties, and examination.

The choice should not be based on the material name alone. Two stainless steel grades, for example, may behave differently in chloride-containing environments, elevated temperatures, or chemically aggressive media. Carbon steel may perform effectively in one service but require corrosion allowance, coating, lining, or another protective strategy in a different environment. Engineers should therefore compare the actual operating conditions with the applicable material specification before approving a pipe end cap.

Connection Type and Installation Requirements

The connection between a pipe end cap and the pipe is another major design consideration. Butt-welded end caps are commonly used when a permanent, continuous connection is required. The end preparation and dimensional compatibility between the cap and pipe affect welding quality, alignment, and the ability to complete the joint according to the project's welding procedure.

Other closure designs may use threaded, socket, mechanical, or removable connections when the piping arrangement requires easier access or temporary isolation. These options are not interchangeable because they have different installation requirements and may be subject to different pressure and temperature limitations.

For permanent process piping, the connection should be evaluated together with the welding procedure, filler material, heat treatment requirements, inspection method, and access available during fabrication. A cap that has the correct nominal size but the wrong end preparation can still create problems during installation. This is why purchasing specifications should identify the required connection configuration instead of relying on the general term “pipe cap.”

What Pipe End Caps Do in Industrial Piping Systems？

Closing and Isolating Open Pipe Sections

The most basic function of a pipe end cap is to close an open pipe section. In a completed piping system, this can establish the end of a line or separate a section from the surrounding environment. During construction, an end cap can also be used to close a line temporarily until another section of the system is installed.

In maintenance work, removable closures can provide access to isolated sections, although the exact isolation method must be appropriate for the pressure and hazardous characteristics of the service. A physical closure should never be treated as a substitute for a complete isolation procedure when personnel safety depends on positive isolation.

For pressurized applications, the end cap becomes part of the pressure boundary. Its material, dimensions, connection, and inspection requirements therefore need to be consistent with the overall piping design. The pressure capability of the cap should not be inferred simply from the pipe size or from the fact that the cap is made from the same nominal material grade.

Protecting the Pipe Interior

End caps can also protect open pipe ends from contamination during storage, transportation, fabrication, and installation. Dirt, moisture, dust, and foreign objects can enter an unprotected pipe and create additional cleaning or inspection work before commissioning.

This function is especially relevant when piping is being transported over long distances or stored at an outdoor fabrication yard. Temporary protective caps may be selected for this purpose, but they should not automatically be considered suitable for pressure service. A protective closure designed only to keep debris out is fundamentally different from an engineered pressure-retaining closure.

In food processing, pharmaceutical, and other hygienic applications, contamination control may be an important part of the overall piping strategy. A pipe end cap should therefore be selected with its material, surface condition, cleanliness, and storage method considered together so that the closure does not introduce a problem that the piping system was designed to prevent.

Supporting Maintenance and Future Modifications

A closed pipe section may eventually become part of a system expansion, equipment replacement, or process modification. In such situations, the selected closure can influence how easily the system can be modified later.

For example, a temporary removable closure can be practical where a future branch connection is expected, while a permanent welded end cap may be more appropriate when the line is intended to remain closed. Engineers should consider whether the closure is expected to remain in service permanently and whether future removal could affect the pipe, coating, insulation, or surrounding equipment.

This distinction is useful for project planning because the lowest initial purchase price does not always represent the lowest overall cost. A closure that is difficult to remove or requires extensive field modification may create additional labor and downtime during a later expansion.

Matching Pipe End Cap Standards to the Actual Application

Understanding What ASME B16.9 Covers

ASME B16.9 is an important reference for factory-made wrought butt welding fittings, but it should not be described as a standard specifically for butt-welded valves. That distinction matters because valves and fittings have different functions and are covered by different standards.

When a pipe end cap is supplied as a butt welding fitting within the scope of an applicable dimensional standard, engineers should verify the required dimensions and compatibility with the piping system. The applicable material specification must also be considered separately. ASTM A234, for instance, covers wrought carbon steel and alloy steel fittings and refers to fittings covered by applicable ASME and MSS standards.

The practical lesson for purchasing teams is that a standard number should not be treated as a complete product description. The purchase specification should connect the dimensional standard with the material grade, size, wall thickness, connection requirements, and inspection documentation required for the project.

Using ASTM Material Specifications Correctly

ASTM material standards are particularly useful for establishing what a fitting is made from and what material-related tests and manufacturing requirements apply. ASTM A234 covers wrought carbon steel and alloy steel fittings for pressure piping and pressure vessel applications, while ASTM A403 covers wrought austenitic stainless steel fittings for pressure piping.

This distinction helps avoid a common procurement mistake. A buyer may specify a material grade correctly but fail to define the dimensional or connection standard. Another buyer may specify a dimensional standard but leave the material specification unclear. Neither approach provides enough information for consistent manufacturing.

A complete specification should therefore be built around the actual service conditions and the applicable standards rather than around a single standard number. Material certificates, heat numbers, mechanical test results, heat treatment records, dimensional inspection reports, and other documents may also be required depending on the project.

Avoiding Misuse of API 5L and API 650

API standards can be highly relevant to oil and gas projects, but their scope needs to be checked before they are assigned to a particular component. API Spec 5L is a line pipe specification. In June 2026, API announced its 47th edition, which establishes requirements for the manufacture, inspection, testing, marking, and traceability of seamless and welded steel line pipe used for energy transportation.

That means API 5L should not automatically be presented as a universal pipe end cap standard simply because the cap is used on an oil or gas pipeline. The end closure may need to comply with a different fitting, component, piping, or project specification depending on how it is designed and installed.

API 650 should likewise not be presented as a general standard for pipeline end caps. Its relevance is associated with welded storage tanks rather than ordinary industrial pipe closures. For an engineering article, distinguishing between pipeline standards, fitting standards, material specifications, and tank standards makes the guidance much more reliable and useful to professional readers.

Quality Control Before an End Cap Enters Service

Dimensional and Material Verification

Quality control starts with confirming that the finished component matches the purchase specification. Important dimensions can include outside diameter, wall thickness, overall length, end preparation, and other geometry required for installation. Dimensional inspection is particularly important for welded components because poor fit-up can increase fabrication difficulty and may affect the final joint.

Material verification should also be traceable to the supplied documentation. Depending on the project requirements, the manufacturer may provide a material test certificate identifying the heat number, chemical composition, mechanical properties, and applicable material specification. This documentation allows the purchaser to confirm that the component supplied corresponds to the material that was approved during design.

Non-Destructive Examination and Pressure Testing

The appropriate inspection method depends on the material, manufacturing route, service conditions, applicable specification, and project quality plan. Visual inspection can identify surface damage, forming defects, machining marks, and other visible problems. Other nondestructive examination methods, such as ultrasonic testing, radiographic testing, or magnetic particle examination, may be specified when internal or surface discontinuities need to be evaluated.

Pressure testing also needs to be understood in context. A statement such as “pressure tested above the stated limits” is too general for an engineering article because the actual test method, test pressure, holding time, medium, and acceptance criteria depend on the governing code or specification. ASTM A234, for example, includes testing requirements for fittings within its scope, illustrating why the applicable material and product specification needs to be identified before defining a test program.

Quality documentation is particularly important for critical piping. A reliable supplier should be able to explain which inspections are performed as standard, which tests are available on request, and which documents accompany the shipment. This gives the purchaser a clearer basis for evaluating suppliers than a general statement that the product has been “strictly tested.”

Conclusion

Pipe end cap products play a small but important role in industrial piping because they can close pipe ends, protect internal surfaces, support isolation, and form part of a pressure boundary. Their performance depends on more than nominal pipe size. Geometry, wall thickness, material grade, connection method, operating conditions, manufacturing quality, and inspection requirements all need to work together.

The most reliable approach is to select the end cap according to the actual service conditions and then identify the standards that apply to its material, dimensions, manufacturing route, and intended use. ASTM A234 and ASTM A403, for example, address important material and fitting requirements for carbon steel, alloy steel, and austenitic stainless steel applications, while API Spec 5L has a specific focus on line pipe rather than serving as a universal end cap standard.

For engineers, contractors, and purchasing teams, a clear technical specification is the best starting point. Providing the required size, material, connection, pressure, temperature, service conditions, applicable standards, testing requirements, and documentation expectations allows manufacturers to quote and produce the correct component with fewer assumptions. Working with a qualified manufacturer that can provide traceable materials, consistent dimensions, appropriate inspection, and project-specific documentation can further reduce installation problems and improve confidence in long-term piping performance. For more data or to request approximately high-quality pipe conclusion caps, it would be ideal if you contacted us at oudi-04@oudiguandao.com.

FAQ

1. What are the most common materials used for industrial pipe end caps?

Common materials include carbon steel, stainless steel, alloy steel, and various plastics, chosen based on application requirements.

2. How do pipe end caps contribute to system safety?

Pipe end caps contain pressure, prevent leaks, and isolate sections of piping systems, enhancing overall safety and operational control.

3. What factors should be considered when selecting pipe end caps?

Key factors include material compatibility, pressure ratings, temperature range, chemical resistance, and compliance with industry standards.

4. Can pipe end caps be customized for specific applications?

Yes, manufacturers can customize pipe end caps in terms of materials, dimensions, and features to meet specific application requirements.

References

1. ASME B16.9 - Factory-Made Wrought Buttwelding Fittings

2. ASTM A234—Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

3. API 5L - Specification for Line Pipe

4. ISO 9001:2015 - Quality Management Systems - Requirements

5. NACE MR0175 - Petroleum and natural gas industries—Materials for use in H₂S-containing environments in oil and gas production

6. PED 2014/68/EU - Pressure Equipment Directive
