Pipe Cap Fittings for High-Pressure Systems: A Complete Guide

High-pressure piping systems are designed to contain fluids under demanding operating conditions, so every component at the end of a pipe needs to be selected with the same attention given to the main piping. This is where pipe cap fittings become important. A pipe cap can provide a permanent or temporary closure, but its suitability depends on much more than nominal pipe size. The suitability of a cap for a given service depends on material grade, wall thickness, design temperature, method of connection, relevant standards, welding techniques, and inspection requirements. Buyers in oil and gas facilities, refineries, chemical plants, power stations, offshore sites, and other industrial settings consequently need to assess the whole specification rather than purchasing a cap from a catalogue based on size only.

Understanding What a Pipe Cap Must Do Under Pressure？

Closure Is Only One Part of the Design

A pipe cap's principal function is to seal off the end of a pipe, therefore keeping process media out of or in the line. But in a high-pressure system the closure becomes part of the pressure boundary; therefore, the component must operate properly with the pipe weld and other associated components.

A cap on a process line could be in operation for years, or it might be a temporary installation while some other part of the system is updated. In both cases, the selection has to take into account the actual operating circumstances. The fundamental service requirements are based on the design pressure and design temperature but are subject to other problems that may arise from the fluid itself, such as corrosion, toxicity, flammability, or contaminant control.

This difference is essential because a part that is dimensionally accurate may not be usable for the application. For example, a low-temperature service pipe cap may have to take into account different material and impact test requirements than a standard ambient temperature process line cap. Similarly, a cap that is exposed to corrosive substances may need a material with a far higher resistance to corrosion compared to carbon steel.

Permanent and Temporary Closures Require Different Considerations

Not all pipe-end closures are meant to stay in place forever. Butt-weld caps are often preferred for permanent welded closures, whereas threaded or other detachable designs may be preferable when future access is desired.

Weld quality and the compatibility of the cap and pipe material are crucial for a durable closure. For a detachable closure, connecting technique, pressure requirements, accessibility, and maintenance plan are more significant. Therefore, the ideal option will rely on what the pipe end is anticipated to accomplish throughout the whole service life of the system, not only during initial installation.

Selecting the Right Pipe Cap Configuration for the Application

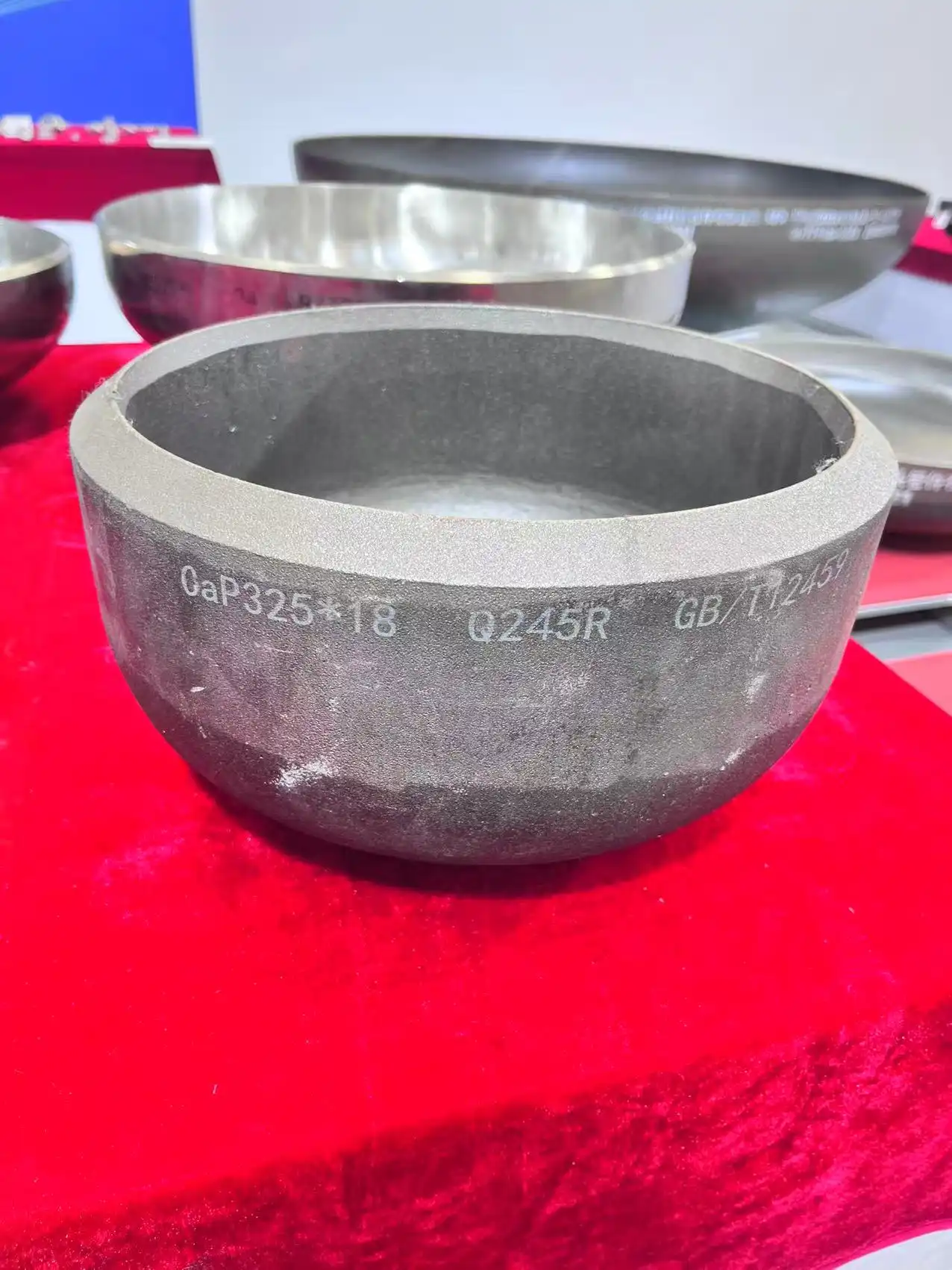

Butt-Weld Caps for Permanent Industrial Connections

Butt weld pipe caps are used in industrial piping applications since they provide a continuous welded connection to the pipe. When the product is within the scope of a standard such as ASME B16.9, they are often constructed to that standard.

The key benefit is that they give a compact permanent connection. Once correctly welded and inspected, the cap does not create a threaded joint or a bolted connection that has to be routinely tightened. So butt-weld arrangements are especially good for process pipes where leakage control, space limits, and long-term service are critical.

However, the final connection's pressure capacity cannot be assessed from the cap itself. When selecting pipe cap fittings, all these parameters need to be examined together. The supplier should therefore get the whole project specification and not only be asked to tender for a nominal pipe diameter.

Threaded and Other Removable Configurations

Threaded pipe caps are handy when a pipe end has to be opened again for maintenance or future alteration. Their lack of need for a field butt weld may aid installation, but their use is very dependent on size, pressure, temperature, thread standard, and service circumstances.

In severe pressure situations, purchasers should not assume that a threaded connection is immediately comparable to a welded closure. The thread shape, engagement, sealing technique, material, and the relevant standard should be checked against the system design.

A blind flange, which is often called a flanged pipe cap, could be more suitable than a flanged pipe cap if you need access to big process lines often. This is an important difference during procurement since a blind flange and a butt-weld cap are independent components with differing dimensions and connection requirements.

Matching the Configuration to Maintenance Requirements

The optimum closure at the end of the pipe is not usually the one with the highest nominal pressure capacity. The maintenance approach is also important. If a line is to be closed off for the service life of its operation, a permanent welded cap may be the most practical solution; however, a detachable arrangement may be more appropriate if engineers anticipate inspection, cleaning, enlargement, or future connection at that place.

Therefore, the planned service life and needs for future access should be clarified before finalizing the purchase specification.

Choosing Materials for Pressure, Temperature, and Corrosion

Carbon Steel for General Industrial Service

Carbon steel is a common choice for industrial pipe caps because it provides strength, weldability, availability, and reasonably predictable pricing. ASTM A234 WPB is a popular standard wrought carbon steel and alloy steel fitting for moderate and high temperature usage.

ASTM A420 WPL6 may be used if low-temperature service is required. This distinction is essential since the material selection should be based on the design temperature and not only the pressure rating. If the system is running at low temperatures, then impact testing may be required as well so that it can prove acceptable toughness as per the project requirements.

Corrosion conditions should still be evaluated, although carbon steel is frequently a suitable alternative for common industrial, utility, and hydrocarbon applications. The adjoining pipe being carbon steel does not always mean a carbon steel cap is okay.

Stainless Steel Where Corrosion Resistance Matters

When the pipe system is subjected to corrosive fluids, dampness, or process circumstances wherein contamination and surface deterioration have to be managed, the use of stainless steel becomes even more advantageous. Grades such as WP304, WP316, and WP316L are extensively used in industrial applications. ASTM A403 provides requirements for wrought austenitic stainless steel fittings.

The choice between these grades should be based on the particular process environment rather than the assumption that all stainless steels would behave the same in the face of corrosion. Material compatibility may be affected by exposure to chloride, temperature, chemical concentration, and cleaning conditions.

Buyers should also examine surface requirements and cleaning methods and if the manufacturing and finishing process is consistent with the cleanliness requirements of the system for hygienic or corrosion-sensitive applications.

Alloy Steel for Elevated-Temperature Service

Power generating, refinery, and high-temperature process services requiring high-temperature service resistance may require pipe cap fittings made from alloy steel. ASTM A234 grades like WP11, WP22, and WP91 are provided for diverse applications based upon the technical requirements.

These resources need more than grade matching. Alloy steels may need extra attention to welding techniques, preheating, postweld heat treatment, and hardness requirements and inspection. Rather than just stating that a certain grade may be supplied, a supplier familiar with these materials should be able to offer the appropriate production and materials documents.

Verifying Standards Before Placing a Pipe Cap Order

Understand What the Applicable Standard Covers？

ASME B16.9 is commonly associated with factory-made wrought butt-welding fittings and establishes dimensional and related requirements within its scope. ASTM A234 covers wrought carbon steel and alloy steel fittings for moderate and high-temperature service, while ASTM A403 addresses wrought austenitic stainless steel fittings. ASTM A420 is associated with wrought carbon steel and alloy steel fittings for low-temperature service.

MSS SP-75 may also be relevant for high-strength, factory-made wrought butt-welding fittings where the project specification calls for it. These standards should not simply be listed on a purchase order without checking whether the selected product and service conditions actually fall within their scope.

A technically responsible supplier should be able to identify the manufacturing standard, material specification, dimensional requirements, and any additional project-specific requirements that apply to the requested cap.

Material Traceability Is Part of Product Verification

For pressure-service components, traceability is particularly important because the buyer needs to know what material was actually supplied. A material test certificate, such as an EN 10204 3.1 certificate when specified, can provide information about chemical composition and mechanical properties.

The heat number should also be traceable between the product marking and the relevant material documentation. This creates a connection between the physical component and its manufacturing records. For projects with strict quality requirements, buyers may additionally require positive material identification, dimensional inspection, hardness testing, impact testing, or other examinations depending on the specification.

The exact documentation package should be agreed upon before production begins. Waiting until the goods are ready to ship to request missing certificates can create avoidable delays.

Getting Installation Right in High-Pressure Service

Prepare the Pipe and Cap Before Welding

A reliable welded connection starts with proper preparation. Pipe ends and cap bevels should be clean and free from oil, rust, scale, moisture, and other contaminants that could interfere with welding. The dimensions and alignment should also be checked before the components are joined.

The cap should match the specified pipe size and wall requirements, and the fit-up should follow the applicable welding procedure. If the components are misaligned or forced into position, unnecessary stress can be introduced into the connection before the system even reaches operating pressure.

Follow the Qualified Welding Procedure

For butt-welded pipe cap fittings, welding should be performed according to a qualified welding procedure applicable to the materials and service. Preheating, interpass temperature control, filler metal selection, and post-weld heat treatment may be required depending on the material and governing code.

This is particularly important for alloy steels and other materials where uncontrolled welding conditions can affect mechanical properties or increase the risk of cracking. Field welding should therefore be treated as an engineering-controlled activity rather than a simple installation step.

Inspect the Finished Connection

Inspection requirements depend on the applicable construction code, project specification, service category, and risk level. Visual examination is normally an important first step, while radiographic testing, ultrasonic testing, magnetic particle testing, or liquid penetrant testing may be required where specified.

Pressure testing may also form part of commissioning or system acceptance. A hydrostatic test can provide valuable confirmation of system integrity, but the test pressure and procedure must come from the governing design and testing requirements rather than being selected arbitrarily.

Maintaining Pipe Cap Fittings During Long-Term Operation

Watch for Corrosion and Mechanical Damage

A pipe cap may appear to be a simple component, but it remains exposed to the same environmental and process conditions as the surrounding piping. External corrosion, coating failure, mechanical impact, vibration, and localized damage should therefore be included in routine inspection programs.

Internal conditions may also matter when the cap remains connected to a process line. Changes in chemistry, moisture accumulation, or stagnant fluid can create corrosion conditions that were not present during the original design stage.

Use NDT According to the Actual Risk

Non-destructive testing can help identify defects without removing the component from service, but not every inspection method is appropriate for every material or defect type. Ultrasonic testing may be useful for examining certain internal or volumetric conditions, while magnetic particle testing is generally applicable to suitable ferromagnetic materials and is commonly used to identify surface and near-surface discontinuities.

Liquid penetrant testing can be useful for detecting surface-breaking defects on compatible non-porous materials, while radiographic testing can provide information about certain internal discontinuities. The inspection method and frequency should therefore be determined by the applicable code, operating history, material, and risk assessment rather than applying the same checklist to every installation.

Conclusion

For high-pressure piping systems to remain safe, reliable, and structurally sound, pipe cap fittings must be selected as part of the overall pressure-boundary design rather than treated as simple end closures. Material grade, pressure and temperature conditions, connection method, welding requirements, applicable standards, and inspection procedures all influence long-term performance.

Project owners and procurement teams should verify the relevant ASME or ASTM requirements, maintain clear material traceability, and confirm that the supplier can provide the required inspection and documentation package. A qualified manufacturer should also be able to discuss material selection, dimensions, manufacturing requirements, testing, and custom project needs before production begins.

When these factors are evaluated together, pipe cap fittings can provide dependable closure for demanding applications across oil and gas, petrochemical processing, power generation, water treatment, and industrial manufacturing. The goal is not simply to purchase a pipe cap that fits the pipe but to obtain a properly specified and traceable component that remains compatible with the system throughout its intended service life.

For more information or inquiries, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the primary function of a pipe cap fitting in a high-pressure system?

The primary function is to seal the end of a pipe securely, preventing leaks and maintaining system pressure integrity.

2. How do I choose the right material for a pipe cap fitting in a corrosive environment?

Consider factors such as chemical compatibility, operating pressure, and temperature. Stainless steel or specialized alloys are often suitable for corrosive environments.

3. Are there specific installation techniques for high-pressure pipe cap fittings?

Yes, proper cleaning, use of appropriate sealants, correct torquing procedures, and adherence to manufacturer guidelines are essential for safe installation.

4. How often should pipe cap fittings in high-pressure systems be inspected?

Regular inspections should be conducted based on system requirements, typically ranging from monthly to annual, with more frequent checks in critical applications.
