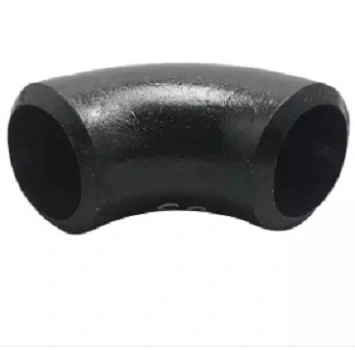

Sch 40 vs Sch 80 Carbon Steel Elbow: Key Differences Explained

Choosing between a Schedule 40 and Schedule 80 carbon steel elbow requires more than comparing two different wall thicknesses. The selected schedule can affect the available internal diameter, pressure capacity, weight, installation requirements, material cost, and overall piping design. For engineers, contractors, and procurement teams, understanding these differences is important when selecting fittings for process lines, utility systems, industrial piping, and other applications. A Sch 80 carbon steel elbow has a thicker wall than a Sch 40 elbow of the same nominal pipe size. This extra wall thickness may give higher structural capacity and a bigger corrosion allowance under suitable design circumstances, but it also decreases the internal diameter and can contribute to pressure loss. In contrast, Sch 40 elbows may function adequately in many conventional services with less material and typically cheaper buying cost. Thus, the correct selection relies on the particular design constraints and not on the theory that one schedule is always superior to the other. All of these — pressure, temperature, fluid characteristics, pipe size, relevant standards, installation circumstances, as well as project economics — must be taken into consideration prior to specifying the fitting.

Understanding the Difference Between Sch 40 and Sch 80 Elbows

Schedule 40 and Schedule 80 are not different types of carbon steel; they are classifications of pipe and fitting wall thicknesses. Schedule 80 components have a thicker wall than Schedule 40 components of the same nominal pipe size. But the actual wall thickness varies with nominal pipe size, so do not think of Schedule 80 as a single thickness.

This differential is important when engineers are evaluating carbon steel elbows for a pipe system. A thicker wall also means that there’s more material between the internal fluid and the exterior environment. The narrower bore modifies the hydraulic properties of the line. So the scheduling impacts several aspects of the design simultaneously.

The elbow must be dimensionally compatible with the pipe and other fittings that are integral to the system. Commonly referenced standards for factory-made wrought butt-welding fittings are, for example, ASME B16.9. Commonly, the pipe dimensions are defined according to standards such as ASME B36.10M for welded and seamless wrought steel pipe. Always refer to the appropriate project specification to discover whether standards and material requirements are applicable.

Why Sch 80 Carbon Steel Elbows Are Used in Demanding Piping Systems?

Thicker Walls Provide Greater Structural Capacity

The primary physical difference between Sch 40 and Sch 80 is wall thickness. For similar material and design circumstances, the wall thickness of a Sch 80 carbon steel elbow will be thicker to withstand internal pressure and certain mechanical stresses.

This property may make Schedule 80 fittings suitable for pipe systems when the design requirements need increased wall thickness. Heavy schedules may be specified when the engineering design requires them for industrial process lines and pressure-related services, and for systems subjected to rigorous operating circumstances.

However, Schedule 80 should not be assumed as a default high-pressure rating across the board. Allowable pressure of an elbow varies upon material grade, temperature, dimensions, manufacturing standard, design code, etc. Therefore, engineers should check the pressure-temperature requirements rather than picking the schedule based on wall thickness only.

Additional Wall Thickness Can Provide More Corrosion Allowance

Carbon steel may suffer from internal or exterior corrosion depending on the service environment. The thicker wall of carbon steel does not make it corrosion resistant, but it may provide more material that may be included in the corrosion allowance in a suitable design.

This difference is especially significant in the case of process plumbing. Where slow material loss is anticipated, engineers may define a wall thickness that will accommodate the predicted service conditions and necessary design life. Depending on the corrosion allowance computed and the project criteria applicable, Schedule 80 is suitable.

Consider material selection and corrosion control independent of the Schedule classification for aggressive services. Moving from Sch 40 to Sch 80 may be of less relevance than protective coatings, material improvements, process conditions, and other technical procedures.

Greater Wall Thickness Can Improve Resistance to Mechanical Loads

The piping systems are subject not just to internal pressure. Depending on the installation, elbows also might be subjected to external stresses from pipe supports, vibration, thermal expansion, equipment connections, and other mechanical circumstances.

The increased wall thickness of Schedule 80 may give more structural capacity if designed properly. This might be of value if the pipe layout is subjected to stringent mechanical conditions. But the whole pipe system still requires sufficient support and stress analysis, since a bigger elbow cannot compensate for a bad system design.

How Schedule Affects Flow and Pressure Loss?

A Smaller Bore Changes the Flow Area

Sch 40 and Sch 80 elbows may have the same nominal pipe size, but they are not the same inside diameter. The Schedule 80 wall is thicker, leaving a smaller interior opening.

This decrease in internal diameter may alter fluid velocity and pressure loss. The impact is greater for systems with high flow needs or when pumping energy is a considerable portion of operational expenses.

Hence, the engineers should analyse the overall hydraulic architecture before picking a heavier schedule. The elbow is not assessed independently of the pipe, valves, fittings, pump needs, and other components that are linked to the same line.

Pressure Loss Depends on More Than Wall Thickness

As seen in the original article, the larger pressure drop is largely due to the friction of the fluid with the pipe wall and the turbulence around the bend. The friction and the change in flow direction matter, but typically the pressure loss via an elbow is calculated based on the fitting shape, flow circumstances, fluid characteristics, and internal diameter.

For a given volumetric flow rate, if the bore is narrower, the velocity increases, which might increase the pressure loss. The local losses also depend on the radius and shape of the elbow. Thus, the engineering calculation should include the actual interior dimensions rather than assume a predetermined pressure-loss number when a system employs Sch 80 fittings.

This is especially relevant for lengthy process lines, pumping systems, and applications where the pressure available is restricted. A Sch 80 carbon steel elbow can help maintain suitable flow characteristics in such systems, although a little reduction of pressure at one elbow may not seem like much. When you have numerous elbows and other fittings in a system, however, the cumulative impact may be more evident.

Balancing Strength With Hydraulic Performance

The choice of Sch 40 vs. Sch 80 is often a compromise between mechanical needs and hydraulic efficiency. The thicker wall provides more structural capacity, but decreases the internal diameter for the same nominal pipe size.

If the system demands larger wall thickness due to pressure, mechanical loads, or corrosion allowance, the hydraulic repercussions should be incorporated in the design.  If flow efficiency is more essential in the system and Schedule 40 can meet the design pressure, there is no need to use a heavier schedule unless there is some special technical justification, which would add extra material and expense.

That is why the right question is not "Is Sch 80 stronger than Sch 40. A better issue is whether the increased wall thickness is needed by the actual operation and design circumstances of the pipe system.

Cost and Installation Factors in Schedule Selection

Material Weight Influences Purchase Cost

Schedule 80 elbows generally contain more steel than equivalent Sch 40 elbows of the same nominal size. The additional material can increase the fitting's weight and purchase price, although actual pricing also depends on material grade, size, manufacturing process, order quantity, market conditions, and supplier requirements.

For large industrial projects, even a moderate difference in fitting weight can become significant when hundreds or thousands of components are required. Procurement teams therefore need to consider the complete bill of materials rather than evaluating the price of a single elbow in isolation.

At the same time, choosing the lower-cost option is not necessarily appropriate if the piping design requires greater wall thickness. A fitting that does not satisfy the specified design conditions can create much greater project costs than the initial difference in purchase price.

Installation May Require More Planning

A heavier Schedule 80 elbow can also affect handling and installation. Larger fittings with thicker walls may require additional consideration during transportation, alignment, welding, and field assembly.

The welding procedure, pipe wall thickness, joint preparation, and applicable fabrication requirements should be compatible with the selected components. When Sch 80 fittings are connected to other pipe or fittings with different schedules, the transition and dimensional requirements should be reviewed carefully rather than assuming that nominal size alone guarantees compatibility.

Good procurement documentation can reduce these problems. Specifications should clearly identify the nominal size, schedule, material grade, fitting standard, elbow angle, connection type, and any inspection or certification requirements.

Long-Term Economics Depend on the Application

A Sch 80 carbon steel elbow can have a higher initial cost, but the economic comparison should be based on the entire service requirement. If additional wall thickness is needed to satisfy pressure or corrosion-allowance requirements, the higher material cost is part of achieving the specified design life.

In contrast, using Sch 80 in a system that does not require the additional wall thickness may increase material and installation costs without providing a corresponding engineering benefit. A sound cost comparison should therefore consider design requirements, expected service conditions, maintenance strategy, replacement requirements, and the consequences of selecting an unsuitable schedule.

How to Select the Appropriate Carbon Steel Elbow?

Start With Pressure and Temperature Requirements

Pressure and temperature are among the first factors that should be reviewed when choosing between Sch 40 and Sch 80. The selected elbow needs to meet the applicable design pressure and temperature conditions based on its material, dimensions, and governing standard.

A project should not specify Schedule 80 simply because it is described as a “stronger” option. Instead, the engineering calculation should establish the required wall thickness and pressure capability, after which the appropriate standard schedule or specified thickness can be selected.

Consider Fluid Characteristics and Corrosion Conditions

The transported medium can also influence material and wall-thickness requirements. Water, hydrocarbons, chemicals, gases, and process fluids can create very different service conditions.

If corrosion is expected, engineers should determine the required corrosion allowance and assess whether carbon steel remains suitable for the application. Increasing the schedule may provide additional wall thickness, but it does not change the basic corrosion characteristics of carbon steel.

Check Dimensional and Manufacturing Standards

A carbon steel elbow should be selected according to the dimensional and manufacturing requirements of the project. For butt-welding elbows, the applicable fitting standard should be confirmed along with the pipe standard and material specification.

The procurement specification should also identify whether the elbow is required to be long radius or short radius, depending on the application. End preparation, dimensional tolerances, heat treatment, testing, marking, and documentation may also be relevant depending on the applicable standard and project requirements.

Match the Elbow With the Complete Piping System

The elbow should never be treated as an isolated component. Its schedule, material, dimensions, and connection type need to match the surrounding pipe and fittings.

For example, selecting a Sch 80 elbow while the connected pipe and other components have different dimensional or pressure requirements can create unnecessary complications during fabrication. Reviewing the complete piping specification before ordering helps prevent mismatched components and unexpected field modifications.

Conclusion

The difference between Sch 40 and Sch 80 carbon steel elbow is primarily associated with wall thickness, but that difference influences pressure capacity, internal diameter, weight, flow characteristics, and cost. Schedule 80 provides a thicker wall and can be appropriate when the piping design requires additional structural capacity or corrosion allowance, while Schedule 40 may be sufficient for systems with less demanding design conditions.

The choice should therefore be based on the actual requirements of the piping system rather than assuming that a heavier schedule is always the better option. Pressure and temperature, fluid characteristics, corrosion allowance, hydraulic performance, applicable standards, installation conditions, and total project cost should all be reviewed before the specification is finalized. By matching the elbow schedule to the engineering requirements and confirming the relevant dimensional and material standards, project teams can achieve a practical balance between mechanical performance, flow requirements, and procurement cost.

For expert guidance on selecting the right carbon steel elbows for your piping system, contact Cangzhou Oudi Pipe Manufacture Co., Ltd. at oudi-04@oudiguandao.com.

FAQ

1. What is the main difference between Sch 40 and Sch 80 carbon steel elbows?

The main difference is wall thickness. Sch 80 elbows have thicker walls, providing higher pressure ratings and increased durability.

2. In which applications are Sch 80 carbon steel elbows preferred?

Sch 80 elbows are preferred in high-pressure systems, corrosive environments, and applications requiring enhanced mechanical strength.

3. How do Sch 80 elbows affect flow rates compared to Sch 40?

Sch 80 elbows have a smaller internal diameter, which can result in reduced flow rates and increased pressure drop compared to Sch 40 elbows.

4. Are Sch 80 carbon steel elbows more expensive than Sch 40?

Yes, Sch 80 elbows typically have a higher initial cost due to the increased material used in their construction.
