Seamless vs Welded Carbon Steel Elbows: Pros and Cons

When choosing between seamless and welded carbon steel elbows for industrial pipe systems, it is not a matter of selecting the strongest or cheapest product. The pressure capability, dimensional consistency, inspection requirements, production cost, and availability of the fitting are determined by the manufacturing procedure. The ultimate performance depends on the grade of material, wall thickness, design conditions, applicable codes, and the quality of production. Having an understanding of these factors will assist engineers, contractors, and purchasing teams to choose a fitting that will operate under actual service conditions. Seamless carbon steel elbows, seamless elbows, and welded elbows are often used in the pipe system. Seamless fittings are manufactured from seamless pipe or other suitable steel stock that does not have a longitudinal weld seam in the body of the fitting; welded elbows are manufactured from plate, strip, or welded pipe by forming and welding techniques. Both structures are to be seen in relation. However, a well-made welded elbow may provide dependable service in the application for which it is designed, but a seamless elbow may have manufacturing and performance attributes useful in more exacting usage. Those comparing these two alternatives should be asking the following questions: How will the elbow be used? What pressure and temperature must it withstand? What standard governs the fitting? What degree of inspection is required? How does the purchase price compare with the overall cost of the pipe system? These components provide a stronger basis for decision than the assumption that one structure is appropriate for all uses.

Understanding How Seamless and Welded Elbows Are Manufactured

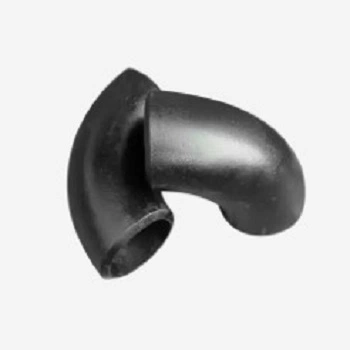

What Defines a Seamless Carbon Steel Elbow?

A seamless elbow does not feature a longitudinal welded junction in the fitting body.   Depending on the production route, the beginning material may be seamless pipe or any other acceptable steel product. This is manufactured as the desired elbow geometry. The forming process must produce the specified dimensions, material qualities, desired bend radius, and wall thickness.

As there is no longitudinal weld, there is no weld seam in the fitting that needs to be taken into account as part of the elbow body. This may be useful in circumstances when the design, specification, or customer has unique needs for seamless construction. However, it should be remembered that the lack of a weld seam does not ensure better performance in all working situations. The fitting must still comply with the set material specification, dimensions, pressure design, and inspection standards.

For projects using seamless carbon steel elbows, buyers should therefore look beyond the product name.   The suitability of the fitting for the piping system is determined by material grade, nominal size, wall thickness, bend radius, manufacturing standard, heat treatment (if applicable) and inspection documentation.

How Welded Elbows Are Produced?

Welded elbows are fabricated by shaping steel plate, strip, or welded pipe in the required shape and welding where necessary to join them.  Modern manufacturing processes can give controlled dimensions and consistent weld quality if production is made according to the applicable specification.

The weld itself becomes a key part of quality control.  Depending on the project specification and governing standard, the manufacturers may need to control the welding procedures, qualified personnel, heat treatment, dimensional tolerances,s and nondestructive examination.  The quality of the finished elbow therefore depends not only on the fact that it is welded, but also on how the welding and subsequent inspections are carried out.

This distinction is important when comparing prices. Seamless carbon steel elbows should not automatically be treated as a lower-grade alternative to welded elbows. If the fitting is manufactured from an appropriate material, meets the required dimensional and mechanical requirements, and passes the specified inspections, it can be suitable for many industrial piping applications.

Where Seamless Construction Can Offer an Advantage?

Consistent Fitting Body Without a Longitudinal Weld

Seamless construction is characterised by the lack of a longitudinal weld in the fitting body. For systems in which the design specification requires seamless fittings, this architecture may help reduce the material selection and quality-control requirements of the fitting itself.

This may be especially important when the pipe system runs under difficult pressure or temperature conditions. In these kinds of applications, engineers often look at the whole pressure design, not just one attribute of the fitting. The material grade, wall thickness, geometry, operating temperature, and design code used determine the acceptable service conditions.

Therefore, seamless construction might be an alternative when the project specification calls for seamless fittings and the engineering design leans toward this style of construction. Instead, it needs to be chosen according to the relevant standard. A weld-seamless material is not automatically acceptable.

Suitable for Demanding Process Piping

Seamless elbows are often used in challenging process pipe applications, where specifications necessitate tight criteria for the construction and material quality of the fittings. Seamless fittings may be used in oil and gas processing, petrochemical plants, power generation, and other industrial systems provided the project specification requires them.

The main benefit in these situations is not only that the fit is “stronger.” Seamless construction, however, may provide a suitable body without a longitudinal welded junction, which may mitigate certain elements of material qualification and inspection. The impact of this discrepancy on the system performance is a function of the unique design and operating circumstances.

For example, a high-pressure pipe system may need a certain carbon steel quality, schedule, pressure class, impact testing requirement, or level of nondestructive inspection. If this is the case, the fitting must be chosen as part of the overall pipe specification. Seamless construction may be one of the many requirements, but not the sole criteria, for appropriateness.

Performance Depends on More Than Seamless Construction

The initial notion that seamless carbon steel elbows invariably give higher corrosion resistance, longer service life and reduced maintenance needs is overly broad. The corrosion behaviour of carbon steel is very sensitive to the process medium, temperature, moisture, oxygen content, chemical environment, flow conditions, coating or lining systems, and the overall pipe design.

Likewise, service life cannot be anticipated purely from whether an elbow is seamless or welded.  A correctly made welded fitting with the right material and inspection may work dependably for many years, but a seamless fitting might still suffer corrosion, erosion, fatigue, or other types of deterioration if the operating circumstances are inadequate.

So experienced engineering teams look at the whole specification and don’t take a smooth build as a performance guarantee for everybody. When the application is essential, material certifications, dimensional inspection records, mechanical test results, and related nondestructive examination reports may be more beneficial to the buyer than a blanket assertion that one production technique is always preferable.

Why Welded Elbows Remain Important for Industrial Projects?

Competitive Manufacturing and Purchase Costs

Welded elbows can offer a cost advantage because their manufacturing process can be well suited to certain sizes, wall thicknesses, and production requirements. The actual price difference varies according to steel prices, dimensions, order quantity, manufacturing route, inspection requirements, and market conditions, so it is not accurate to state that every welded elbow will always be cheaper than every seamless elbow.

For projects with many fittings, however, manufacturing economics can have a noticeable effect on procurement costs. When the design permits either construction, purchasing teams may compare the initial fitting price with other factors such as delivery time, inspection requirements, documentation, installation, and expected maintenance.

This approach is more useful than selecting a product solely because it has the lowest unit price. For seamless carbon steel elbows, a fitting that is less expensive but does not match the project's specifications can create additional engineering or procurement work. Conversely, specifying a more demanding construction than necessary can increase material costs without providing a meaningful benefit for the intended service.

Flexible Options for Different Piping Designs

Welded manufacturing can provide useful flexibility for certain dimensions and configurations. Large-diameter fittings and applications with particular dimensional requirements may be produced using manufacturing routes that involve forming and welding. This can make welded construction practical for projects where standard seamless options are difficult to source or where the required dimensions favor another production method.

The suitability of a welded elbow still depends on the applicable product standard and the design requirements. Engineers should confirm the fitting's nominal size, outside diameter, wall thickness, bend radius, material grade, end preparation, and dimensional tolerances before placing an order.

For general industrial piping, water treatment, HVAC-related industrial systems, structural process applications, and other services with appropriate pressure and temperature conditions, welded elbows can provide a practical solution when they meet the required specifications.

Availability Can Influence the Procurement Decision

Product availability is another factor that is often overlooked during technical comparisons. A project may require a particular size, schedule, material grade, or bend radius within a short delivery window. If one construction method is readily available while the other requires additional manufacturing time, the difference can affect the project schedule.

However, lead time should not be generalized as an inherent characteristic of seamless or welded construction. It depends on the supplier's inventory, production capacity, material availability, order quantity, inspection requirements, and current workload. A supplier with established production resources may be able to provide either type within a practical timeframe.

For this reason, buyers should ask suppliers for an actual delivery schedule rather than assuming that welded elbows are always immediately available or that seamless carbon steel elbows always have long lead times.

Comparing the Two Options Under Real Operating Conditions

Pressure and Temperature Should Guide the Selection

Pressure and temperature are among the first parameters engineers should review when selecting a carbon steel elbow. The fitting must be compatible with the design pressure, operating temperature, pipe schedule, material grade, and relevant piping code.

Seamless construction may be specified for certain demanding services, but the absence of a weld does not eliminate the need for engineering verification. A fitting with insufficient wall thickness or an unsuitable material grade cannot become appropriate simply because it is seamless.

The same principle applies to welded elbows. A welded fitting designed and manufactured according to the applicable specification can be suitable for many pressure-containing systems. The quality of the weld, manufacturing controls, and required inspections become particularly important when the service conditions are demanding.

Fluid Characteristics and Service Environment Matter

The medium transported through the piping system also affects elbow selection. Water, hydrocarbons, steam, chemicals, gas, and abrasive process fluids can impose different requirements on material selection and system design.

Carbon steel is widely used because of its combination of mechanical properties, availability, and cost, but it is not universally resistant to every process environment. If corrosion is a concern, engineers may need to consider corrosion allowance, coatings, internal linings, material upgrades, or other design measures. Selecting a seamless elbow alone does not solve an unsuitable material-selection problem.

Flow conditions can also influence fitting performance. Elbow geometry, bend radius, internal surface condition, and system layout can affect pressure loss and flow behavior. For this reason, the choice should consider the entire piping system rather than focusing only on the manufacturing method of one component.

Standards and Inspection Requirements Need Careful Review

Standards provide a critical reference when purchasing carbon steel elbows. ASME B16.9, for example, covers factory-made wrought butt-welding fittings and specifies requirements such as dimensions, tolerances, and testing-related provisions. It should not be described as a standard specifically for cast steel butt-welding fittings.

Other material and piping standards may apply depending on the project, material grade, industry, and service conditions. The applicable specification should therefore be confirmed before purchasing rather than assumed from the fitting name alone.

Inspection requirements are equally important. Depending on the project, buyers may require material test certificates, dimensional inspection, mechanical testing, chemical composition verification, visual examination, and nondestructive testing. For welded products, additional requirements may apply to weld quality and examination. The exact requirements should be established in the purchase specification and relevant codes.

Conclusion

The choice between seamless and welded carbon steel elbows should be based on engineering requirements rather than a simple assumption that one construction is always better than the other. Seamless carbon steel elbows provide a fitting body without a longitudinal weld and may be specified for demanding applications where this construction is required or preferred. Welded elbows can offer practical manufacturing and cost advantages and can perform reliably when their materials, welding quality, dimensions, and inspection requirements meet the applicable specifications.

Pressure, temperature, fluid characteristics, pipe dimensions, material grade, applicable standards, inspection requirements, availability, and total procurement cost should all be considered before making a final selection. By evaluating these factors together, engineers and purchasing teams can choose a carbon steel elbow that fits the actual requirements of the piping system instead of relying on general assumptions about seamless or welded construction. For expert guidance and high-quality carbon steel elbows, consider reaching out to Cangzhou Oudi Pipe Manufacture Co., Ltd. at oudi-04@oudiguandao.com.

FAQ

1. What is the main difference between seamless and welded carbon steel elbows?

Seamless elbows are made from a single piece of steel without welding, while welded elbows are created by bending and welding steel plates or pipes.

2. When should I choose seamless carbon steel elbows over welded ones?

Seamless elbows are preferable for high-pressure, high-temperature, or critical applications where maximum strength and reliability are required.

3. Are welded carbon steel elbows less durable than seamless elbows?

While generally not as strong as seamless elbows, welded elbows can still be sufficiently durable for many standard industrial applications when properly manufactured and tested.

4. How do the costs compare between seamless and welded carbon steel elbows?

Welded elbows are typically more cost-effective due to simpler manufacturing processes, while seamless elbows are more expensive but may offer better long-term value in critical applications.
