Tee Fitting Size Chart: From DN15 to DN600 Explained

Professionals in many fields, from plumbing and building to industrial manufacturing, need to know how to use tee fitting size charts correctly. Choosing the appropriate tee fitting is more than just matching a nominal size to a pipe. A tee is a branch connection in a piping system; therefore, its size must be compatible with the run pipe, the branch pipe, the connection technique, wall thickness, and the appropriate standard. Referencing a good tee fitting size chart would greatly simplify this operation, particularly for diameters ranging from DN15 to DN600. Rather than using DN as the single decision element, the most effective technique for engineers, contractors, and buying teams is to interpret a T-size chart as part of the overall fitting specification. The chart may assist in determining nominal size, outside diameter, center-to-end measurements, wall thickness or schedule information, and other characteristics necessary for installation. Also, the pressure and temperature requirements have to be confirmed against the material and the applicable design standard. This difference is crucial because a fitting of the proper nominal size may not be the suitable fitting for all pipe services.

How Should You Read a Tee Fitting Size Chart?

A tee fitting size chart is mostly a reference of dimensions; before comparing sizes of particular items, it is useful to understand what the numbers truly mean and what measures are important to the link being built.

DN Identifies Nominal Size, Not the Actual Inside Diameter

DN is the nominal diameter. It is used to describe the approximate size of components in metric-based pipe systems. This should not be confused with the actual inside diameter of a tee or pipe. The actual flow passage is dependent on the outer diameter and wall thickness of the pipe, and the dimensions of a fitting are also dependent on the relevant manufacturing standard.

For example, a DN15 is often linked with a modest nominal pipe size, whereas a DN600 is a considerably bigger piping connection. But just because you see DN100 on a schematic, it doesn't mean you know all the practical dimensions of the fitting. The engineer or buyer must still verify whether the tee is equal or reducing, the kind of end connection, and which dimensional standard applies.

This is one of the biggest causes of misunderstanding when seeing a size chart. A nominal size is a good starting point but should not be used in place of the whole dimensional specification.

Check the Run and Branch Dimensions Separately

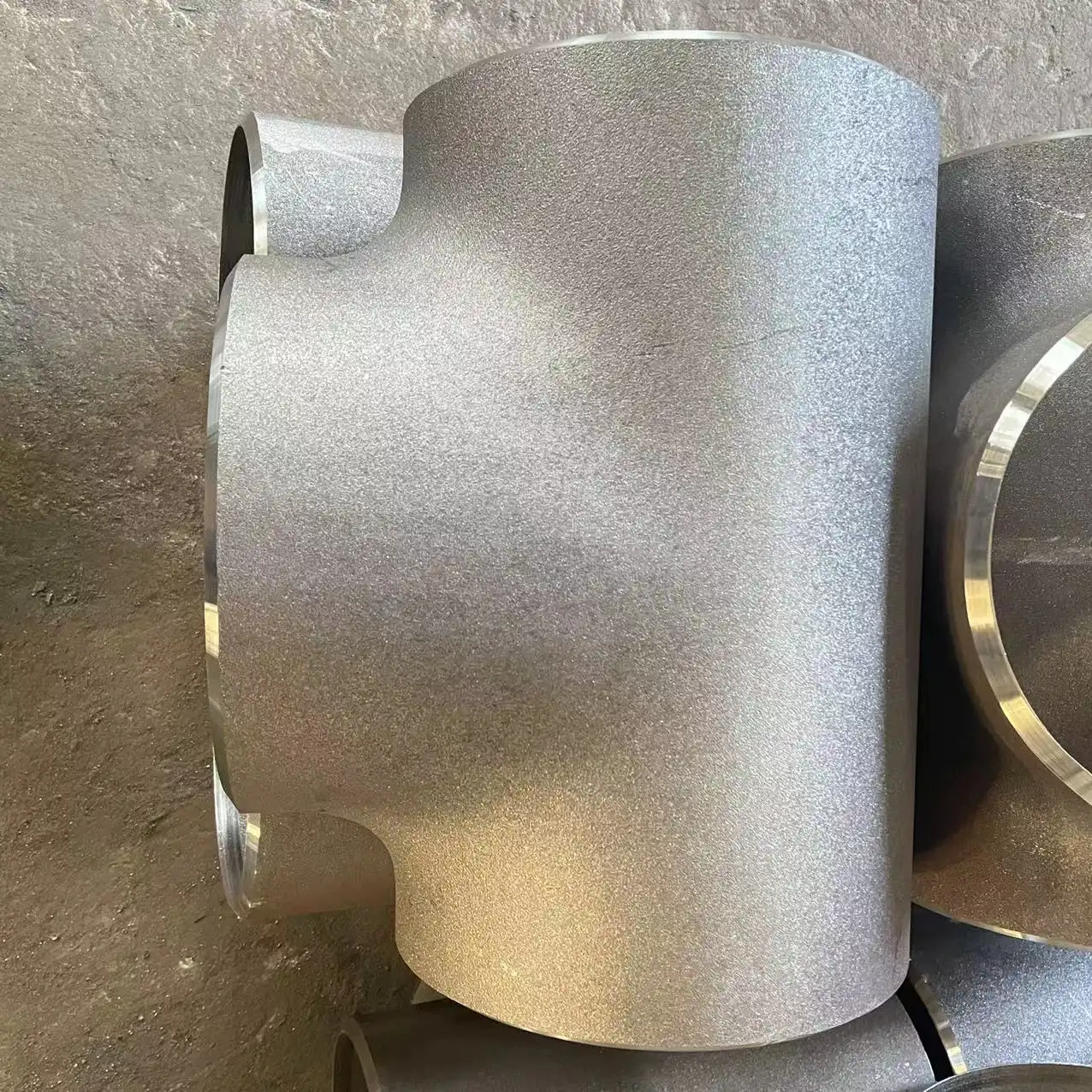

A conventional tee has three apertures; the main line goes on through the fitting, and the branch gives the extra connection. The branch of a decreasing tee is often a different or lower size, but an equal tee will usually have the same nominal size for all three apertures.

This difference is especially relevant when choosing a tee from DN15 to DN600. Though each of them has DN150 in the description, a DN150 equal tee and a DN150 × DN100 reduction tee are not interchangeable. The branch connection has to be able to be physically linked to the pipe.

So a good size chart should clear up the three connector sizes. For a tee with equal openings, the identification may be simple since all openings are of the same nominal size. For a decreasing tee, you must read the run and branch size together to determine the proper configuration.

Look beyond the DN at the outside diameter and wall thickness

The nominal size is not sufficient for welded pipe systems. The exterior diameter and wall thickness of the connected pipe affect fit-up and welding preparation. The fitting should also be constructed within the dimension tolerances prescribed by the relevant standard.

Wall thickness is a critical consideration, especially if the tee is mated to various schedule pipes. Although a size chart may offer dimensional information, design pressure must include material, temperature, wall thickness, corrosion allowance if necessary, and the relevant piping code.

It is thus best to conceive of a tee specification as a mix of size and construction parameters, using tee fitting size charts as a reference rather than relying on a single DN number. This strategy avoids the danger of buying a fitting that seems right on paper but does not match the pipe system after installation.

Which Dimensions Matter Most from DN15 to DN600?

As the pipe system becomes bigger, it is more and more vital to look at the full dimensional model rather than just one size indication. A tee fitting size chart may provide you a helpful overview, but the details needed will depend on the kind of fitting and standard.

Center-to-End Dimensions Affect Installation Space

The center-to-end dimension is the distance the fitting extends from the centerline of the branch connection to the end of the run or branch. This size is important for planning out pipe since it impacts the area available for installation and the location of nearby valves, flanges, elbows, supports, and equipment.

That minor variation may not matter in a basic piping setup, but it might be substantial in a busy facility or prefabricated pipeline assembly. Larger tees also place greater importance on installation clearances and handling requirements.

So when examining a chart, engineers should check the stated dimensions with the arrangement of the pipe, not assume that all tees of the same DN take up the same amount of space.

Equal tees and reducing tees need different size references

Equal tees are often easy to spot since the three apertures have the same nominal size. Tee reductions need extra care, since the branch and run may be of different nominal diameters.

For example, a reducing tee may be named by the run size followed by the branch size. The specific naming system might vary, depending on the manufacturer’s catalog or the appropriate standard, so it’s a good idea to verify the product drawing before purchase.

This differentiation is particularly significant when trading in the range DN15 to DN600. A project may include a combination of equal and reducing tees, and selecting simply the biggest DN in a design might lead to the selection of the incorrect component.

Schedule Should Be Matched to the Piping Specification

A schedule is used to provide a range of wall thicknesses for certain pipe diameters. This is not to be used as a general pressure rating. For a particular nominal pipe size, a higher schedule often means a thicker wall. Allowable pressure depends on the required technical calculations and applicable standards.

The purchaser should check the necessary wall thickness or schedule against the connecting pipe requirement for a tee fitting. This is particularly the case if the pipe is exposed to high pressure or temperature or where corrosion tolerance has been included in the design.

The proper way is to check the dimensions data in the tee fitting size charts against the project pipe specification and verify pressure-temperature adaptability per the appropriate material and design standards.

Which Standards Should Be Used with Tee Dimensions?

One problem with a generic tee fitting chart is the measurements might be deceptive if the relevant standard is not mentioned. Different standards are applicable to different kinds of fittings; hence, the table should always be read in conjunction with the product specification.

ASME B16.9 for Factory-Made Butt-Welding Fittings

ASME B16.9 is a critical reference for factory-made wrought butt-welding fittings. The current version of ASME B16.9 includes overall dimensions, tolerances, ratings, testing, and marking for fittings from NPS 1/2 through NPS 48, or DN15 through DN1200. This implies a guide from DN15 to DN600 is included in this wider standard size range.

This difference provides valuable context to a shirt fitting size chart and tee fitting size charts. The graphic should not only display sizes without specifying the standard underlying them. When the project specification requires an ASME B16.9 butt-welding tee, the purchaser should confirm the dimensions and product identification of the manufacturer are in accordance with that standard.

ASME B16.9 is used in conjunction with other ASME pipeline standards rather than a full replacement of engineering design criteria. Additional standards or project requirements may be required for material selection, system design, manufacturing, inspection, and operating conditions.

Other Connection Types Require Different References

Not all tees are butt-welding fittings. Threaded tees and socket-welding tees are standards by themselves. One example is ASME B16.11, which defines ratings, dimensions, tolerances, marking, and material standards for forged socket-welding and threaded fittings.

This is important when comparing items from various vendors. Two tees might have the same nominal size but employ distinct connecting techniques, therefore requiring various dimensional references.

For flanged systems, additionally consider the requirements for flanged fittings and the flanges. This standard specifies the pressure-temperature ratings, materials, dimensions, tolerances, labeling, testing, and designations for the opening of pipe flanges and flanged fittings from NPS 1/2 to NPS 24.

The practical lesson is simple: don’t choose a tee just because the DN number matches. The kind of connection and the standard that applies must be confirmed, and the data of the relevant standard used must be confirmed.

How Do Tee Size Requirements Change by Application?

The basic dimensions of a tee remain important in every industry, but the material, connection, pressure, temperature, corrosion resistance, and inspection requirements can change significantly between applications.

Oil and Gas Piping Requires More Than a Size Match

Oil and gas piping can involve high pressure, elevated temperatures, corrosive media, and demanding operating environments. In these applications, tee selection usually involves a combination of nominal size, wall thickness, material grade, manufacturing standard, and project-specific requirements.

A DN300 tee, for example, cannot be selected simply because the branch and run connections are DN300. The buyer may also need to verify the material specification, pressure-temperature requirements, welding requirements, inspection level, and documentation.

For projects involving sour or otherwise aggressive service, additional material and service requirements may also apply. This is why experienced procurement teams normally treat the size chart as one part of the technical purchasing package rather than as the complete product specification.

Chemical Processing Places Greater Emphasis on Material Compatibility

Chemical plants often handle fluids that can attack unsuitable materials. In these systems, the tee's nominal dimensions still need to match the piping, but material compatibility may become the deciding factor.

Stainless steel, alloy steel, and nickel-based alloys can be selected for different service conditions, depending on the chemical environment and operating temperature. Surface condition, fabrication requirements, and inspection documentation may also be relevant.

A tee fitting size chart can help identify the required dimensions, but it cannot determine whether a particular alloy is suitable for every chemical service. Material selection should be based on the process conditions and the project's engineering specification.

Water and Wastewater Systems Focus on Reliability and Flow

Water distribution and wastewater systems often use larger pipe sizes, making DN200, DN300, DN400, DN500, and DN600 tees relevant in larger installations. At these sizes, dimensional accuracy, joint configuration, weight, handling, and installation space can all influence project planning.

For potable water service, the product must also meet the applicable requirements for the intended market and application. Certification requirements should be verified separately rather than assumed from the nominal size or material name.

For municipal and industrial water systems, the tee also affects the branching arrangement and local flow path. Engineers therefore need to consider the complete piping layout rather than choosing a tee based only on the information provided in tee fitting size charts.

How Can Standardized Tee Dimensions Improve Procurement?

Standardization can make component selection easier, but it should not be confused with universal interchangeability. A standardized dimensional system provides a common reference, while the actual product still needs to meet the required standard, material specification, tolerances, and connection requirements.

Consistent Dimensions Make Supplier Comparison Easier

When manufacturers follow the same applicable dimensional standard, engineers can compare products more efficiently. A procurement team can review the same basic dimensional parameters across multiple suppliers and identify whether a proposed tee is suitable for the project.

This is particularly valuable on projects where fittings are sourced from more than one manufacturer. Instead of comparing completely different measurement systems, the purchasing team can work from a common technical reference.

However, the product documentation should still be checked carefully. Manufacturing tolerances, material grades, testing requirements, marking, and special dimensions may differ according to the product specification or purchaser requirements.

Standard Data Helps With Piping Design

Consistent dimensional information also makes piping design and fabrication more straightforward. Engineers can use established dimensions when preparing layouts, estimating installation space, and coordinating tees with other components.

For prefabricated piping, accurate center-to-end dimensions are particularly useful because a small dimensional discrepancy can affect spool fabrication and field installation. In larger systems, the impact can extend to support locations, equipment connections, and access clearances.

Using reliable dimensional data early in the design process can therefore reduce avoidable changes later. The key is to use the correct standard and the manufacturer's approved drawing rather than relying on a generic chart alone.

Better Documentation Supports Maintenance and Replacement

A clear dimensional record is also useful after the original installation. When a tee eventually needs to be replaced, maintenance personnel need more than its nominal DN. The replacement may need to match the connection type, material, wall thickness, dimensions, and applicable standard.

Keeping the original product drawing, material certificate, inspection records, and purchase specification can make future replacement much easier. This is especially useful for large industrial systems, where an incorrectly specified replacement can create installation delays and additional fabrication work.

What Should Buyers Check Before Ordering a Tee?

Before placing an order, it is useful to compare the tee fitting size chart with the actual piping specification. The first check should be the nominal size of the run and branch. The next should confirm whether the fitting is equal or reducing and whether the connection is butt-welded, socket-welded, threaded, flanged, or another configuration.

The buyer should then verify the applicable dimensional standard, material grade, wall thickness or schedule, design pressure, design temperature, and any corrosion allowance specified by the project. For welded fittings, the end preparation and dimensional tolerances may also matter during fabrication.

Supplier documentation is another important part of the process. A professional manufacturer should be able to provide technical drawings and relevant quality documentation for the supplied fitting. Depending on the project, this may include material certificates, dimensional inspection records, pressure-test documentation, or other inspection records required by the purchase specification.

This approach is more reliable than choosing a product from a DN number alone. It also gives procurement teams a clearer basis for comparing quotations from different manufacturers.

Conclusion

Understanding how to read tee fitting size charts is an important part of selecting the right branch connection for industrial and commercial piping systems. The DN15 to DN600 range covers many common applications, but nominal size is only the starting point. Actual selection also depends on whether the tee is equal or reducing, the dimensions of the run and branch, wall thickness or schedule, connection type, material, and applicable manufacturing standard.

For butt-welding fittings, ASME B16.9 provides an important dimensional reference and currently covers DN15 through DN1200, while other connection types may fall under different standards such as ASME B16.11. A reliable size chart is therefore most useful when it is read together with the manufacturer's technical drawing and the project's piping specification.

For buyers and engineers, the safest approach is to treat the chart as a technical reference rather than a standalone purchasing decision. Confirming the complete dimensional and service requirements before ordering helps reduce compatibility problems, fabrication changes, and installation delays while making it easier to select a tee that fits the actual piping system.
