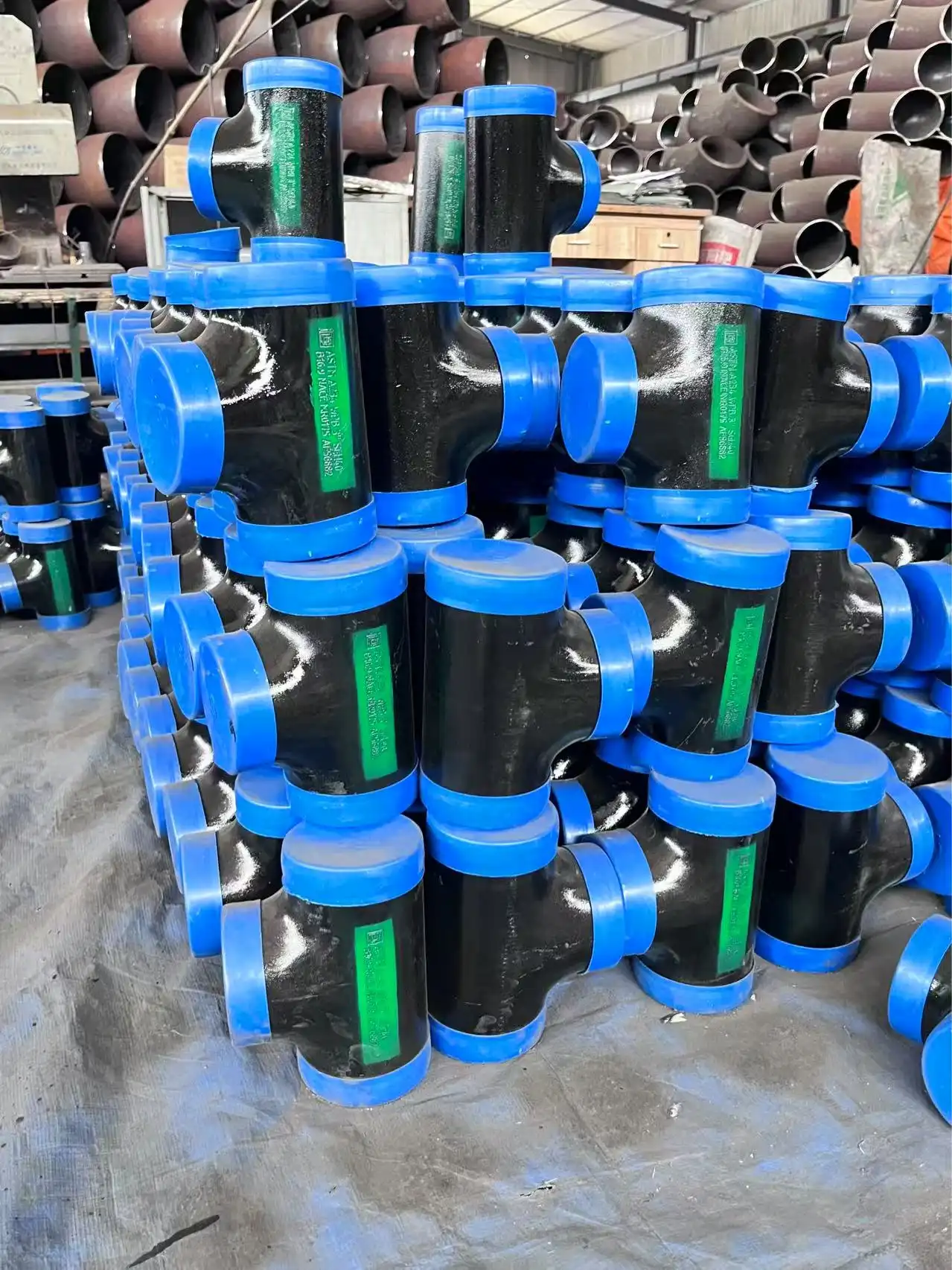

High-Pressure Pipe Tee Applications in Oil and Gas Industries

Oil and gas piping systems often have to carry fluids and gases under demanding combinations of pressure, temperature, flow rate, and corrosive exposure. Within these systems, a pipe tee provides a practical way to create a branch connection without introducing a separate connection point for every change in routing. High-pressure pipe tees are therefore used in a range of applications where the piping network needs to divide, combine, or redirect flow while maintaining the required mechanical integrity of the system. The value of a tee is not only in the fact that it can join three pipes. The size, wall thickness, material, branch arrangement and connecting technique must all be suitable for the working circumstances of the system. For oil and gas facilities, the selection process may additionally take into account pressure and temperature ratings, welding requirements, corrosion concerns, inspection protocols, and project-specific standards. Understanding these characteristics enables engineers and procurement teams to choose a tee that is suitable for the real service, not for all high-pressure applications equally.

Where Are High-Pressure Pipe Tees Used in Oil and Gas Systems?

Production and gathering pipelines

Gathering systems in oil and gas production are used to collect fluids from various wells or production locations and transport them to processing facilities. The tee may be used to link the main collecting line to another pipeline, equipment connection or auxiliary system. How they are arranged precisely relies on the plant architecture and the direction in which the fluids need to flow.

In these applications the tee chosen must be based on pressure, temperature, fluid composition, pipe diameters and appropriate design criteria. The multiphase fluids, crude oil, natural gas and generated water react in various ways in the pipe system, and so the fitting material and geometry cannot be chosen independently of the service circumstances.

A suitable tee definition may help simplify the whole routing of a gathering network. Instead of having to make a difficult set of individual connections, engineers may utilise an appropriate branch fitting at the point where a new line is needed. This may make the arrangement simpler to comprehend and also give a better-regulated connection between the main pipe and the branch pipe.

Refineries and gas processing facilities

Refineries and gas processing facilities have large networks for the movement of hydrocarbons, process gases, steam, water and other fluids. These networks often have tee fittings included when a single process line has to feed several destinations or where different flow routes need to be combined into a common system.

The demands might be higher if the pipe is carrying hot hydrocarbons, high-pressure gas or fluids containing corrosive components. Such case studies further underscore the importance of material choice and production quality. A tee that is good for moderate-temperature utility service may not be suitable for high-temperature hydrocarbon service merely because the nominal pipe size is the same.

Also, the connection of the tee to the adjacent pipe is of importance. Configurations that are butt-welded are common in process pipes when a permanent, strong connection is needed. The optimal configuration will depend upon the piping design and the standard that applies. The quality-control process may include welding methods, welder qualifications, heat treatment regulations, and nondestructive inspection.

Offshore and high-pressure facilities

The restricted space availability and exposure of equipment to harsh climatic conditions impose further pressures on pipe components in offshore oil and gas operations. Piping may also be exposed to vibration, temperature cycling, mechanical stress and corrosive maritime conditions.

In these systems, the tee is more than just a pressure-containing fitting. Engineers must additionally examine the effect the branch connection will have on pipe flexibility, support needs, local stresses and accessibility for inspection. From a planning standpoint a tiny fitting might seem appealing, but the final design must satisfy installation, welding, inspection and maintenance requirements.

Offshore servicing may also focus more on material and surface protection, particularly when high-pressure pipe tees are used in demanding applications. The right choice relies on the medium being carried and the external environment, not on the word “offshore” itself.

What Advantages Do High Pressure Pipe Tees Offer?

Efficient branching without unnecessary piping complexity

The tee is used primarily to make a branch in a pipe system. This way a primary pipeline may be connected to another line without the architecture being too complicated. This functionality might be valuable in oil and gas facilities when a process stream has to be directed to various pieces of equipment or where many lines need to join in a confined location.

However, efficient pipe layout does not entail that every system should have as many tees as feasible. Each branch adds a local fitting loss and a change of flow direction. Engineers should consequently assess the tee’s location in relation to the piping design, not only assess the fitting alone.

The branch configuration is also important. Equal Tees have branch connections equal to the nominal size of the run. Reducing tees have a branch connection of a reduced size. The choice of one of these layouts relies upon the flow channel needed, size of pipe, pressure conditions, and equipment downstream.

Mechanical integrity under demanding conditions

High-pressure piping should retain structural integrity across the projected working range. Thus, the tee has to have enough wall thickness and material strength to withstand the design pressure and temperature and the ability to absorb the stresses transferred by the linked pipe.

The real performance of high-pressure pipe tees relies on the material grade, quality of manufacture, dimensions, quality of welds, and service circumstances. It would be inaccurate to believe that every tee classified as “high pressure” performs the same way. The pressure capacity must be determined by the appropriate design code, material specification, dimensions, and project requirements.

This is especially crucial for systems subjected to recurrent temperature fluctuations or mechanical stresses. Thermal expansion may impose loads on branch connections, and over time vibration and unsupported pipe weight can further influence the fitting. Thus, proper engineering is both component selection and proper pipeline support.

Better control of material and maintenance requirements

A well-specified tee also allows for more predictable maintenance planning. When the fitting material, measurements, and manufacturing records are accurately recorded, operators have a superior foundation for future inspection and replacement decisions.”

Material selection for corrosive services should be representative of the real chemical environment. Carbon steel may be enough for certain applications, whereas stainless steel or alloy materials may be used for services where more resistance is needed. In sour service applications, extra material requirements may be necessary, and conformity with the applicable project/industry criteria should be checked prior to purchase.

It’s not just a question of picking the most costly material. The selection should be a mix of mechanical requirements, corrosive conditions, fabrication concerns, availability, and life cycle cost.

How Should High-Pressure Pipe Tees Be Selected for Oil and Gas Service?

Start with pressure, temperature, and pipe dimensions

Pressure and temperature are among the criteria that are initially determined while choosing a tee. The fitting must be compliant with the pipe system’s design circumstances, including the intended operating range and any applicable pressure or temperature excursions.

Fitting suitability cannot be determined by nominal pipe size alone. The exterior diameter, wall thickness, branch size, material grade, and connection measurements all must match the neighboring pipe and project requirements.

Engineers also need to examine if the tee is in a line transporting liquid, gas, or multiphase fluid, as high-pressure pipe tees may require additional consideration. The behavior of the medium may influence the flow distribution and pressure losses via the branch connection. Critical systems may consequently need hydraulic calculations and stress analysis before a final fitting arrangement can be authorized.

Match the material to the service environment

Material selection is another important factor for oil and gas applications. A tee in a dry gas system may experience quite different circumstances than a tee exposed to generated water, sour gas, or high-temperature process fluids.

Carbon steel remains the most prevalent material for many pipe applications in oil and gas, based on its mechanical qualities, availability, and affordability. However, the choice of material should be governed by the service circumstances rather than by cost alone. In cases when corrosion, temperature, or fluid chemistry imposes extra demands, stainless steels or alloy materials may be used.

Special consideration should be given to sour service applications since hydrogen sulfide-rich conditions are particularly dangerous to vulnerable materials. For the application, the procurement specification might relate to requirements linked with NACE or ISO standards. These criteria should be validated from the technical documentation of the project and not inferred from the general description of the product.

Check manufacturing, welding, and inspection requirements

The quality of a high-pressure tee is highly dependent on the way it is made and examined. Proper fit of the tee to the surrounding pipe requires dimensional correctness. Material traceability is vital to ensure the fitting provided is as per the authorized specification.

Prior to fabrication the welding technique and inspection standards for welded connections should be determined. Inspection may comprise visual examination, dimensional inspection, radiographic or ultrasonic examination, and other nondestructive testing procedures depending on service and project requirements.

Some materials, thicknesses, or applications may also need heat treatment. If documentation is required, the manufacturer should perform the necessary procedure on the appropriate material and project requirements and give the appropriate records rather than the same process for all tees.

Which Standards Are Relevant to High-Pressure Pipe Tees?

Dimensional and fitting requirements

For many butt-welded fittings used in process and power piping, ASME B16.9 is an important reference for dimensions, tolerances, and related requirements for factory-made wrought butt-welding fittings. The applicable standard should nevertheless be confirmed against the specific product and project specification.

Other standards may apply depending on the material, pipe system, connection type, and industry application. ASTM material specifications can define chemical composition and mechanical requirements for particular steel grades, while project documents may impose additional requirements for testing, traceability, heat treatment, or documentation.

This distinction is important because compliance is not simply a matter of putting a standard number on a product datasheet. The fitting, material, manufacturing process, testing, and documentation all need to correspond with the requirements that actually apply to the project.

Project-specific documentation and quality records

Oil and gas buyers often need more than high-pressure pipe tees that match the required dimensions. Depending on the project, procurement documentation can include material certificates, heat numbers, dimensional inspection records, test reports, nondestructive examination results, and other quality documents.

Clear documentation also makes it easier to trace the fitting back to its material and manufacturing batch. This can be especially useful for safety-critical or highly regulated piping systems, where component records may need to be retained throughout the project lifecycle.

Before production begins, buyers should therefore confirm the required documentation package with the manufacturer. Doing this early reduces the risk of receiving technically acceptable fittings with incomplete records that later create delays during inspection or project handover.

How Do High-Pressure Pipe Tees Affect Flow Performance?

Branch geometry and flow direction

A tee changes the flow path of a piping system, so its geometry has a direct relationship with local flow behavior. When fluid passes through the run and enters a branch, or when streams combine through the tee, turbulence and local pressure losses can occur.

The magnitude of these effects depends on the tee geometry, flow rate, fluid properties, pipe dimensions, and flow direction. For that reason, it is not technically accurate to describe every tee as automatically reducing pressure loss. Instead, a properly selected and correctly installed fitting helps engineers achieve a predictable piping configuration that can be evaluated during hydraulic design.

In systems where flow balance is particularly important, the location and orientation of branch connections should be considered together with valves, pumps, compressors, separators, and other equipment. This system-level approach is more reliable than focusing on the tee as an isolated component.

Pressure control and system reliability

A high-pressure piping system has to maintain the required pressure conditions while avoiding unnecessary restrictions and excessive local stresses. Tee selection contributes to this objective, but it is only one part of the overall system design.

Pipe diameter, valve selection, pump or compressor capacity, line length, elevation changes, and the properties of the transported fluid all affect system performance. The tee should therefore be treated as one element within the hydraulic and mechanical design rather than as a standalone solution for improving efficiency.

When the fitting is correctly matched to the pipe and service conditions, it can provide a dependable branch connection while allowing the rest of the system to be designed around known dimensions and material properties.

Conclusion

High-pressure pipe tees are indispensable components in the oil and gas industries, offering numerous advantages in terms of flow control, durability, and safety. As the industry continues to evolve, these fittings will play an increasingly important role in optimizing system design, improving efficiency, and enhancing maintenance capabilities. Future innovations in materials, smart technologies, and sustainable solutions promise to further expand the capabilities and applications of high-pressure pipe tees, ensuring their continued relevance in the ever-changing landscape of oil and gas operations. For more information on high-quality high-pressure pipe tees and other piping solutions, please contact us at oudi-04@oudiguandao.com.
