The Role of Carbon Steel Pipe Tees in Chemical Plants

Carbon steel pipe tees are widely used at branch points in industrial piping systems, including many chemical processing facilities. Their basic function is straightforward: a tee connects three sections of pipe and allows a process line to divide into separate routes or, depending on the piping arrangement, bring flows together. In a chemical plant, however, selecting a tee is not simply a matter of choosing a fitting with the correct nominal diameter. The material grade, wall thickness, connection dimensions, operating temperature, pressure, fluid characteristics, welding procedure, inspection requirements, and applicable piping code all need to work together. This is particularly important around reactors, heat exchangers, distillation systems, storage areas, utility headers, and transfer lines. A branch connection can experience local changes in flow direction and stress, while the surrounding piping may be exposed to temperature cycling, vibration, pressure fluctuations, or corrosive process media. Carbon steel can be a practical choice where the service conditions are compatible with the material, especially when the project requires a combination of strength, availability, weldability, and cost control. It should not, however, be treated as a universally corrosion-resistant material. Its suitability has to be established from the actual process conditions and the piping design.

How Carbon Steel Tees Fit into Chemical Plant Piping?

Branch Connections for Process and Utility Lines

The most common role of a tee is to create a controlled branch from a main pipeline. In a chemical plant, one main line may need to supply several pieces of equipment, drain points, sampling arrangements, circulation loops, or secondary process lines. A properly selected tee provides the physical connection required to make that branch without relying on improvised fabrication at the site.

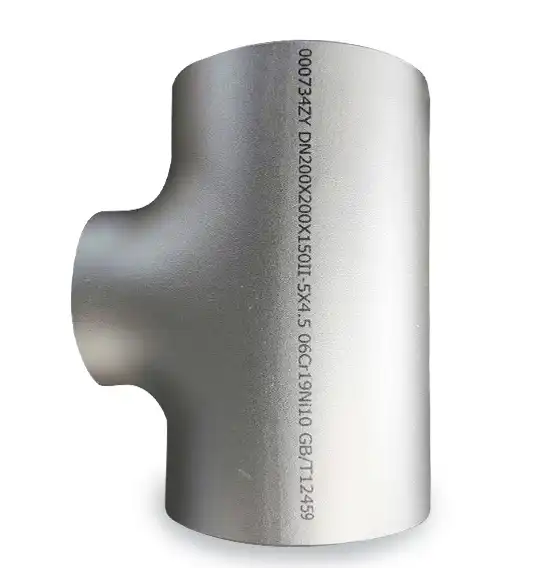

Equal tees are generally used when the branch and run have the same nominal size. Reducing tees are selected when the branch connection is smaller than the main run. The distinction matters because the branch size affects flow capacity, connection dimensions, welding requirements, and the loads transferred to the fitting. For an engineered chemical plant, the choice should come from the piping design rather than from the fitting being considered as an isolated component.

The tee also has to match the surrounding piping system. A fitting with the correct nominal pipe size but an unsuitable wall thickness, material grade, or end dimension can still create a problem during fabrication or installation. For this reason, procurement documents should identify the relevant specification rather than simply asking for a “carbon steel tee.”

Integration with Equipment and Piping Networks

Carbon steel pipe tees can also appear near equipment connections where a process line needs to be divided between different operating routes. For example, a line may require a branch leading to a heat exchanger while the main route continues toward another process stage. Similar arrangements can be found in cooling-water, steam, compressed-air, nitrogen, and other utility systems, although the appropriate material and design requirements depend on the individual service.

In these locations, the fitting becomes part of a larger mechanical system. The design engineer needs to consider the weight of connected piping, thermal movement, support locations, pressure loads, and potential vibration. A tee that meets its dimensional requirements may still be unsuitable if the surrounding piping arrangement creates excessive loads at the branch connection. This is why fitting selection should be coordinated with the overall piping stress and support design.

Choosing Carbon Steel for the Intended Service

Carbon Steel Is Not Automatically Corrosion Resistant

One of the most important points for chemical plant applications is that carbon steel should not be described as inherently resistant to aggressive chemicals. Its performance depends heavily on the process medium and operating conditions. Water chemistry, dissolved oxygen, chlorides, acids, alkalis, temperature, concentration, flow velocity, and contaminants can all influence corrosion behavior.

For some relatively controlled services, carbon steel may provide an economical and technically suitable solution. In other services, stainless steel, low-alloy steel, lined pipe, or another corrosion-resistant material may be more appropriate. The decision should be based on the process specification and corrosion assessment rather than on the general assumption that carbon steel can tolerate harsh chemical environments.

This distinction is especially important when specifying carbon steel pipe tees for a chemical plant. If the fluid is corrosive, the engineer may need to establish a corrosion allowance, select a different material, or introduce an internal lining or another engineered protection system. The appropriate solution depends on the chemical composition and service conditions.

Material Grade and Fitting Specification

The fitting specification should be matched to the piping class and service. ASTM A234, for example, covers wrought carbon steel and alloy steel fittings for moderate and high-temperature service, with grades such as WPB commonly encountered in carbon steel piping applications. The exact grade should be confirmed against the project material specification and design temperature.

ASME B16.9 is also relevant to many factory-made wrought butt-welding fittings. It establishes dimensional and related requirements for fittings such as tees, elbows, reducers, and caps. It should not, however, be interpreted as a complete material or process-service specification on its own. Material requirements, pressure design, inspection, welding, and service limitations are controlled through the combination of applicable codes, standards, drawings, and project specifications.

This distinction gives procurement teams a more reliable basis for evaluating suppliers. Instead of accepting a fitting simply because the supplier states that it is “ASME standard,” the buyer can verify the actual material grade, dimensions, wall thickness, manufacturing standard, inspection requirements, and documentation specified for the project.

Managing Pressure, Temperature, and Mechanical Loads

Pressure Design Depends on the Complete Piping System

A tee in a chemical plant can be exposed to substantial internal pressure, but its pressure capability cannot be judged from the material name alone. Nominal size, wall thickness, fitting geometry, material strength, design temperature, corrosion allowance, and the governing piping code all contribute to the final design.

For chemical process piping, ASME B31.3 is commonly used as an important design code. It addresses process piping and considers pressure design, materials, fabrication, examination, testing, and other aspects of piping construction. The fitting therefore needs to be selected as part of the piping class and design basis rather than treated as an independent pressure component.

This approach also helps prevent a common purchasing mistake: assuming that a higher material grade automatically means a higher allowable pressure. Allowable pressure is a function of the applicable design rules and the actual configuration. A buyer should therefore compare the fitting specification with the piping design conditions rather than relying only on a catalog description.

Temperature Changes and Thermal Expansion

Chemical plants rarely operate at one fixed temperature from startup to shutdown. Lines may heat up during process operation, cool during maintenance, and experience repeated temperature changes during normal production. The resulting expansion and contraction can introduce loads into tees and other fittings.

The tee itself is only one part of this problem. For carbon steel pipe tees, pipe length, anchors, guides, supports, connected equipment, and the location of branch lines all affect how thermal movement is distributed. In a long piping run, the stress analysis may identify areas where the branch connection requires particular attention.

A well-designed piping system therefore considers thermal expansion before the fitting is installed. Depending on the system, the solution may involve changes to pipe routing, support arrangements, flexibility, or expansion management. It is not accurate to assume that a carbon steel tee simply absorbs repeated thermal cycling without design consequences.

Welding and Fabrication Considerations

For butt-welding tees, the quality of the weld connection is closely related to the performance of the finished piping system. The tee needs to match the pipe dimensions and welding procedure used for the project. Differences in wall thickness, bevel preparation, material grade, or fabrication requirements can affect installation.

The welding procedure should therefore be qualified according to the applicable project and code requirements. Preheating, interpass temperature, consumables, heat input, post-weld heat treatment, and inspection requirements may vary according to the material and service. These details should be established by the responsible engineering and welding teams rather than generalized across every carbon steel fitting.

For procurement, this means that the fitting order should include enough technical information for the manufacturer to supply the correct configuration. Nominal size alone is rarely sufficient for a demanding chemical plant project.

Safety Considerations at Chemical Plant Branch Points

Reducing Leakage Opportunities Through Proper Specification

A tee does not prevent leakage simply because it is manufactured from carbon steel. Leak prevention depends on the quality of the fitting, the weld, the piping design, installation practices, inspection, and subsequent operation and maintenance.

For welded piping systems, the connection between the tee and adjoining pipe is particularly important. Poor fit-up, incorrect welding parameters, defects, or unsuitable material can compromise the integrity of the joint. This is why project specifications may require visual examination, dimensional inspection, radiographic testing, ultrasonic testing, magnetic particle testing, or other forms of non-destructive examination depending on the application.

The inspection method should be selected according to the applicable code and project requirements. Not every tee requires the same level of examination, and treating every fitting as if it had identical inspection requirements can create unnecessary cost without improving the engineering result.

Considering Fire and Emergency Conditions

Chemical plants may contain flammable or combustible process media, so fire exposure is an important consideration in the overall piping design. Carbon steel does not remain at its normal room-temperature strength as temperature rises, and its mechanical properties must therefore be evaluated according to the applicable design conditions.

Rather than describing carbon steel pipe tees as inherently “fire resistant,” it is more accurate to consider how the complete piping system is protected. Fireproofing, insulation, emergency isolation, drainage, firewater systems, equipment spacing, and plant-specific safety measures can all influence the consequences of a fire.

The tee must continue to satisfy the requirements established for the piping system, while the facility itself needs appropriate safeguards for credible emergency scenarios. This is a more useful engineering perspective than claiming that the fitting alone provides additional time for emergency response.

Inspection and Quality Control Before Installation

Verifying Dimensions and Material Traceability

Quality control becomes particularly important when carbon steel fittings are purchased for a chemical plant project. Before installation, the buyer or quality team may verify dimensions, wall thickness, end preparation, material identification, surface condition, and marking against the purchase specification.

Material traceability is another important consideration. The fitting should be identifiable against its material test documentation where such documentation is required by the project. A mill test certificate or material certificate can provide information about the supplied material and its chemical and mechanical properties, subject to the requirements of the applicable standard.

This documentation helps engineering and quality teams establish that the fitting supplied is the fitting that was ordered. For projects involving multiple material grades and sizes, maintaining clear traceability can also reduce the risk of incorrect installation.

Non-Destructive Examination and Final Acceptance

The inspection program should reflect the criticality of the service and the requirements of the governing code. Visual and dimensional inspection may be part of routine acceptance, while more demanding services can require additional non-destructive examination.

The exact inspection scope should be established before manufacturing rather than negotiated after the fittings arrive at the job site. This gives the manufacturer a clear understanding of the required quality level and allows the buyer to compare quotations on the same technical basis.

For procurement teams, this is also where supplier evaluation becomes meaningful. A manufacturer with documented quality procedures, experienced welding and fabrication personnel, appropriate inspection capabilities, and consistent material traceability can provide more useful technical support than a supplier competing only on unit price.

Conclusion

Carbon steel pipe tees are important branch components in chemical plant piping, but their value depends on proper engineering rather than on the material alone. They can provide a practical solution for process and utility piping where the selected carbon steel grade is compatible with the service conditions and where the fitting is manufactured, inspected, and installed according to the applicable requirements.

For chemical plant applications, buyers and engineers should pay particular attention to material compatibility, pressure and temperature conditions, tee dimensions, wall thickness, welding requirements, corrosion allowance, inspection scope, and documentation. Standards such as ASME B16.9, ASTM A234, and ASME B31.3 can form part of this technical framework, but each standard serves a different purpose and should be applied according to the project specification.

A properly selected tee is therefore more than a simple three-way pipe connection. It is one part of an engineered piping system in which material, fabrication, stress management, inspection, and operating conditions all have to work together. When these factors are considered before procurement, carbon steel pipe tees can provide a dependable and commercially practical option for many chemical plant piping applications.

For top-quality carbon steel pipe tees and expert guidance on their application in chemical plants, contact Cangzhou Oudi Pipe Manufacture Co., Ltd. at oudi-04@oudiguandao.com. With our commitment to excellence since 1998, we continue to be a leading manufacturer of carbon steel pipe fittings, valves, and flanges, serving the global market with products that meet the highest industry standards.

FAQ

1. What makes carbon steel pipe tees suitable for chemical plant applications?

Carbon steel pipe tees offer excellent corrosion resistance and high-pressure and temperature performance and comply with safety standards for hazardous fluid handling.

2. How are carbon steel pipe tees protected against corrosion in chemical plants?

They are often treated with protective coatings, galvanization, or surface treatments, and specific alloys are selected for different chemical environments.

3. Can carbon steel pipe tees withstand extreme temperatures in chemical processing?

Yes, high-grade carbon steel pipe tees can maintain structural integrity at temperatures exceeding 1000°F (538°C).

4. What safety features do carbon steel pipe tees offer for hazardous fluid handling?

They may include reinforced connections, leak detection ports, and fire-resistant properties to enhance safety in chemical plants.
