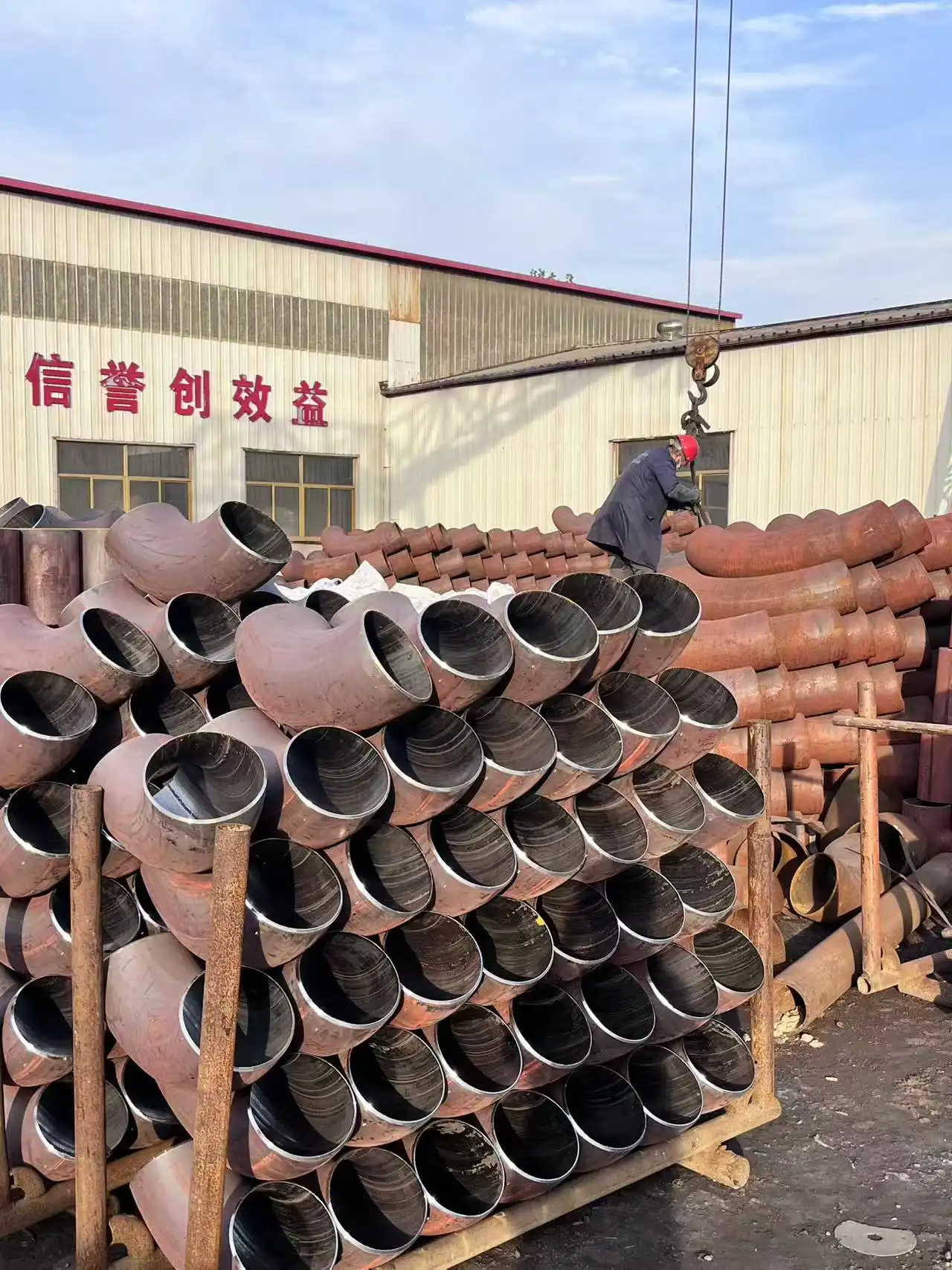

Top Applications of 90-Degree Carbon Steel Elbows in Industrial Piping

90-degree carbon steel elbows are important parts of industrial pipe systems because they direct fluid flow and adapt to changes in direction. Because they are strong, durable, and flexible, these parts are used in a lot of different fields. This blog post will talk about the most common uses of 90-degree carbon steel elbows in industrial piping and stress how important they are for making sure processes run smoothly and reliably. In places like chemical processing plants and oil and gas pipelines, these bends are necessary to keep pipe systems in good shape and make sure fluids move smoothly. We'll talk about the specific uses, benefits, and things to think about when choosing and installing 90-degree carbon steel elbows. This will help engineers, contractors, and other professionals who plan and maintain piping systems.

90-Degree Carbon Steel Elbow: Essential for Directional Changes in Piping Systems

Facilitating 90-Degree Turns in Complex Piping Layouts

In complicated pipe plans where sharp turns need to be made, 90-degree carbon steel elbows are a must. With these fittings, you can change the direction of the pipe system precisely without damaging it. 90-degree elbows make it easy for pipes to go around obstacles and pieces of equipment in places like chemical plants and refineries where room is limited. Carbon steel elbows are built to last, so they can handle high temperatures and pressures. This means they can be used in many situations. Using 90-degree carbon steel elbows, engineers can make piping systems that are small, efficient, and make the best use of space while still keeping the best flow characteristics.

Reducing Pressure Drop and Turbulence in Fluid Flow

One of the best things about 90-degree carbon steel bends is that they keep fluid flow smooth and reduce pressure drop. These elbows have a smooth inside surface that helps keep fluids moving easily as they turn, in addition to their well-thought-out shape. That is very important in places like power plants and oil and gas pipes where it is important to keep the pressure and flow rate fixed. Carbon steel elbows with a 90-degree curve can be used to make pipe systems that work better, use less energy, and break down less quickly. Because the flow is less rough, erosion and rust don't happen as often, and the pipe system lasts longer.

Enhancing System Flexibility and Stress Management

90-degree carbon steel elbows are an important part of making pipe systems more flexible and better at handling stress. The temperature can rise and fall through these fittings. This makes the system less stressed when the temperature changes or when it shakes. By putting 90-degree carbon steel elbows with care, engineers can make expansion loops and offsets that let pipes and equipment move and keep them from being overworked. This is very important in areas like steam distribution systems and cryogenic uses where temperatures can change very quickly. When you handle stress with 90-degree carbon steel elbows, you can stop leaks, ruptures, and other problems before they happen. This keeps the pipe system in good shape for a long time.

Applications in HVAC, Plumbing, and Industrial Systems

HVAC Systems: Optimizing Airflow and Ductwork Design

In HVAC systems, 90-degree carbon steel elbows are necessary to make sure that air flows smoothly and that the pipe is well-designed. These angles make it easy for air distribution systems to change directions without any problems. This helps houses stay cool and airy. This elbow is made of strong carbon steel, so it can handle the steady flow of air and temperature changes that happen in HVAC systems. HVAC experts can make ductwork plans that are both small and effective by using 90-degree carbon steel elbows. These plans use the least amount of energy possible and keep the air quality stable. When HVAC systems in businesses and factories need to move a lot of air through complicated building structures, these elbows are very useful.

Plumbing Systems: Managing Water Distribution and Waste Removal

Carbon steel elbows with a 90-degree bend are essential for controlling the flow of water and the removal of waste in plumbing systems. In both residential and business buildings, these fittings are used to get around obstacles and make efficient pipe routes. Because carbon steel doesn't rust, these elbows can be used in water supply systems for a long time, making sure that clean, safe water is delivered. In sewer management, 90-degree carbon steel elbows help keep the flow going smoothly and avoid clogs by letting the direction of flow change without any problems. Because these elbows are so strong, they are also great for high-pressure uses where dependability is very important, like in fire control systems.

Industrial Processing: Handling Chemicals, Gases, and High-Temperature Fluids

Most of the time, 90-degree carbon steel elbows are used in industrial processes to move very hot chemicals, gases, and fluids. They can be used in petroleum plants, refineries, and other heavy industry places because they can handle rough conditions. Because carbon steel is strong, these elbows will stay together even if they come into contact with things that corrode them or are under a lot of pressure. A 90-degree carbon steel elbow is needed to direct the flow of natural gas through the different steps of treating and distributing it in places that do this. In the same way, these angles are very important in chemical processing plants for controlling the flow of reactive substances and making sure that the work is safe and efficient.

Choosing Between Long Radius and Short Radius 90-Degree Elbows

Long Radius Elbows: Advantages in High-Flow Applications

When there is a lot of flow, long radius 90-degree carbon steel bends are best because they let more flow through them. The centerline radius of these elbows is usually 1.5 times the standard pipe size. This makes the bend more gradual. Long radius elbows are great for situations where keeping the flow efficient is very important because the smooth curve lowers turbulence and pressure drop. Long radius 90-degree carbon steel elbows help keep pumping costs low and pipe wear low in fields like oil and gas transportation, where large amounts of fluid need to be moved over long distances. The better flow also keeps sediment or debris from building up, which can be especially helpful in situations where the fluid is sluggish or full of particles.

Short Radius Elbows: Space-Saving Solutions for Tight Installations

Carbon steel elbows with a short radius of 90 degrees are made for places where room is limited and offer a small solution for tight installations. The centerline radius of these elbows is the same size as the pipe, which makes the turn tighter. While short radius 90-degree carbon steel elbows may cause a little more turbulence and pressure drop than long radius elbows, they are very useful in pipe layouts that are already full. They are often used in offshore platforms, process plants, and other industrial settings where making the best use of room is important. Because short radius elbows are small, they are also easier to protect and keep up, which can be helpful in some situations. When engineers choose small radius 90-degree carbon steel elbows, they need to carefully think about the flow needs and pressure limits to make sure the system works at its best.

Factors Influencing the Choice Between Long and Short Radius Elbows

There are several things that affect which 90-degree carbon steel elbow you should use. These include the available room, the flow rate, the pressure, and the ease of installation. Long radius elbows are often chosen because they have better flow properties and less pressure drop, making them great for situations with a lot of flow and pressure. They do need more space, though, and might not work in space that is already tight. A short radius elbow, on the other hand, might save space but might make flow and pressure loss worse. Most of the time, you have to choose between how well the flow works and how much space you have. You should also think about the type of fluid being moved, the temperature and pressure at which it will be used, and the chance that it will rust or wear away. These things are very important for engineers to think about when picking the best 90-degree carbon steel elbow for each job. The method will work well and last a long time if you do this.

Conclusion

90-degree carbon steel elbows are essential parts of industrial pipe systems because they let you change the flow direction, control stress, and change the direction of flow. They are very important for making sure things run easily and reliably because they are used in plumbing, HVAC, and many industrial processes. Because of things like flow needs, room limitations, and pressure problems, engineers have to carefully think about whether to use a long radius elbow or a short radius elbow. Workers in the field can make smart decisions that will make their pipe systems work better and last longer if they know about the pros and cons of 90-degree carbon steel elbows. Cangzhou Oudi Pipe Manufacture Co., Ltd. has many high-quality carbon steel pipe fittings, such as 90-degree elbows, to meet the needs of a wide range of industries. For more information, contact us at oudi-04@oudiguandao.com.

FAQ

Q: What are the main advantages of using 90-degree carbon steel elbows in industrial piping?

A: 90-degree carbon steel elbows offer durability, strength, and versatility. They facilitate sharp turns in complex piping layouts, reduce pressure drop and turbulence, and enhance system flexibility and stress management.

Q: How do 90-degree carbon steel elbows contribute to HVAC system efficiency?

A: In HVAC systems, these elbows optimize airflow and ductwork design, allowing for smooth transitions in air distribution and ensuring proper ventilation and temperature control.

Q: What is the difference between long radius and short radius 90-degree elbows?

A: Long radius elbows have a larger centerline radius (1.5 times the nominal pipe size) and offer better flow characteristics, while short radius elbows have a tighter bend (equal to the nominal pipe size) and are more compact.

Q: In which industrial applications are 90-degree carbon steel elbows commonly used?

A: These elbows are widely used in oil and gas pipelines, chemical processing plants, power generation facilities, and water treatment systems, among others.

Q: How do 90-degree carbon steel elbows help in managing thermal expansion in piping systems?

A: These elbows allow for thermal expansion and contraction, absorbing stresses that arise due to temperature fluctuations and preventing excessive strain on pipes and equipment.
