How ASME B16.5 Pressure Classes Affect Flange Selection？
What Pressure Class Really Tells You？
However, ASME B16.5 does not provide the same allowed working pressure for all flanges of the same nominal size but rather provides pressure-temperature values by pressure classes. Common classes include Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 and Class 2500. The correct class is determined by the operating temperature and the material group. Thus a pressure class should not be taken as a universal value for all pressures.
For example, a Class 300 flange is not necessarily a flange capable of handling 300 psi. Likewise, a Class 600 flange does not indicate that its permissible pressure is 600 psi under all working conditions. The operating temperature should be utilised with the applicable material pressure temperature ratings charts.
This is especially significant for process systems that experience considerable temperature changes during operation. An ASME flange that appears nice at ambient temperature may not be appropriate for the permitted pressure at a higher operating temperature. Therefore, the engineer must evaluate the real design circumstances and not just choose a class by a known number.
Why Pressure and Temperature Must Be Considered Together？
Pressure and temperature are closely related in flange selection, as the allowable rating can change with increased temperature. At higher temperatures, the strength of the material, the behaviour of the gasket, the thermal expansion and the overall behaviour of the joint may be of greater importance.
For instance, a steam system might necessitate a different approach to flange selection than a low-temperature water line, even if the nominal pipe size is the same. Similarly, a hydrocarbon processing line may require additional consideration of material compatibility and project-specific requirements beyond simply selecting a pressure class.
The pragmatic approach is to determine the design pressure and design temperature and then determine the applicable material group and check the applicable pressure-temperature rating. This process provides engineers with a far more reliable basis for selecting an ASME flange than simply choosing a pressure class based on nominal size.
Dimensions, Facing Types, and Interchangeability
The Size Range Covered by ASME B16.5
ASME B16.5 generally covers pipe flanges and flanged fittings from NPS 1/2 through NPS 24. Within this range, the standard defines important dimensional characteristics for each applicable pressure class and nominal size. These characteristics include flange outside diameter, thickness, bolt circle diameter, number and size of bolt holes, and other connection dimensions.
Dimensional standardisation is one of the most practical benefits of using ASME flange standards. If two manufacturers produce flanges to the same applicable dimensional requirements, their products can generally be evaluated against a common reference instead of relying on each supplier's proprietary dimensions.
This is particularly valuable on large EPC projects, where piping components may be purchased from multiple approved suppliers. Consistent dimensions reduce the likelihood of installation problems caused by mismatched bolt holes, flange thicknesses, or facing dimensions. They also simplify spare parts management because replacement components can be specified against recognised standards rather than an individual manufacturer's internal design.

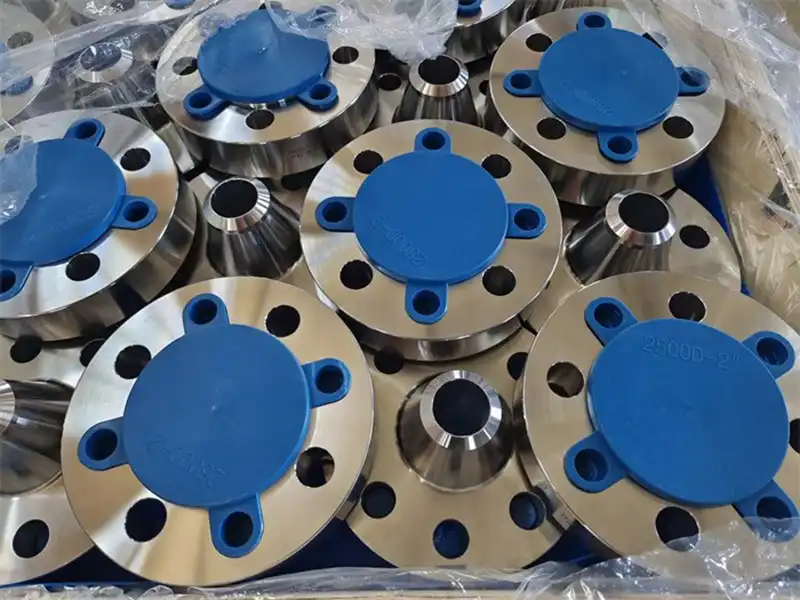

Choosing the Correct Flange Facing
The flange facing is another important part of the connection. Common configurations include raised face, flat face, and ring-type joint arrangements, with each design serving different operating and sealing requirements.
A raised face flange provides a defined gasket contact area and is widely used in industrial piping. Flat face configurations can be appropriate for certain equipment and piping arrangements where the mating components require a full flat contact surface. Ring-type joint flanges use a machined groove and metallic ring gasket arrangement and are commonly associated with applications where a robust high-pressure sealing system is required.
The facing type should never be selected independently from the mating flange, gasket, bolting, pressure class, and equipment connection. Even when the flange dimensions appear correct, an incompatible facing arrangement can create installation or sealing problems. Engineers should therefore check the complete joint configuration rather than evaluating the flange as an isolated component.
Material Selection for Different Operating Conditions
Matching Flange Material to the Piping System
The choice of material has a direct effect on the long-term performance of a flange. Depending on the application’s pressure, temperature, fluid, corrosion environment and mechanical requirements, materials may include carbon steel, stainless steel, alloy steel, etc.
Carbon steel is also a typical material for general industrial plumbing owing to its practical mix of strength, availability, machinability and affordability. Stainless steel might be used for its corrosion resistance or compatibility with the process fluid. Alloy materials could be of issue if the system is exposed to high temperatures, severe mechanical strains or aggressive service conditions.
But it is not enough to pick a material because it is often used in a given field. The ASME flange material should be suitable with the pipe, fittings, gasket, bolting and the working environment. There is thermal expansion to consider as well, especially in circumstances when the pipe system is exposed to repeated heating and cooling.
Why Material Traceability Matters？
The traceability of materials is especially significant when flanges are used in safety-sensitive or highly regulated projects. The maker should be able to identify the material of the product and, when applicable, connect that material to its appropriate heat number and material data.
Traceability helps procurement teams to correlate the purchase order to the actual goods arriving at the site. The flange marking, measurements, material paperwork and inspection records should match what has actually been delivered.
This is especially significant when huge amounts of comparable flanges are provided. This might become challenging if it is not apparent which flange corresponds to which material grade, pressure class or purchase order. Proper labelling and documentation can decrease this ambiguity prior to installation.
Engineering Considerations Beyond Nominal Size
Evaluating the Complete Flanged Joint
Selecting an ASME flange is not as straightforward as matching the flange size to the diameter of the pipe. The dependable joint is the consequence of the interplay of flange, gasket, bolts, pipe, and operating circumstances.
Engineers may have to consider bolt load, joint stiffness, external pipe loads, thermal expansion, vibration and impact of pressure cycling. Some applications, especially if the flange is part of a pressure vessel or other specially built pressure boundary, may have extra design requirements in addition to the dimensions standards of ASME B16.5.
For example, while designing pressure vessel flanges, engineers may need to examine the relevant criteria of the ASME Boiler and Pressure Vessel Code. This explains why ASME B16.5 should be seen as one component of a bigger technical puzzle and not the sole standard to apply to every flange application.
The more demanding the service, the more critical the examination of the overall pipeline and equipment design. Even if a flange satisfies the dimensional criteria of a standard, it may still be inappropriate if the material, gasket, bolting, operating temperature or external loads do not correspond to the actual use.
Considering Installation and Maintenance Requirements
The quality of the flange itself is only one aspect of the dependability of the connection. Installation procedures are also important for the final connection. Bolt tightening should provide a suitable and regulated stress. Flange faces and gasket surfaces should be protected from damage and contamination.
The same dimensions of information might be beneficial during maintenance when replacement components are needed. By precisely specifying and documenting the original flange, maintenance personnel may more easily discover the needed nominal size, pressure class, material, face and relevant standard.
This is one of the reasons why the standardised flange systems are essential throughout the whole service life of a plant. The advantage is not only for the first installation. Standardised components and the retention of proper technical information will facilitate inspection, replacement, inventory planning and purchase in the future.
Conclusion
ASME flange standards provide a common technical foundation for designing, manufacturing, specifying, and inspecting flanged connections used in industrial piping systems. ASME B16.5 is particularly important because it establishes standardised requirements for pipe flanges and flanged fittings across a broad range of nominal sizes and pressure classes. By defining dimensions, pressure temperature ratings, materials, facing configurations, tolerances, marking, and related requirements, the standard helps different components work together within properly engineered piping systems.
For engineers, understanding these requirements makes flange selection more precise because pressure, temperature, material, facing, and joint conditions can be evaluated together rather than treating nominal pipe size as the only deciding factor. For procurement teams, the same knowledge provides a practical basis for checking supplier documentation, physical dimensions, material traceability, and compliance with project specifications.
As industrial piping systems become more demanding, the value of standardised flange requirements becomes even clearer. Choosing the correct ASME flange is not simply about purchasing a component with a familiar pressure class or nominal size. It requires a complete review of the operating conditions, applicable standards, material requirements, connection details, and quality documentation. When these factors are considered together, standardised flange selection can support safer installation, easier maintenance, better interchangeability, and more reliable long-term operation across industrial piping projects.
FAQ
1. What is the purpose of ASME flange standards?
ASME flange standards provide guidelines for the design, manufacturing, and use of flanges in pressure-containing equipment, ensuring safety, reliability, and compatibility across various applications.
2. What is the scope of ASME B16.5?
ASME B16.5 covers pipe flanges and flanged fittings in sizes ranging from NPS 1/2 to NPS 24, defining pressure classes, dimensions, and material requirements.
3. How do I select the appropriate pressure class for a flange?
Select the pressure class based on the system's maximum operating pressure and temperature, referring to the pressure-temperature rating tables provided in ASME B16.5.
4. What materials are commonly used for ASME-certified flanges?
Common materials include carbon steel (e.g., SA-105), stainless steel (e.g., SA-182 F316), and various alloy steels, chosen based on operating conditions and corrosion resistance requirements.
