What Is the ANSI B16.5 Standard for Carbon Steel Flanges?

When engineers and purchasing teams specify carbon steel flanges for industrial piping, ANSI B16.5 is one of the standards they are most likely to encounter. The standard is known technically as ASME B16.5, Pipe Flanges and Flanged Fittings, an American National Standard. It covers the requirements for pressure-temperature ratings, materials, dimensions, tolerances, labelling, testing, and identification of holes for pipe flanges and flanged fittings. The importance of B16.5 for the consumer is that it lists standard flange diameters. It provides a common technical guideline for pipe product connection of different manufacturers. A standard such as NPS 6, Class 300, ASTM A105, or raised face is more useful to a producer than the general phrase of “carbon steel flange.” Each part of that designation affects the manufacture and inspection of the flange, its compatibility with the piping system, and its assessment for the function planned. Thus, knowledge of B16.5 is useful when selecting a flange, assessing a supplier estimate, checking drawings, or ensuring the supplied product fits the purchase requirements.

What Does ASME B16.5 Actually Cover?

ASME B16.5 applies to pipe flanges and flanged fittings within the size and pressure class restrictions of the standard. The standard includes the principal flange range from NPS 1/2 to NPS 24. Flange pressure classes include 150, 300, 400, 600, 900, 1500, and 2500. Flanges of Class 2500 are only accessible via NPS 12.

The range is greater than the outside flange dimensions. B16.5 includes pressure/temperature rating, material requirements, dimensions and tolerances, labelling and pressure testing. It also sets up guidelines for the several flange shapes and face configurations used in piping systems.

This is a huge difference in procurement. A flange may have the correct outside diameter and bolt-hole design, but that doesn’t mean you can assume it’s compliant. The customer also has to examine the applicable pressure class, material specification, facing, dimensions, marking, and inspection requirements.

B16.5 is not intended to replace all existing standards for pipe or equipment on a project. ASME adds that ASME B16.5 is utilized alongside other standards, such as other ASME B16 standards and plumbing regulations like the B31 series.

How Do Pressure Classes Work for Carbon Steel Flanges?

Pressure class is one of the most basic concepts in B16.5. The Class 150, Class 300, Class 600, Class 900, Class 1500, and Class 2500 designations are not intended to reflect direct pressure levels in psi. A Class 150 flange is more than just a flange rated at 150 psi.

The actual pressure-temperature rating is determined by the material group and service temperature. For instance, the typical ASTM A105 carbon steel is part of a B16.5 material group where the pressure rating is temperature dependent. A Class 150 flange in this material group is typically rated for 285 psig at 100°F and 200 psig at 400°F.

That’s important when you’re thinking about a pipe spec. A flange permitted by an ambient temperature rating may have an allowable pressure at an elevated operating temperature that is substantially lower. The same is true when comparing different pressure classes. All other parameters being equal (material, temperature, etc.), a Class 300 flange will generally have a higher pressure-temperature rating than a Class 150 flange. The actual value should be verified with proper rating information in B16.5.

Thus, the required class should normally be included in the procurement specification together with the material and service requirements. The class number by itself doesn't tell whether a flange is acceptable for a given pipe system.

How Are Flange Size and Pressure Class Related?

ASME B16.5 specifies dimensional standards by nominal pipe size and pressure class. These criteria are measurements relating to the flange body, bolt circle, bolt holes, bore, thickness, and other applicable geometries.

The size range of the standard is NPS 1/2 to NPS 24 for the flange classes listed, while for Class 2500 the size range is restricted to NPS 12.

This connection is crucial because two carbon steel flanges of the same nominal pipe size may not have the same physical dimensions if their pressure classes are different. The flange geometry and bolting arrangements may alter for higher pressure classes. So, it's not as simple as just picking a part with a higher pressure number and swapping out a Class 150 flange for a Class 300 flange. We need to verify the overall dimensions and interface requirements.

When a customer examines bids from several manufacturers, the same concept applies. Nominal size is not sufficient information for a manufacturer to create the suitable flange. The procurement specification should clearly include NPS, class, flange type, face, material, and related dimensional specifications.

Which Carbon Steel Materials Can Be Used Under B16.5?

Material selection is another key feature of a B16.5 flange requirement. Carbon steel flanges are usually constructed from materials such as ASTM A105, while different materials may be used for low temperature or other unique operating circumstances.

ASTM A105 is a commonly used material specification in industrial pipe procurement and is a favorite for forged carbon steel flanges. Other material standards are also available in B16.5 applications; however, the selection of the suitable material relies on the material needs, temperature range, mechanical qualities, and project specification, not on the form of the flange itself.

This is where the paperwork from a provider plays a vital role. A quote that only says “carbon steel” does not provide you the same traceability as a quote that specifies the relevant ASTM material specification and grade. For an industrial buy, the material identification should be as per the project need and the paperwork provided with the final product.

Material selection impacts pressure-temperature performance. The rating is not based just on flange geometry; thus, the material group and operating temperature must be considered simultaneously when determining the relevant B16.5 rating.

Which Flange Types and Facing Arrangements Are Covered?

Common flange configurations utilized with B16.5 include weld neck, slip-on, socket weld, threaded, lap joint, and blind flanges. The proper configuration is dictated by the pipe connection, mode of manufacturing, operating circumstances, and project requirements.

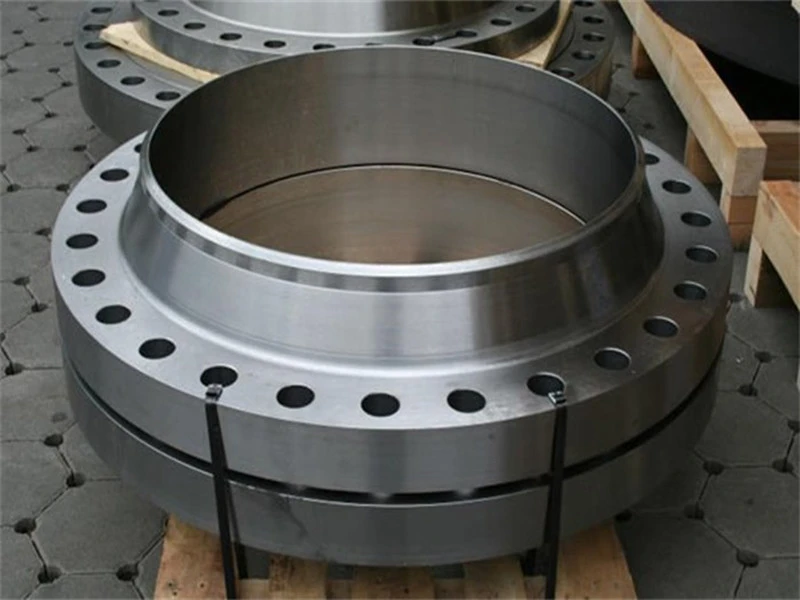

For severe plumbing services a weld neck flange is often utilized, since its hub and butt-weld connection provides a different load route than a slip-on flange. A slip-on flange is advantageous when installation and manufacturing restrictions favor a simpler arrangement. Meanwhile, a blind flange is used to seal the end of a pipe segment, nozzle, or other flanged connection.

The layout of the face must be properly stated. Common configurations include raised face, flat face, and ring-type joints. These faces are not interchangeable only because the flange has the same NPS and class. The flange face must be consistent with the mating flange, gasket, bolting arrangement, and service requirements.

For purchasers this implies that “NPS 8 Class 300 carbon steel flanges” is an insufficient description if the application demands a particular flange type and face. Material grade and facing inclusion may help to avoid the improper configuration being delivered if the dimensions are otherwise accurate.

Why Do Dimensions, Tolerances, and Markings Matter?

One of the practical reasons B16.5 is vital to the plumbing sector is dimensional uniformity. Standardized dimensions enable engineers and fabricators to build around proven flange configurations instead of designing a new connection geometry for every project.

But dimensional compliance is more than just measuring the outer diameter. Bolt-hole diameter, bolt circle, flange thickness, bore dimensions, face dimensions, and relevant tolerances all contribute to whether the component will fit properly with the rest of the pipe system.

Marking offers an additional layer of verification. A correctly specified flange should be identified by the marks required by the appropriate standard and procurement specification. Depending on the project needs, these marks may assist in identifying the manufacturer, material or grade, pressure class, nominal size, and appropriate standard information.

For procurement teams, these facts are useful during the receiving inspection of carbon steel flanges. If the physical measurements, material paperwork, and marks are compatible with the purchase order, the inspection procedure becomes considerably simpler. If such details do not correspond, the flange should be checked before it is placed.

What Should Buyers Check When Purchasing B16.5 Carbon Steel Flanges?

For a buyer, the most helpful approach to use B16.5 is to put the standard into a clear purchase specification.   The request should indicate the nominal pipe size and pressure class, followed by the needed flange type, face, material specification, and any project-specific inspection or documentation needs.

Material certification might be very relevant for industrial applications. Depending on the project, purchasers may seek a material test certificate, dimensional inspection records, pressure-test documents when relevant, or other quality records. These criteria need to be designed before manufacturing, not as an afterthought when the shipment is ready.

The supplier should also be able to describe how its manufacturing and inspection process complies with the dimensions specified by the procurement specification. This is even more crucial for big volumes, vital pipe services, or projects with various flange providers.

Another practical consideration is that just because a flange meets B16.5 doesn’t imply it is acceptable for every pipe system. There is still the flange to be examined with the pipe, gasket, bolts, mating flange, design pressure, design temperature, and appropriate piping code when selecting carbon steel flanges. B16.5 is not a stand-alone pipe design rule, but rather ASME places it in a larger framework of standards.

How Can You Verify That a Carbon Steel Flange Matches the Specification?

A good inspection procedure should begin with the purchase order and approved technical specification. The flange NPS and class may then be compared to the necessary specifications. The material identification can be compared to the material documentation provided by the manufacturer.

The flange face should also be visually verified for good arrangement and condition. For instance, a raised-face flange and an RTJ flange have various sealing systems and are not just similar goods. The amount, diameter, and bolt circle of bolt holes should be confirmed against the appropriate configuration, rather than being assessed by sight alone.

Where severe traceability requirements exist for projects, documentation should be linked to the actual product throughout receipt and installation. This is especially beneficial if a project has several identical-looking flanges in various materials, pressure classes, or diameters.

From a buying viewpoint, this is where an experienced manufacturer may provide value.   The supplier should be able to clearly clarify the necessary specification, validate the manufacturing material, give appropriate quality paperwork, and explain how the dimensional inspection is carried out prior to shipping, while having an understanding of B16.5.

Why Is B16.5 Important for Industrial Piping Projects?

The practical value of B16.5 is consistency. Engineers can specify a flange using recognized dimensions and pressure classes, manufacturers can produce against those requirements, and buyers can inspect the finished product using measurable criteria.

For carbon steel applications, this consistency is particularly useful because the material is widely used across industrial piping systems where standardized connections are required. Instead of relying on a supplier's internal dimensions, a project can reference an established standard and then add the specific material, class, NPS, flange type, facing, and inspection requirements needed for the application.

At the same time, B16.5 should not be treated as a substitute for engineering judgment. Pressure-temperature ratings need to be evaluated against the correct material group and operating temperature, while the complete piping assembly must satisfy the applicable design and installation requirements. ASME's own description of B16.5 emphasizes its use alongside other ASME standards and piping codes.

Conclusion

ANSI B16.5, commonly referenced as ASME B16.5, provides a standardized framework for pipe flanges and flanged fittings by defining requirements for pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and related connection details. For carbon steel flanges, understanding these requirements helps engineers and buyers specify products more accurately and compare suppliers on a consistent technical basis.

The most important point is that a flange should never be selected from its class number alone. NPS, pressure class, material, service temperature, flange configuration, facing, dimensions, and applicable documentation all need to be considered together. A Class 150 designation, for example, does not mean a fixed 150 psi working pressure; the allowable pressure changes according to the material group and temperature.

For procurement teams, a clear B16.5-based specification can also reduce receiving and installation problems. When the supplier provides the correct material identification, dimensions, markings, inspection records, and supporting documentation, it becomes much easier to verify that the delivered carbon steel flanges correspond to the project requirements.

Delivering Quality Steel Fittings and Flanges Worldwide

Since 1998, Cangzhou Oudi Pipe Manufacture Co., Ltd. has focused on the production and supply of carbon steel pipe fittings, valves, and flanges. Located in Mengcun Hui Autonomous County, a well-known manufacturing center for pipe fittings in China, the company serves industrial customers requiring products manufactured to American, Japanese, German, and British standards.

For projects involving B16.5 flanges, manufacturing capability is only one part of supplier evaluation. Consistent dimensional control, material identification, inspection procedures, product marking, and documentation are equally important when the components are being purchased for an engineered piping system. Oudi's product range includes different types of carbon steel flanges and pipe fittings intended for industrial applications, allowing buyers to discuss the required NPS, class, material, facing, and applicable standard before production.

For international procurement, this approach is more useful than treating a flange as a generic commodity. A clear technical specification gives the manufacturer a defined production target and gives the buyer measurable criteria for reviewing the finished carbon steel flanges before they enter the project. For more information or inquiries, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the purpose of the ANSI B16.5 standard?

The ANSI B16.5 standard provides guidelines for the design, manufacture, and use of pipe flanges and flanged fittings, ensuring consistency in dimensions, pressure ratings, and material requirements.

2. What types of carbon steel flanges are covered by ANSI B16.5?

ANSI B16.5 covers various types of carbon steel flanges, including weld neck, slip-on, socket weld, lap joint, and blind flanges.

3. What are the pressure class ratings defined in ANSI B16.5?

ANSI B16.5 defines pressure classes ranging from 150# to 2500#, each with specific pressure ratings that vary based on temperature.

4. What size ranges are covered by ANSI B16.5 for carbon steel flanges?

ANSI B16.5 typically covers flange sizes from 1/2 inch to 24 inch nominal pipe size (NPS), with variations depending on the pressure class.
