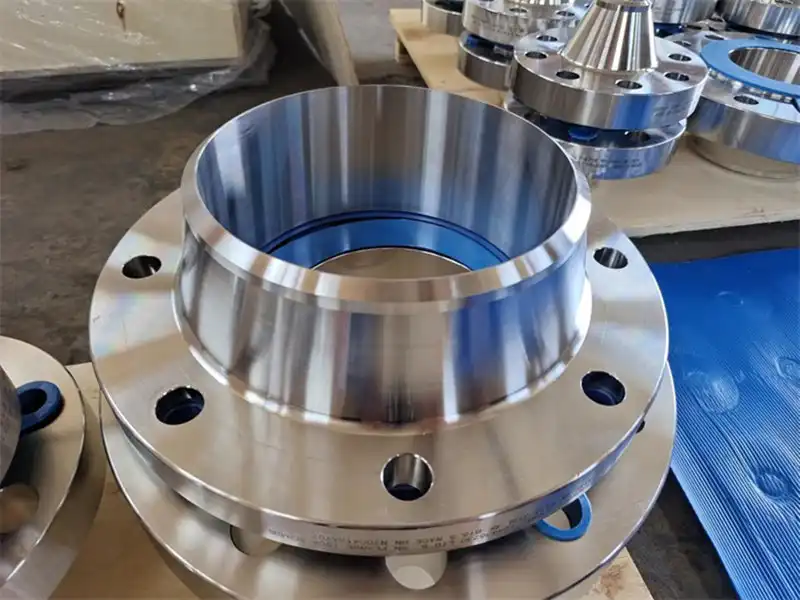

Steel flanges play an important role in piping systems because they provide a practical way to connect pipes, valves, pumps, vessels, and other equipment while allowing components to be assembled, inspected, and serviced. They are utilised in oil and gas, petrochemical processing, power generation, shipbuilding, water treatment and other industrial applications where connection dependability is important. For OEM purchasers, however, picking a flange is not only a question of selecting a diameter and pressure rating. The production technique, material grade, machining precision, heat treatment, inspection requirements and documentation might impact the suitability of the completed product for the intended use. Manufacturing an OEM flange is not just constructing a part to match a design. A competent producer must achieve dimensional uniformity from raw material preparation to final machining, with records of material identification and inspection traceable to each manufacturing batch. Buyers who are aware of these stages are better positioned to assess suppliers, establish technical requirements, and prevent difficulties caused by uneven measurements or missing paperwork.
The manufacturing process should be chosen according to the flange design, working circumstances, material, quantity and appropriate specification. Forging, casting and plate cutting are all suitable in various circumstances, but they do not give the exact same production qualities.
Forged Flanges for Demanding Service Conditions
The forging process is often employed when the mechanical strength and structural integrity are critical factors. The steel is heated and then deformed plastically under controlled pressure. This may provide a refined microstructure and a directed grain flow following the overall shape of the component. The qualities obtained rely on the grade of steel, forging temperature, degree of deformation, control of the process and the following heat treatment; hence, the word "forged" alone is not a full quality assurance.
The production path of forged flanges may give a sturdy starting point to achieve the needed mechanical qualities, which is why they are typically chosen for use in applications with high pressure, temperature, cyclic loading or challenging service conditions. Buyers, however, should pick a flange based on the suitable material specification and inspection requirements and not the production process alone.
The manufacturing route may also impact production costs. Specialised tooling and proven forging techniques may provide repeatable output for standard sizes and higher production volumes. If the OEM order is customised, the manufacturer may need to check the manufacturing viability by reviewing the design, forging allowance, machining allowance, material grade and needed heat treatment.
Cast Flanges for Complex Designs and Larger Components
Another way is manufacturing. Another is casting. Molten steel is poured into a prepared mould and allowed to harden before further processing and machining. This approach may be effective for parts with complicated geometries or dimensions that are difficult or uneconomical to fabricate via traditional forging.
But consumers should not believe that cast and forged flanges are interchangeable just because they have the same nominal dimensions. Casting involves proper control of mould design, pouring conditions, solidification, heat treatment and inspection. Further, any casting-associated discontinuities need quality monitoring, especially for applications where structural integrity is a vital factor.
Therefore, for an OEM project, the choice to cast or forge should be based on the technical requirements, not just the price. The procedure adopted should be justified by the maker as being acceptable for the material, geometry, service circumstances and relevant standard.
Plate Cutting for Custom and Large Diameter Requirements
Plate cutting may be a realistic solution for certain unique flange designs, particularly if the dimensions needed are outside the typical ranges for forged products or if production numbers do not support specialised forging machinery. Depending on the material, thickness, shape, and manufacturing needs, manufacturers may utilise technologies like plasma cutting, laser cutting, or waterjet cutting to cut the flange to size before machining it.
The cutting procedure is not the one to determine the final quality of the flange. Edge condition, thermal impacts, residual stress, machining allowance and dimensional control must be addressed. The bore, seal surface, bolt holes and outer diameter may need to be machined further to get the necessary specifications.
If you are a customer buying bespoke or big-diameter steel flanges, it is helpful to ask the manufacturer how the original plate is recognised once it is cut. Keeping heat number traceability from the plate to the completed flange assists in preserving the material certificate with the finished product.
Choosing the Right Steel Before Production Starts
Material selection is one of the decisions that should be settled before manufacturing begins. The correct material depends on pressure, temperature, corrosion exposure, mechanical loading, welding requirements, and the applicable project specification.
Material Grades Should Match the Application
Carbon steel, stainless steel, and alloy steel can all be used for flange production, but each material family has different characteristics. A carbon steel grade may be appropriate for a general industrial piping application, while stainless steel may be selected where corrosion resistance is more important. Alloy steels may be specified where elevated temperature or particular mechanical properties require a more controlled alloy composition.
Buyers should provide the manufacturer with the required material grade rather than relying on a general description such as “carbon steel flange.” A complete purchase specification may need to identify the material standard, grade, pressure class, nominal size, flange type, facing, dimensions, and inspection requirements.
This information is particularly important for OEM production because the manufacturer may be producing components that need to fit equipment supplied by another company. Even a small difference in material grade or dimensional requirement can create problems during inspection or installation.
Chemical and Mechanical Testing Confirm Material Quality
Raw material inspection provides the foundation for consistent flange production. Chemical analysis is used to verify that the steel composition corresponds to the specified grade, while mechanical testing can evaluate characteristics such as tensile strength, yield strength, elongation, and impact performance when required by the applicable specification.
Material test reports are particularly useful for OEM buyers because they provide documented information about the supplied material. A heat number or equivalent identification should connect the test documentation with the material physically used in production.
Depending on the specification and application, additional nondestructive examination may also be required. Ultrasonic testing can be used to detect certain internal discontinuities without cutting the material apart, while other inspection methods may be selected according to the component and project requirements. The important point for buyers is that inspection should be defined by the applicable standard and purchase specification rather than added informally after production.
Even when the forging, casting, or plate material is acceptable, steel flanges still need accurate machining before they can be installed. The sealing face, bore, outside diameter, bolt holes, thickness, and other critical dimensions may directly affect how the flange fits with mating components.
CNC Machining Controls Critical Dimensions
CNC machining is commonly used to achieve repeatable dimensions and hole patterns during OEM flange production. Controlled machining allows manufacturers to produce the specified bore, bolt circle, bolt hole diameter, flange thickness, and sealing face according to the approved drawing or standard.
For OEM buyers, the key issue is not simply whether a supplier owns CNC equipment. The manufacturer should also have an established process for controlling critical dimensions during and after machining. In repeated production, this helps reduce variation between batches and makes replacement components more consistent.
Drawings should clearly identify critical dimensions and tolerances where necessary. If the OEM application requires tighter tolerances than the relevant standard normally provides, those requirements should be communicated before production rather than discovered during final inspection.
Sealing Faces Requires Careful Control
The flange facing is another important area that deserves attention. Depending on the application, a project may specify a raised face, flat face, ring-type joint, or another configuration. Surface finish requirements can also vary according to the gasket and connection design.
A flange with correct overall dimensions can still create installation problems if the sealing face does not meet the specified requirements. Buyers should therefore make sure the purchase specification identifies the required facing type and surface finish when these details are relevant to the connection.
Surface treatment should also be selected according to the service environment. Carbon steel components used outdoors or in marine environments may require an appropriate corrosion protection system, while stainless steel components may require cleaning or passivation according to the material and application. Coatings should not be treated as a universal solution because compatibility with the operating environment and installation requirements still needs to be considered.
Heat Treatment and Inspection Should Be Linked to the Material
Heat treatment is often an important part of flange production, particularly for forged and alloy steel components where mechanical properties must meet specified requirements. The exact treatment depends on the material grade, manufacturing route, dimensions, and governing standard.
Heat Treatment Records Add Confidence to OEM Orders
Processes such as normalizing, annealing, quenching, tempering, or solution treatment may be required for specific materials and applications. The purpose is not simply to make a flange “stronger.” Heat treatment is used to achieve the material properties required by the relevant specification and to establish a suitable metallurgical condition for the intended service.
For buyers, the important question is whether the manufacturer can provide records showing that the required treatment was completed under controlled conditions. Heat treatment records can form part of the quality documentation supplied with the order and can be particularly valuable for critical industrial projects.
The manufacturer should also understand the relationship between heat treatment and machining. Depending on the process and specification, certain dimensions may need to be verified after heat treatment because thermal processing can influence dimensional stability.
Final Inspection Should Reflect the Purchase Specification
Final inspection should confirm that the completed steel flanges match the approved requirements. Dimensional inspection normally covers the characteristics that determine fit and installation, while visual inspection can identify obvious surface defects or machining problems. Depending on the order, hardness testing, nondestructive examination, material verification, or other checks may also be required.
A strong OEM manufacturing process does not treat inspection as something that happens only at the end. Quality checks should be integrated throughout production so that problems can be identified before additional machining or finishing work increases the cost of correction.
For buyers, this is one reason supplier quality systems matter. A manufacturer that can explain how incoming materials, production stages, machining, heat treatment, and final inspection are controlled is generally easier to evaluate than a supplier that only provides a final product photograph and a basic quotation.
Documentation Is Part of the Finished OEM Product
For industrial flange procurement, documentation should be considered part of the delivery rather than an optional administrative attachment. The exact documentation package depends on the project, but buyers may require material certificates, heat treatment records, dimensional inspection reports, nondestructive testing reports, certificates of conformity, and other quality records.
Traceability Protects the Integrity of the Order
Material traceability allows the manufacturer and buyer to connect the finished flange with its original material and production records. This is particularly important when multiple steel grades or heat numbers are being processed at the same facility.
The traceability process should remain intact after cutting, forging, heat treatment, machining, and final inspection. Markings on the finished flange should correspond with the relevant production records where required by the specification. Without this connection, a material certificate may exist on paper but provide limited value for identifying the actual component supplied.
For OEM buyers, traceability becomes even more important when the same flange design will be reordered later. Good records can help the manufacturer reproduce the original material and dimensional requirements with fewer uncertainties.
Review Documentation Before Approving the Supplier
Documentation capability can be a useful supplier screening factor before production begins. Buyers can ask whether the manufacturer can provide the required certificates, inspection reports, dimensional records, and traceability information as part of the normal production process.
It is also worth confirming whether the supplier understands the documentation requirements of the destination market or project. A flange can meet the physical requirements of a drawing while still creating procurement problems if the required inspection records or material documentation are unavailable.
Conclusion
People who want to buy high-quality steel flanges need to know about the most important parts of OEM flange production. The manufacturing route, material grade, heat treatment, machining process, inspection system, and documentation all contribute to the suitability of the finished component. Forging may be appropriate for demanding applications, while casting or plate cutting can be practical for other designs and production requirements. The right choice depends on the engineering specification rather than on one manufacturing method being universally better than another.
For OEM buyers, supplier evaluation should therefore go beyond product appearance and quoted price. A capable manufacturer should be able to explain its production process, maintain material traceability, control critical dimensions, complete the required inspections, and provide documentation that supports the delivered components. When these factors are confirmed before production, buyers have a stronger basis for selecting steel flanges that fit their application and for building a more reliable long-term supply relationship.
Cangzhou Oudi Pipe Manufacture Co., Ltd. can be reached at oudi-04@oudiguandao.com for more information on their high-quality steel flanges and other pipe fittings. Since 1998, Cangzhou Oudi Pipe Manufacture Co., Ltd. has specialized in manufacturing carbon steel flanges, pipe fittings, and industrial valves for global industrial applications. Our knowledge and dedication to excellence have helped us do this.
FAQ
1. What are the best things about made steel flanges?
Forged steel flanges offer high mechanical strength, excellent fatigue resistance, and reliable performance under high-pressure and high-temperature conditions. This makes them perfect for use with high temperatures and pressures.
2. How does the grade of the material affect how well the flange works?
The flange's functional qualities, resistance to rust, and ability to work in certain situations are all based on the material type.
3. Why is precise cutting important when making flanges?
Precision cutting makes sure that the dimensions are correct and the surface is finished properly, which is very important for the flange to fit and work properly in its intended purpose.
4. Which of the following are popular ways to treat the surface of steel flanges?
Painting, galvanizing, and special coatings are common ways to treat the surface to make it more resistant to rust and wear.
