What Is a 90-Degree Carbon Steel Elbow and Where Is It Used?

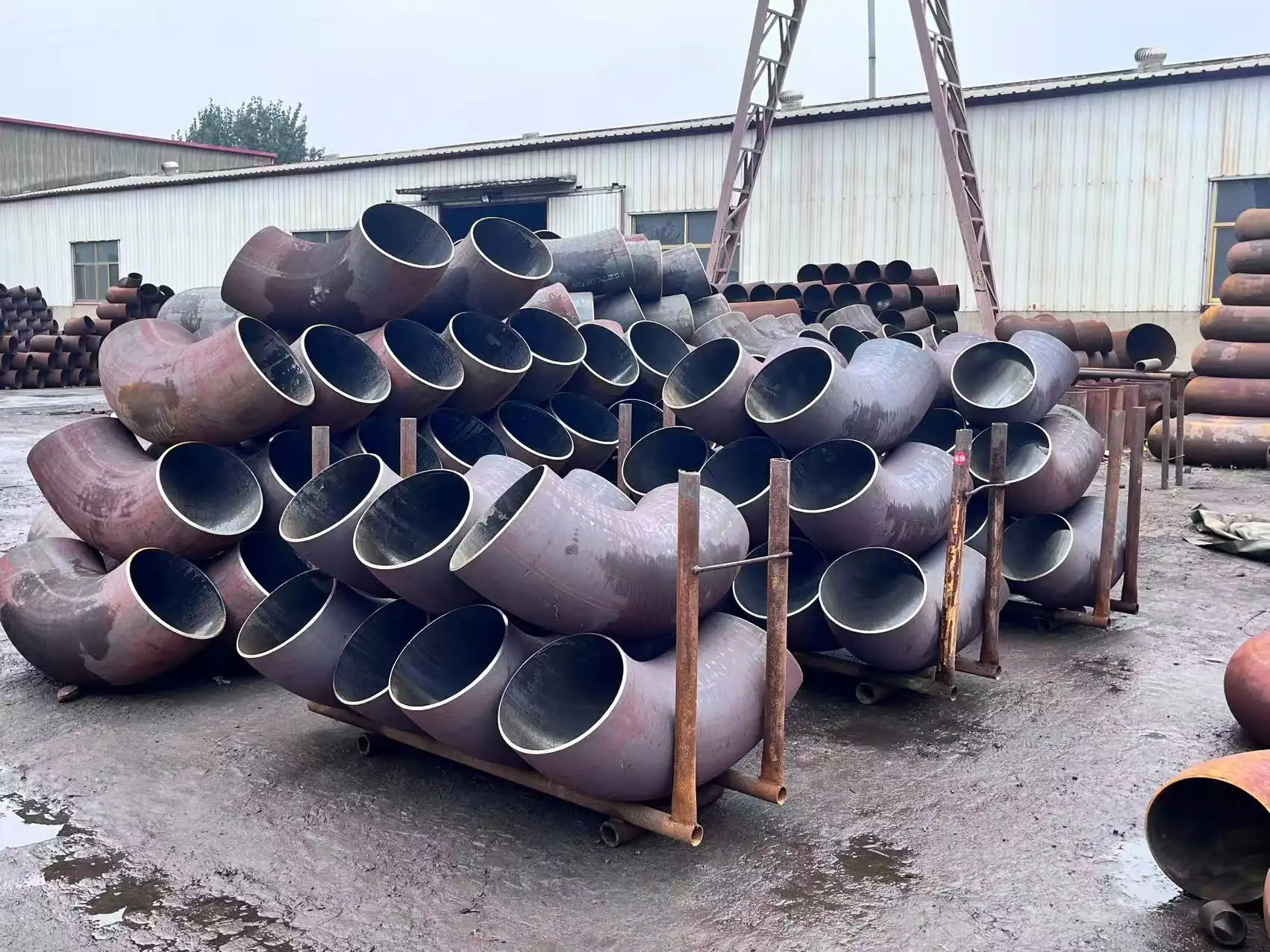

A 90-degree carbon steel elbow is a pipe fitting designed to change the direction of a piping line by approximately 90 degrees. Instead of requiring a pipeline to make a hard turn via a series of straight sections, the elbow may offer a regulated bend that can make routing around equipment, buildings, and other pipes easier. Carbon steel is the material of choice for these fittings since it provides the mechanical strength, machinability, weldability, and cost-effectiveness for many industrial applications. It's not only the material that affects how a 90-degree elbow performs. When choosing a fitting, engineers often examine the pipe size, wall thickness or schedule, pressure rating, operating temperature, fluid properties, elbow radius, connection type, and appropriate manufacturing standard. Carbon steel is also susceptible to corrosion when exposed to moisture or hostile media; therefore, material selection and corrosion protection are still crucial aspects of system design. These fittings are used in process pipework, oil and gas facilities, chemical and petrochemical plants, power generating systems, water infrastructure and industrial heating and cooling networks. They seem deceptively simple, but provide a critical technical function: to change the direction of flow while preserving the mechanical integrity of the pipe system. Engineers and buying teams need to know how they're built, their radius, how they connect, and what they do to the flow to make the proper choice of fitting for their specific application.

Understanding the Construction of a 90-Degree Carbon Steel Elbow

Geometry and Wall Thickness

The fundamental function of a 90 degree carbon steel elbow is simple, but its proportions are strictly regulated. The fitting comprises two ends that are connected to the neighbouring pipe and a curved body in between. This shape enables the pipeline to reverse direction while preserving a continuous internal path for the fluid or gas.

Wall thickness is perhaps the most essential dimensional factor. Elbows for use in conventional piping systems may be defined by schedule or other dimensional specifications to match the piping system. A thicker wall may be more structurally capable, but the right thickness must be decided from the relevant design condition and standard and not just because it is thicker.

The manufacturing procedures also impact the final properties of the fitting. Carbon steel elbows may be manufactured by hot forming, forging, or other permitted manufacturing methods depending upon the kind of fitting, size, material grade, and relevant standard. Dimensional inspection and other quality-control measures after forming help ensure that the fitting matches the specified tolerances.

Material quality is just as crucial for industrial purchasers. Varying grades of carbon steel have varying chemical and mechanical requirements, and the grade should be matched to the design code and service conditions of the pipe system.

Long-Radius and Short-Radius Designs

The elbow radius is directly related to both the installation space and the flow behaviour. The long radius elbow is often used and has a centerline radius of roughly 1.5 times the nominal pipe diameter and is sometimes called a 1.5D elbow. Due to the more gradual bend, it usually causes less localised flow disruption and pressure loss than a similar short-radius arrangement.

A short-radius elbow generally has a centerline radius of around 1D. Its smaller form factor might be beneficial when room for installation is at a premium. However, the tighter turn can lead to larger shifts in flow direction and, in certain systems, bigger local pressure drops.

No one design is inherently right for every application. Where flow efficiency and less pressure loss are required, a long radius configuration may be recommended. When space limits have a bigger impact on the pipe arrangement, a short radius design might be considered. The ultimate decision should be based on the whole system instead of the radius.

Connection Configurations

The elbow connection technique dictates how a 90-degree carbon steel elbow connects to the surrounding pipe and may have a substantial influence on installation and maintenance. Butt-weld elbows are frequently utilised in industrial process pipes since the ends may be welded directly to the surrounding pipe. The connection, when constructed and welded in accordance with the required process, produces a continuous pipe assembly that is suited for various demanding functions.

Socket-weld and threaded versions are also available for those applications where their dimensions and installation characteristics are acceptable. These connection techniques usually occur with smaller pipe diameters and certain pressure or installation restrictions. When equipment access, disassembly, or maintenance is a concern, flanged arrangements may be advantageous.

The connection should thus be chosen together with pipe size, pressure class, appropriate code, installation technique and maintenance requirements. Choosing a suitable one just because its connection seems handy might lead to compatibility concerns down the road in the project.

How Elbow Geometry Influences Flow and Pressure?

Changes in Flow Direction

When fluid enters a 90-degree elbow, its flow direction is changed over a relatively short distance. This distributes the velocity profile across the curve and may induce secondary flow patterns and localised turbulence. The resultant impact relies on many elements such as flow velocity, fluid characteristics, elbow radius, internal surface condition, and diameter of the pipe.

A large-radius elbow usually gives a smoother change of direction than a small-radius elbow. This is one of the reasons long-radius fittings are often considered in systems where pressure loss and flow behaviour are critical design parameters. However, the elbow angle alone doesn't influence the actual pressure decrease.

In a full pipe system, all fittings contribute to the total flow resistance. Thus, the engineer may include elbows, tees, valves, reducers, and other components in the system pressure-loss calculations and in the requirements for the pump or compressor. In complicated process pipework, the quantity and layout of fittings may become very critical.

Pressure and Mechanical Loads

Pressure concerns comprise both the internal pressure carried by the pipe system and the mechanical pressures operating on the fitting.  A 90-degree elbow must be compatible with the design pressure and temperature of the system, while its wall thickness and material grade must fulfil the required technical standards.

The elbow may also encounter stresses induced by thermal expansion, pipe weight, vibration, equipment movement, and changes in operating circumstances.  These forces are not always obvious from the fitting itself, but they can influence the performance of the complete piping assembly.

For this reason, specifying a 90-degree carbon steel elbow requires more than selecting a nominal diameter.  The engineering team may need to review the applicable piping code, material specification, dimensional standard, design pressure, temperature, and joining method before the fitting is approved for use.

Managing Pressure Loss in Piping Layouts

The pressure drop can be controlled with appropriate component selection and overall piping design. Where space permits, a 90-degree carbon steel elbow with a long radius can help provide a smoother change of direction. The number of unnecessary bends can also be reduced during the layout stage, which may lower the cumulative resistance of the system.

Spacing between fittings can matter, too. If several directional changes or other components are installed close together, their individual flow disturbances can interfere with each other. Engineers could therefore consider the arrangement of fittings rather than treating each elbow as a separate component.

If the system is high flow or very sensitive, detailed hydraulic calculations may be required. In these situations, selecting the elbow based only on nominal pipe size is not enough.  The fitting should be considered in relation to the overall hydraulic design.

Where 90-Degree Carbon Steel Elbows Are Commonly Used?

Oil and Gas Processing

Oil and gas facilities contain extensive networks of process and utility piping, creating many situations where changes in direction are necessary. A 90-degree carbon steel elbow can be used in pipelines and process systems when its material grade and design specifications are compatible with the service conditions.

Refineries may use elbows in piping associated with crude oil processing, fuel transfer, utilities, and other process units. Gas-processing facilities also require numerous directional fittings in compression, separation, dehydration, and distribution systems. The exact material and specification depend on the temperature, pressure, fluid composition, corrosion environment, and applicable project standards.

In these facilities, consistency between the elbow and the adjoining pipe is particularly important. The fitting must have compatible dimensions, material requirements, wall thickness, and connection configuration so that it can be properly incorporated into the piping system.

Chemical and Petrochemical Facilities

Chemical and petrochemical plants contain complex piping arrangements connecting reactors, storage equipment, heat exchangers, pumps, compressors, and other process units. Because these facilities often have limited space, directional fittings are essential for routing pipelines between different pieces of equipment.

A 90-degree carbon steel elbow may be suitable for particular non-corrosive or controlled service conditions, but carbon steel should not be assumed to be appropriate for every chemical medium. The chemical composition of the process fluid, operating temperature, pressure, corrosion characteristics, and project specifications all need to be considered.

For aggressive chemical services, engineers may specify different materials, linings, coatings, or corrosion-control measures. This distinction is important because carbon steel's strength and relatively economical cost do not make it universally resistant to chemical attack.

Power Generation Systems

Power plants contain extensive piping for steam, water, fuel, cooling media, compressed air, and other services. Directional fittings help route these systems around boilers, turbines, pumps, heat exchangers, and supporting structures.

Depending on the service conditions, carbon steel elbows can be used in various utility and process lines. High-temperature or high-pressure applications require careful material and dimensional selection because temperature can affect material properties and the allowable operating conditions of the piping system.

Power-generation projects also tend to involve detailed engineering standards and inspection requirements. As a result, the elbow's manufacturing specification, material documentation, dimensional conformity, and welding requirements may all form part of the purchasing and quality-assurance process.

Water Treatment and Industrial Utilities

Water treatment facilities and industrial utility systems also rely on directional pipe fittings. Carbon steel elbows can be considered for applications such as utility water, process water, compressed air, and other services when the material is appropriate for the medium and environmental conditions.

In these installations, space and maintenance access can influence the choice between a 90-degree carbon steel elbow and other elbow configurations. A compact fitting may help solve a layout constraint, while a long-radius configuration can be useful where smoother flow characteristics are preferred.

Corrosion protection should also be considered for carbon steel piping exposed to water or humid environments. Depending on the service, systems may require coatings, painting, insulation, cathodic protection, or other measures to control corrosion.

HVAC and District Energy Piping

Large commercial and industrial HVAC systems use extensive networks for chilled water, hot water, and other heating and cooling services. Directional fittings allow these pipelines to be routed through mechanical rooms, plant areas, and building infrastructure without requiring every pipe to follow a straight path.

A 90-degree carbon steel elbow can be used in larger heating and cooling networks when its material and dimensions are appropriate for the system. District heating and cooling projects may also contain long runs of steel piping with numerous directional changes, making reliable fittings an important part of the overall network.

In these applications, engineers may balance installation space, flow resistance, temperature, pressure, accessibility, and expected service life when selecting the elbow configuration.

How to Select the Right 90-Degree Carbon Steel Elbow?

Choosing a fitting should begin with the actual operating requirements of the piping system. Nominal pipe size is only the starting point. The required material grade, wall thickness, radius, connection type, pressure rating, operating temperature, and manufacturing standard should all be established before ordering.

The applicable standard is another important consideration. Industrial elbows may be manufactured to recognized dimensional and material specifications, depending on the project and piping code. Confirming the required standard before production helps ensure that the fitting dimensions and material documentation are compatible with the rest of the system.

The service medium also deserves close attention. Water, steam, hydrocarbons, compressed gases, and chemical fluids can impose very different requirements on piping materials. Carbon steel can be an effective choice in many services, but corrosion conditions must be evaluated rather than ignored.

For procurement teams, documentation can be just as important as the physical fitting. Depending on the project, buyers may require material certificates, dimensional inspection records, test reports, marking information, and other quality documents. Providing these details early can reduce misunderstandings between the supplier, engineering team, and installation contractor.

Why Manufacturing Quality Matters

The pipe elbow is a relatively tiny portion of the whole piping system, but dimensional or material faults might result in complications during installation. An elbow that is not within the dimensional requirements might impair the alignment with adjacent piping and increase the amount of field adjustment necessary.

So manufacturing quality is more than just making the right nominal size. The fitting should adhere to the required dimensions, material specifications, end preparation, and relevant inspection standards. For welded fittings, the production and inspection process is especially critical, as shaping and welding may impact the final shape and material condition.

A good supplier can provide you with detailed product specs and documentation before shipping. This consistency in manufacturing is especially essential for projects with numerous sizes or recurring orders, since the replacement or extra fittings must be compatible with the original system.

Conclusion

An elbow is a 90-degree bend of a carbon steel pipe. An elbow is a convenient technique to change the direction of the piping while keeping a continuous and sound connection between pipe sections. The actual performance is affected by a number of elements, including the grade of carbon steel, wall thickness, elbow radius, type of connection, operating pressure, temperature, and qualities of the material conveyed. Long radius and short radius designs satisfy varying layout and flow needs, while butt-weld, socket-weld, threaded, and flanged variants allow varied installation possibilities.

These fittings are used extensively in oil and gas, chemical and petrochemical processing, power generation, water treatment, HVAC, and industrial utility systems. But carbon steel is not to be chosen simply because it is strong or affordable. The fitting must be compatible with the pipe standard, service circumstances, corrosive environment, and technical requirements of the project. Taken together, a 90-degree carbon steel elbow may be a reliable solution for routing complicated industrial pipe systems, keeping the essential balance of ease of installation, mechanical performance, and long-term use requirements.

For high-quality 90-degree carbon steel elbows and expert guidance on their application, consider reaching out to Cangzhou Oudi Pipe Manufacturing Co., ltd at oudi-04@oudiguandao.com. With their extensive experience and commitment to quality since 1998, they are well-equipped to meet your specific piping needs and contribute to the efficiency and reliability of your industrial systems.

FAQ

1. What is the main advantage of using a 90-degree carbon steel elbow?

The main advantage is its ability to change flow direction by 90 degrees while maintaining strength and durability in high-pressure and high-temperature applications.

2. How does the radius of a 90-degree elbow affect its performance?

Long radius elbows provide smoother flow transitions and lower pressure drops, while short radius elbows are more compact but may result in higher turbulence and pressure losses.

3. What are the common connection types for 90-degree carbon steel elbows?

Common connection types include butt-weld, threaded, socket-weld, and flanged, each suited for different installation requirements and industry standards.

4. How do 90-degree carbon steel elbows impact system pressure?

They cause a pressure drop due to the change in flow direction, with the magnitude depending on factors such as flow rate, fluid viscosity, and elbow geometry.
