What Is a Carbon Steel Elbow and How Is It Used in Piping Systems?

In a piping system, changing the direction of a pipe run is rarely as simple as adding a bend. The fitting has to accommodate the pipe size, pressure, temperature, flow conditions, connection method, and available installation space. This is where carbon steel elbows are widely used. A carbon steel elbow is a pipe fitting that is used to modify the flow of fluid, most often by 45° or 90°, but different angles are available for specialized uses. Carbon steel is a popular choice for industrial plumbing since it provides a reasonable balance of mechanical strength, ease of manufacture, and cost. Carbon steel elbows may be utilized in pipe systems conveying water, steam, oil, gas, and various industrial process fluids depending on the material grade and suitable standard. But their fitness should never be assessed by the material name alone. All of these factors must be addressed before a fitting is selected: pressure rating, operating temperature, fluid properties, pipe wall thickness, corrosion environment, and suitable piping code. Knowing how an elbow is formed and where each kind fits into a pipe architecture helps engineers, contractors, and buying teams choose a component that works with the rest of the system, rather than merely picking a fitting based on size and price.

Understanding the Role of a Carbon Steel Elbow in Piping

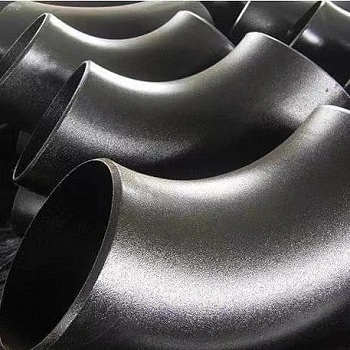

An elbow of carbon steel is used to alter the direction of a pipeline and to maintain a continuous connection between neighboring sections of pipe. Without directional fittings a pipeline arrangement would be limited to straight lines, and it would be impossible to route pipe around equipment, structural elements, tanks, valves, and other obstructions.

The change in direction of flow is a function of the elbow angle. If the pipe has to change direction at a straight angle, a 90-degree elbow is often utilized. For a more gradual change in direction, a 45-degree elbow is available. It’s not just about the layout. A change of direction also changes the pressure loss, flow disturbance, and forces delivered to the pipe system.

This is why the shape of the elbow matters. As a general rule, a fitting with a greater centerline radius will provide a smoother flow route than a tighter bend. This may be crucial in systems where pressure loss, erosion, vibration, or flow stability must be managed.

Carbon steel elbows are also available in numerous connection configurations and production forms. Butt-weld elbows are highly employed in industrial process pipes since the welded union is a continuous joint with the pipe. Elbows may be seamless or welded components depending on the project and product specification. The correct option depends on the relevant standard, material requirements, size, pressure conditions, and manufacturing route.

Which Carbon Steel Elbow Types Fit Different Piping Layouts?

Long-Radius Elbows for Smoother Direction Changes

Long-radius elbows are one of the most prevalent options in industrial pipework. The centreline radius of a standard long-radius butt-weld elbow is roughly 1.5 times the nominal diameter of the pipe. A broader radius provides a more progressive passage for the fluid through the fitting than a short-radius elbow does.

Long-radius elbows are often used in process lines, utility pipelines, oil and gas systems and other installations where hydraulic performance matters because the design may assist in decreasing pressure loss and flow disruption. They also are beneficial when the pipe plan provides sufficient room for the bigger turning radius.

The most common way to accomplish a right-angle turn is with a 90-degree long-radius elbow, while 45-degree elbows are employed when the design involves a less abrupt change of direction. For complicated systems, numerous elbows may be paired with straight pipe sections to route the line around equipment while maintaining a feasible layout for fabrication and maintenance.

Short-Radius Elbows Where Space Is Limited

Short radius elbows feature a narrower centreline radius, often about one nominal pipe diameter for conventional setups. The reduced footprint might be advantageous if equipment spacing, structural restrictions or existing pipes provide limited area for a greater bend.

The drawback of a tighter bend is that it often causes more flow disruption and pressure loss than a corresponding large-radius elbow. That is not to say that small-radius elbows are not suited for higher-pressure systems. Their use should be checked against the design code, pressure drop calculations, mechanical loads and project requirements.

Hence, short-radius elbows might be advantageous if compactness is more essential than limiting the extra hydraulic loss that accompanies a tighter bend. It should be a choice based on the whole plumbing design, not just the pressure level.

Reducing Elbows for Direction and Size Changes

A decreasing elbow changes direction and size. Where the product design and appropriate specification permit, a reducing elbow may execute the functions of a regular elbow and a separate reducer in a single fitting.

This may simplify certain plumbing configurations and minimise the number of components and welds necessary when using carbon steel elbows. But they should not be chosen just because they seem to save space by minimising elbows. The change in diameter influences the flow velocity and pressure behaviour, so the fitting has to be assessed within the overall hydraulic design.

In the case of procurement, the elbow angle, material grade, wall thickness or schedule, connection requirements and the relevant manufacturing standard should be explicitly described together with the inlet and outlet dimensions. This eliminates the typical issue of ordering a fitting that fits the nominal pipe size but does not match the whole system layout.

How Are Carbon Steel Elbows Manufactured and Connected?

Manufacturing Methods Affect Product Characteristics

The production process of carbon steel elbows might be variable depending on the size, material specification, design and performance requirements. Seamless elbows should be made of seamless pipe or other appropriate tubular material. Welded construction may be utilised for goods made of plate or welded pipe when authorised by the specification.

The forming process requires controlling the dimensions, as the elbow must retain the necessary angle, centreline radius, end diameter and wall thickness. Dimensional inspection is a vital phase of manufacturing, since over-thinning during forming may have a negative impact on the fitting’s capacity to fulfil the required specification.

Commonly the dimensions and tolerances of industrial butt-weld elbows are defined by standards like ASME B16.9. The criteria for materials are covered by specifications like ASTM A234 for wrought carbon steel and alloy steel fittings of pressure pipelines. Not all carbon steel elbows are made to the same criteria, and the precise standard should always be validated against the project specification.

Butt-Weld Connections Provide a Continuous Pipe Run

Butt-weld elbows are intended to be welded directly to the pipe ends or other butt-weld fittings. Before welding, examine the pipe and elbow for accurate dimensions, material identification, end preparation, cleanliness and alignment.

Proper alignment is especially crucial since too much offset might produce extra stresses in the welded joint. No compensation should be made by forcing the elbow in place to make up for a pipe arrangement fault. If the fitting does not fit the pipe naturally, the underlying layout should be checked before further welding.

The welding technique itself is dependent on material, wall thickness, project requirements and authorised welding procedure. SMAW, GTAW and GMAW may all be utilised in appropriate applications, but the process should be chosen and certified according to the appropriate needs, not as an interchangeable option.

What Should Be Checked Before Installing a Carbon Steel Elbow?

Confirm Dimensions, Material, and Orientation

Before installation, the elbow should be checked against the piping drawings and purchase specification. The nominal size is only one part of the information required. The angle, radius, wall thickness or schedule, material grade, end preparation, and overall dimensions also need to match the intended application.

Material identification is particularly important when several grades of fittings are being installed at the same site. A fitting that looks correct externally may still have the wrong material specification. Maintaining traceability through material certificates and batch documentation can help prevent this type of error.

The orientation of the elbow should also be confirmed before it is permanently joined. In a complicated pipe rack, an incorrectly oriented fitting can force downstream components out of position and create unnecessary stress in the finished line.

Prepare the Joint Before Welding

The mating pipe ends and elbow ends should be clean and free from contaminants that could interfere with welding. The joint should then be aligned according to the approved welding procedure and project requirements.

For thicker materials or demanding service conditions, preheating and other thermal controls may be required. Whether post-weld heat treatment is necessary depends on factors such as material grade, thickness, service conditions, and the applicable code or specification.

Rather than applying one universal installation method to every carbon steel elbow, the welding and heat-treatment requirements should be established from the engineering specification before fabrication begins.

Inspect and Test the Completed Connection

Inspection does not end when the weld is finished. Visual inspection is normally used to identify obvious weld or dimensional problems, while additional non-destructive examination may be required depending on the piping class and applicable code.

Radiographic testing, ultrasonic testing, magnetic particle testing, and other examination methods can be used for appropriate applications. The selected method depends on the type of weld, material, inspection requirements, and project standard.

Pressure testing of carbon steel elbows is another important stage before a piping system is placed into service. The exact test method and pressure should follow the applicable piping code and project procedure. Inspection and testing records should be retained together with material certificates, welding documentation, and other quality records so that the completed piping system remains traceable.

How Does Carbon Steel Compare With Other Elbow Materials?

Carbon Steel Offers a Practical Balance for Many Systems

Carbon steel is often chosen when a piping system requires a strong metallic fitting without the higher material cost associated with some corrosion-resistant alloys. It is widely used in industrial environments where mechanical strength and cost control are important considerations.

However, carbon steel is not inherently corrosion-proof. Exposure to water, oxygen, aggressive chemicals, high humidity, or other corrosive conditions can lead to corrosion if the material is not adequately protected. Depending on the service environment, protection may involve coating, painting, corrosion control measures, material upgrades, or a different alloy altogether.

Stainless steel elbows generally provide better resistance to many corrosive environments, but the additional material cost may not be justified for every application. Plastic fittings can offer advantages in certain low-temperature or chemically aggressive services, although their pressure, temperature, mechanical, and installation limitations must also be considered.

The best material is therefore the one that meets the actual service requirements rather than the one with the lowest purchase price.

Operating Conditions Should Guide Material Selection

When selecting an elbow, the fluid being transported is one of the first factors to consider. Water, steam, hydrocarbons, gases, chemical solutions, and slurry services can place very different demands on the fitting.

Operating pressure and temperature are equally important. A fitting's suitability cannot be determined simply by saying that carbon steel is suitable for “high pressure” or “high temperature". The specific material grade, wall thickness, design conditions, and applicable pressure-temperature requirements must all be checked.

Corrosion allowance and external environmental exposure should also be considered. In a dry indoor utility system, the corrosion risk may be relatively manageable, while an outdoor installation or a system carrying a corrosive medium may require additional protection or a different material.

This application-based approach is more reliable than selecting an elbow solely according to the pipe diameter.

Where Are Carbon Steel Elbows Commonly Used?

Carbon steel elbows are found in many industrial piping systems because they can be manufactured in a broad range of sizes and configurations. In oil and gas facilities, they may be used to route process lines, utility lines, and other piping around equipment and structural components.

In petrochemical and chemical plants, elbows are used throughout process and utility systems, provided the material is compatible with the transported medium and operating conditions. They are also common in power generation, water treatment, general manufacturing, heating systems, and other industrial installations.

Their role is usually straightforward: change the direction of the pipeline while maintaining the required connection and mechanical integrity. What changes from one project to another is the specification behind the fitting. A small utility line and a high-pressure process line may both use a 90-degree carbon steel elbow, but their material grades, dimensions, inspection requirements, welding procedures, and documentation can be very different.

That distinction is important for buyers. The term “carbon steel elbow” describes a broad product category, not a single standardised product suitable for every piping application.

Conclusion

Carbon steel elbows provide a practical way to redirect piping while maintaining a robust connection between sections of a pipeline. Their widespread use comes from the combination of mechanical strength, manufacturing flexibility, and relatively competitive cost, but their suitability depends on more than the material itself. Elbow radius, angle, dimensions, wall thickness, material grade, connection method, operating conditions, and applicable standards all influence the final selection.

Long-radius elbows are often preferred when a smoother flow path and lower pressure loss are important, while short-radius designs can be useful where installation space is restricted. Reducing elbows can combine a directional change with a change in pipe diameter when the piping design permits their use. Regardless of configuration, proper dimensional verification, welding control, inspection, and testing are essential to achieving a dependable installation.

For procurement teams and piping engineers, the most effective approach is to treat the elbow as part of the complete piping system rather than as an isolated fitting. When the product specification is matched carefully with the pipe, service conditions, and applicable standards, carbon steel elbows can provide a reliable solution for a wide range of industrial piping applications.
