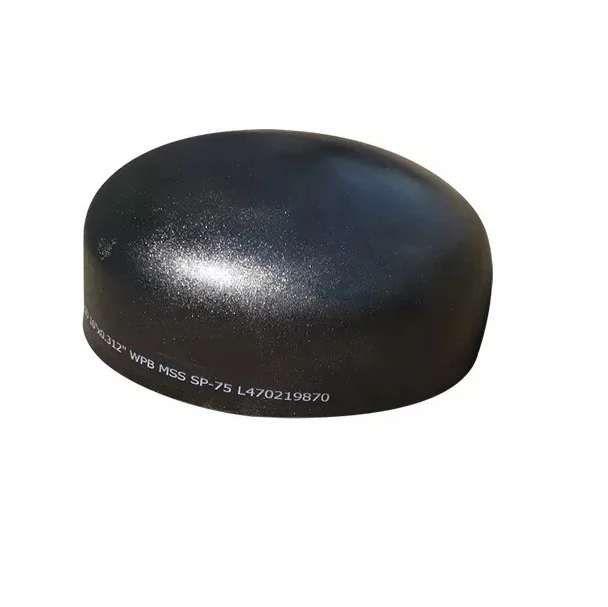

What Is a Carbon Steel Pipe Cap and How Is It Used?

A pipe system is not complete simply because the pipes, elbows, tees, and valves have been installed. Open pipe ends also need to be closed properly when a line is being fabricated, modified, tested, stored, or placed into service. This is where a pipe cap becomes useful. Carbon steel pipe caps are fittings designed to close the end of a pipe and create a secure termination, and they are widely used in industrial piping because carbon steel offers a practical combination of strength, machinability, and cost. Industrial carbon steel caps are not intended as a replacement for plastic caps used for light-duty plumbing or temporary protection. They are often used for situations where the pipe may be subject to mechanical loads, high temperatures, internal pressure, or difficult installation circumstances. For a permanent closure, a cap may be welded to the pipe or provided in another connection configuration when the application needs a detachable fitting. For engineers, contractors, maintenance teams, and buying departments, selecting the proper cap is not only a question of matching the exterior diameter of the pipe. Suitability of a given fitting depends on material grade, nominal pipe size, wall thickness, connection technique, temperature, pressure, corrosion conditions, and relevant standards and inspection requirements. Knowing these characteristics makes it simpler to choose the right carbon steel pipe caps for the real needs of a piping system.

What Does a Carbon Steel Pipe Cap Do in a Piping System?

Closing an Open Pipe End

The fundamental purpose of a pipe cap is simple—to shut an end of a pipe. In a finished piping system this prevents the process medium from escaping via an unused pipe end. A cap also enables one segment of pipe to be isolated for fabrication or maintenance operations.

For permanent industrial installations a butt weld cap is often utilized since the cap may be welded directly to the pipe. Once the welding technique is performed and tested as needed, the connection becomes an essential element of the pipe system. This layout is well suited for various processes, utilities, oil and gas, petrochemical, and general industrial pipe applications.

The cap also influences the action of the forces at the closed end of the pipe. In a pressurized system the internal pressure loads the end closure; therefore, the cap cannot be chosen independently of the pipe design. It should be of a size and material suitable for the working circumstances and relevant technical criteria.

Protecting Pipe Ends During Storage and Construction

A pipe cap may also provide practical protection prior to a piping system going into operation. During shipping or construction, open pipe ends may gather dust, moisture, debris, welding residue, and other pollutants. By keeping the aperture covered, less foreign material may enter the pipe, and subsequent cleaning and preparation will be simpler.

This capability is especially helpful on building sites, where pipe pieces may be left unused for days or weeks until final assembly. However, a temporary protective cover and a permanent carbon steel cap are not interchangeable items. Temporary protection may need a detachable plastic or metal cover. The permanent closure should be designed to fulfill the pipe system’s mechanical and dimensional requirements.

Isolating Unused or Abandoned Pipe Sections

Plants are changed or equipment is reconfigured, and piping systems are regularly reengineered. Where a branch is no longer necessary, it may be blocked off or a length of pipe isolated until such time as it is connected to. A good pipe cap offers a clean termination to that length of pipe instead of an open end.

The right answer depends on whether the closure is temporary or permanent. The system modification should provide for safe removal via a temporary arrangement, while permanent closure should be considered a part of the designed pipe system. In any scenario the cap must be chosen based on the actual service circumstances and not only by selecting the cheapest fitting of the proper nominal size.

Where Are Carbon Steel Pipe Caps Commonly Used?

Oil and Gas and Process Piping

Carbon steel fittings are often utilised in industrial plumbing applications because they can offer the mechanical strength needed for various pressure and process applications. Process lines, utility lines, branch connections, equipment-related pipes and potential expansion areas are equipped with pipe caps at their extremities.

For example, in oil and gas facilities, the selection of carbon steel pipe caps may be based on the fluid being carried, the operating pressure, temperature, pipe specification and project criteria. A fitting suited for a common utility line is not always suitable for a hydrocarbon service line. Material compatibility and the whole pipe specification need to be looked at simultaneously.

Chemical and Industrial Facilities

In chemical processing facilities there are frequently complicated networks of pipes conveying liquids, gases, steam and other process media. A pipe cap may be used to cap off an unused line, shut off a segment during manufacture, or finish a permanent piping layout.

In these settings, material selection is very crucial, as the surrounding circumstances may exacerbate corrosion. Carbon steel is not corrosion-resistant; therefore, purchasers should be sure that their service will not need painting, coating, insulation, corrosion allowance, or a new material entirely.

Water and Utility Systems

Carbon steel pipe caps are also employed in industrial water systems, utility pipes, fire protection-related installations and other mechanical services where the material and design circumstances are adequate. The particular option is based on water chemistry, operational pressure, temperature, corrosion control and appropriate project standards.

What’s essential here is that carbon steel pipe caps should not be touted as suited for all water or chemical applications. “Carbon steel could be a good choice for the operating environment.

How Are Carbon Steel Pipe Caps Connected to the Pipe?

Butt-Welded Pipe Caps

Butt welding is one of the key connection procedures to understand for industrial carbon steel pipes. A butt-weld cap is placed on the end of the pipe and then welded around the connection. When the pipe, fitting, welding method and inspection criteria are appropriately matched, the resultant connection may produce a continuous, permanent seal.

ASME B16.9 deals with factory-made wrought buttwelding fittings. It includes the dimensions and associated standards required for fittings in industrial pipe systems. This makes the requirement especially significant when buying carbon steel caps for butt-welded systems.

The welding process should be carried out in accordance with the appropriate project welding procedure. Depending on the material, wall thickness, service conditions and project needs, procedures may include techniques such as SMAW, GTAW, GMAW or mixtures of these methods. Preheating, post-weld heat treatment, weld inspection and certification criteria should be defined in the appropriate code and project specification and should not be presumed to be the same for every pipe cap.

Threaded and Other Connection Types

Threaded caps are available for applications requiring a detachable closure but should not be immediately considered to be similar to butt-weld fittings. Forged threaded and socket-weld fittings come under a distinct standards regime such as ASME B16.11. Their pressure class and application requirements need to be considered individually.

The first thing the purchasers need to do is find out what sort of connection the pipe design needs for this purpose. Choosing a threaded cap for its ease of installation when the pipe specification asks for a butt-weld fitting might create a compatibility and technical difficulty. The connection should be in accordance with pipe end preparation and piping system specifications.

Which Standards and Materials Apply to Carbon Steel Pipe Caps?

ASTM A234 for Moderate and High Temperature Service

ASTM A234/A234M is one of the important material specifications associated with wrought carbon steel and alloy steel pipe fittings used in pressure piping and pressure vessel fabrication for moderate and elevated temperature service. The specification covers fittings made through processes such as forging, forming, bending, welding, and machining and is used alongside applicable dimensional standards.

When a project specifies ASTM A234 material, the purchaser should confirm the exact grade, dimensions, heat treatment requirements, inspection requirements, and documentation requested by the project. Simply stating “carbon steel” does not provide enough information to establish whether a fitting is suitable.

ASTM A234 WPB is a commonly encountered carbon steel fitting grade, including applications involving carbon steel pipe caps, but the actual grade should always be selected according to the piping specification and service conditions. Material requirements are more than a marketing description; they directly affect the mechanical properties and allowable application range of the fitting.

Low-Temperature Applications Require Different Considerations

Low-temperature service deserves separate attention. ASTM A420/A420M covers wrought carbon steel and alloy steel fittings intended for low-temperature pressure piping and pressure vessel service. The specification includes requirements related to chemical composition, mechanical properties, heat treatment, and Charpy V-notch impact performance.

This distinction is important because a carbon steel fitting suitable for ordinary or elevated-temperature service should not automatically be assumed to perform safely in a low-temperature environment. If the piping system will operate at low temperatures, the material specification and impact requirements need to be reviewed before the cap is ordered.

Dimensions and Piping Compatibility

Material grade is only one part of selecting a pipe cap. The nominal pipe size, outside diameter, wall thickness, cap dimensions, end preparation, and fitting standard must also correspond with the piping system.

ASME B16.9 is particularly relevant for factory-made wrought butt-welding fittings, while other connection types may fall under different standards. A cap should therefore be purchased based on the complete fitting specification rather than a size description alone.

This is especially important when the pipe comes from a different supplier or when replacement fittings are being sourced for an existing system. Two components that appear to have the same nominal size may still require confirmation of wall thickness, dimensional standard, material grade, and end preparation before installation.

What Quality Checks Should Buyers Expect?

Material Traceability and Documentation

For industrial projects, reliable documentation can be as important as the physical appearance of the fitting. Buyers may need a material certificate or other quality documentation showing the material designation, heat number, chemical composition, mechanical properties, and applicable inspection results.

ASTM's common requirements for wrought steel fittings include chemical analysis and mechanical testing requirements such as tension, hardness, impact, and hydrostatic testing where applicable through the relevant specification. The exact documentation package, however, depends on the product standard, purchase order, project specification, and inspection plan.

Material traceability is particularly valuable when a large quantity of fittings is being purchased for a project. It allows the buyer and quality team to connect the delivered fittings with the corresponding production records and certificates.

Dimensional and Visual Inspection

Before installation, carbon steel pipe caps should also be checked for dimensions, surface condition, end preparation, markings, and visible defects. The fitting should correspond to the specified size and wall thickness, while the weld preparation should be suitable for the intended connection.

Visual inspection cannot replace all required testing, but it is an important first step. Damage caused during transportation, incorrect dimensions, poor surface condition, or missing identification can create problems during fabrication if the fitting is not inspected before installation.

Non-Destructive Testing and Project-Specific Requirements

Additional non-destructive examination may be required depending on the product specification and service conditions. Methods such as radiographic testing, ultrasonic examination, or magnetic particle examination may be specified for particular components or applications.

The appropriate test should be determined by the governing standard and project requirements. A good supplier should therefore be able to explain what inspection and testing have been performed and provide the relevant quality documents when they are included in the purchase specification.

How Should Buyers Select the Right Carbon Steel Pipe Cap?

Start With the Pipe Specification

The first step is to identify the pipe that the cap must fit. Buyers should confirm nominal pipe size, outside diameter, wall thickness or schedule, material specification, and connection type before requesting a quotation.

This information prevents a common purchasing mistake: ordering a fitting based only on nominal size. The cap also needs to match the applicable dimensional and material requirements.

Consider Pressure, Temperature, and Service Medium

The operating environment should then be reviewed. Pressure, temperature, fluid composition, corrosion conditions, and cyclic service can all influence the required material and fitting specification.

For example, a cap used on a general utility line may have very different requirements from one installed on a high-temperature process line. Similarly, a low-temperature application may require a fitting manufactured to a low-temperature material specification such as ASTM A420/A420M rather than a standard moderate-temperature fitting.

Confirm Standards and Quality Documents Before Ordering

For larger industrial purchases, the supplier should be able to confirm the applicable product and dimensional standards, material grade, manufacturing requirements, inspection arrangements, and documentation available with the shipment.

This information is useful not only for initial procurement but also for future maintenance. When replacement parts are needed years later, a clear record of the original fitting specification makes it much easier to source a compatible product.

Conclusion

Carbon steel pipe caps are simple-looking fittings, but their role in an industrial piping system is more important than their shape might suggest. They provide a defined closure for pipe ends, help protect open piping during construction and storage, and can form a permanent termination when properly welded into the system. Their suitability, however, depends on much more than the material name alone.

The right cap must match the pipe size, wall thickness, connection method, material grade, operating pressure, temperature, service medium, and applicable standards. For butt-welded applications, dimensional compatibility with the piping system is especially important, while material specifications such as ASTM A234/A234M or ASTM A420/A420M need to be considered according to the service conditions. ASTM A234/A234M addresses wrought carbon and alloy steel fittings for moderate and elevated temperature service, while ASTM A420/A420M is specifically intended for low-temperature service.

For buyers, the safest approach is to treat the pipe cap as an engineered component rather than a generic closure. Confirming the material grade, dimensions, connection type, applicable standard, inspection requirements, and quality documentation before ordering can reduce compatibility problems and make installation much more straightforward.

Cangzhou Oudi Pipe Make Co., Ltd. has manufactured carbon steel pipe fittings since 1998 and supplies carbon steel pipe caps and related piping products for industrial applications. For projects that require specific dimensions, materials, standards, or documentation, buyers should provide the complete piping specification when requesting a quotation so that the proposed fitting can be evaluated against the actual service requirements. If you have questions or want more information, please email us at oudi-04@oudiguandao.com.

FAQ

1. What are the main advantages of using carbon steel pipe caps?

Carbon steel pipe caps offer excellent durability, corrosion resistance, and pressure handling capabilities, making them ideal for various industrial applications.

2. How are carbon steel pipe caps typically installed?

Common installation methods include welding, threaded connections, and slip-on or press-fit techniques, depending on the specific application requirements.

3. What standards govern the manufacture of carbon steel pipe caps?

A: ASTM A234 and ASME B16.9 are key standards that specify material properties, dimensions, and performance requirements for carbon steel pipe caps.

4. Can carbon steel pipe caps be used in high-pressure systems?

Yes, many carbon steel pipe caps are designed to withstand high pressures, especially those installed using welded connections.
