What Is a Steel Pipe Tee and How Is It Used in Industrial Piping Systems?

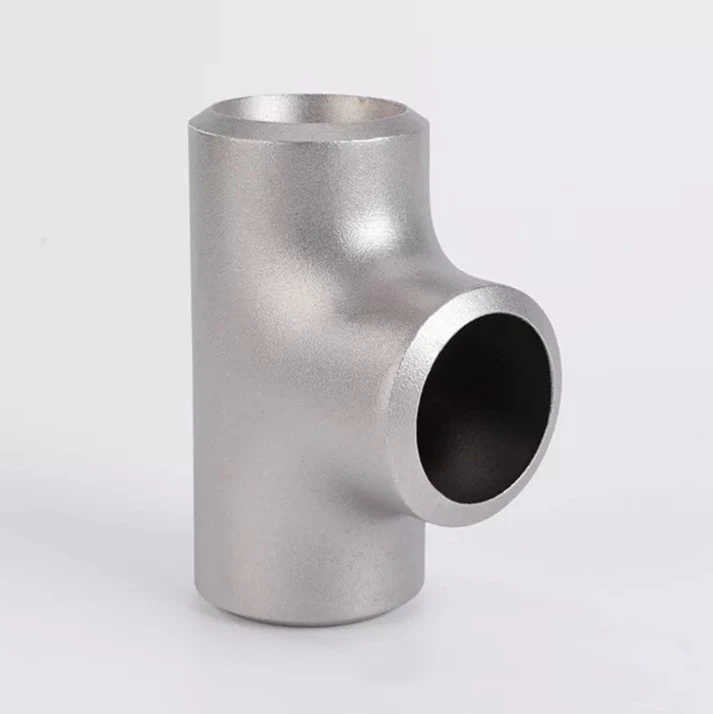

A steel pipe tee is a pipe fitting used to create a branch connection in a piping system. Its three openings allow fluid to continue through the main run while part of the flow is directed into a branch or allow flows from two lines to join before continuing through another line. Because the branch is normally arranged at approximately 90 degrees to the run, a tee provides a practical way to change the layout of a piping network without using several separate fittings. Steel pipe tees are widely used in oil and gas, petrochemical processing, power generation, water treatment, chemical processing, and other industrial applications where piping systems must handle defined pressure, temperature, and material requirements. A tee makes a branch point, whereas a pipe bend or elbow mostly modifies the direction of a pipeline. This difference is significant in constructing or buying pipe fittings. The tee is expected to withstand the mechanical and flow conditions established at the branch connection. The proper product therefore relies not only on nominal pipe size but also on material grade, wall thickness, connecting technique, operating circumstances and the appropriate piping standard.

Understanding the Function of a Steel Pipe Tee

How a Tee Changes the Layout of a Piping System？

The tee has a run with two openings in the queue, and a third opening is the branch. A common setup is when the main pipe comes in one end and goes out the other. The branch gives a link to another part of the system. Flow might be from the main line to the branch, from the branch to the main line, or between many linked lines, depending on the process design.

Tees are helpful when a process requires a fluid to be split to another piece of equipment, flow from a secondary line to be collected, or link different portions of a piping network. For example, a process line may employ a tee to feed a smaller pipe to an instrument, storage tank, heat exchanger, pump, or auxiliary process line. The fitting itself does not dictate the flow direction; instead, the pipe system and process needs define the flow direction.

Why the Branch Connection Requires Careful Design？

A branch connection modifies the stress distribution in the pipe wall. The region surrounding a tee might encounter greater mechanical stress when compared to a straight stretch of pipe, since the main run and the branch are joined at one point. The strains on the fitting might be affected by pressure, thermal expansion, vibration, external loads and the weight of the connected pipe.

Therefore, industrial piping designers usually do not pick a tee based only on the matching of its size with the linked pipes. The fitting should be compliant with the design pressure and temperature, material specifications, pipe wall thickness, welding technique and relevant engineering code. In more demanding systems, the reinforcing of branches and the consideration of flexibility may also need to be addressed as part of the whole pipe design.

Which Types of Steel Pipe Tees Are Used in Industry?

Equal Tees for Same-Size Branch Connections

Equal Tee An equal tee, or straight tee, has three apertures of the same nominal pipe size. It is utilised if the branch and the two sides of the main run have the same nominal dimension.

For example, the process pipeline which carries fluid via a main line may need a branch of the same nominal capacity to join another process. An equal tee is a simple connector with no reduction in diameter at the branch.

However, the actual flow behaviour within the system still relies on the system design, fluid characteristics, flow rates and operating circumstances. Thus, an equal tee should not be understood as meaning that there is an equal flow through all three apertures. The main feature is the matching nominal size of the three connectors.

Reducing Tees for Different Pipe Sizes

A reducing tee is one type of steel pipe tees with a smaller branch aperture than the main line, enabling direct connection of pipes with various nominal diameters. This is a frequent arrangement when a big process line feeds a smaller distribution or auxiliary line.

Reducing tees may simplify pipe arrangements by combining both the branching and size transition into a single fitting. The needed connection may be made in a single component instead of requiring installation of a full-size tee and then a separate reducer.

The selection should be based on more than just the nominal dimensions. The decrease impacts the flow velocity as well as the pressure loss in the branch, and the variation in the wall thickness of the connected pipes might influence the welding and fabrication requirements. For systems with demanding flow or pressure conditions, they should be examined throughout engineering, not only handled as dimensional details.

Barred Tees for Pigging Applications

Barred tees are a kind of tee used in certain pipeline systems to stop internal flow equipment, especially pipeline pigs, from going into the branch. Bars or other acceptable internal barriers are placed across the branch entrance so that pigs may go via the main pipeline and the branch is still linked to the system.

This makes barred tees especially important for pipelines where frequent pigging is part of inspection, cleaning or maintenance activities. Their design is thus tied to the operating needs of the pipeline and not just to the resistance to pressure.

Barred tee designs are not one-size-fits-all, since the design might vary depending on pipe size, pigging needs and project parameters. Thus, customers must designate the desired service clearly, rather than just buying a generic tee by pipe diameter.

Where Are Steel Pipe Tees Commonly Used?

Oil and Gas Pipeline Systems

Oil and gas plants need branch connections across gathering, transportation, processing and distribution systems. A tee is used to link a main pipeline with a subsidiary line, instrument connection, drainage arrangement or process branch, depending on system design.

The correct material and construction requirements depend on the medium being conveyed, the pressure, temperature, corrosion conditions and any project regulations that apply. Material certification and inspection standards are as critical as the fitting’s physical dimensions for demanding service pipelines.

Petrochemical and Chemical Processing

Petrochemical facilities include large networks of process pipes, which carry hydrocarbons, chemicals, steam, cooling water, and other media. Tees split the flows or join flows and link various portions of the process.

Material selection is especially critical in chemical service, as corrosion resistance relies on the interaction of the material with the specific medium. Any services could be okay with carbon steel, but stainless steel or any other alloy might be needed if circumstances are more corrosive. Therefore, a tee should be chosen as part of the whole plumbing material specification and not as a single item.

Power Generation and Water Treatment

Tees are also used in all steam, condensate, cooling water, fuel and auxiliary pipe systems in power plants. Fittings might be subjected to extreme temperatures, pressure changes, vibration or thermal expansion depending on the application.

Tees are used in process water, wastewater, chemical dosing and utility pipework in water treatment plants. In these systems, the choice might be influenced by material compatibility and corrosion resistance, particularly when chemicals are added to the process.

What Should Be Considered When Selecting a Steel Pipe Tee?

Nominal Size and Wall Thickness

Nominal pipe size is one of the first parameters required when selecting a tee, but it is not sufficient by itself. Engineers and buyers should also consider the pipe schedule or specified wall thickness because fittings must be compatible with the connected piping and the pressure requirements of the system.

For reducing tees, both the main-run size and branch size need to be specified clearly. A fitting that has the correct outside dimensions but does not match the project's wall-thickness requirements may create fabrication or inspection problems later.

Material Grade and Operating Conditions

The material grade of steel pipe tees should correspond to the conditions in which the tee will operate. Carbon steel is widely used in general industrial piping where its mechanical properties and corrosion characteristics are suitable. Stainless steel and other alloy steels may be selected when higher corrosion resistance, temperature performance, or specific mechanical properties are required.

Temperature and pressure should also be reviewed together with the material specification. A fitting suitable for a low-pressure water line should not automatically be considered suitable for a high-temperature process line simply because the dimensions are similar.

Connection Method

The connection method affects both the tee design and the installation process. Butt-weld tees are commonly used in industrial piping because they provide a permanent welded connection and can be integrated into piping systems with matching weld ends.

Other connection methods may be appropriate for different applications, including socket-welded or threaded fittings where permitted by the project design. The selected connection should be compatible with the pipe, operating conditions, maintenance requirements, and applicable engineering specifications.

Applicable Standards and Documentation

Industrial fittings are commonly manufactured and inspected according to recognised dimensional, material, and quality requirements. For example, ASME B16.9 is widely associated with factory-made wrought butt-welding fittings and covers dimensional requirements for products such as tees.

However, the exact standard required for a project depends on the piping specification and application. Buyers should confirm the required standard, material grade, dimensions, end preparation, inspection requirements, and documentation before production. Depending on the project, documentation may include material certificates, dimensional inspection records, certificates of conformity, and other inspection records specified in the purchase order.

How Are Steel Pipe Tees Installed?

Alignment Before Welding

Correct alignment is essential when installing a tee. The fitting should be positioned so that the connected pipes can meet the required dimensions without forcing the components into place. Excessive external force during fit-up can introduce unnecessary stress into the piping system.

The branch orientation should also be checked against the approved piping drawing or isometric drawing. A tee installed at the wrong orientation may interfere with nearby equipment, supports, valves, instruments, or other piping even when the fitting itself is dimensionally correct.

Welding and Joint Preparation

For welded tees, joint preparation and welding procedures should follow the applicable project requirements. The pipe ends and fitting surfaces should be clean and properly prepared before welding. The welding procedure, filler material, preheating, interpass temperature, and post-weld heat treatment, where applicable, depend on the material and project specification.

Welding should be carried out by qualified personnel using an approved procedure. The objective is not simply to create a visually acceptable weld but to achieve the required mechanical integrity and consistency throughout the joint.

Inspection After Installation

Inspection requirements for steel pipe tees vary according to the service and applicable code, but visual inspection is commonly used to identify obvious dimensional, alignment, surface, or welding problems. Additional non-destructive examination may be required for critical piping systems.

Depending on the project, methods such as radiographic testing, ultrasonic testing, magnetic particle testing, or other appropriate examination techniques may be specified. Pressure or leak testing may also be performed to verify the integrity of the completed piping system.

Testing should be performed according to the approved inspection and test plan rather than using the same procedure for every type of piping service. High-pressure, hazardous-fluid, and safety-critical systems generally require more controlled inspection and documentation.

How Can Proper Tee Selection Improve Piping Reliability?

A properly selected tee contributes to the overall reliability of a piping system because it provides a controlled connection between the main run and branch line. However, the fitting alone does not determine the reliability of the complete system.

Good performance depends on the interaction between the tee, connected pipes, welds, supports, valves, equipment, and operating conditions. Incorrect material selection, poor alignment, inadequate welding, excessive external loading, or unsuitable operating conditions can create problems even when the tee itself meets its dimensional requirements.

This is why experienced engineering and procurement teams generally treat the fitting specification as part of the wider piping design. When the size, material, pressure-temperature requirements, connection method, and inspection requirements are clearly defined before purchasing, the risk of receiving an unsuitable component is significantly reduced.

What Information Should Buyers Provide When Ordering Steel Pipe Tees?

For industrial purchasing, providing complete technical information can make the quotation and manufacturing process much more efficient. Instead of specifying only “steel tee", buyers should normally identify the required tee type, nominal sizes, material grade, wall thickness or schedule, connection type, applicable standard, quantity, and any project-specific inspection requirements.

If the tee is intended for a specialised application, additional information may be necessary. For example, a barred tee used in a piggable pipeline requires details related to the pipeline and pigging arrangement. A tee for high-temperature process service may require specific material and heat treatment requirements. A fitting for corrosive service may need to comply with a particular material or corrosion-control specification.

Clear technical information also reduces the possibility of dimensional mismatches between the tee and the pipe. For B2B projects, this can save time during fabrication and installation while making incoming inspection easier.

Conclusion

Steel pipe tees are fundamental branch fittings in industrial piping systems, providing a practical connection between a main pipeline and a branch line. Equal tees are used when the three connections have the same nominal size, while reducing tees allow a smaller branch to connect directly to a larger main run. Specialised designs such as barred tees can serve pipeline systems where pigging requirements affect the internal configuration of the fitting.

Choosing the right tee requires more than checking its outside dimensions. Material grade, nominal size, wall thickness, pressure and temperature conditions, connection method, applicable standards, and inspection requirements should all be considered before purchase. Installation quality is equally important, particularly when alignment, welding, non-destructive examination, and pressure testing are involved.

For engineers, contractors, and procurement teams, understanding how steel pipe tees function makes it easier to select fittings that are compatible with the complete piping system rather than treating the tee as an independent component. With the correct specification and installation practices, these fittings can provide dependable branch connections across a wide range of industrial piping applications.
