What is the ASME standard for elbows?

How Does ASME B16.9 Define Elbow Dimensions?

Long-Radius and Short-Radius Designs

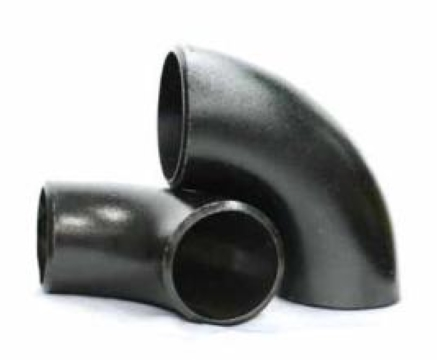

The radius of the elbow is one of the most essential dimensional choices. Standard elbows are often available in long-radius and short-radius types. The long radius elbow is usually 1.5 times the nominal pipe size centreline radius. The short-radius elbow is a 1.0 D radius.

The difference influences both the installation geometry and the flow direction. The long-radius carbon steel elbows have a more gradual change of direction and are commonly utilised in general process, utility, oil and gas, and industrial piping applications. Short-radius designs are advantageous when space is restricted, although application is still dependent on the pipe design and service circumstances.

ASME B16.9 offers dimensional standards for controlling the centre-to-end dimensions and other geometries of interest. This helps engineers to build pipe systems using known dimensions of fittings rather than those of different manufacturers. The current B16.9 standard includes fittings from NPS 1/2 to NPS 48, allowing for a wide variety of industrial applications.

Elbow Angles and Dimensional Tolerances

Another essential criterion that has to be stated appropriately is the elbow angle. 90-degree and 45-degree elbows are typical in industrial plumbing, whereas 180-degree returns are utilised if the flow has to change direction in a short distance. Special configurations are also possible if the buyer and manufacturer agree to the requisite specifications.

The thing is that B16.9 doesn't just give you a notional angle and leave all the rest up to the manufacturer. It specifies dimensional limitations which define how closely the completed fitting must conform to the prescribed geometry. These tolerances assist in providing a consistent fit-up during fabrication and minimise the potential for alignment difficulties when several fittings are integrated into a pipe system.

One reason this specification should reference the appropriate version of B16.9 and not just say “ASME elbow” is for the buying engineer. The standard offers a common dimensional reference, while any extra requirements for particular configurations may be defined on project drawings and/or purchase specifications.

Wall Thickness and Butt-Welding Ends

The wall thickness is intimately connected to the pipe system in which the elbow will be fitted. A carbon steel elbow should be suitable for the connected pipe and the system's design criteria. Schedule designations or nominal wall thickness are consequently significant aspects of the purchase specification.

The end preparation is similarly critical, since a butt-welding elbow is designed to be welded to a pipe or other fitting. The correct end geometry enables constant fit-up and allows the welding technique to achieve the requisite joint quality. Where there are special weld or inspection requirements, the procurement papers should specify these requirements rather than imply that they are based on the elbow’s nominal size.

ASME B16.9 is mostly about the fitting and its specified features. This does not imply that one thickness of wall is inevitably acceptable for all pressure or temperature conditions. The acceptability of a carbon steel elbow must be examined against the pipe design circumstances, material specifications, temperature, pressure, corrosion allowance and relevant piping code.

What Materials Are Commonly Used for Carbon Steel Elbows?

ASTM A234 WPB Is a Common Material Specification

For many standard carbon steel butt-welding fittings, ASTM A234 is an important material specification, and A234 WPB is one of the grades commonly encountered in industrial piping. The material specification and the B16.9 fitting standard should be considered together rather than treated as interchangeable standards.

ASTM A234 addresses wrought carbon steel and alloy steel fittings for moderate- and high-temperature service. For A234 WPB, commonly referenced minimum mechanical properties include a tensile strength of 60 ksi (415 MPa) and a yield strength of 35 ksi (240 MPa), although the complete material specification contains additional requirements that need to be considered when qualifying the material.

This is where the material grade becomes important to the buyer. Carbon steel elbows are not selected simply because they are physically strong enough. The material also has to be appropriate for the temperature, pressure, fluid service, welding requirements, and project code. In applications involving low temperatures or more demanding service conditions, another material specification may be more appropriate than standard A234 WPB.

Material Selection Should Match the Piping Service

An elbow installed in a refinery, chemical plant, power station, or general industrial facility may face very different operating conditions. Temperature changes, internal pressure, cyclic loading, corrosive media, and welding requirements can all influence the appropriate material.

For this reason, A234 WPB should not be presented as a universal material for every carbon steel elbow application. It is a common choice, but the correct material grade must come from the project specification and engineering requirements.

This is also why material documentation matters during procurement. Buyers may require a material test certificate or other documentation showing the material's heat, chemical composition, mechanical properties, and applicable specification. Traceability becomes particularly important for pressure-containing components because it allows the delivered fitting to be connected back to the material and manufacturing records.

What Should Be Checked When Ordering ASME Carbon Steel Elbows?

Confirm the Standard and Edition

The first step is to identify the product standard and edition. ASME currently lists B16.9-2024 as the applicable edition of the Factory-Made Wrought Buttwelding Fittings standard.

However, the latest published edition is not automatically the only edition that can be used on every project. A contract, engineering specification, or regulatory requirement may identify a particular edition. The purchase order should therefore state the required standard clearly instead of relying on a general statement such as “ASME standard".

This simple detail can prevent confusion between older specifications and current manufacturing documentation.

Match NPS, elbow angle, radius, and wall thickness

The nominal pipe size should match the piping design, while the elbow angle and radius should correspond to the layout. The wall thickness or schedule should also be compatible with the connected pipe and the system design.

For example, specifying only “NPS 4 carbon steel elbow” leaves several important details unresolved. The purchaser may still need to identify whether the elbow is 45 or 90 degrees, whether it is long or short radius, which material grade is required, which wall thickness applies, and which inspection or documentation requirements are included in the purchase specification.

A clear specification reduces the chance of receiving a fitting that is dimensionally correct in one respect but unsuitable for the actual project.

Review Marking, Testing, and Documentation

Marking is another area covered by B16.9. ASME's description of the standard specifically includes testing and markings as part of its scope.

During receiving inspection, the purchaser can compare the fitting's marking and accompanying documentation against the purchase order. Depending on the project, documentation may include the material certificate, dimensional inspection records, heat number traceability, and additional examination or testing reports.

Not every project requires the same inspection package for carbon steel elbows. A general utility piping project may have different requirements from a refinery, chemical processing facility, or high-integrity pressure system. The important point is to define those requirements before manufacturing begins so that the supplier knows what must be documented and inspected.

How Do ASME Standards Affect the Quality of Carbon Steel Elbows?

Manufacturing Consistency Starts With Standardised Dimensions

Standardisation is one of the main practical benefits of B16.9. When elbows are produced according to a recognised dimensional standard, engineers and fabricators can work with predictable centre-to-end dimensions, nominal sizes, and connection geometry.

This is especially valuable on projects involving large quantities of fittings. A piping contractor may receive elbows from different production batches or suppliers, and standardised dimensions help maintain consistency during prefabrication and field installation.

For carbon steel elbows, this consistency also supports welding operations. When the fitting and pipe have compatible dimensions and properly prepared ends, fit-up can be controlled more effectively before welding begins.

Inspection Should Reflect the Actual Service Conditions

A good quality programme does not mean applying every possible test to every elbow. Inspection should be based on the applicable standard, material specification, purchase order, project specification, and service conditions.

Dimensional inspection is relevant to confirming that the elbow conforms to the required geometry. Visual inspection can identify surface defects or obvious manufacturing issues. Additional examination methods may be required by the project or applicable code when the service is more demanding.

This approach is more useful than simply stating that “all elbows must pass NDT". The correct examination method and acceptance criteria depend on the product specification and project requirements. ASME B31.3, for example, contains dedicated provisions covering examination, inspection, and testing as part of process piping construction.

What Is the Difference Between B16.9 and a Piping Code?

B16.9 Focuses on the Fitting

The easiest way to understand the relationship is to think of B16.9 as a product-level standard. It establishes how a factory-made wrought butt-welding fitting is dimensioned, rated, tested, and marked.

That makes it highly relevant when purchasing an elbow from a manufacturer. The buyer can specify a standard fitting with a defined nominal size, configuration, material specification, and other required characteristics.

B31.1 and B31.3 Focus on the Piping System

B31.1 and B31.3 operate at the piping-system level. They address engineering decisions that go beyond the physical dimensions of one elbow. ASME's B31.3 material describes the code as covering design, materials, fabrication, assembly, erection, examination, inspection, and testing for process piping.

This means an elbow can satisfy B16.9 and still require engineering review before it is accepted for a particular service. The system designer has to consider pressure, temperature, fluid service, loads, flexibility, supports, welding, examination, and other factors covered by the applicable piping code.

Understanding this difference prevents a common specification mistake: treating “ASME B16.9 compliant” as a complete statement about the suitability of an elbow for every piping application.

Conclusion

When it comes to carbon steel elbows, the primary ASME product standard for factory-made butt-welding fittings is ASME B16.9, with the current edition listed by ASME as B16.9-2024. The standard covers important fitting characteristics such as dimensions, tolerances, ratings, testing, and markings, while material specifications such as ASTM A234 define the requirements for commonly used grades such as WPB.

At the same time, B16.9 should not be treated as a substitute for the piping code governing the complete installation. ASME B31.1, B31.3, or another applicable code may determine how an elbow is selected, designed, fabricated, examined, and tested within the piping system. ASME's own documentation shows that B16.9 is intended to work alongside the B31 piping codes rather than replace them.

For buyers and engineers, the safest approach is therefore to specify the fitting standard, edition, material grade, dimensions, radius, wall thickness, end preparation, and inspection requirements together. When these details are aligned with the actual service conditions and project code, carb​​​​​​​on steel elbows can be selected with much greater confidence and integrated more reliably into industrial piping systems.

For more information about our high-quality carbon steel elbows and other piping components that meet ASME standards, please contact us at oudi-04@oudiguandao.com. Our team of experts is ready to assist you in selecting the right products for your specific application needs.

References

1. American Society of Mechanical Engineers. (2018). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings. New York: ASME.

2. American Society of Mechanical Engineers. (2020). ASME B31.1-2020: Power Piping. New York: ASME.

3. American Society of Mechanical Engineers. (2018). ASME B31.3-2018: Process Piping. New York: ASME.

4. ASTM International. (2019). ASTM A234/A234M-19: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service. West Conshohocken, PA: ASTM International.

5. Nayyar, M. L. (2000). Piping Handbook (7th ed.). New York: McGraw-Hill Education.

6. Smith, P. (2018). Piping Materials Guide: Selection and Applications. Amsterdam: Elsevier.
