What is the difference between ANSI B16.9 and ASME B16.9?

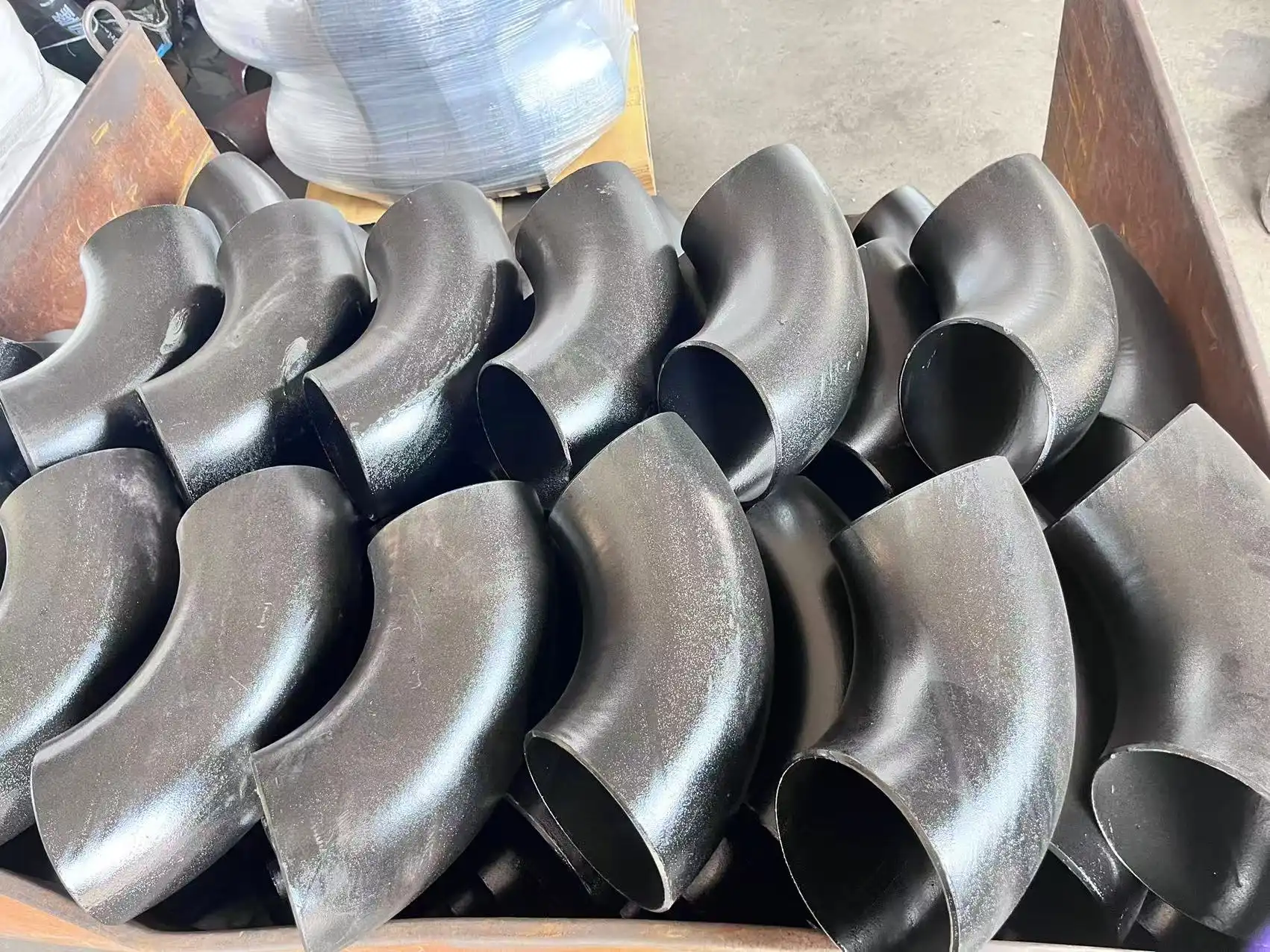

When engineers or purchasing teams specify carbon steel elbows for a piping project, the designation on the technical documents matters. Two names that might be confusing are ANSI B16.9 and ASME B16.9. They seem to at first depict two separate standards. But that is not the best approach to see the link between them. The present engineering practice is to use the ASME B16.9 designation for factory-made wrought buttwelding fittings. ANSI B16.9 is an earlier or informal reference to the same B16.9 standard lineage that is found in practice. The ASME literature states that B16.9 is the standard for factory-made wrought buttwelding fittings, and the scope of B16.9 covers the wrought carbon and alloy steel fittings. Therefore, the practical issue for buyers and engineers is not whether ANSI B16.9 and ASME B16.9 have distinct technical criteria. And if the fitting fits the necessary material and dimensional standards. And whether the manufacturer's documentation supports the claimed standard. This differentiation is even more critical when selecting carbon steel elbows for industrial pipe systems.

Why Do Engineers See Both ANSI B16.9 and ASME B16.9?

The Name Changed, but B16.9 Remained the Reference Point

Much of the uncertainty is due to the way standards are mentioned in older technical papers. The American National Standards Institute, or ANSI, is the organization affiliated with the American national standards system. ASME is the organization that produces and maintains numerous technical standards used by the mechanical and plumbing industries. B16.9 got affiliated with the ASME’s B16 series of standards throughout time, and contemporary ASME publications refer to B16.9 as ASME B16.9 and do not recognize ANSI B16.9 as a distinct current standard.

For example, in an earlier specification an engineer may see “ANSI B16.9," while a modern manufacturer, design, technical data sheet, or purchase document may say “ASME B16.9." The discrepancy in language does not necessarily suggest that the two texts are describing two distinct elbow designs.

B16.9 is the factory-made wrought butt weld. Fittings and ASME itself have released information explaining this and its use for wrought carbon and alloy steel fittings.

What Does ASME B16.9 Actually Cover?

ASME B16.9 covers wrought buttwelding fittings fabricated in a factory but not all kinds of pipe connections. This difference is significant, since a carbon steel elbow that is employed in a welded pipe system is a special product classification. The standard specifies the qualities required for the making and identification of these fittings in a uniform way, such as the dimensions, tolerances, materials, and labeling.

For a buyer this implies that the ASME B16.9 specification is a dimensional and manufacturing reference for the fitting but does not address all questions concerning the whole piping system itself. Depending on material grade, wall thickness, pressure-temperature requirements, welding requirements, and project-specific service conditions of the elbow, additional standards and specifications may apply.

That’s also the reason a technically comprehensive buy description should not conclude with the words “ASME B16.9.” The manufacturer still requires sufficient information to establish the needed grade of material, size, schedule or wall thickness, configuration of elbow, and other related criteria.

Is ANSI B16.9 Different From ASME B16.9?

They Should Not Be Treated as Two Competing Current Standards

The most important correction to the common explanation is that engineers should not assume there are two current B16.9 standards with different dimensional tables, material chemistry requirements, or inspection rules simply because one document says ANSI and another says ASME. In practice, the name used for the standard can reflect the terminology or publication history rather than indicate a completely different technical specification.

The more useful distinction is between the designation used in the document and the edition or revision being specified. A document that says ANSI B16.9 may reflect older terminology, whereas a current specification will normally identify the standard as ASME B16.9. When there is any uncertainty, the actual edition and contractual specification should be checked rather than assuming that the prefix itself creates a technical difference.

This matters when sourcing carbon steel elbows from different suppliers. Two suppliers may use different wording in their product literature while manufacturing fittings to the same applicable B16.9 requirements. Comparing the labels alone is therefore not enough to determine whether the products are technically different. Buyers should also review the dimensional requirements, material specification, pressure-temperature requirements, marking, and inspection documentation specified for the project.

Another point worth checking is whether B16.9 is being used together with a material specification such as ASTM A234. B16.9 primarily covers the dimensions, tolerances, ratings, testing, and marking of factory-made wrought butt-welding fittings, while the material specification addresses the material requirements. These standards serve different purposes, so a fitting described only as “B16.9 compliant” may not provide enough information for a complete technical evaluation.

The Edition Matters More Than the ANSI or ASME Prefix

For engineering work, the revision or edition referenced by the project can be more important than the informal name used for B16.9. When specifying or sourcing carbon steel elbows, the applicable edition should be clearly identified, as standards are revised over time, and project specifications may deliberately require a particular edition. Later editions can introduce changes to requirements, terminology, or referenced provisions, so the applicable edition should be confirmed before procurement.

An engineer reviewing a supplier's quotation should therefore look for the complete standard reference rather than accepting a simple statement such as “ANSI/ASME compliant.” The quotation or technical documentation should make it possible to identify the applicable standard and, where required by the project, its edition.

This approach also prevents a common procurement mistake: assuming that two products are equivalent simply because both suppliers write “B16.9” on their documents. The product still needs to be checked against the actual requirements of the project, including the specified material grade, dimensions, wall thickness, fitting type, manufacturing requirements, and documentation.

For carbon steel elbows, this distinction is particularly useful when comparing quotations from suppliers in different regions. One supplier may use the older ANSI terminology, while another may use the current ASME designation. That difference in wording alone does not establish that the elbows are made to different dimensional standards. The safer approach is to compare the complete technical references and confirm that the products meet the edition and supplementary requirements stated in the purchase specification.

What Should Buyers Check When Ordering Carbon Steel Elbows?

Start With the Fitting Type and Dimensions

The first step is to confirm that the requested product is actually a factory-made wrought buttwelding fitting covered by B16.9. For carbon steel elbows, this normally means confirming the elbow type, nominal pipe size, angle, radius, and wall thickness or schedule.

For example, a 90-degree long-radius elbow and a 90-degree short-radius elbow are not interchangeable simply because both may be described as B16.9 fittings. Their geometry and center-to-end dimensions are different, so the purchase specification needs to identify the required configuration clearly.

The same principle applies to reducing elbows and other configurations. A supplier should be working from a clear dimensional requirement rather than interpreting a general reference to “B16.9 elbow” as permission to select any available configuration.

Confirm the Material Standard Separately

Another important point is that B16.9 should not be treated as the complete material specification. A carbon steel elbow may be manufactured from a material grade specified under a separate ASTM material standard, depending on the project requirements.

For example, ASTM A234 WPB is widely associated with wrought carbon steel and alloy steel piping fittings for pressure applications. However, the exact material requirement should come from the applicable project specification rather than being assumed from the phrase “carbon steel elbow” alone.

This distinction improves both technical accuracy and procurement clarity. ASME B16.9 tells the manufacturer which fitting standard applies, while the applicable material specification identifies the required material characteristics. The two references work together rather than replacing one another.

Review Marking and Traceability Documents

Documentation is another area where buyers can distinguish a reliable quotation from a vague one. Depending on the project, the supplier may need to provide material test documentation, dimensional inspection records, certificates of conformity, heat numbers, or other traceability information.

The marking on the fitting should also be consistent with the applicable requirements and the information specified for the project. This allows the purchaser or inspector to connect the physical carbon steel elbows with their material and manufacturing records.

Instead of asking only whether a supplier can provide “ANSI B16.9 certified elbows,” it is more useful to ask for the applicable B16.9 designation, material specification, product dimensions, markings, and supporting quality documents. This creates a clearer technical trail from the purchase order to the finished fitting.

How Does the Standard Affect Carbon Steel Elbow Manufacturing?

Forming and Heat Treatment Must Match the Required Product Specification

For manufacturers, compliance is not simply a matter of putting “ASME B16.9” on a certificate. The fitting must be manufactured and inspected according to the applicable requirements.

The forming process can affect the geometry and material condition of an elbow. Depending on the product, manufacturing route, material, and applicable requirements, processes such as hot forming may be used, followed by appropriate heat treatment where required. The finished fitting then needs to achieve the specified dimensions and tolerances.

For a manufacturer producing carbon steel elbows, controlling the forming process is particularly important because excessive dimensional variation can create installation problems even when the nominal size appears correct. Center-to-end dimensions, outside diameter, wall thickness, angle, and end preparation all need to be controlled according to the applicable requirements.

Quality Control Goes Beyond the Standard Name

A strong quality-control system should connect incoming material inspection, manufacturing records, dimensional inspection, and final documentation. This is much more meaningful than simply stating that a product is “ASME compliant.”

For example, the manufacturer may verify the material against the required material specification, monitor forming and heat-treatment records, check finished dimensions, and maintain traceability between the product and its material documentation. Additional inspection requirements may be introduced by the purchaser or by another governing project specification.

This is particularly important in oil and gas, chemical processing, power generation, and other industrial applications where a fitting may operate under demanding temperature, pressure, or corrosive conditions. B16.9 provides an important product standard, but the complete engineering requirement normally comes from several interconnected specifications.

Should a new purchase order say ANSI B16.9 or ASME B16.9?

Use the current ASME designation. Where Appropriate

For new engineering specifications and purchase orders, ASME B16.9 is the clearer designation to use when the project requires the B16.9 factory-made wrought buttwelding fitting standard. It reduces ambiguity and aligns the wording with current ASME publications.

That does not mean an older document using “ANSI B16.9” should automatically be rejected. If an existing drawing, specification, or customer document uses that terminology, the responsible engineer should review the applicable document and determine the intended standard and edition before changing the wording.

In other words, changing “ANSI” to “ASME” should not be treated as a simple cosmetic correction when the document forms part of a contractual specification. The complete standard reference and project requirements should be preserved and clarified.

Avoid Treating “ASME B16.9” as a Standalone Quality Certificate

A common procurement mistake is to regard the phrase “ASME B16.9” as proof that every aspect of an elbow has been independently certified. That is not what the designation means.

A more useful purchasing approach is to ask the manufacturer to confirm the applicable B16.9 requirements together with the material specification, dimensional requirements, inspection documents, and any additional project standards. ASME itself describes its standards as technical standards used by manufacturers, owners, users, and others involved in specification, purchasing, maintenance, and safe use of equipment and components.

For buyers of carbon steel elbows, this distinction can make the quotation process much clearer. Instead of comparing suppliers based on the presence of the word “ASME,” buyers can compare the actual technical scope and documentation offered by each supplier.

What Does This Mean When Choosing Carbon Steel Elbows?

Focus on the Complete Specification Rather Than the Label

The main takeaway is straightforward: ANSI B16.9 and ASME B16.9 should not normally be treated as two separate current technical standards with different requirements for carbon steel elbows. The designation ASME B16.9 is the appropriate current reference for the B16.9 factory-made wrought butt-welding fitting standard, while ANSI B16.9 may appear in older or informal references.

When selecting an elbow, the more important questions concern the complete product specification. The purchaser should confirm the fitting type, size, radius, wall thickness, material grade, applicable edition, marking, inspection requirements, and required documentation. This approach is much more reliable than deciding whether a product is acceptable based only on whether the supplier uses the words "ANSI" or "ASME."

For manufacturers and exporters, using the current designation also makes technical communication easier. When a quotation, drawing, inspection report, and material documentation all use consistent terminology, there is less opportunity for confusion between the supplier, purchaser, engineer, and inspector.

Conclusion

ANSI B16.9 and ASME B16.9 are often presented as two different standards, but that description can be misleading. In current engineering practice, ASME B16.9 is the recognized designation for factory-made wrought buttwelding fittings, including relevant wrought carbon steel fittings. “ANSI B16.9” is more likely to reflect older terminology or an established industry reference than a separate current standard with different dimensional and material requirements.

For projects involving carbon steel elbows, the best approach is to specify the current B16.9 designation together with the applicable material standard, dimensions, product configuration, inspection requirements, and documentation. Cangzhou Oudi Pipe Manufacture Co., Ltd. can help customers confirm these requirements before production so that the supplied elbows are matched to the intended piping application and project specification.
