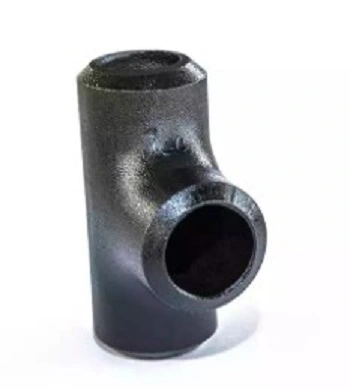

Reducing Tee Dimensions and Usage in Different Pipeline Systems





Reducing tees are used when a pipeline needs to create a branch connection without keeping the same diameter at all three outlets. Unlike an equal tee, which has three outlets of the same nominal size, a reducing tee has a smaller branch outlet connected to a larger main run. An equal tee has three outputs of the same nominal size. A decreasing T has a smaller branch outlet linked to a bigger main flow. This is a popular setup when a process line has to deliver a fraction of its flow to a smaller downstream pipe, instrument line, equipment connection, or secondary process circuit. The size of a reducing tee is not restricted to the nominal pipe diameters indicated in its nomenclature. Other factors engineers may need to consider, depending on the appropriate product standard and kind of connection, include center-to-end dimensions, wall thickness, end preparation, tolerances, material, and pressure temperature requirements. The principal standards for dimensions and associated requirements for factory-made wrought butt-welding fittings are ASME B16.9. In the present ASME listing for B16.9-2024, the fittings range from NPS 1/2 to NPS 48. Knowing these parameters helps engineers, fabricators, and buying teams avoid picking a fitting that fits the nominal pipe size but not the real piping requirements.

How Are Reducing Tee Dimensions Specified?

Reading the three-outlet size designation correctly

A decreasing tee is often characterized by the nominal diameters of its three exits. For example, "4 by 4 by 2 in." shall mean a tee with a 4-inch run, a 4-inch run outlet, and a 2-inch branch outlet. It does not imply the fitting is four inches long on the main line and two inches long on the branch.

When you are reviewing a drawing, quote, or purchasing specification, this difference is important. The size designation is a guide to the user as to the size of pipe to which the fitting is meant to attach. The exact physical dimensions of the fitting should be determined from the appropriate dimensional standard or the manufacturer’s authorized drawing.

For example, a project may define a lower tier of NPS 12 by NPS 12 by NPS 4. The 12-inch measurements define the two run connections, while the 4-inch size denotes the smaller branch. Center-to-end dimensions, outside diameters, wall thickness, and end preparation dimensional criteria are different and should not be inferred from size designation alone.

Nominal size is only one part of the specification

Fabrication and installation challenges are caused by the selection of a reducing tee based only on the three outlet sizes. The connecting pipe may be of the same nominal diameter but differing wall thickness, schedule, material grade, or end configuration.

The tee and pipe ends of a welded piping system should be compliant with the welding technique and design criteria stated. The fitting should have enough wall thickness and geometry for the service circumstances. The purchase specification may thus contain the fitting standard, nominal sizes, material grade, schedule or wall identification, end preparation, and other project-specific needs.

For example, ASME B16.9 covers wrought butt-welding fittings fabricated in a shop, including overall dimensions and tolerances, as well as ratings, testing, and marking. Therefore, the dimensions table must be employed and the proper standard determined first.

Why dimensional accuracy matters during installation？

Dimensional precision influences much more than the ability to solder a tee into a pipeline. If the center-to-end dimensions are not as per the design or the tolerances are outside the project requirements, the pipe may need forced alignment. This may generate undesired stress on the fitting and the pipe near to it.

The similar problem might occur if the branch connection is not aligned with the equipment nozzle or secondary pipeline. In big industrial systems, even a relatively slight dimensional discrepancy might be difficult to fix after multiple linked portions have already been built.

For this reason, the dimensions of the reducing tees in the manufacturer's design should be confirmed against the project pipe isometric before construction. If the fitting is to a particular standard, then the edition and corresponding specifications should also be validated rather than relying on an obsolete dimensions table.

What Factors Affect Reducing Tee Dimensions and Flow?

Branch size influences local flow behavior

The smaller branch of a reducing tee changes the way flow is distributed through the junction. If fluid enters the tee through the larger run and part of the flow leaves through the smaller branch, the branch velocity can be higher than the velocity in a larger branch carrying the same flow rate. However, the actual velocity depends on the flow rate and the effective cross-sectional area, rather than on nominal pipe size alone.

The pressure behaviour is also more complicated than simply assuming that a smaller diameter always produces a fixed pressure reduction. A tee introduces a local change in flow direction and area, so pressure losses are influenced by the geometry of the junction, the flow split, the fluid properties, and the operating condition.

This is particularly relevant when a small branch supplies a pump, control valve, heat exchanger, instrument connection, or other sensitive equipment. The fitting should be evaluated as part of the complete piping system rather than as an isolated component.

Internal geometry can influence turbulence

Where the main run and smaller branch meet, the flow can experience separation, recirculation, and turbulence. These effects are normal characteristics of pipe junctions, but their significance depends on the application.

In ordinary utility piping, the resulting local loss may be acceptable. In systems where pressure drop, vibration, erosion, noise, or precise flow control is important, the tee geometry deserves closer attention. High flow velocity combined with abrasive particles can be particularly demanding because repeated changes in flow direction may increase localised wear.

A smooth internal transition can help reduce unnecessary disturbance, although the appropriate design still depends on the fitting type and application. Engineers should therefore consider the complete pressure-loss calculation rather than selecting a fitting based solely on its external appearance.

Multi-phase services require additional attention

Oil and gas, petrochemical, and some process systems may carry mixtures of gas and liquid rather than a single-phase fluid. In these services, the behaviour at a reducing tee can become more complicated because the phases do not necessarily move at the same velocity or distribute themselves evenly.

Tee orientation can influence whether liquid accumulates in a branch or whether gas preferentially enters one outlet. Operating velocity, pressure, fluid density, viscosity, gas volume fraction, and the direction of the branch all contribute to the actual behaviour.

For critical multi-phase systems, engineers may use established pressure-drop correlations, experimental data, or CFD analysis when the geometry and operating conditions justify that level of analysis. The important point is that a reducing tee should not be treated as a simple diameter transition when phase separation or slugging could affect downstream equipment.

How Should Reducing Tees Be Selected for Different Pipeline Systems?

Start with the piping standard and connection type

The first step is to identify how the reducing tee will be connected to the pipeline. A factory-made butt-welding tee is specified differently from a forged socket-welding or threaded fitting, and the relevant standard can therefore change.

ASME's standards information distinguishes B16.9 factory-made wrought butt-welding fittings from B16.11 forged socket-welding and threaded fittings. This is an important point for procurement because a supplier cannot select the correct dimensional table from the tee size alone.

Once the connection type is known, the engineer can establish the applicable standard, nominal sizes, reducing tees material grade, wall designation, pressure-temperature requirements, and any project-specific requirements.

Match the branch size to the actual process requirement

The smaller branch should be selected according to the required flow, downstream equipment connection, and process conditions rather than simply choosing the smallest available outlet.

For example, a large process header may require a small branch for an instrument, drain, sampling line, or auxiliary process circuit. A different application may require a substantially larger branch because it carries a significant percentage of the total flow. These two systems may use reducing tees with the same main-line diameter but very different branch dimensions.

The branch should also be considered in relation to downstream valves and equipment. A sudden change from a large header to a very small branch can produce higher local velocity and pressure loss, particularly when the branch flow is substantial.

Consider material and service conditions together

Carbon steel, stainless steel, and alloy steel reducing tees can serve different operating environments, but material selection should be based on the actual service rather than simply on the industry name.

Temperature, pressure, corrosion potential, fluid composition, mechanical loading, and welding requirements all influence the appropriate material. In chemical processing, for example, corrosion resistance may be more important than initial material cost. In high-temperature service, mechanical properties at operating temperature may become a major consideration.

The material of the tee should also be compatible with the connecting pipe and the applicable welding procedure. This is especially important when a project uses different material grades in the main line and branch system.

Where are reducing tees commonly used?

Oil and gas pipeline systems

In oil and gas facilities, reducing tees can connect smaller branch lines to larger process headers. They may be used around separation equipment, gathering systems, process skids, utility lines, and other areas where the branch diameter differs from the main pipeline.

These systems often operate under demanding pressure and temperature conditions, so dimensional compatibility alone is not enough. Material requirements, welding procedures, inspection requirements, pressure ratings, and the applicable project specifications must also be considered.

Chemical and petrochemical processing

Chemical plants frequently contain extensive networks of process piping with different line sizes. A reducing tee allows a smaller process line to branch from a larger header without installing a separate reducer and equal tee in the same location.

This can be useful where space is limited, although the fitting configuration still needs to provide sufficient access for welding, inspection, insulation, and maintenance. For corrosive or high-temperature services, the selected material and wall thickness must be appropriate for the process conditions.

Water treatment and utility systems

Water treatment facilities use tees for distribution, chemical dosing, bypass arrangements, drainage, and connections between pipelines of different sizes. Compared with highly demanding process services, some utility systems may have less severe temperature and pressure conditions, but reliability still depends on proper sizing and installation.

In these applications, engineers should pay particular attention to flow requirements and maintenance access. A branch that is technically large enough may still be inconvenient if it creates excessive pressure loss or makes valves and instruments difficult to access.

HVAC and building services

Reducing tees are also used in larger HVAC and mechanical piping systems where branches need to connect to main distribution lines. The consequences of incorrect sizing can include unwanted pressure loss, poor flow distribution, or difficulty balancing different branches.

For these systems, the fitting should be selected together with the pipe size, flow requirement, connection method, and equipment layout. This approach is more reliable than choosing the tee solely from a nominal diameter chart.

What Should Be Checked Before Ordering Reducing Tees?

A good purchasing specification should give the manufacturer enough information to identify the exact fitting required. The nominal sizes of the run and branch are the starting point, but they should normally be accompanied by the applicable standard and connection type.

The buyer should also confirm the material grade, pipe schedule or wall thickness, end preparation, quantity, required dimensions, and any inspection or documentation requirements. If the tee will be installed in a high-pressure, high-temperature, corrosive, or multi-phase service, the operating conditions should be communicated as well.

This information allows the manufacturer to verify whether the requested configuration is a standard product or requires a special dimensional arrangement. ASME notes that its B16 standards are intended to be used together with other applicable ASME standards and piping codes, which reinforces the need to consider the fitting within the complete piping specification rather than treating the dimensional standard as the entire design basis.

For procurement teams, a manufacturer-approved drawing can be particularly useful before production. It provides an opportunity to verify the outlet sizes and physical dimensions against the piping isometric, reducing the risk of receiving a fitting that technically has the correct nominal size but does not fit the planned installation.

Installation and Inspection Considerations

Keep the tee aligned with the connected piping

During installation, the reducing tee should be positioned without forcing the connected pipes into alignment. Excessive pulling, pushing, or rotation of the pipe to compensate for a dimensional mismatch can introduce stresses that remain in the system after welding.

For welded installations, fit-up should follow the applicable welding procedure and project requirements. The branch should also have adequate clearance for welding, inspection, insulation, and future maintenance.

Support arrangements should be designed as part of the piping system. The fitting itself should not automatically be treated as a support point simply because it is stronger than the connected pipe. Loads from the pipe, valves, thermal expansion, vibration, and connected equipment need to be considered in the overall piping design.

Inspect critical areas after fabrication

Inspection requirements depend on the applicable code, project specification, material, service, and connection method. For welded reducing tees, visual inspection and dimensional checks are common parts of fabrication control, while additional non-destructive examination may be required for particular services or project classes.

After installation, inspection programmes can focus on areas exposed to corrosion, erosion, vibration, or repeated changes in flow direction. In severe services, thickness monitoring and other condition-assessment methods can help identify deterioration before it becomes a larger piping problem.

The exact inspection method should follow the governing code and project requirements rather than applying the same testing programme to every reducing tee.

Conclusion

Reducing tees provides a practical way to connect a smaller branch line to a larger pipeline while maintaining a compact and integrated fitting arrangement. Their three-outlet size designation identifies the nominal connection sizes, but it should not be confused with the physical length of the fitting. Actual dimensions, tolerances, wall requirements, end preparation, material, and connection type need to be established from the applicable standard and project specification.

Their performance also depends on more than dimensional compatibility. Flow distribution, velocity, pressure loss, turbulence, multiphase behaviour, temperature, pressure, corrosion, and mechanical loading can all influence whether a particular reducing tee is appropriate for a pipeline system. ASME B16.9-2024 provides an important reference for factory-made wrought butt-welding fittings, including overall dimensions, tolerances, ratings, testing, and marking.

For engineers and purchasing teams, the safest approach is to define the required tee by its connection type, nominal sizes, material, wall designation, applicable standard, service conditions, and inspection requirements. Providing these details to the manufacturer before production makes dimensional verification easier and helps ensure that the selected reducing tee fits both the piping layout and the operating conditions. For more information on our high-quality reducing tees and other pipeline components, please contact us at oudi-04@oudiguandao.com.
