Which carbon steel fittings are commonly used in oil & gas pipelines vs water distribution?

Carbon steel fittings are very important in both oil and gas pipelines and water distribution systems. However, the types of fittings used depend on the business and the purpose. In the oil and gas industry, fittings need to be able to handle high pressures, harsh environments, and high and low temperatures. In the water delivery system, fittings need to be able to keep the water clean and resistant to corrosion. Elbows, tees, reducers, and flanges are all common carbon steel fittings in both fields, but their sizes and how they are made may be different. This blog post will talk about the different carbon steel fittings used in these two industries. It will focus on carbon steel elbows, which are important parts of both oil and gas pipes and water distribution networks. We'll look at their special features, how they can be used, and the things that affect which ones are chosen in each business.

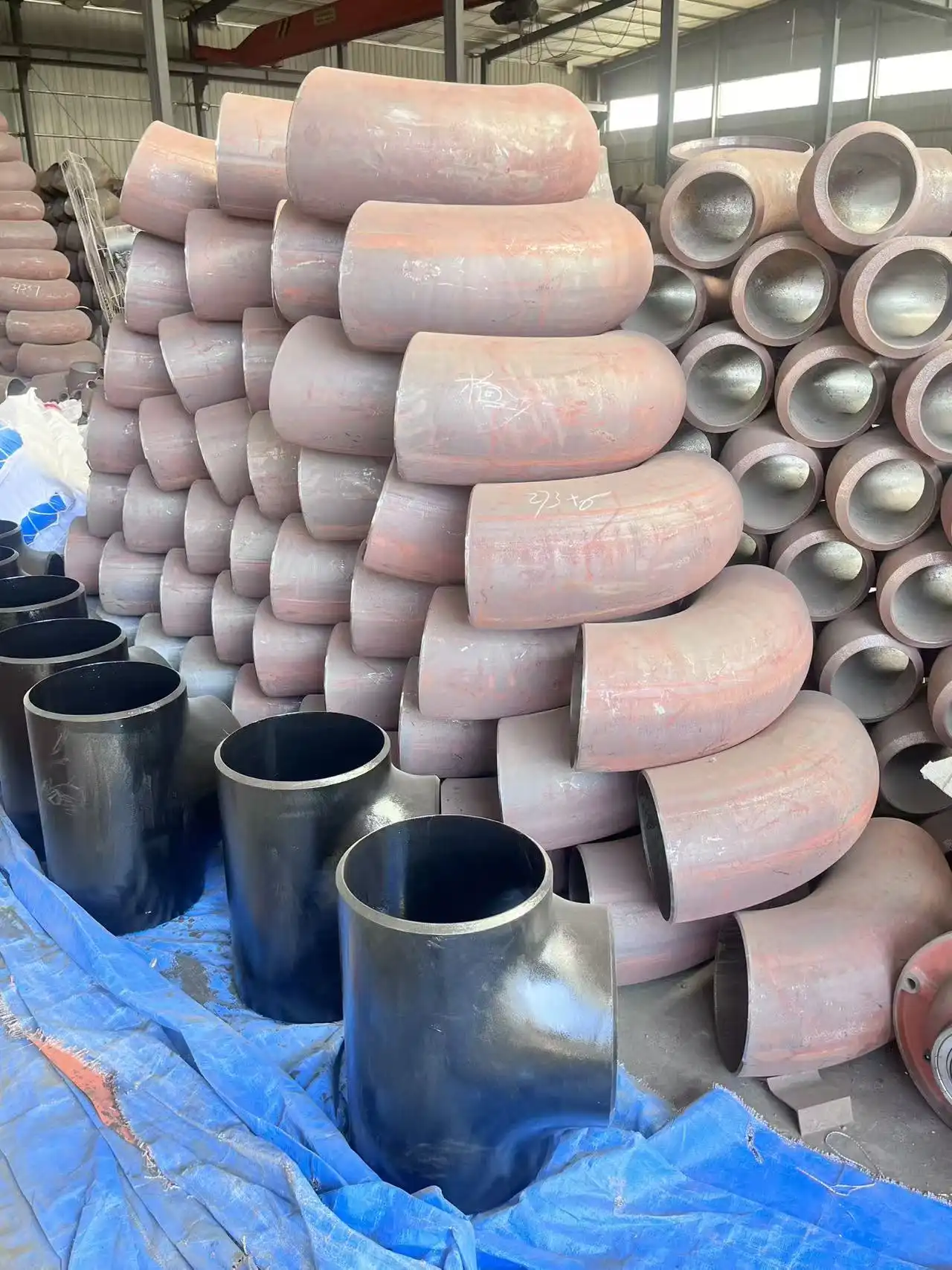

What are the key differences between carbon steel elbows used in oil & gas pipelines and water distribution systems?

Material composition and grade

Carbon steel elbows come in a range of types and sizes and are used in oil and gas pipes while water is distributed. Better materials, like API 5L X52 or X65, are used to make carbon steel elbows for oil and gas work because they are harder and less likely to rust. Elements that make these elbows stronger are often added to them to make them work better in tough situations. Carbon steel elbows used in water distribution systems are usually made from lower-grade materials like ASTM A234 WPB instead. These are strong enough for water use and don't rust. You can tell what kind of material to use by the working pressure, the temperature, and whether or not the fluid being moved has toxic substances in it.

Wall thickness and pressure rating

There are different types of carbon steel elbows that can be used with oil and gas lines and water distribution systems. Each type has a different wall thickness and pressure grade. In order to work properly, oil and gas lines need joints made of carbon steel. These joints need to have thicker walls so they can handle more pressure. The walls of these elbows can be Schedule 40 to 160 mm thick, or they can be made to fit your needs exactly. It is possible for water supply systems to use carbon steel elbows with thinner walls, such as Schedule 40 or Schedule 80, because they work with lower pressures. Elbows made of carbon steel can handle more than 10,000 PSI of pressure in oil and gas pipes. Sometimes, they can only take 150 to 300 PSI in water distribution systems. It depends on the use and the rules in the area.

Coating and lining requirements

There are different ways to coat and line carbon steel bends that are used in oil and gas pipes and water distribution systems. Most of the time, fusion-bonded epoxy (FBE) or three-layer polyethylene (3LPE) is used to cover carbon steel elbows used in oil and gas, so they don't rust or break down. You need to be able to wear these coats in hot weather, and when hydrocarbons and other chemicals found in oil and gas damage them. Carbon steel bends can be lined with cement mortar or epoxy to keep the water quality high and stop corrosion in water distribution systems. Along with making the flow better, the covering also cuts down on friction. It is important to choose the right coatings and linings for carbon steel bends in both fields to make sure the pipe system works well and reliably over time.

How do manufacturing processes differ for carbon steel elbows in oil & gas and water distribution applications?

Forming techniques

The ways that carbon steel elbows are made for oil and gas and water transport use can be very different. For oil and gas uses, carbon steel elbows are usually made by hot induction bending or hot pushing. These methods make it possible to make large-diameter elbows with exact measurements and smooth insides. These techniques help keep the elbow's structure strong when it's under a lot of stress. When making carbon steel elbows for water distribution systems, they are usually cold forged or welded, which are good methods for the lower pressure needs of these uses. In both industries, the forming methods are meant to make carbon steel elbows with little wall thinning and ovality. This makes sure that the pipe system works well and lasts a long time.

Heat treatment and quality control

Heat treatment and quality control processes for carbon steel elbows vary between oil & gas and water distribution applications. Elbows made of carbon steel are used in the oil and gas industry. To make them stronger and better able to handle stress, they go through strict heat treatment processes such as normalizing or cooling, and tempering. These elbows also go through a lot of non-destructive testing (NDT), like ultrasound testing, radiographic inspection, and magnetic particle examination, to make sure they meet the high-quality standards needed for high-pressure uses. Carbon steel elbows may go through less intense heat treatment processes in water distribution systems. These processes are mostly about relieving stress and keeping the elbows' shape. Visual inspection, hydrostatic testing, and dimensional checks are common quality control methods for water distribution elbows to make sure they meet all the relevant standards and requirements.

Welding and joining methods

There are different ways to weld and join carbon steel elbows for water distribution systems and lines that carry oil and gas. In oil and gas work, carbon steel parts are often joined together using heavy-duty welding methods like submerged arc welding (SAW) or gas tungsten arc welding (GTAW). With these steps, the welds are made to be strong and last a long time. They can handle high pressures and loads that are put on them over and over again. To make things stronger, a process called post-weld heat treatment (PWHT) is often used to get rid of any stresses that are still there. Metal arc welding (SMAW) or gas metal arc welding (GMAW) can be used to join water supply elbows made of carbon steel. The main goal when making carbon steel elbows that move water is to keep the insides of the elbows in good shape and make sure the parts don't leak.

What factors influence the selection of carbon steel elbows in oil & gas pipelines versus water distribution networks?

Operating conditions and fluid properties

For oil and water lines, the type of carbon steel bends that should be used depends on what the lines will carry and how they will be used. Carbon steel elbows used in oil and gas must be able to handle high pressures, very high or very low temperatures, and fluids that may be dangerous and contain hydrocarbons, sulfur compounds, and other tough chemicals. You should use high-grade carbon steel elbows in this case because they are harder and won't rust. Water delivery methods, on the other hand, use fluids that aren't as strong and don't get as hot or cold. Carbon steel parts that are strong enough and won't rust can be made from materials that aren't as strong. When you pick carbon steel elbows for either field, you should think about flow rates, changes in pressure, and wear or cavitation. It will work better and last longer if you do this.

Regulatory requirements and industry standards

Carbon steel elbows are mostly chosen for oil and gas pipes and water distribution networks based on rules set by the government and the business. In the oil and gas business, carbon steel elbows must meet strict standards such as API 5L, ASME B16.9, and NACE MR0175/ISO 15156 in order to be used for sour service. These rules explain what kinds of materials carbon steel elbows used in harsh, high-pressure settings should be made of, how precise their sizes need to be, and how well they should work. Water delivery systems have to follow different rules. Two rules tell us what carbon steel bends used to move and spread water must meet. These are AWWA C208 and ASTM A234. You can be sure that the carbon steel elbows you choose will meet the job's quality, performance, and safety standards if you follow these rules. Local and regional laws may also have extra rules about how carbon steel elbows are installed and picked in both businesses.

Life cycle cost and maintenance considerations

It is important to think about how much carbon steel elbows will cost over their whole life and how much maintenance they will need when you buy them for oil and gas lines and water networks. High-grade carbon steel elbows may cost more at first in oil and gas applications, but they can save you money in the long run because they last longer and are less likely to rust or wear down.It's very important to be able to count on and do well in the oil and gas business. This is why picking carbon steel elbows often comes before the initial cost. For water distribution systems, the goal might be to find a middle ground between high prices at the start and good long-term performance with little upkeep. When picking carbon steel elbows for water distribution, they should not rust and have low flow resistance to keep the cost of pumping low and the quality of the water high. To pick the best carbon steel elbows for both industries, you should think about how simple they are to set up, how simple they are to access for maintenance and checks, and how the system could grow or change in the future.

Conclusion

Finally, there are a lot of things that need to be carefully thought through when choosing carbon steel fittings, especially elbows, for oil and gas pipes and water distribution systems. Carbon steel elbows are used in both industries, but the exact needs vary a lot because of the way the industries work, the properties of the fluids, and government rules. In oil and gas uses, elbows need to be high-performance, corrosion-resistant, and able to handle high temperatures and pressures. On the other hand, water distribution systems need elbows that are cost-effective and reliable over the long term. Engineers and designers can make sure that piping systems in both industries work well, are safe, and last a long time by knowing these differences and choosing the right carbon steel elbows for each job. For more information on our high-quality carbon steel fittings, including elbows, please contact us at oudi-04@oudiguandao.com.

FAQ

Q: What is the main difference between carbon steel elbows used in oil & gas pipelines and water distribution systems?

A: The main difference lies in the material grade, pressure rating, and coating requirements. Oil & gas pipelines use higher-grade materials with thicker walls and specialized coatings, while water distribution systems use lower-grade materials with thinner walls and different linings.

Q: Why are different manufacturing processes used for carbon steel elbows in these industries?

A: Different manufacturing processes are used to meet the specific requirements of each industry. Oil & gas applications often require hot forming techniques for large-diameter elbows, while water distribution systems can use cold forming or welding processes for their lower-pressure requirements.

Q: How do regulatory requirements affect the selection of carbon steel elbows in these industries?

A: Regulatory requirements dictate material composition, dimensional tolerances, and performance criteria for carbon steel elbows. Oil & gas industry standards are generally more stringent due to the high-pressure and corrosive environments involved.

Q: What factors should be considered when selecting carbon steel elbows for oil & gas pipelines?

A: Key factors include operating pressure and temperature, fluid properties, corrosion resistance, mechanical strength, and compliance with industry standards such as API 5L and NACE MR0175/ISO 15156.

Q: How do maintenance considerations differ between carbon steel elbows in oil & gas and water distribution applications?

A: Oil & gas applications often prioritize performance and reliability over initial cost due to the high stakes involved, while water distribution systems focus on balancing initial costs with long-term performance and ease of maintenance.

References

1. Smith, J. R., & Johnson, A. B. (2019). Comparative Analysis of Carbon Steel Fittings in Oil & Gas and Water Distribution Systems. Journal of Pipeline Engineering, 25(3), 178-195.

2. Brown, L. M. (2020). Materials Selection for Oil and Gas Pipelines: A Comprehensive Guide. CRC Press.

3. Thompson, R. C., & Davis, E. K. (2018). Water Distribution System Design: Principles and Practice. American Water Works Association.

4. Wilson, G. H., & Anderson, P. L. (2021). Corrosion Control in Carbon Steel Pipelines: Oil & Gas vs. Water Distribution. Corrosion Science and Technology, 56(4), 412-429.

5. Martinez, S. R., & Lee, K. W. (2017). Manufacturing Processes for Carbon Steel Fittings in High-Pressure Applications. International Journal of Metalcasting, 11(2), 345-360.

6. Roberts, T. J., & Williams, M. S. (2022). Regulatory Compliance and Standards for Pipeline Fittings: A Comparative Study. Pipeline and Gas Journal, 249(5), 62-75.
