How to set acceptance criteria for dimensional inspection of ASME B16.9 fittings?

A very important step in making sure the quality and dependability of piping systems is setting acceptance standards for dimensional inspection of ASME B16.9 fittings. ASME B16.9 is a standard for wrought buttwelding fittings made in a workshop. It includes carbon steel flanges. The right kind of dimensional check helps keep piping systems in good shape, stops leaks, and makes sure that parts work with each other. This blog post will talk about the most important parts of setting acceptance standards for ASME B16.9 fittings, with a focus on carbon steel flanges. We will talk about how to make sure that quality control measures work well and how important it is to have accurate readings and tolerances. Manufacturers and testers can make sure that their fittings meet the requirements and help make piping systems safer and more efficient by following these guidelines.

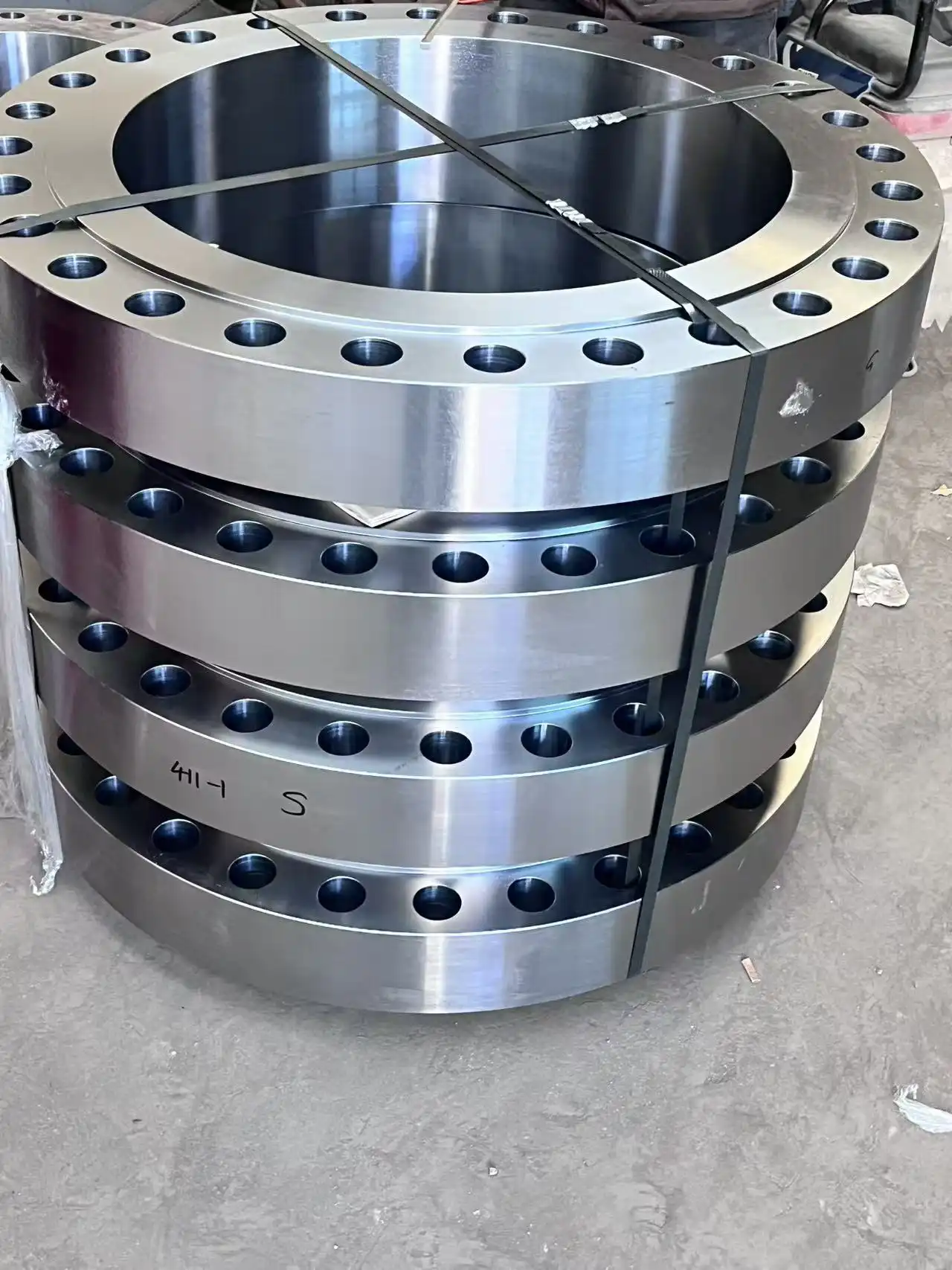

What are the critical dimensions to consider when inspecting carbon steel flanges?

Flange Outside Diameter (OD)

Once you check carbon steel flanges, one of the most important things to look at is the outside diameter (OD). To make sure the parts fit and line up right, the OD is very important. For carbon steel flanges, the OD needs to be within the range given so that the pipes can connect and stay put. Not getting the OD size right can make it hard to line up, leak, or fit, even if the mistake is small. To make sure the OD is in the ASME B16.9 range, checkers should use exact measuring tools, such as micrometers or calipers. Remember that the OD range might be different for ring sizes and pressure levels.

Bolt Hole Size and Pattern

When you check carbon steel flanges, you should also look at the size and shape of the bolt holes. To keep the ring in place and make sure it fits well, the bolt holes are very important. Inspectors have to check that the bolt hole width is within the allowed range and that the holes are shaped correctly. If you change the size or location of the bolt holes on a carbon steel plate, even small changes can make the load spread out unevenly. This can weaken the joint. Correct measuring tools and models must be used to make sure that the bolt hole shapes and sizes meet the ASME B16.9 standard. Checkers should also look for damage or twisting around the bolt holes, which could make the flange not work as well.

Flange Thickness

The width of the flange is an important factor that has a direct effect on how strong and how much pressure it can hold. To make sure the thickness is uniform and meets ASME B16.9 standards, inspectors must carefully measure it at several places. For carbon steel flanges, the thickness must be within the allowed range of errors so that it can handle the loads and forces that are supposed to be used. If the width isn't right, the lip could bend, leak, or even break when it's under a lot of pressure. For inspectors to get a good idea of how thick the ring is, ultrasonic thickness gauges or micrometers are the best tools to use. Pay close attention to any changes in the gap's length. If there are changes, it might be because of the stuff used or the way it was made.

How do tolerances affect the acceptance criteria for carbon steel flanges?

Importance of Dimensional Tolerances

The acceptance standards for carbon steel flanges are based on their dimensional tolerances. These tolerances say how much key dimensions can vary. They make sure that the flanges work right and the integrity of the system is maintained. Tight tolerances are needed for carbon steel flanges to make sure they fit, line up, and close properly. The ASME B16.9 standard gives acceptable amounts for different measurements, like the flange thickness, bolt hole size, and outside diameter. To keep these standards, it's important to use parts from different manufacturers with each other and make sure that all pipe systems work the same way. People who check carbon steel plates for acceptance need to know how to read and use these limits.

Impact of Tolerances on Flange Performance

What the limits are for carbon steel flanges tells us about how well they work in different scenarios. When the specs are tighter, the parts fit and join better. This is very important for systems that need to work well or are under a lot of stress. One example is a carbon steel clamp whose sizes are just on the edge of what is appropriate. It could still be used, but it could be hard to set up or eventually break. When someone checks the limits, they should remember what the space is for. When things are really tough, you might need limits that are stricter than those in ASME B16.9. Find a good mix between how accurate carbon steel flanges need to be and how easy they can be made. This will help you get good-quality flanges at a good price.

Tolerance Stack-up and Assembly Considerations

It's important to think about tolerance stack-up and how it affects assembly when setting acceptance standards for carbon steel flanges. Tolerance stack-up is the effect that the tolerances of each individual part have on the whole system. This is especially important for carbon steel flanges when thinking about how different flanges and other parts will fit together in a pipe system. Inspectors need to know that even if each flange meets its tolerances, putting together a bunch of parts that are on the edges of their tolerance ranges could cause problems with fitting or alignment. To fix this, some makers might choose to work with tighter tolerances than what is required by ASME B16.9. This will make sure that the assembly goes more smoothly and the system works better overall. It's helpful to think about both the individual flange tolerances and how they will work with other parts in the end assembly when setting acceptance criteria.

What quality control measures should be implemented for dimensional inspection of carbon steel flanges?

Calibration and Maintenance of Measuring Equipment

To ensure accuracy and consistency, it is important to use strong quality control measures when inspecting the dimensions of carbon steel flanges. Calibration and care of measuring tools are two of the most important parts. When it comes to carbon steel flanges, accuracy is very important. Pipe systems can have big problems even if people make small mistakes when they measure. Calibration is the process of making sure that measuring tools like micrometers, calipers, and gauges are always accurate. This calibration should be done by trained professionals, and it should be recorded so that it can be tracked. Also, it's very important to keep measuring tools in good shape so that they stay accurate over time. This means keeping them clean, storing them in a controlled space, and being careful when touching them. Checking the dimensions of carbon steel flanges can be more accurate if you make a plan for calibration and keep thorough records of how the equipment was maintained.

Training and Certification of Inspection Personnel

What makes the readings for carbon steel flanges right and reliable? A lot of it depends on the knowledge and skills of the people who check them. Inspectors need to be fully trained so that they fully understand the complicated ASME B16.9 standards, how to measure things correctly, and what the different flange readings mean. For carbon steel flanges, inspectors need to know how to read technical plans, use special measuring tools, and look for issues with the way the parts were put together. An easy way to make sure that testers are trained is to use certification programs, such as those run by industry groups. Inspection staff are kept up to date on the newest rules and best practices by being evaluated and trained again on a regular basis. Companies can make their dimensional checks for carbon steel flanges much better and more consistent by spending money to train and certify their inspection staff.

Implementation of Statistical Process Control (SPC)

Statistical Process Control (SPC) is a strong quality control method that can make the process of checking the dimensions of carbon steel plates a lot better. By using SPC, manufacturers can keep an eye on and manage the differences in their production methods. This makes the flange dimensions more reliable and consistent. For carbon steel flanges, SPC means gathering and analyzing measurement data over time to find patterns, spot changes in the process, and stop goods that don't meet specifications from getting to customers. This method lets possible problems be found early on, so changes can be made to the manufacturing process before they happen. Using SPC for important measurements like flange outside diameter, bolt hole size, and thickness can help keep tolerances tight and lower the chance of parts not meeting requirements. Additionally, SPC data can give useful information for ongoing improvement projects, which can eventually lead to better carbon steel flanges and happier customers.

Conclusion

It is very important to set the right acceptance standards for checking the sizes of ASME B16.9 fittings, especially carbon steel flanges, so that pipe systems are safe, reliable, and of good quality. To keep precision and consistency at a high level, makers and inspectors pay close attention to important measurements like outside diameter, bolt hole patterns, and flange thickness. They also use strict quality control measures. When you use advanced techniques like Statistical Process Control and know how limits affect things, the review process works better. For making good carbon steel flanges that can be used in many situations, it's important to know about the newest rules and best ways to do things in the business.

The Cangzhou Oudi Pipe Manufacture Co., Ltd. has been one of the best companies in China for making carbon steel pipe fittings, valves, and flanges since 1998. Our company is in the Mengcun Hui Autonomous County Lu Shop Industrial Zone and has high-tech tools and strong technical know-how. We are experts at making parts out of carbon steel, stainless steel, and alloy steel that meet American, Japanese, German, and British standards. Our ISO9001:2000 certification and strict quality control methods show that we care about quality. For more information about our products and services, please contact us at oudi-04@oudiguandao.com.

FAQ

Q: What is ASME B16.9?

A: ASME B16.9 is a standard that covers factory-made wrought buttwelding fittings, including specifications for carbon steel flanges.

Q: Why is dimensional inspection important for carbon steel flanges?

A: Dimensional inspection ensures proper fit, alignment, and performance of carbon steel flanges in piping systems, preventing leaks and ensuring compatibility between components.

Q: What are the most critical dimensions to inspect in carbon steel flanges?

A: The most critical dimensions include flange outside diameter (OD), bolt hole size and pattern, and flange thickness.

Q: How do tolerances affect carbon steel flange acceptance?

A: Tolerances define the allowable range of dimensional variations, affecting the flange's fit, alignment, and sealing capabilities.

Q: What is Statistical Process Control (SPC) in flange inspection?

A: SPC is a quality control method that involves collecting and analyzing measurement data to monitor and control variability in the production process of carbon steel flanges.

References

1. American Society of Mechanical Engineers. (2017). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings.

2. Smith, J. R. (2019). Dimensional Inspection Techniques for Piping Components. Journal of Quality Assurance in Engineering, 25(3), 178-195.

3. Johnson, M. K., & Brown, L. S. (2018). Quality Control in Flange Manufacturing: A Comprehensive Guide. Industrial Press.

4. Thompson, R. D. (2020). Statistical Process Control in Metal Fabrication. Quality Engineering Quarterly, 12(2), 87-102.

5. Wilson, E. A. (2021). Advances in Measurement Technology for Pipe Fittings Inspection. Metrology Today, 8(4), 210-225.

6. Lee, S. H., & Park, J. Y. (2019). Tolerance Analysis and Optimization for Carbon Steel Flanges. International Journal of Precision Engineering and Manufacturing, 20(7), 1123-1138.
