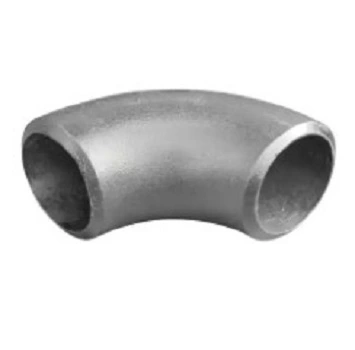

Why Carbon Steel Elbows Are Ideal for High-Temperature Pipelines?

In industrial piping systems, elbows have to handle more than changes in flow direction. When a pipeline operates at an elevated temperature, the fitting is exposed to thermal expansion, pressure loading, temperature-related changes in material strength, and repeated heating and cooling. Choosing the right material therefore requires more than looking at the nominal temperature of the process. Carbon steel elbows are widely used in many process and industrial piping systems because carbon steel provides a practical combination of mechanical strength, manufacturability, availability, and cost. ASTM A234 is a standard for wrought carbon steel and alloy steel fittings for moderate and increased temperature usage. The specification is especially applicable for choosing fittings for heated pipe systems. However, the applicability of carbon steel is subject to the actual circumstances of service. The elbow should be chosen according to design temperature and pressure, pipe size and wall thickness, fluid properties, appropriate piping code, and fabrication requirements. ASTM A234 WPB is a typical grade of carbon steel for pressure pipe fittings; however, it should not be seen as a cure-all for all high-temperature applications. Understanding how the material reacts under heat helps engineers and customers make a more suitable decision.

How Carbon Steel Elbows Behave in Elevated-Temperature Service

Strength Remains Important as Temperature Increases

Carbon steel provides a desirable mix of strength and flexibility for many industrial pipe applications.  At normal temperatures, its mechanical capabilities allow a significant margin for pressure-containing components, while its comparatively basic production features make it ideal for elbows, tees, reducers, and other fittings.

The crucial aspect is that material strength does not stay constant as temperature increases.  The permissible stress utilised for pipe design normally reduces as the metal temperature rises.  For example, ASME B31.3 material data includes A234 WPB as a carbon steel forging and fitting material and offers temperature-dependent allowed stress information.  This implies an engineer cannot pick an elbow just because its room-temperature tensile and yield strength look appropriate.  The design calculation must account for the actual metal temperature and the requirements of the appropriate piping code.

This discrepancy also explains why the initial room-temperature numbers often associated with A234 WPB should not be reported as if they stay intact throughout high-temperature operation.  The pipe design code defines the allowable uses of that material over the specified pressure and temperature range, while ASTM A234 defines the standards for the fitting material and fabrication.

Hence, Carbon steel elbows are best suited when the grade of the material and design circumstances have been considered together and not just based on a generic temperature claim.

Thermal Expansion Must Be Included in Pipeline Design

When a metal pipe is heated, it expands; when it is cooled, it contracts. A lengthy pipe system with a relatively modest coefficient of thermal expansion might experience considerable movement if the temperature difference is high.

In this perspective, an elbow is of special importance as its bent shape may be part of the inherent flexibility of a pipe system. Engineers may regulate thermal movement using direction adjustments, loops, offsets, supports, and expansion devices. The elbow does not in and of itself, “absorb” all of the thermal expansion, but its placement and shape may affect the way movement and consequent stresses are distributed across the system.

A correctly built high-temperature pipeline considers the whole piping layout and not each elbow as a separate entity. The support spacing, the position of the anchors, guides, connected equipment, operational temperature, starting and shutdown cycles, and the flexibility of the pipe influence the stresses in the fitting.

That’s one reason material selection and pipe arrangement must be studied simultaneously. Although a carbon steel elbow may possess acceptable material qualities, a thorough flexibility and stress study of the complete pipe system is still required when large temperature fluctuations are anticipated.

High Temperature Does Not Automatically Mean High Corrosion Resistance

Carbon steel is not an alloy that is intrinsically resistant to corrosion. This is a crucial aspect when talking about high-temperature pipes, as the higher temperature might influence the behaviour of the metal and the process fluid.

Carbon steel elbows will create oxide scale at high temperature. However, oxide creation should not be considered a universal defensive self-passivation process. The pipeline may still be subject to oxidation, erosion, sulfidation, carburisation, chemical assault, or other kinds of deterioration, depending on the service environment.

Therefore, the real composition of the fluid is as crucial as the temperature at which it is operated. For example, a dry gas service, a steam system, a hydrocarbon process, and a chemically aggressive process may have rather distinct material selection concerns even if their nominal operating temperatures are the same.

Where corrosion or high-temperature deterioration is a problem, engineers may have to consider corrosion allowances, surface treatment, process control, inspection requirements, or a new alloy entirely. Carbon steel continues to be an appealing material for a number of applications, but the choice of it should be predicated on the whole service environment and not on the idea that corrosion behaviour is improved by higher temperature.

Why ASTM A234 WPB Is Commonly Specified for Carbon Steel Fittings?

A Material Specification Designed for Pressure Fittings

The scope of ASTM A234 is quite pertinent to our subject since it encompasses wrought carbon steel and alloy steel fittings for pressure pipe and pressure-vessel construction at moderate and increased temperatures. The standard encompasses both welded and seamless construction and contains criteria for manufacture and testing of the fittings.

WPB is one of the carbon steel grades included in ASTM A234. On a practical buying level, selecting A234 WPB offers a project a specific material foundation as opposed to just asking for a generic “carbon steel elbow.

This is a significant difference since an elbow is a pressure-retaining part. The buyer must know not only that the component is composed of carbon steel, but also that the material and production requirements are in line with the planned use.

The new ASTM A234/A234M specification also states clearly that fittings are related to dimensional standards such as ASME B16.9 and other relevant fitting standards. This provides a suitable foundation for addressing material and dimensional requirements in conjunction.

Temperature and Allowable Stress Should Be Considered Together

One of the major revisions from the original text is that ASTM A234 WPB should not be described as having strength that is substantially constant at a specific high temperature.

The allowed stress utilised for pipe design varies with increasing temperature. A234 WPB, a carbon steel forging and fitting commonly used for Carbon steel elbows, is included in ASME B31.3, and design parameters are provided as a function of temperature. The material table states that the maximum temperature for this material entry is 593 °C, and the permissible stress reduces as the temperature rises.

This is an illustration of a more general engineering concept that temperature capacity is not a single value independent of pressure and design code requirements.

For instance, an operating point that is OK at a medium pressure could be satisfactory for a temperature condition which would not be acceptable at a much higher pressure. The wall thickness, the fitting geometry, the quality of the fabrication and the governing code all have a bearing on the ultimate design selection.

For purchasers, this implies that a request for “high temperature carbon steel elbows” should preferably include the design temperature, design pressure, nominal size, schedule or wall thickness, material specification, dimensional standard and any inspection requirements. Providing these data helps the producer to offer the right product, rather than general material advice.

Manufacturing and Welding Matter in High-Temperature Piping

Forming Quality Influences Fitting Performance

The performance of Carbon steel elbows depends not only on the steel grade but also on how the fitting is manufactured. Elbows are formed to change the direction of the pipeline while maintaining the required dimensional relationship with the connected pipe.

ASTM A234 includes requirements related to forming and cooling, with the objective of avoiding harmful imperfections caused by inappropriate processing. The specification also includes testing requirements such as tension, hardness, and hydrostatic testing.

For high-temperature service, dimensional consistency is especially important because the elbow has to connect correctly with adjacent pipe and withstand the loads generated during operation. Poor forming, excessive thinning, surface defects, or dimensional deviations can create problems during installation and service.

This is why procurement should focus on both the material certificate and the manufacturing standard. A carbon steel elbow with the correct nominal grade still needs to meet the required dimensional and quality requirements for the project.

Weldability Supports Practical Installation

Carbon steel is also widely used because it can generally be fabricated and welded using established industrial processes. This is particularly useful for large piping projects where elbows need to be integrated into welded pipe systems.

However, good weldability does not mean that welding can be performed without procedure control. Welding procedure qualification, filler-metal selection, preheating where required, interpass temperature control, post-weld heat treatment where applicable, and inspection requirements should follow the applicable code and project specification.

For high-temperature pipelines, the quality of the weld can be just as important as the nominal material grade. When using Carbon steel elbows, a fitting and pipe may both meet their respective material specifications, but the completed joint still needs to satisfy the project's welding and inspection requirements.

This makes manufacturing documentation an important part of supplier evaluation. Depending on the project, buyers may request material test certificates, dimensional inspection records, heat-treatment information, hydrostatic test results, and non-destructive examination records.

Why Carbon Steel Remains Economically Practical

Material Availability Helps Control Project Costs

One reason carbon steel continues to be widely used in industrial piping is its availability. Compared with many higher-alloy materials, carbon steel is commonly produced, processed, stocked, welded, and machined across global supply chains.

This can simplify procurement for projects requiring large quantities of elbows and other fittings. Standardized dimensions and commonly specified grades can also make replacement and maintenance more straightforward.

Cost, however, should not be evaluated only through the purchase price of the elbow. A fitting that is inexpensive but unsuitable for the design temperature or process environment can create much greater costs during installation or operation. The more useful approach is to compare the complete lifecycle requirements, including material compatibility, inspection, installation, maintenance, and expected service conditions.

Standardized Dimensions Simplify Integration

Industrial piping projects often use standardized fittings so that components from different stages of procurement can be integrated into the same system. Carbon steel elbows manufactured to recognized dimensional standards can simplify this process.

ASME B16.9 is one of the standards referenced by ASTM A234 for wrought fittings, providing an established dimensional framework for butt-welding fittings. ASTM A234 and the applicable dimensional and piping codes therefore work together rather than serving as interchangeable standards.

For a purchaser, this distinction is useful. ASTM A234 answers important questions about the material and fitting requirements, while the applicable ASME dimensional and piping standards address other aspects of the component and system design.

When requesting quotations, providing the exact standard designation can reduce ambiguity and make it easier to compare offers from different manufacturers.

Conclusion

Carbon steel elbows can be a practical choice for many high-temperature industrial pipelines because they combine established mechanical performance, availability, manufacturability, and relatively competitive material costs. ASTM A234 specifically covers wrought carbon steel and alloy steel fittings for moderate and elevated-temperature service, making it an important specification when selecting pressure piping fittings.

At the same time, their suitability should not be reduced to a single maximum-temperature claim. The strength and allowable stress of carbon steel change with temperature, and the final selection must consider pressure, thermal expansion, fluid characteristics, wall thickness, fabrication, welding, and the requirements of the applicable piping code. ASME B31.3 data, for example, shows that the allowable stress for A234 WPB decreases as metal temperature rises.

When these factors are properly matched, Carbon steel elbows can provide a dependable and economical solution for a wide range of industrial piping systems. The strongest purchasing decision is therefore not simply to choose carbon steel because the pipeline is hot, but to select the correct grade, dimensions, manufacturing requirements, and inspection level for the actual service conditions.

For more information on our high-quality carbon steel elbows and other piping components, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the maximum temperature that carbon steel elbows can withstand?

Carbon steel elbows can typically withstand temperatures up to 1000°F (538°C) without significant loss of strength or dimensional stability.

2. Are carbon steel elbows corrosion-resistant at high temperatures?

Yes, at elevated temperatures, carbon steel forms a protective oxide layer that helps inhibit corrosion, making it suitable for many high-temperature corrosive environments.

3. What is ASTM A234 WPB, and why is it important for high-temperature applications?

ASTM A234 WPB is a specification for carbon steel fittings that maintains high strength and performance at elevated temperatures, making it ideal for high-temperature piping systems.

4. How do carbon steel elbows compare to other materials in terms of cost?

Carbon steel elbows are generally more cost-effective than exotic alloys or specialized materials, offering a good balance of performance and affordability for high-temperature applications.
